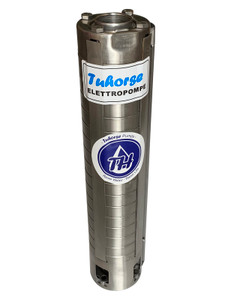

Pump end only. Full Stainless Steel. Requires appropriate horse power motor and corresponding control box( if necessary) for operation.
This Tuhorse Pump-End is Adaptable (compatible) to those major brand motors with same HP rating or larger, Such as Franklin Electric, Pentair, Goulds 4" Submersible Motor for Deep Well Pump. NEMA standartd.
Please note: This model is for FREE FLOW or LOW PRESSURE applications.
- HP: Requires 3HP
- Voltage: N/A
- Cycle: N/A
- Operating Amperage: N/A
- Motor RPM: 3450 RPM
- Stages: 4
- Maximum Flow (0 - 30ft): 100GPM
- Maximum Head (cut off head): 138ft
- Typical Flow: 93GPM @ 50 ft; 80GPM @ 75 ft; 66GPM @ 95ft; 40GPM @ 115 ft.
- Suction Port: Center Suction
- Discharge Port: 2 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel 304
- Impeller Material: Stainless Steel 304
- Motor Enclosure: n/a
- Duty: n/a
- Control Box: n/a
- Net Weight: 7 lbs
- Shipping Weight: 12 lbs
- Dimensions/Length: 12.5"(length) x 3.75(widest diameter)
- Shipping dimensions: Vary
