Please note: This model is for FREE FLOW or LOW PRESSURE applications.

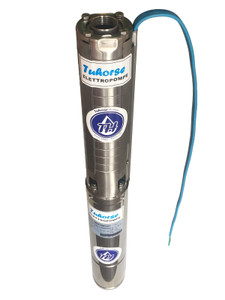

Stainless steel pump.
80GPM rated, 100GPM Max.
Complete pump end, and motor. Complete Instructions.
- HP: 3HP
- Voltage: 460V Three Phase
- Cycle: 60 Hz
- Operating Amperage: 4.6 A
- Motor RPM: 3450 RPM
- Stages: 4
- Maximum Head(cut off): 138 ft
- Maximum Flow (0 - 30ft.): 100 GPM
- Free Flow Rates: 93GPM @ 50ft; 80GPM @ 75ft; 66GPM @ 95ft; 40GPM @ 115ft.
- Suction Port: Center Suction
- Discharge Port: 2 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel, Grade 304
- Impeller Material: Stainless Steel, Grade 304
- Motor Enclosure: Stainless steel, Grade 304
- Motor Top Material: Brass
- Duty: Continuous or up to 30 restarting cycles / hour
- Control Box: optional
- Weight: 46.6 lbs
- Dimensions/Length: 40"
*Control panel sold separately
Note: We recommend you to use our TDH calculator in selecting a pump for your application
