3HP TS4-045-08 460V 3-Phase S.S. Complete pump-end, motor, control box pro set (TS404508T460)
Sale

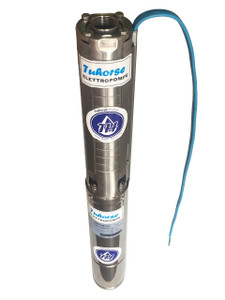

3HP TS4-045-08 460V 3-Phase S.S. Complete pump-end and motor

Tuhorse
SKU:
TS404508T460
US$1,199.00 US$635.00
(No reviews yet)
Weight:
43.00 LBS
Current Stock:
Description

Stainless steel pump.

45GPM rated, 60GPM Max.

Complete pump end and motor. Complete Instructions.

  • HP: 3HP
  • Voltage: 460V Three Phase
  • Cycle: 60 Hz
  • Operating Amperage: 5.4 A
  • Motor RPM: 3450 RPM
  • Stages: 8
  • Maximum Head(cut off): 260 ft.
  • Maximum Flow (0 - 30ft.): 60 GPM
  • Free Flow Rates: 60GPM @ 80ft; 50GPM @ 145ft; 40GPM @ 180ft; 30GPM @ 210ft; 20GPM @ 230ft; 10GPM @ 240ft; 5GPM @ 250ft
  • Suction Port: Center Suction
  • Discharge Port: 2 in
  • Built-in Check-valve: Yes
  • Housing Material: Stainless Steel, Grade 304
  • Impeller Material: Stainless Steel, Grade 304
  • Motor Enclosure: Stainless steel, Grade 304
  • Duty: Continuous or up to 20 restarting cycles / hour
  • Control Box: Optional
  • Net Weight: 44.5Lb
  • Shipping Weight: 43Lb
  • Dimensions/Length: 33.5" x 3-3/4"
  • Shipping Dimensions: 26" x 11" x 7"

Note: We recommend you to use our TDH calculator in selecting a pump for your application

Warranty
1 Year
