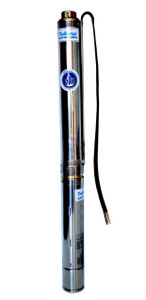

5.5HP TH4-070-12 460V 3Ph. Pump-end and Motor

SKU:
TH407012T460
US$765.00
US$1,380.00
(You save US$615.00 )
(No reviews yet) Write a Review
Weight:
66.00 LBS
Width:
44.50 (in)
Height:
11.00 (in)
Depth:
7.50 (in)
Condition:
New
Current Stock:

Expected release date is 30th Sep 2022

Complete pump end and motor set. Control box (control panel) is not mandatory, but a three phase power switch with overload protection is required. Complete Instructions.

Note: This is a high flow but low head pump in our 5.5HP product line. Please calculate the TDH in your application to ensure it fit your application or contact us for help.

  • HP: 5.5HP
  • Voltage: 460V Three Phase
  • Cycle: 60 Hz
  • Operating Amperage: 8.6 A
  • Motor RPM: 3450 RPM
  • Stages: 12
  • Maximum Flow: 90GPM
  • Maximum Head: 300ft
  • Typical Flow: 90GPM @ 110ft; 80GPM @ 150ft; 66GPM @ 193ft; 53 GPM @ 223ft; 40GPM @ 250ft
  • Suction Port: Center Suction
  • Discharge Port: 2 in
  • Built-in Check-valve: Yes
  • Housing Material: Stainless Steel
  • Impeller Material: Thermal Plastic
  • Motor Enclosure: Stainless steel
  • Duty: Continuous or up to 30 restarting cycles / hour
  • Control Box: Three phase power switch with overload protection is required.
  • Weight: 65 lbs
  • Dimensions/Length: 65"



Minimum requirement for operating the motor is a non-fused 3-phase power switch and a 3-phase overload protector / Circuit breaker. The protector / breaker must be the type of those that shut off all 3-phase when one or more phase is overloaded. Do NOT use a fused switch that could burn out one of the phase. Do NOT use three individual 1-Phase breakers. You must use a real 3-phase protector / breaker or a protection device that does not cause missing phase problem.

1 Year
