27GPM, 320 foot max(cut off) head

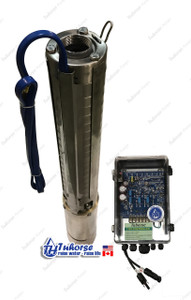

1500 Watts Stainless Steel Impellers Deep Well Pump and Control Box (4THS27C150V1500)

This solar pump is suitable for up to 260 feet head (TDH)

Package includes:

4" 1500 Watts(2HP) 3-phase brushless solar motor
 - Power Input: Solar DC 90 to 240V or AC 110V to 240V 50/60Hz
4" TS402710e 10-stages stainless steel impellers pump-end
Automatic control box, works with solar panel DC or 120/240VAC power, soft start
2 x water level sensor for setting up automatic pumping
2 x 10 ft. MC4 cable w/ M-F connectors, for connecting solar panel to control box
Heat shrink splice kit for watertight connection
Installation guide
1 year warranty (return to BC Canada*)

Performance using 6 x 350W Solar panels(not included in the package)

4THS27C150V1500 Solar Water Pump Specifications:

Fit 4" inside diameter and larger well
1500W / 2HP, 150V-DC nominal operating power or AC 110 to 240V
1.5" NPTF discharge (outlet)
27GPM rated, 30GPM Max.
10 Stages stainless steel impellers design
Pump Diameter, length: 3.9" x 34.5" (95mm x 880mm)
Pump Net weight: 33Lb (15kg), excluding control box
Package Weight: 60Lb / 27kg, including control box
Soft start, DC solar power/AC power converted to 3-phase to power the pump motor
Maximum submersion - 150 feet

Auto control box specifications:

Optimize pumping efficiency with MPPT according to sunlight condition and solar panel used
Fully automatic pumping mode using water level sensor(s)
Bypass sensors for application that does not require water level monitoring
Low power protection, overload protection
Dry run protection in automatic mode
Maximum input withstand Voc = 420V (solar panel array open circuit voltage)
Maximum input current 13 amps
