2HP Two-Stage Sprinkler/Garden Pump (65psi, 32 GPM max)

Retail Price:
US$229.00 (You save US$140.00)
51.00 LBS
Calculated at checkout

Product Description

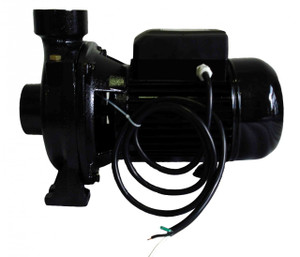

2HP Two-Stage Sprinkler/Garden Pump (65psi, 32 GPM max)


Tuhorse's TH2C47-160 above-ground centrifugal water pumps provide excellent pressure and flow to suit a broad range sprinkler and watering needs.
Solid cast iron construction and 2-stage brass impellers powered by a 2HP motor makes the TH2C47-160 a versatile and powerful water pump.


  • Model: TH2C47-160
  • HP: 2HP
  • Voltage: 230V
  • Cycle: 60 Hz
  • Operating Amperage: 8.6A
  • Motor RPM: 3450 RPM
  • Stages: 2 (2 impellers)
  • Maximum Flow: 32 GPM
  • Maximum Head: 151 ft
  • Maximum Suction: 25 ft
  • Typical Flow:
  • Suction Port: 1.5 inch NPT
  • Discharge Port: 1 inch NPT
  • Built-in Check-valve: n/a
  • Housing Material: Cast Iron
  • Impeller Material: brass
  • Motor Enclosure: TEFC (Totally Enclosed, Fan Cooled)
  • Duty: Continuous duty
  • Weight: 51lbs
  • Dimensions/LxWxH: 16"x9"x11.5" (40cm x 23cm x 29cm)
  • Shipping Dimensions: 17"x10"x12"  (43cm x 25cm x 30cm)


Warranty Information

1 Year warranty

Find Similar Products by Category

Write your own product review

Product Reviews

  1. Inexpensive, easy to set up, quiet 5 Star Review

    Posted by on 23rd Sep 2017

    This pump replaces an older Grundfos pump which was noisier and did not perform nearly as well. The pressure and volume this pump makes are excellent. Very pleased with this purchase. Although it was not intended for use with a pressure tank, this pump is in a setup where the same water system feeds a small apartment and irrigation system with a dozen large zones. The water source is at the same level as the pump.

  2. Great Sprinkler System Pump 5 Star Review

    Posted by on 28th Jul 2017

    This is my second Tuhorse pump--application is a multizone, lake draw, sprinkling system. The originsl pump I purchased in 2015 was working perfectly, but a problem, not related to the Tuhorse pump, caused it to be totally flooded and immersed in water. Although the pump ran after drying it out, it was obvious that one or both bearings were damaged. I ordered a replacement pump and it is now installed and working perfectly. (I am now rebuilding the original pump to keep as a spare--thanks to Tuhorse for designing the pump to use standard, readily available, bearings.)
    I believe this pump is a great value for the money.
    I have also found Tuhorse USA to be very responsive with rapid shipping and answers to customer inquiries.

  3. Looks like excellent value/great performance so far 5 Star Review

    Posted by on 17th Aug 2015

    This pump is installed and thus far working perfectly. Application is a 9 zone lake draw irrigation system using a timer controlled pump start relay. The pump appears to be excellent quality--I hope it proves to be reliable in the long run. So far this pump is an excellent value and I'm considering purchasing another for a backup/spare.

  4. Looks good 4 Star Review

    Posted by on 7th Sep 2014

    This pumps is of good quality with excellent shipping and packing. I install and use pumps daily and this pump works great. It has enough GPM with enough PSI and this is hard to find they usually either have too much GPM and not enough PSI or the other way around. Cant judge longevity haven't had it in very long but expect a long life by the quality.
