submersible pump outlet (1inch diameter)
Sale

3" 3/4 HP TH3-010-14, pump-end only

Tuhorse
SKU:
TH301014e
US$269.00 US$169.00
(No reviews yet)
Weight:
9.00 LBS
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

Pump end only. Requires appropriate horse power 3" motor and corresponding control box for operation.



Model: TH3-010-14e

  • Fit 3-1/4 inch and larger ID well
  • HP: requires 3/4HP motor
  • Voltage: n/a
  • Cycle: 60 Hz
  • Operating Amperage: n/a
  • Motor RPM: 3450 RPM
  • Stages: 14
  • Rated Flow: 10 GPM
  • Maximum Flow: 14 GPM
  • Maximum Head: 220 ft
  • Typical Flow: 13.2GPM @ 105ft; 10.6GPM @ 141ft; 7.9GPM @ 167ft; 5GPM @ 190ft
  • Suction Port: Center Suction

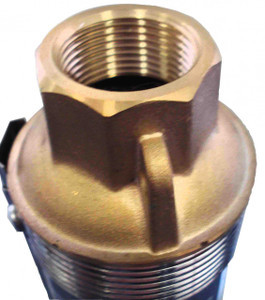

  • Discharge Port: 1 inch NPT
  • Built-in Check-valve: Yes, but an external check valve is required in water tight system
  • Housing Material: Stainless Steel 304
  • Impeller Material: Thermal Plastic
  • Motor Enclosure: n/a
  • Motor lead: n/a
  • Duty: Continuous or up to 30 restarting cycles / hour
  • Control Box: sold separately
  • Weight: 9 lbs
  • Packing weight with control box: 9lbs
  • Dimensions/Length:



Warranty
1 Year
