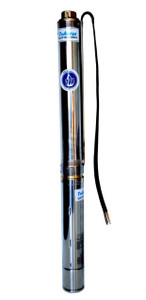

2HP TH4-015-12 230V 1-Phase. Complete pump-end, motor, control box pro set

US$849.00 US$459.00
(6 reviews)
46.20 LBS
38.60 (in)
11.00 (in)
7.50 (in)
Current Stock:
Adding to cart… The item has been added

Complete pump end, motor, and dual capacitor control box set. Complete Instructions.


  • HP: 2HP
  • Voltage: 230V Single Phase
  • Cycle: 60 Hz
  • Operating Amperage: 9.6 A
  • Motor RPM: 3450 RPM
  • Stages: 12
  • Maximum Head(cut off): 459 ft
  • Rated Flow: 15GPM
  • Maximum Flow(0-120 feet): 22 GPM
  • Free Flow Rate: 20GPM @ 180ft; 18GPM @ 240ft; 15GPM @ 318ft; 10GPM @ 410ft; 8GPM @ 433ft
  • Suction Port: Center Suction
  • Discharge Port: 1.25 in
  • Built-in Check-valve: Yes
  • Housing Material: Stainless Steel
  • Impeller Material: Thermal Plastic
  • Motor Enclosure: Stainless steel
  • Duty: Continuous or up to 30 restarting cycles / hour
  • Control Box: Dual capacitor motor start box included
  • Weight: 46.2 lbs
  • Dimensions/Length: 38.75"


This TH4-015-12 is formerly our TH4-A-12. The pump curve remains the same because they are the same pump. We are in the process changing the model name to reflect the flow rate. 015 stands for 15GPM. The new model numbers help our customers to choose a suitable pump easier.

1 Year


  • 4
    quality pump

    Posted by Unknown on 20th Jan 2015

    The pump and motor appear to be very high quality products featuring a brass, not plastic, pipe fitting and stainless steel construction. I haven't had this pump in for very long but it appears to work well.

  • 4
    So far so good. Great support.

    Posted by handym on 5th Sep 2014

    I ordered this pump due to a failure of a Sears (Franklin manufactured) submersible pump which had lasted 15 years. The Tuhorse pump was delivered to my home two days after purchase. The controller box had a faulty/failed start capacitor which was delivered free of charge and very easily replaced . (The sale price of < $600 including 2 day shipping for a 2HP unit was a big factor in my decision to buy from Tuhorse. The same pump model is sold for ~$1200 by Sears.) Pump was self-installed at ~ 275 feet and is supplying water at specified rate of about 16GPM. The technician was very helpful and thorough with support.

  • 5
    No better pump available

    Posted by John Junell on 3rd Aug 2014

    The help on line is the best. Fast ship (: Reuben can be trusted to know their products.

  • 5

    Posted by RONALD ALEXANDER GUZMAN VIPSAL 3296TX0SV on 15th Nov 2013


  • 5
    TuHorse Pump Works Great!!

    Posted by Maryhellen on 13th Aug 2013

    We were very pleased to find Tuhorse! Everyone around our area wanted so much more for the pump and we found Tuhorse to be a life saver. Reuben was wonderful. He was patient, walked us through every step, calculated everything for us! Such a knowledgeable and caring person. We are so very grateful to Reuben and Tuhorse!

  • 5
    TuHorse Pump Works Great!

    Posted by Liz on 12th Jul 2012

    I was very pleased with the quality of the service and pump that we received from TuHorse. Reuben was very helpful in walking me through the calculator to determine the correct pump for the job and even called back to give me more information to make sure I got the right pump. It was shipped immediately and we were able to get it installed within a couple of days of receiving it. It is working really well! I am very happy with TuHorse.
