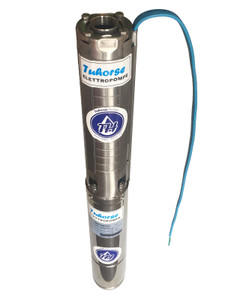

2HP TS4-027-10 230V 3-Phase. S.S. Complete pump-end and motor set

SKU:
TS402710T230
US$490.00
US$1,199.00
(You save US$709.00 )
(No reviews yet) Write a Review
Weight:
41.00 LBS
Width:
32.00 (in)
Height:
11.00 (in)
Depth:
7.50 (in)
Condition:
New
Current Stock:

27 GPM rated, 33 GPM Max.

Complete pump end and motor. Complete Instructions.

  • HP: 2HP
  • Voltage: 230V 3-phase
  • Cycle: 60 Hz
  • Operating Amperage: 6.3 A
  • Motor RPM: 3450 RPM
  • Stages: 10
  • Maximum Head(cut off): 320 ft.
  • Rated Flow: 27GPM
  • Maximum Flow(0-100ft): 33 GPM
  • Open Flow vs Depth: 30GPM @ 175ft; 25GPM @ 205ft; 20GPM @ 240ft; 15GPM @ 260ft;
  • Suction Port: Center Suction
  • Discharge Port: 1.5 in
  • Built-in Check-valve: Yes, Stainless Steel 304
  • Pump Housing Material: Stainless Steel 304
  • Discharge and Suction Port Material:  Stainless Steel 304
  • Impeller Material: Stainless Steel 304
  • Motor Housing: Stainless Steel 304
  • Motor Top: Stainless steel 304
  • Motor Bearing / Lubrication: Ball bearing, oil filled lubrication
  • Motor lead: 4 wires (3 wire + 1 ground)
  • Duty: Continuous or up to 30 restarting cycles / hour
  • Control Box: Dual capacitor motor start box included
  • Shipping Weight: 41 lbs
  • Package Dimensions/Length: 35"
1 Year
