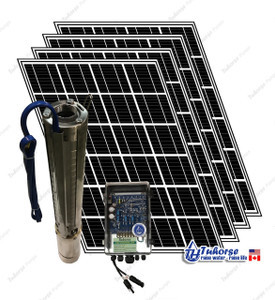

4" 2200W (3HP) 75GPM (075-04) Solar Submersible Deep Well Pump, 3200W Solar Panel, 120 feet Cable Complete Kit

75GPM, 130ft Max(cut off) TDH, for open flow applications

2200 Watts (3HP) Stainless Steel Impellers Deep Well Pump and Control Box (4THS75C220V2200P8)

This solar pump is suitable for up to 120 feet head (TDH). If TDH is over 120 feet, use our 3HP 45GPM model.

   Package includes:

8 x 400 Watts mono crystalline A-grade solar panel
4" 2200 Watts (3HP), stainless steel impeller pump-end
120 feet 12/3 submersible pump cable
Solar motor -- permanent magnetic, brushless, 3-phase
75GPM Rated S.S. Pump-end(wet-end)
Automatic control box -- 3-phase output, DC or AC single phase input
2 x water level sensor for setting up automatic pumping
2 x 10 ft. MC4 cable w/ M-F connectors, for connecting solar panel to control box
Heat shrink splice kits for watertight connection(1 for under water, 1 for ground level)
Installation guide
2-year warranty

   Performance using 8 x 400W Solar panels

   4THS75C220V2200 Solar Water Pump Specifications:

Fit 4" inside diameter and larger well
2200W / 3HP, 220V-DC nominal operating power or AC 110 to 240V
2" NPTF discharge (outlet)
75GPM rated, 90GPM Max.
4 Stages stainless steel impellers design
Pump Diameter, length: 4" x 37" (95mm x 920mm)
Pump Net weight: 34Lb (15.5kg), excluding control box
Package Weight: 65Lb / 29kg, including control box
Soft start, DC solar power/AC power converted to 3-phase to power the pump motor
Permanent magnetic motor rotor, brushless
Maximum submersion - 200 feet

Auto control box specifications:

Optimize pumping efficiency with MPPT according to sunlight condition and solar panel used
Fully automatic pumping mode using water level sensor(s)
Bypass sensors for application that does not require water level monitoring
Low power protection, overload protection
Dry run protection in automatic mode
Maximum solar input withstand Voc = 400V (solar panel array open circuit voltage)
Maximum AC input 240V
Maximum input current 12.5 amps
