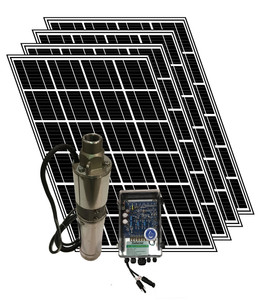

500 Watts Pump and 3x 100W PV Panel Complete Kit (3THS04S48V500K3P)
300 Watts (3 x 100W) mono crystalline A-grade solar panel
3" 500 Watts 36V-48V, stainless steel solar pump and motor
100 feet 12/2 AWG submersible cable
Automatic control box
2 set of water level sensor for setting up your automatic pumping system
2 x 6 ft. MC4 cable with M-F connectors, for connecting solar panel to control box
Heat shrink kit for watertight connection
Installation guide
2 year warranty (return to BC Canada*)
If you need longer than 100 ft wire, you can order the additional wire, we will cut one continuous wire for you. For example, if you need 150 ft of wire, order an additional 50 ft, and we will provide you with 150 ft of continuous wire.
| Daily production based on 6 hours peak sun | ||
| Head (ft.) | Gallon / min | Gallon / day |
| 150 ft. | 1.8 Gal | 650 Gal |
| 120 ft. | 2.8 Gal | 1000 Gal |
| 90 ft. | 3.9 Gal | 1400 Gal |
| 60 ft. | 4.5 Gal | 1620 Gal |
| 30 ft. | 5.5 Gal | 1980 Gal |
3THS04S48V500 Solar Water Pump Specifications:
Fit 3-1/2" inside diameter and larger wells (does not fit 3" ID)
Brushless motor, permanent magnetic motor rotor
Helical rotor design for high head, high pressure
500W, 48V-DC nominal operating power
3/4" NPTF discharge (outlet)
4GPM rated, 6.6GPM Max.
Pump Diameter, length: 3" x 16" (76mm x 410mm)
Pump Net weight: 12Lb (5.5kg), excluding control box
Package Weight: varies with solar panel configuration in package.
Soft start, DC solar power is converted to 3-phase power to the pump motor
Maximum submersion - 150 feet
Auto control box specifications:
Optimize pumping efficiency with MPPT according to sunlight condition and
solar panel used
Fully automatic pumping mode using water level sensor(s)
Bypass sensors for application that does not require water level monitoring
Adjustable motor speed to accommodate low-yield-well and to protect motor from over powered
Adjustable timer adding delay time for low-yield-well to recover in automatic mode
Low power protection
Dry run protection in automatic mode
Maximum input withstand Voc = 100V (solar panel open circuit voltage)
Maximum input current 10 amps
Important shipping note for solar panels:
Important shipping note for solar panels:
Because our solar panel(s) are shipped from a third party distributor in the USA/Canada, please do not choose 1 or 2 day services even the options are displayed during check out. Only 3-Day and Ground services are available. We ship to Canada and 48 US continental States. For Alaska, Hawaii and Puerto Rico customers please buy solar pump packages without Solar Panel as we do not have over size shipping options available for those locations.
