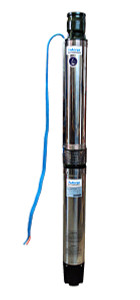

20HP TH6-110-11, 460V 3-Phase Pump-end and Motor

(You save US$1,291.00 )
(No reviews yet)
196.00 LBS
Current Stock:
Adding to cart… The item has been added

Substitute a full stainless steel motor for this product. For vertical installation only.


Complete pump end and motor set. Control box (control panel) is not mandatory, but a three phase power switch with overload protection is required. Complete Instructions.

 Model: TH6-110-11

  • HP: 20HP
  • Voltage: 460V Three Phase
  • Cycle: 60 Hz
  • Operating Amperage: 25 A
  • Motor RPM: 3450 RPM
  • Stages: 11
  • Maximum Flow: 132 GPM
  • Maximum Head: 680 ft
  • Typical Flow: 130GPM @ 340ft; 120GPM @ 410ft; 100GPM @ 500 ft; 92GPM @ 550ft; 80GPM @ 600ft; 70GPM @ 640ft.
  • Suction Port: Center Suction
  • Discharge Port: 2.5 inch NPT Female
  • Built-in Check-valve: Yes
  • Pump Housing Material: Stainless Steel
  • Impeller Material: Thermal Plastic
  • Motor Enclosure: Stainless steel 304
  • Discharge and Suction Port Material:  cast iron
  • Motor Bearing / Lubrication:  Water lubricated thrust bearing, water filled lubrication
  • Duty: Continuous or up to 15 restarting cycles / hour
  • Control Box: Three phase power switch with overload protection is required.
  • Weight: 170 lbs
  • Dimensions/Length: N/A

 Minimum requirement for operating the motor is a non-fused 3-phase power switch and a 3-phase overload protector / Circuit breaker. The protector / breaker must be the type of those that shut off all 3-phase when one or more phase is overloaded. Do NOT use a fused switch that could burn out one of the phase. Do NOT use three individual 1-Phase breakers. You must use a real 3-phase protector / breaker or a protection device that does not cause phase loss problem.

Shipping information:

Due to the motor's weight is over the 150Lb limit set by regular courier services, this item will be delivered by TForce/UPS LTL Freight service. Subject to surcharge if buyer is (1) in rural area, (2)without a forklift truck or no person available to help unloading, (3) requires appointment, (4)Home delivery. Buyer can ask for delivering to your closest UPS Freight center for pick up to avoid the surcharges.

Please allow 2 days handling time. This item ship to 48 USA continental states and Canada only. Travelling time is 2-8 business days.

Two person lift is required for unloading if a forklift truck is unavailable.

1 Year
