Description
Complete pump end and motor set. Control box (control panel) is not mandatory, but a three phase power switch with overload protection is required.
- HP: 10HP
- Voltage: 230V Three Phase
- Cycle: 60 Hz
- Operating Amperage: 26.4A
- Motor RPM: 3450 RPM
- Stages: 3
- Maximum Head (cut off): 200 ft
- Rated Flow: 200GPM
- Maximum Flow( 0-100 ft.): 290 GPM

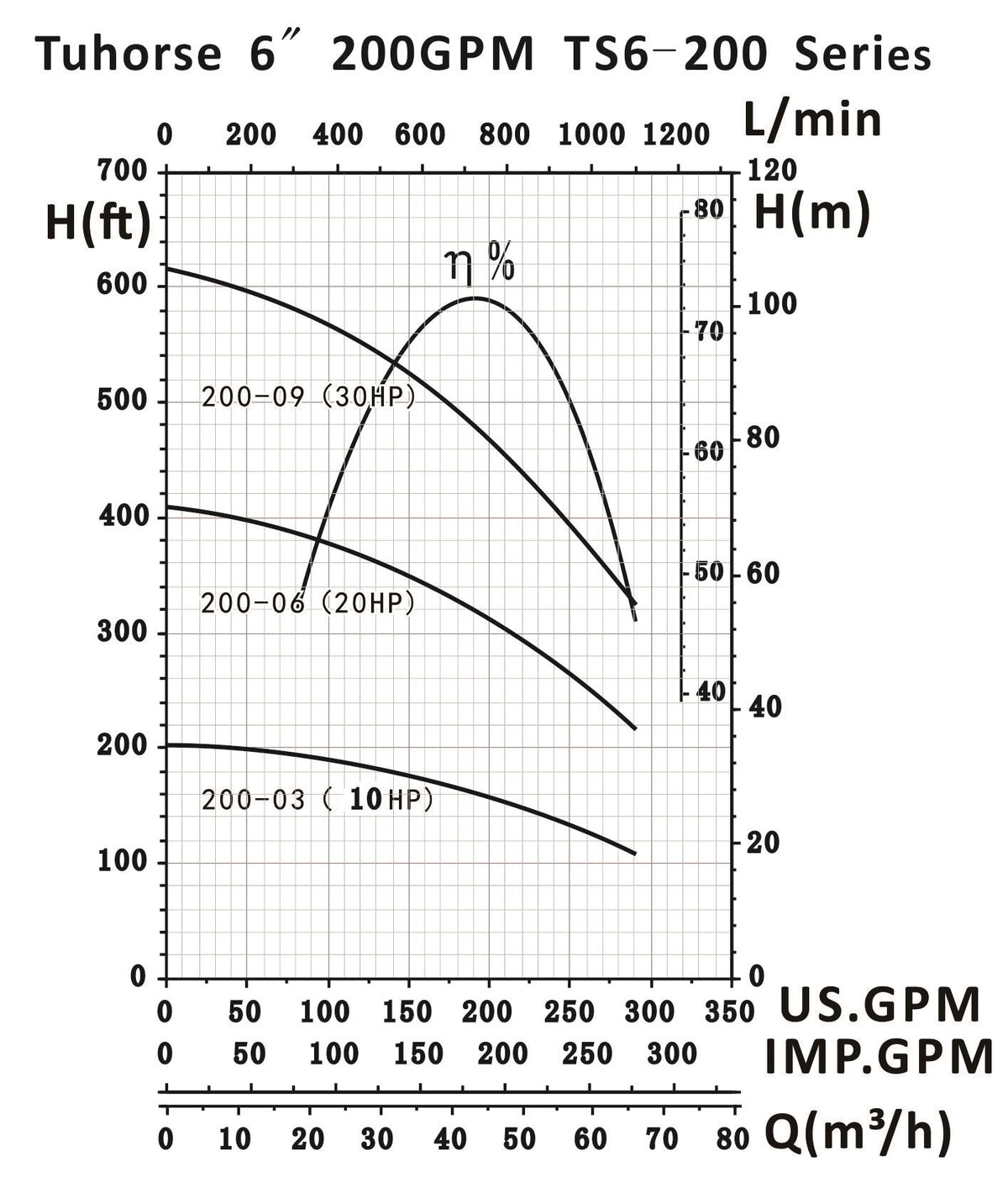

- Free Flow Rate: 250GPM @ 130ft; 230GPM @ 140ft; 200GPM @ 158ft; 150GPM @ 178ft; 100GPM @ 190 ft.
- Suction Port: Center Suction

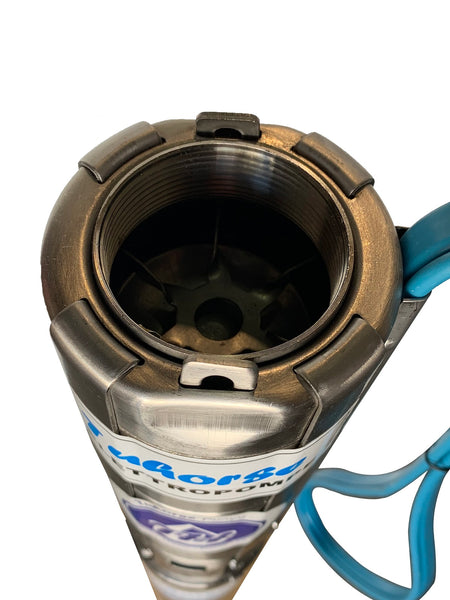

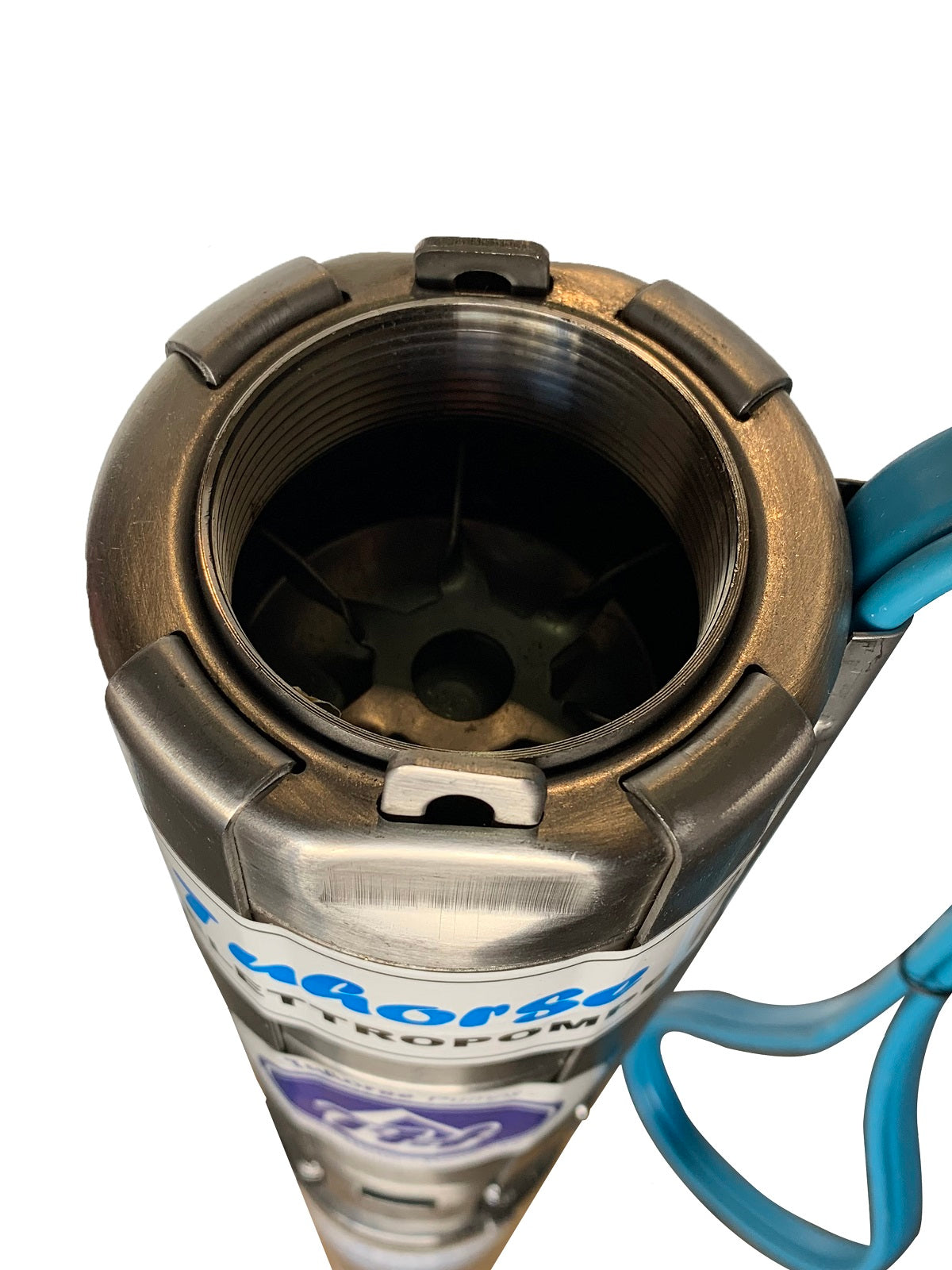

- Discharge Port: 4 inch NPT Female (4" to 3" NPT reducer sold separately if needed)
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel 304
- Impeller Material: stainless steel 304
- Motor Enclosure: Stainless steel 304
- Discharge and Suction Port Material: Stainless Steel 304
- Duty: Continuous or allow maximum 15 restarting cycles / hour
- Motor Bearing / Lubrication: Ball bearing, oil filled lubrication
- Control Box: Three phase power switch with overload protection is required(not included)
- Net Weight: 120 lbs
- Shipping weight: 129 Lbs
- Dimensions/Length(pump and motor assembly):
- Shipping Dimensions:
Recommended control panel (optional purchase) :https://www.tuhorse.us/submersible-pumps/6-inch-deep-well-pumps/10hp-control-panel-230v-3-phase-with-manual-automatic-water-level-control/
Minimum requirement for operating the motor is a non-fused 3-phase power switch and a 3-phase overload protector / Circuit breaker. The protector / breaker must be the type of those that shut off all 3-phase when one or more phase is overloaded. Do NOT use a fused switch that could burn out one of the phase. Do NOT use three individual 1-Phase breakers. You must use a real 3-phase protector / breaker or a protection device that does not cause phase loss (missing phase) problem.

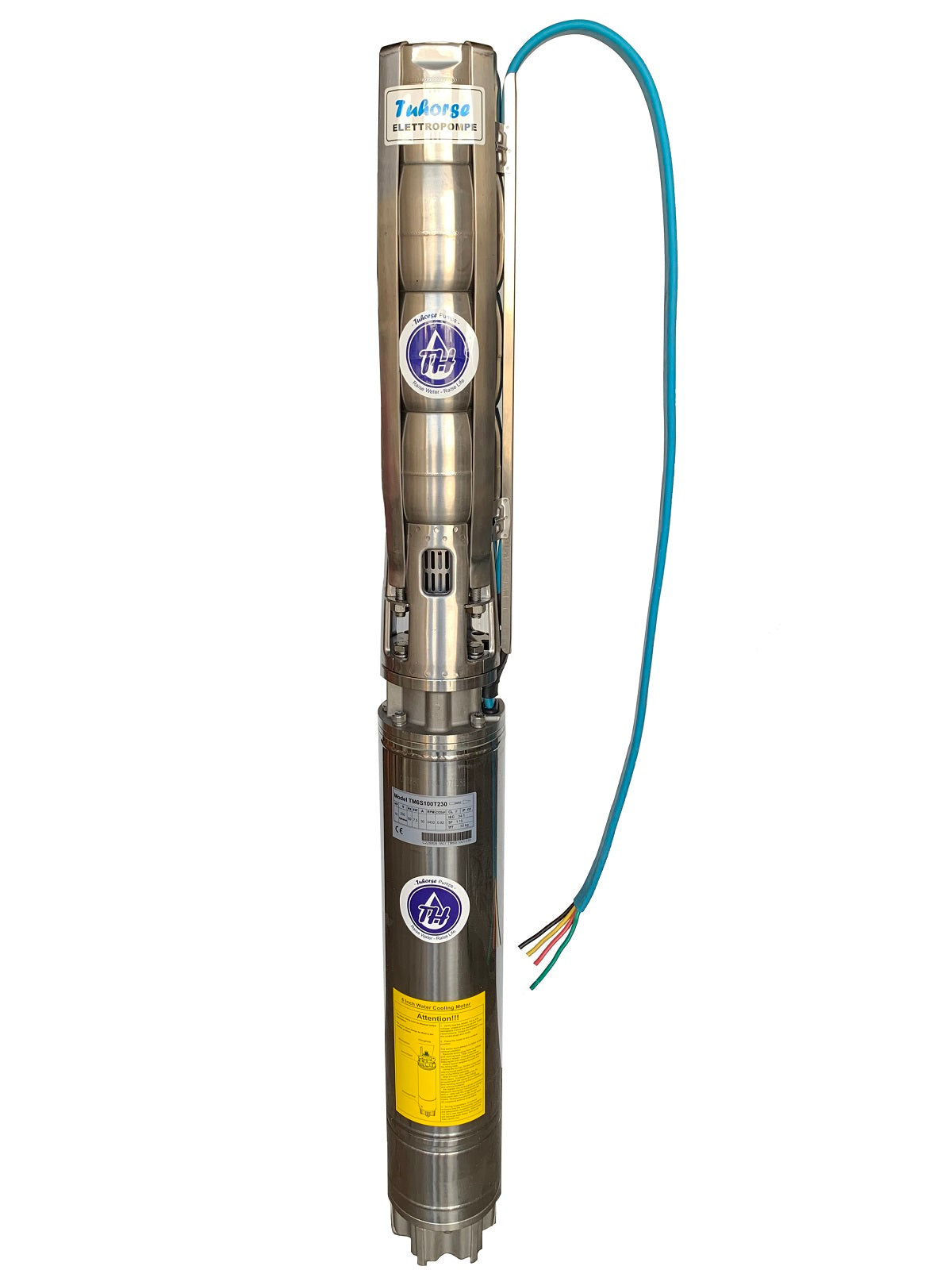

* Not exactly as shown in photos due to stages and HP vary from models. Photos are taken from one of the 10HP for illustrations only.
Warranty: 1 Year
