Description
For use with a submersible deep well water pump. Supports 10HP three phase water pumps running on 3-phase 230V. It is NOT an inverter.
Note: This unit does not work with 208V. User can purchase a 208V relay in the same order, we can configure the unit for using with 208V.
Features a full automatic mode with water level probes and manual mode.
Model: TCP100T230
- HP: 7.5HP - 10HP
- Voltage: 230V Three Phase input and output
- Cycle: 60 Hz
- Overload Protector: included, Maximum Amps adjustable
- Phase Loss protection: included
- Water level probes: included
- Micro Processor Control: yes
- Housing Material: Steel
- Knockout for wire: five 3/4"
- Net weight: 9.5kg (20Lb)
- Shipping Weight: 21 lbs

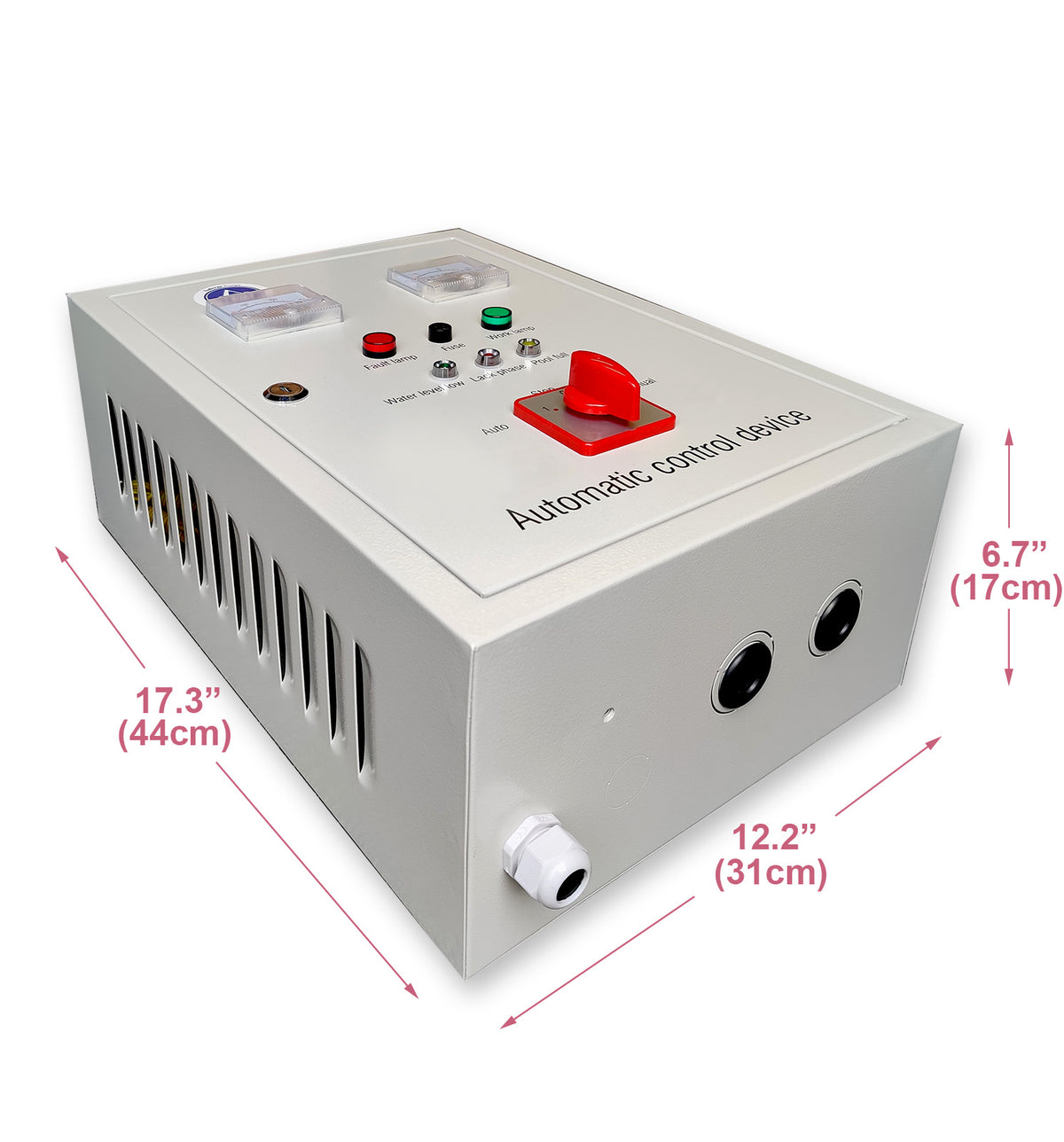

- Dimensions/Length: 17-1/2" x 12-1/4" x 7"
More details:
* Steel Casing w/ lock and keys
* Manual mode controlling the motor On/Off without using the probes
* Also can be used with non-water-pump motors in manual mode
* Automatic mode is for controlling water pumps only
* Automatically controlling the motor by the probes' signal according to the water level in the well or in the cistern, or by a pilot device if used.
* Connection Terminals accept up to #4 AWG wire
* 3 Phase magnet relay switch
* Built-in overload protection with fine turn
* Phase-Loss protection (Auto mode only)

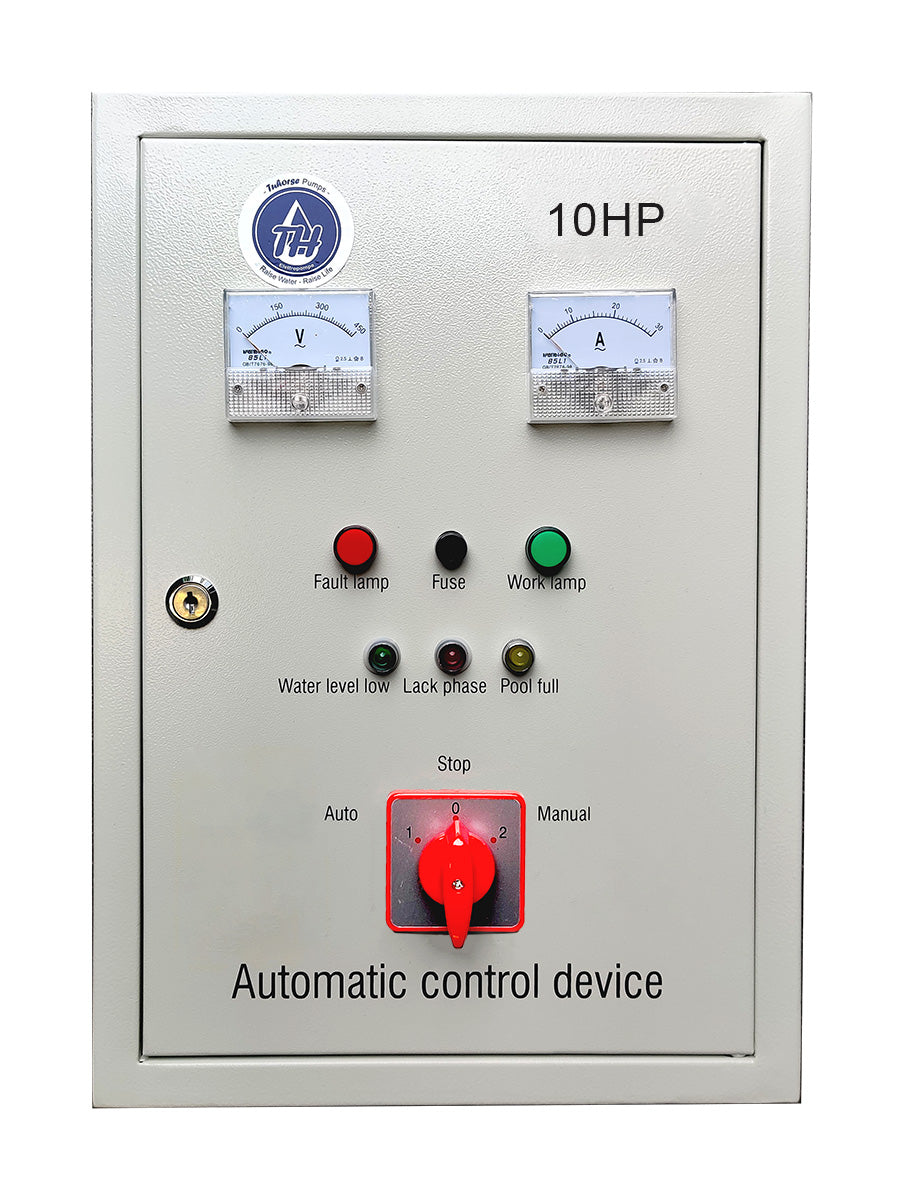

* Voltage, Amperage meters. Working status LED indicators
* For indoor and under cover mounting
Warranty: 1 Year
