Description

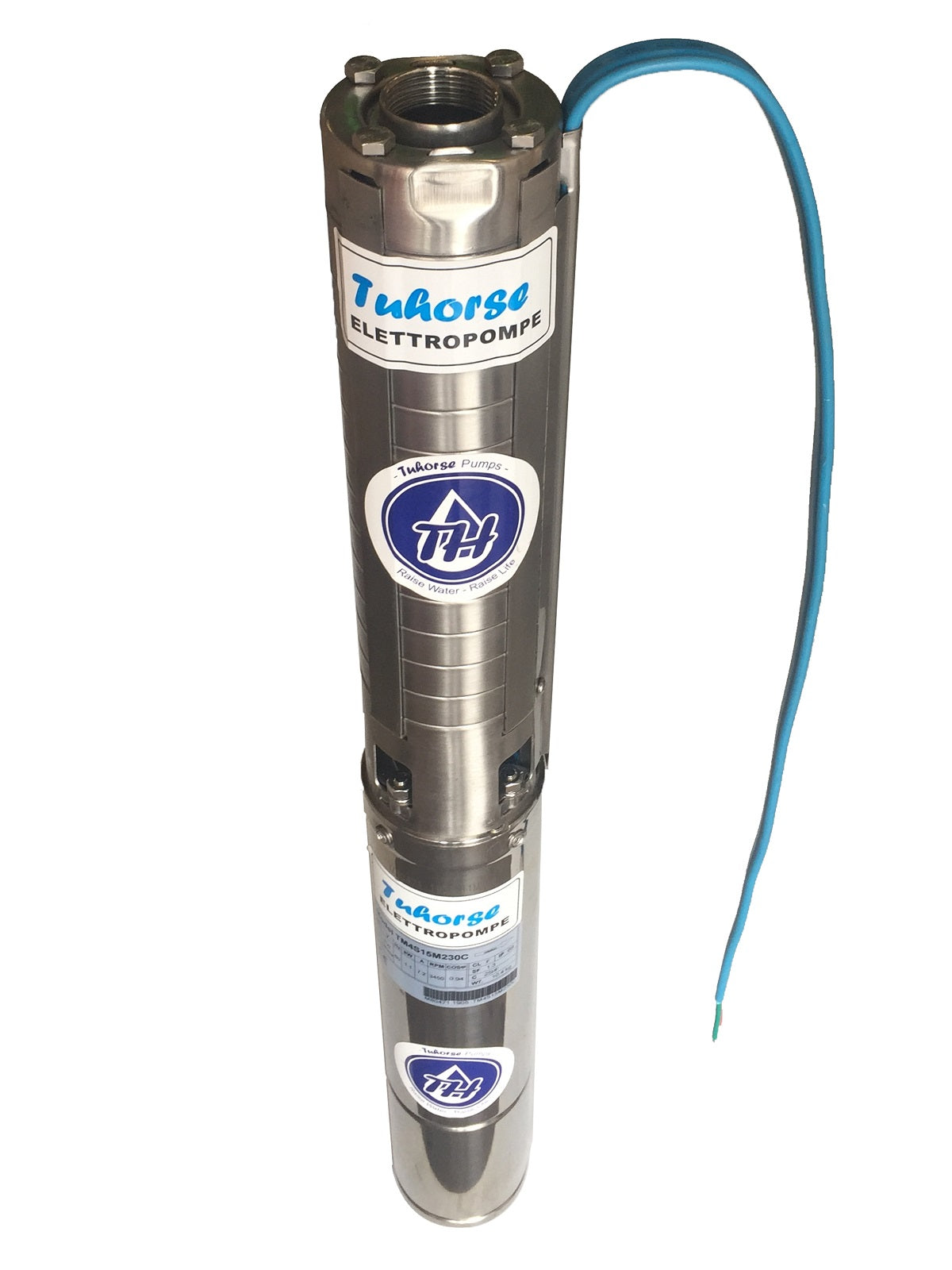

Stainless steel pump and motor with S.S. impellers
75GPM rated, 100GPM Max.

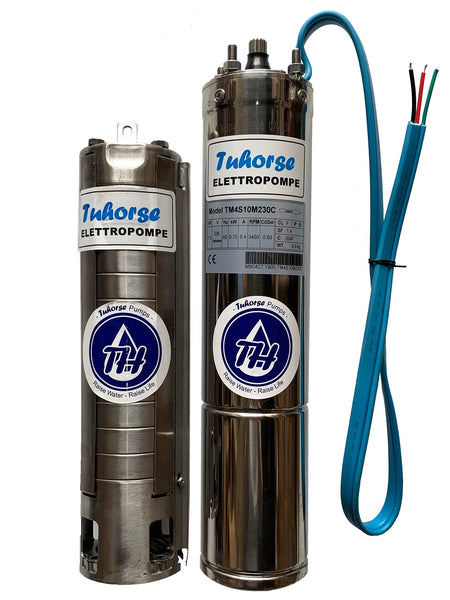

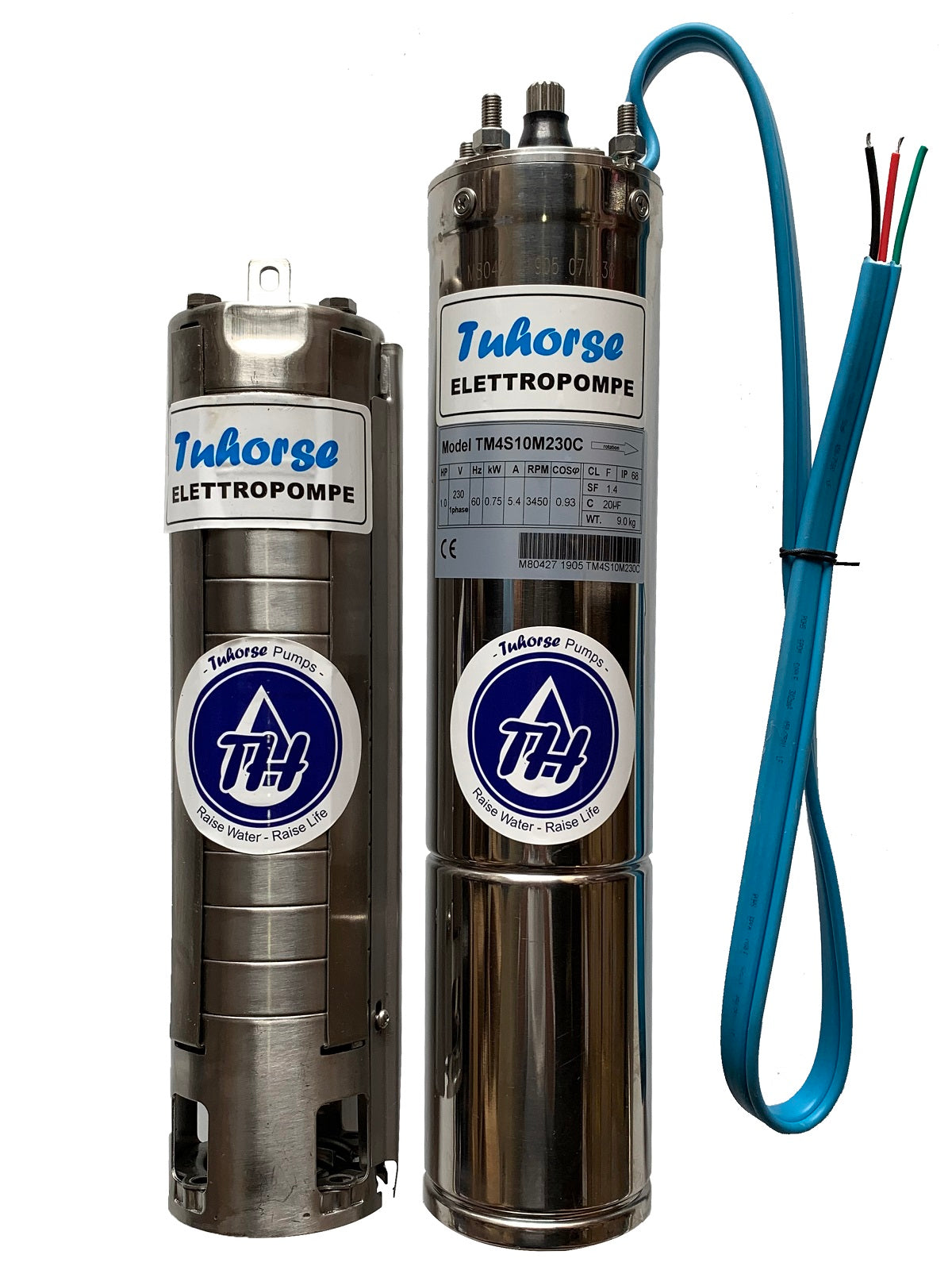

Complete pump end, and motor. Complete Instructions.
- HP: 5HP
-
Voltage: 230V Single Phase
- Cycle: 60 Hz
- Operating Amperage: 23A
- Motor RPM: 3450 RPM
- Stages: 8
- Maximum Head(cut off): 270 ft.
- Maximum Flow (0 - 60ft.): 100 GPM

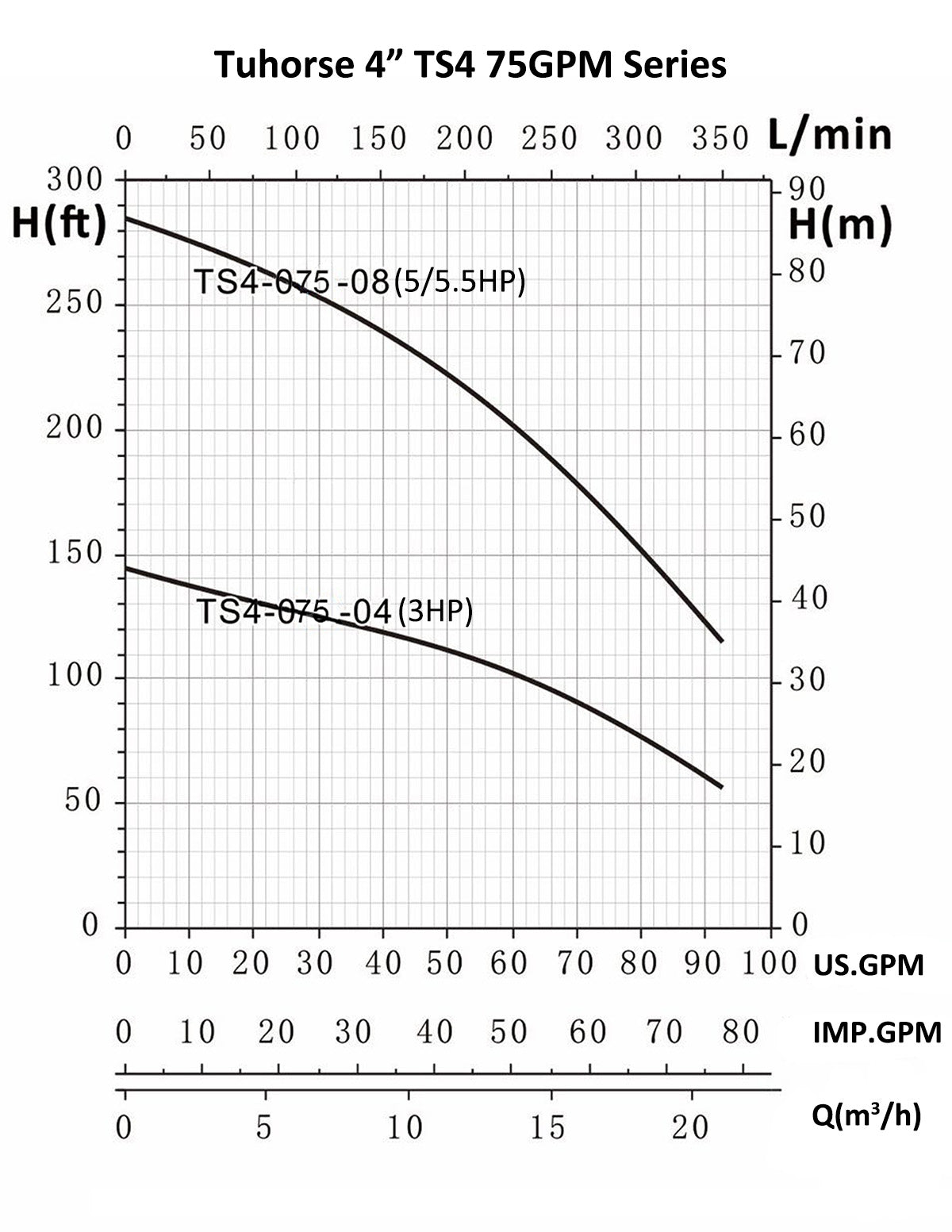

- Free Flow Rates: 90GPM @ 120ft; 80GPM @ 150ft; 60GPM @ 200ft; 50GPM @ 220ft.
- Suction Port: Center Suction
- Discharge Port: 2 in

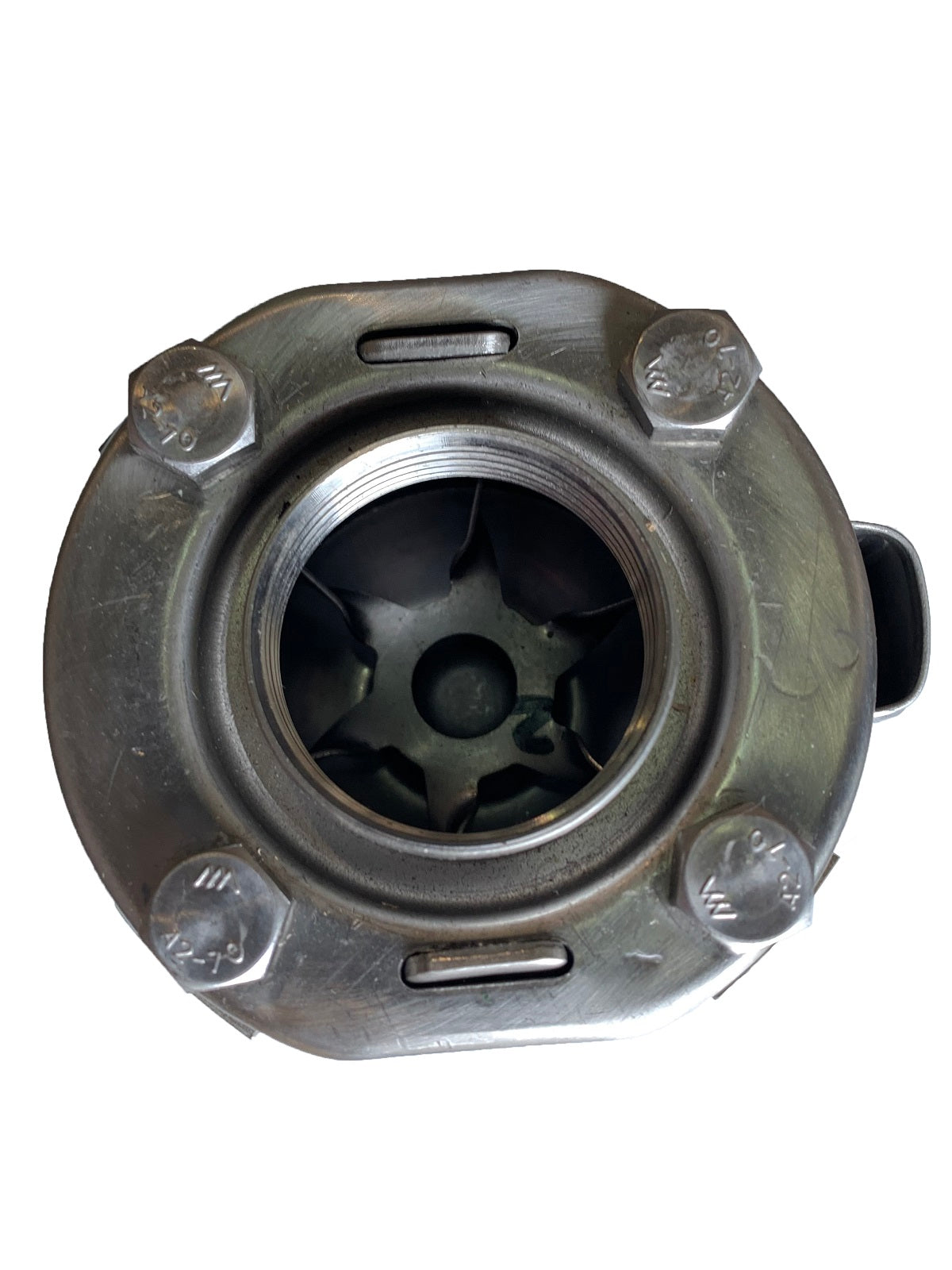

- Built-in Check-valve: Yes
- Housing Material: Stainless Steel, Grade 304
- Impeller Material: Stainless Steel, Grade 304
- Motor Enclosure: Stainless steel, Grade 304
- Duty: Continuous or up to 20 restarting cycles / hour
- Control Box: Required but Sold separately
- Weight: 58 lbs.
- Dimensions/Length: 43"
*Control box sold separately
Note: We recommend you to use our TDH calculator to select a pump for your application
Warranty: 1 Year
