Description

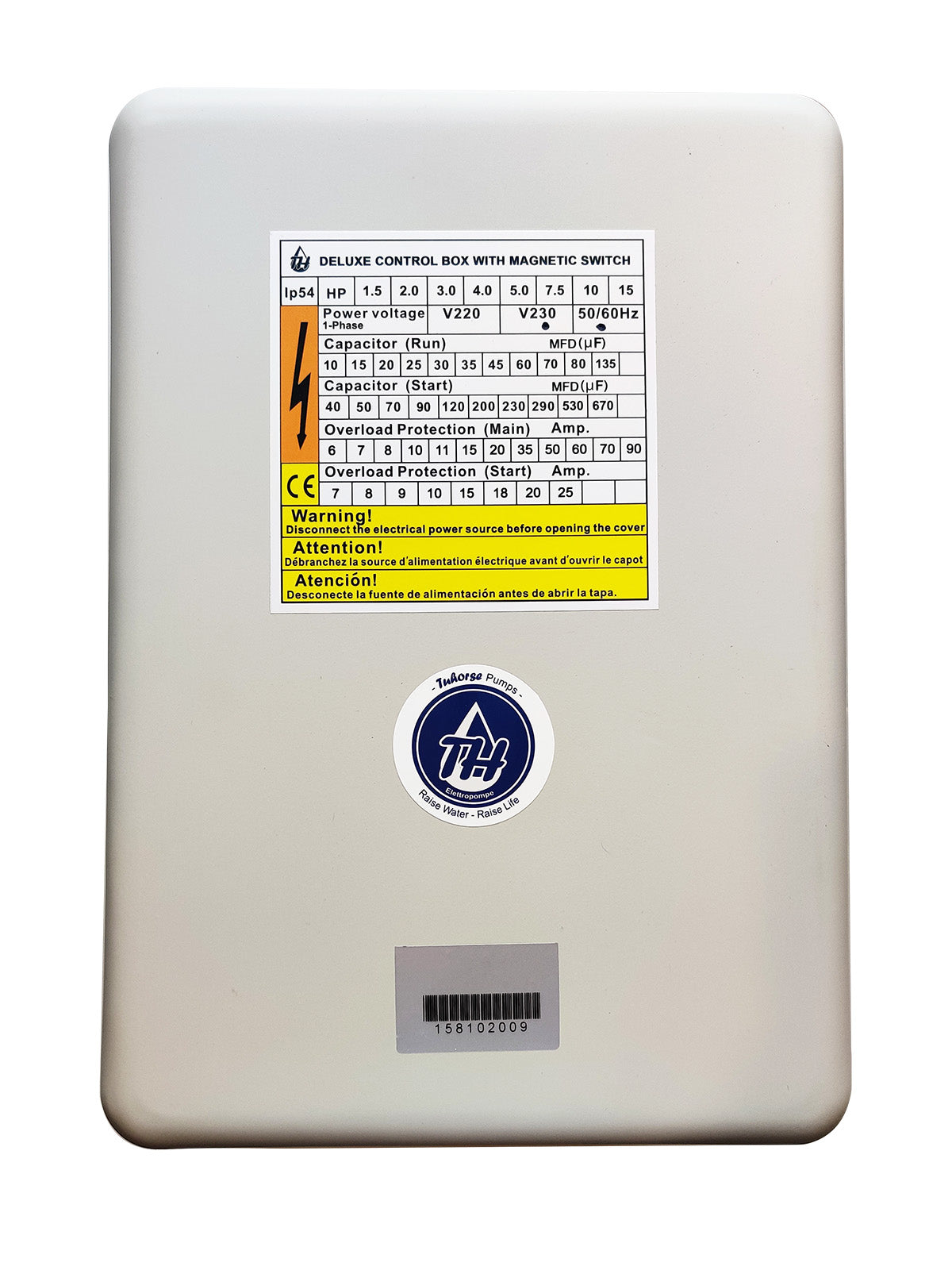

5HP Deluxe Control box featuring:
* Built-in Magnetic Contactor driven by internal 24V safe-voltage, controlled by non-powered pressure switch, float switch, toggle switch or other pilot device.
* Interface for 24V control device, such as Rain Bird® , Hunter® timer/zone controller

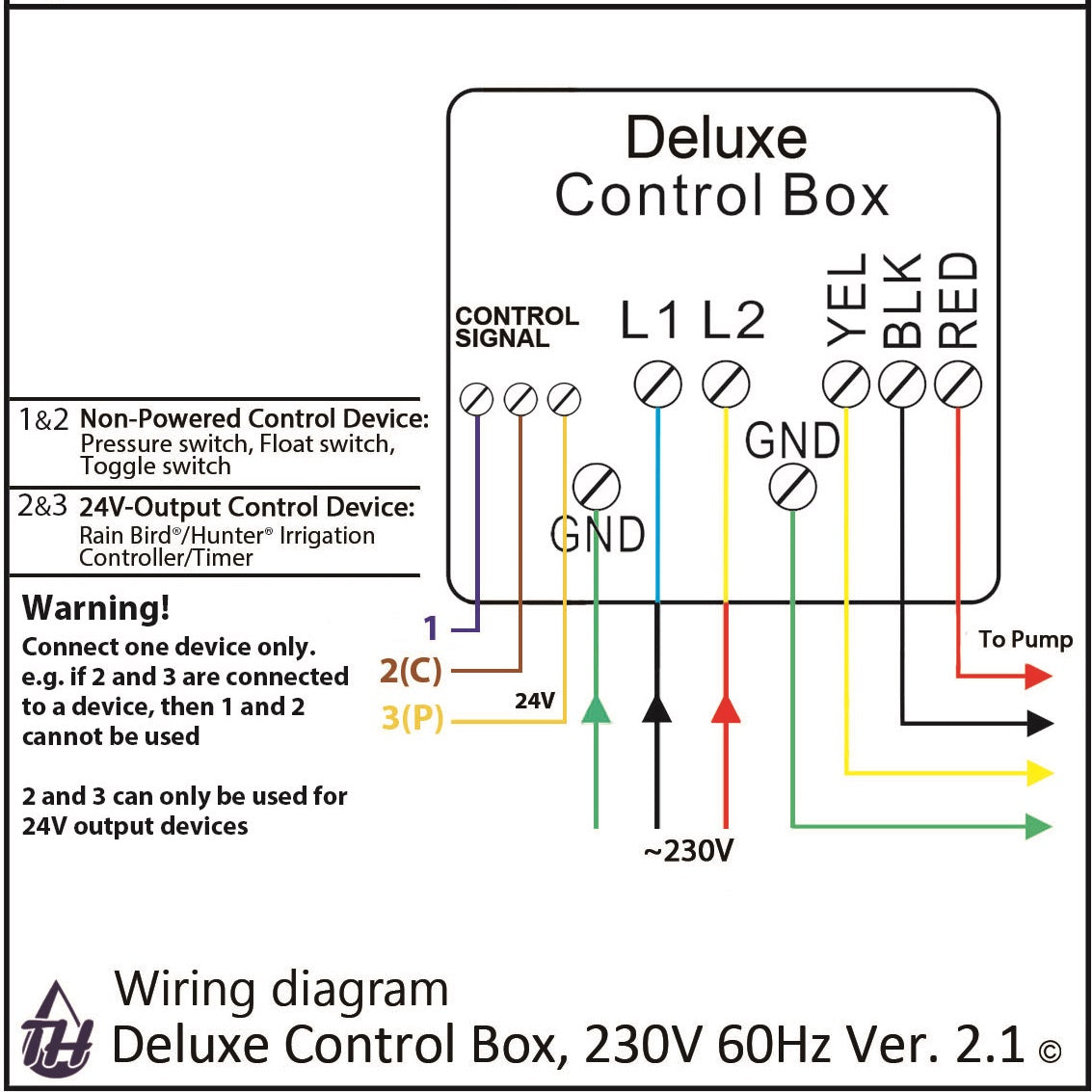

This Deluxe Control Box is for Tuhorse 5HP 1-phase deep well pump and is compatible to Franklin 5HP Deluxe Control Box 2821139310, Goulds CentriPro® CB50412MC, Pentek® Sta-Rite® SMC-CRP5021 and more. A Magnetic Contactor and a 230V to 24V transformer for driving the magnetic coil are included in the Deluxe Control Box. Detail wiring diagrams are in the box as well.
Metal cased. Contains a start (270-324uF) and run (80uF) capacitor, CSCR. Supports 5HP submersible deep well water pumps running on 230V single phase. Supports 14 to 4 gauge wire (14 to 4 AWG). Pole / Wall Mountable.
- HP: 5HP
- Voltage: 230V
- Cycle: 60 Hz
- Operating Amperage: up to 28A, 35A fuse for overload, locked motor or short circuit protection
- Motor RPM: n/a
- Stages: n/a
- Maximum Flow: n/a
- Maximum Head: n/a
- Typical Flow: n/a
- Suction Port: n/a
- Discharge Port: n/a
- Built-in Check-valve: n/a
- Housing Material: steel
- Knockout for wire: two 1"/1.25" , one 3/4"
- Impeller Material: n/a
- Motor Enclosure: n/a
- Duty: n/a
- Control Box: Dual Capacitor Deluxe Control Box
- Weight: 16 Lbs.

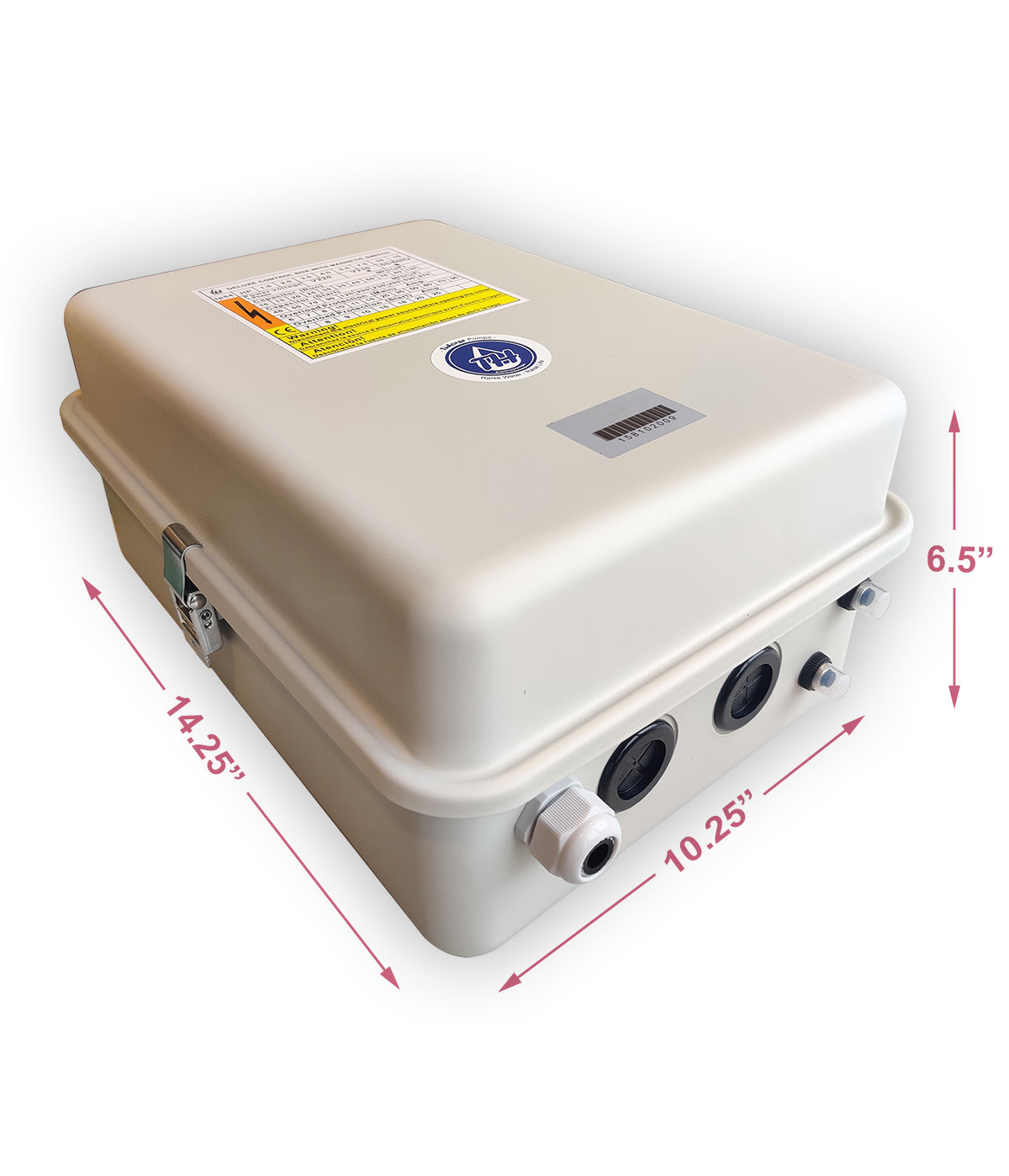

- Dimensions/Length: 14.25" x 10.25" x 6.5"
- Shipping Dimensions: 16" x 12" x 10"
Warranty: 1 Year
