Description

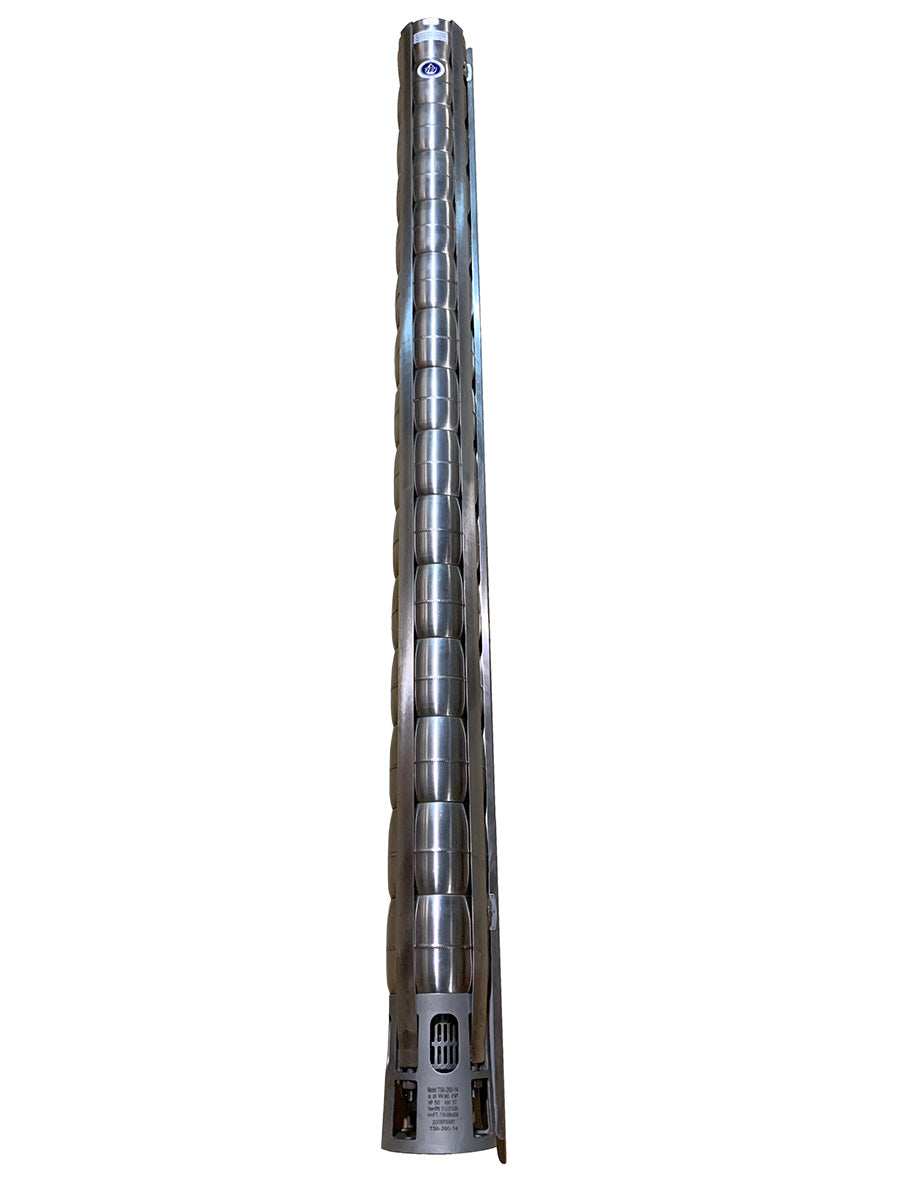

Stainless Steel Pump-end only
- HP: 50HP or larger motor required
- Voltage: n/a
- Cycle: 60 Hz
- Operating Amperage: n/a
- Motor RPM: 3450 RPM
- Stages: 14
- Maximum Head (cut off): 880 ft.
- Rated Flow: 260GPM
- Maximum Flow(0-380ft.): 375 GPM

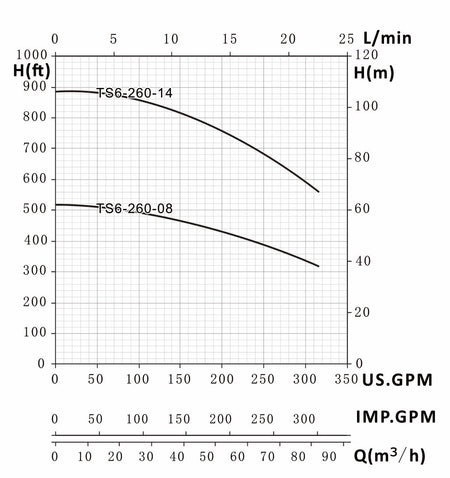

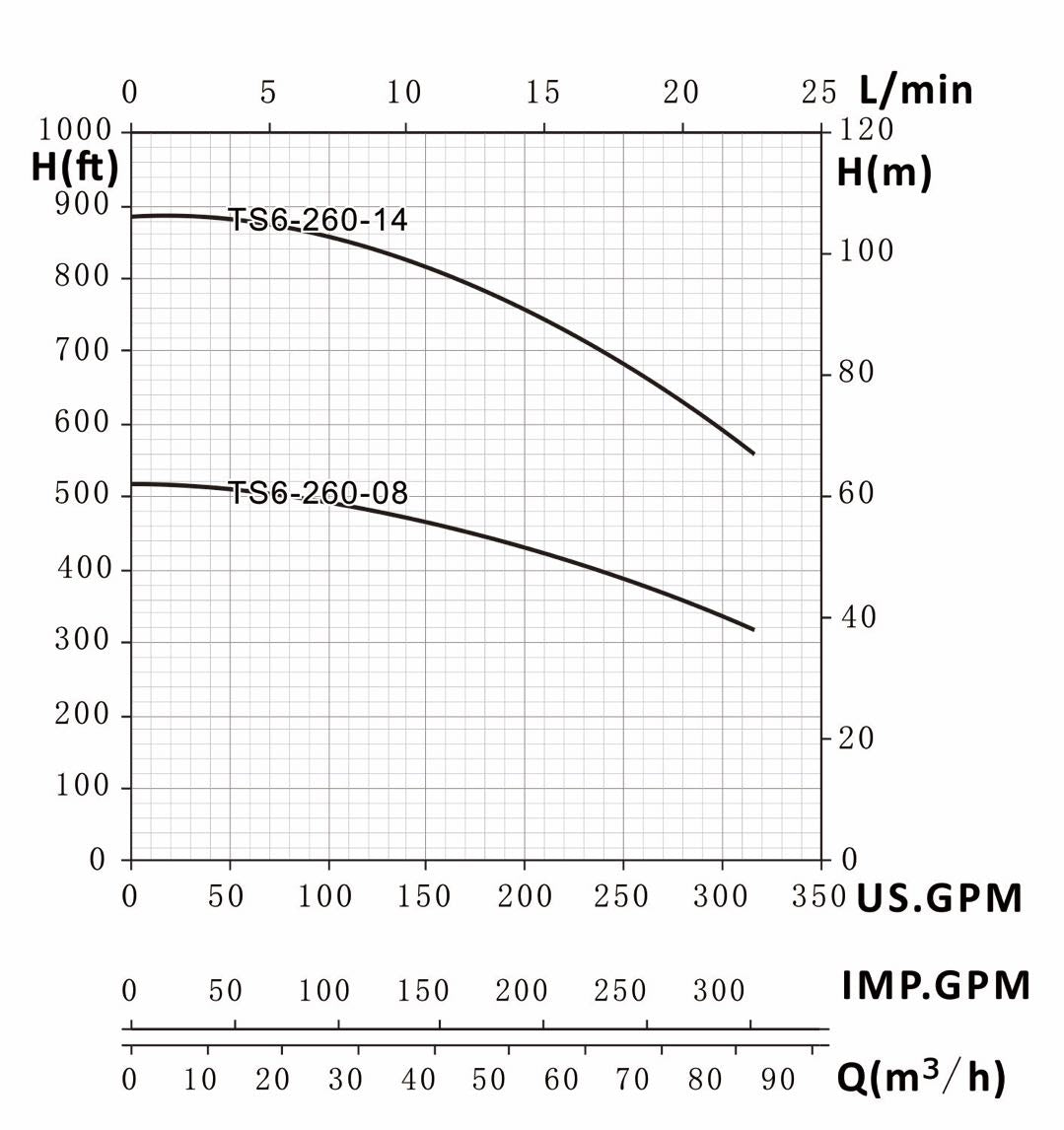

- Open Flow vs Depth:: 350GPM @ 420ft; 300GPM @ 580ft; 260GPM @ 650ft; 200GPM @ 740ft; 150GPM @ 800ft.
- Suction Port: Center Suction

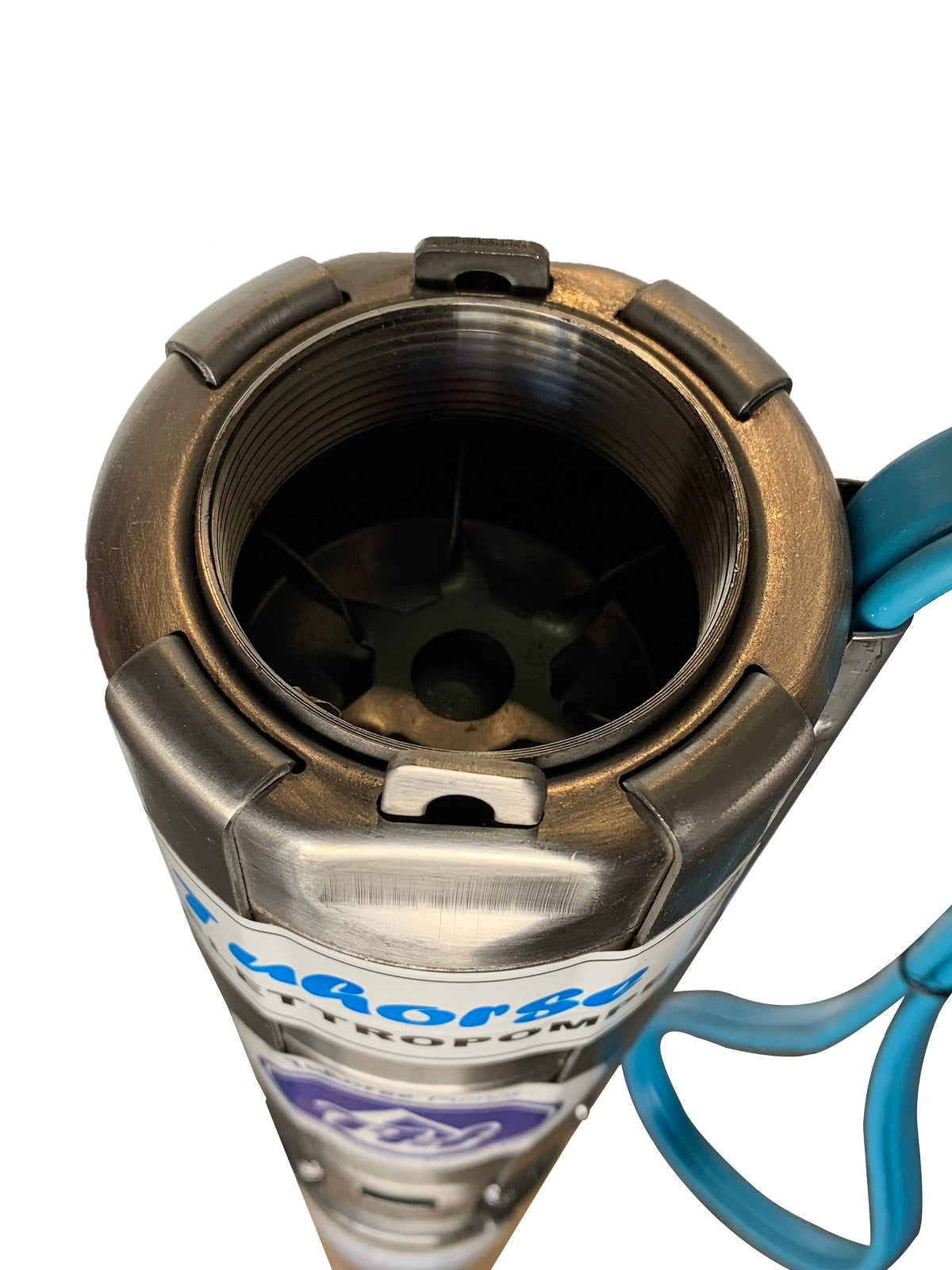

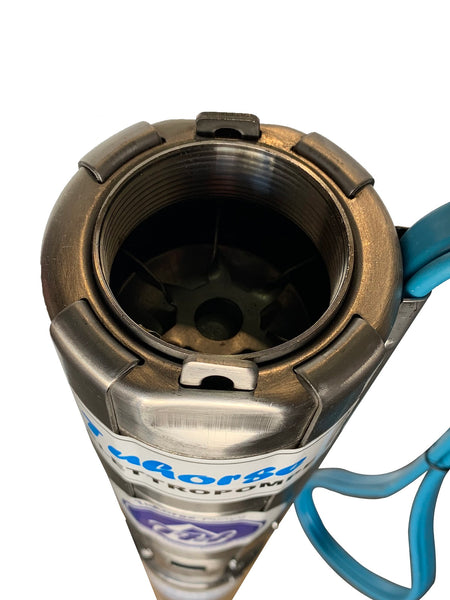

- Discharge Port: 4 inch NPT Female
- Built-in Check-valve: Yes
- Pump Housing Material: Stainless Steel
- Impeller Material: stainless steel
- Motor Enclosure: N/A
- Discharge and Suction Port Material: Stainless Steel
- Duty: Continuous or allow maximum 15 restarting cycles / hour
- Control Box: n/a
- Net Weight: 80 lbs
- Shipping weight: 89 Lbs.
- Packing Dimensions 77" x 6.25" OD Tube
Warranty: 1 Year
