Description

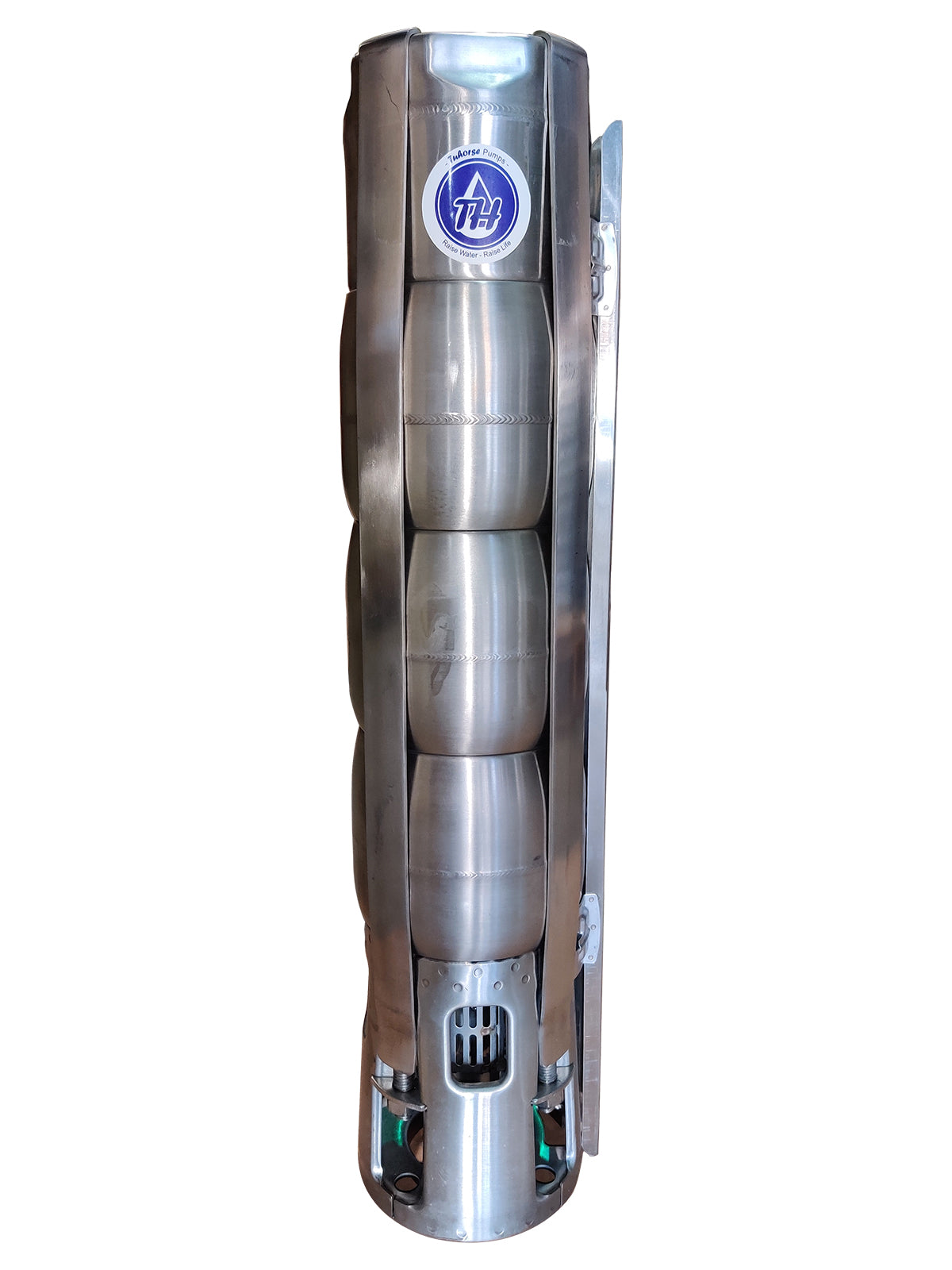

Stainless Steel Pump-end only
- HP: 30HP or larger motor required
- Voltage: n/a
- Cycle: 60 Hz
- Operating Amperage: n/a
- Motor RPM: 3450 RPM
- Stages: 8
- Maximum Head (cut off): 475 ft.
- Rated Flow: 260GPM
- Maximum Flow(0-210ft.): 370 GPM

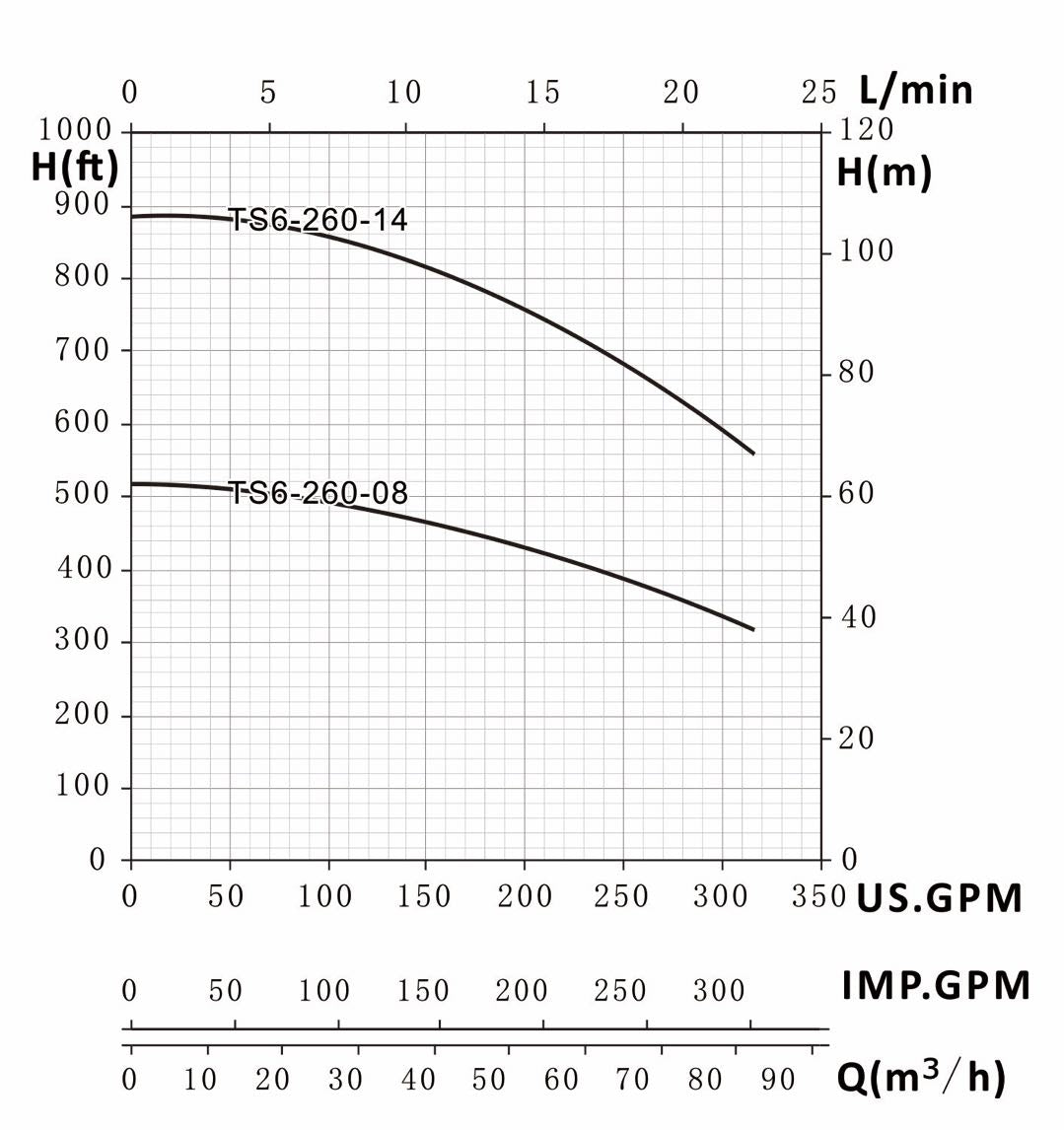

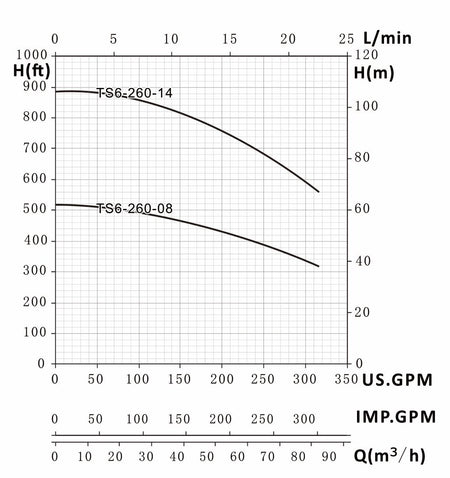

- Open Flow vs Depth:: 350GPM @ 240ft; 300GPM @ 300ft; 260GPM @ 340ft; 200GPM @ 390ft; 150GPM @ 425ft.
- Suction Port: Center Suction

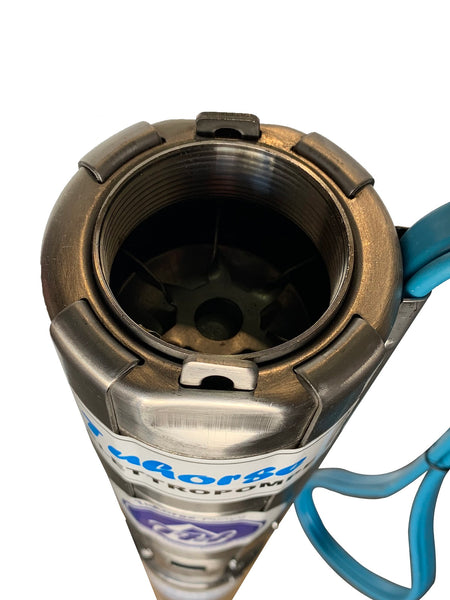

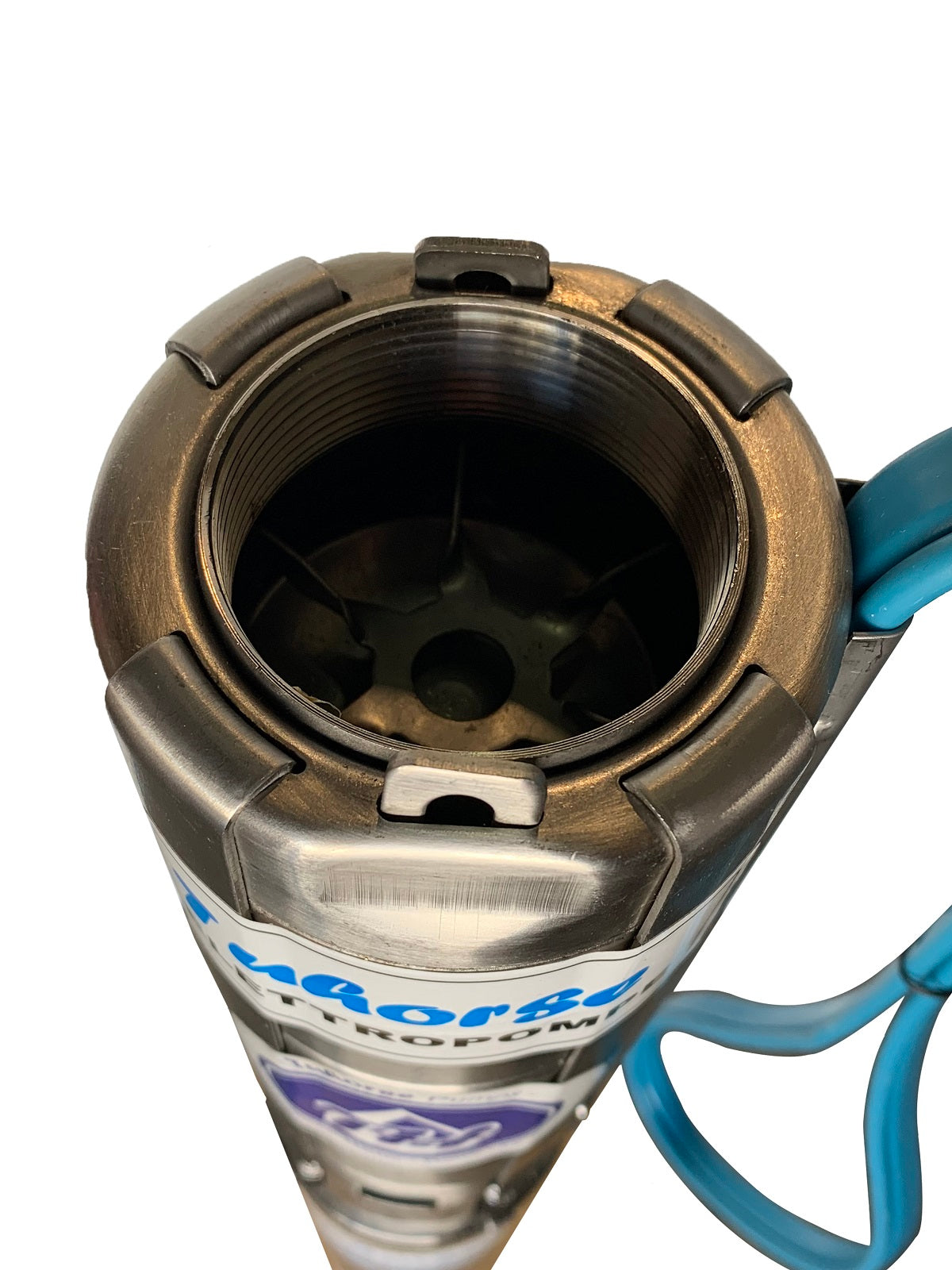

- Discharge Port: 4 inch NPT Female (3" may be available, please specify at time of ordering)
- Built-in Check-valve: Yes
- Pump Housing Material: Stainless Steel
- Impeller Material: stainless steel
- Motor Enclosure: N/A
- Discharge and Suction Port Material: Stainless Steel
- Duty: Continuous or allow maximum 15 restarting cycles / hour
- Control Box: n/a
- Net Weight: 41 lbs
- Shipping weight: 48 Lbs
- Packing Dimensions 45"x7"x7"
Warranty: 1 Year
