Description

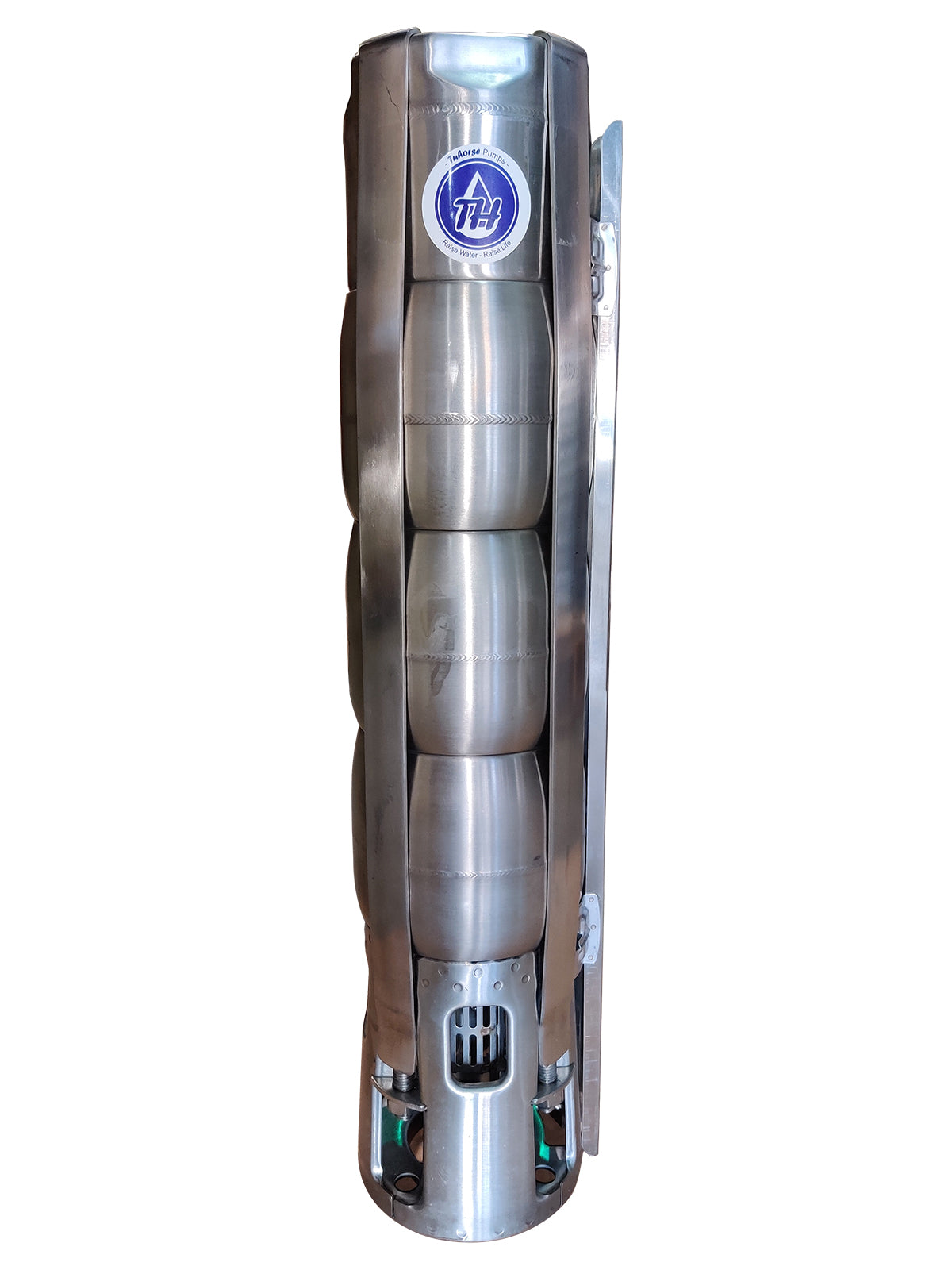

Stainless Steel Pump-end only
- HP: 10HP or larger motor required
- Voltage: n/a
- Cycle: 60 Hz
- Operating Amperage: n/a
- Motor RPM: 3450 RPM
- Stages: 5
- Maximum Open Flow(0-100ft.): 220 GPM
- Rated Flow: 150GPM
- Maximum Head (cut off): 330 ft.
-

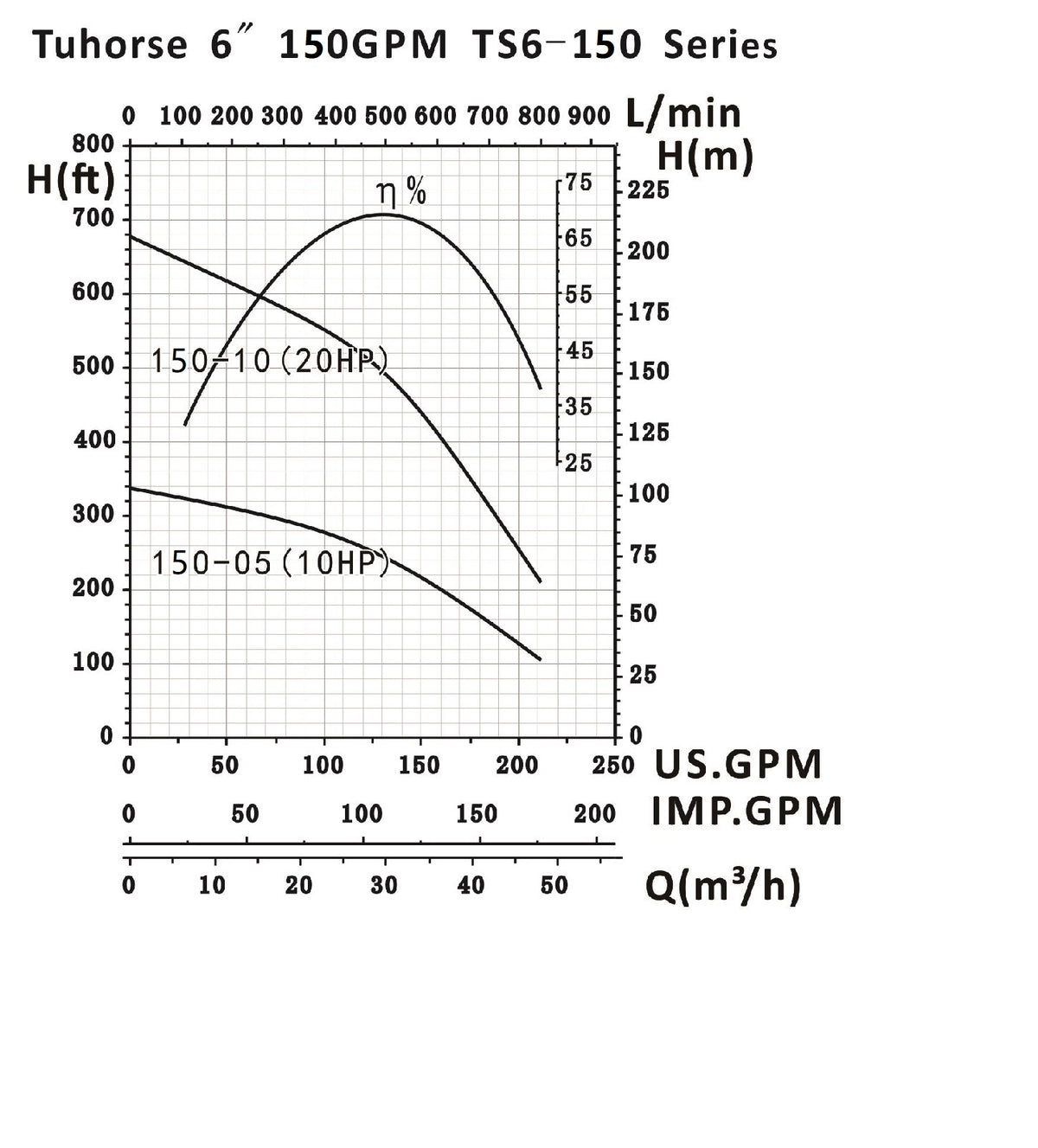

Open Flow Rate: 180GPM @ 160ft; 150GPM @ 205ft; 130GPM @ 250ft; 100GPM @ 276 ft; 70GPM @ 300ft.
- Suction Port: Center Suction

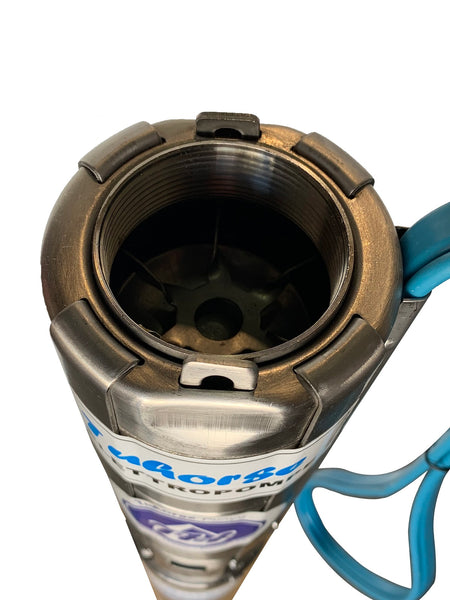

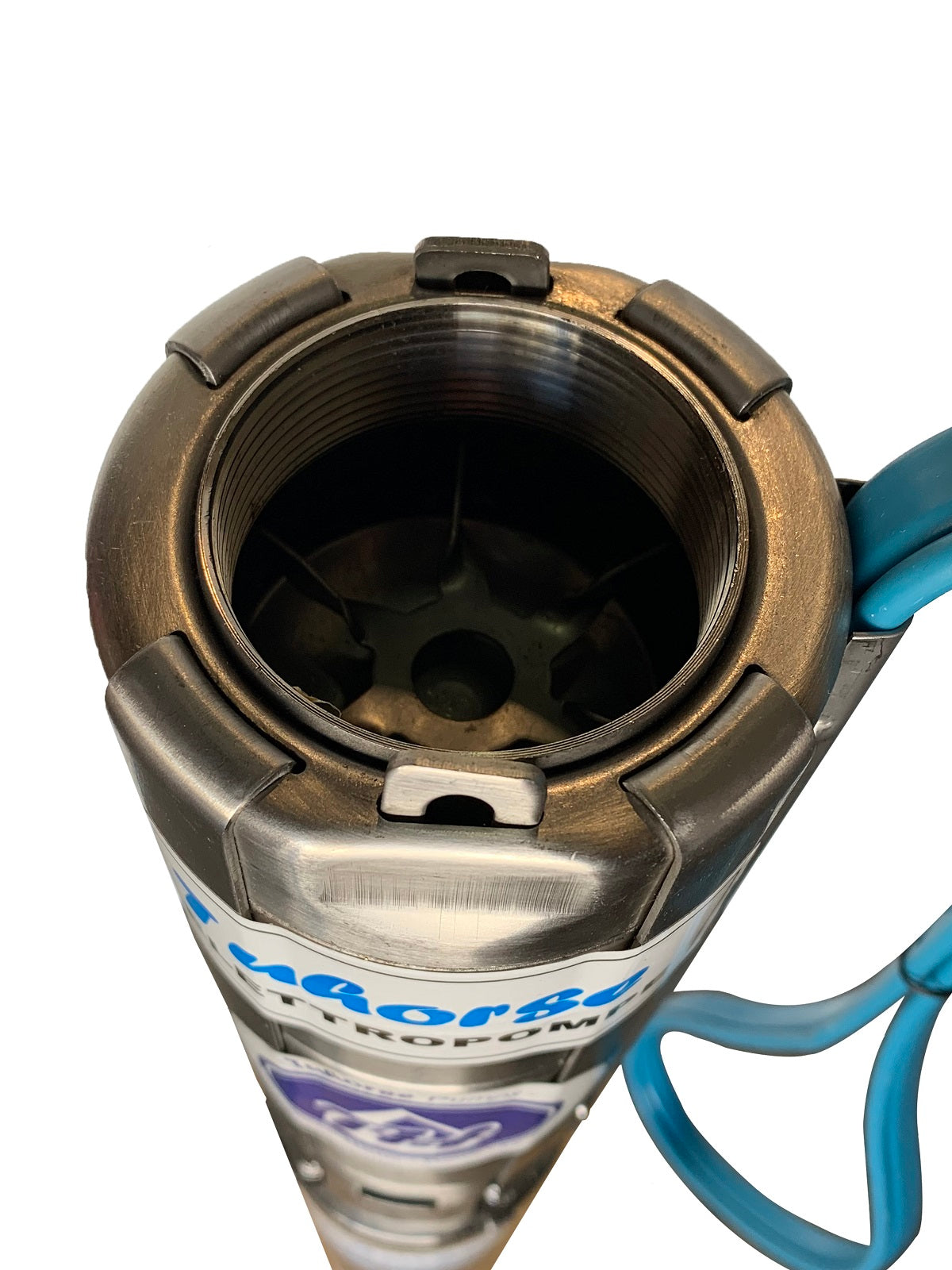

- Discharge Port: 4 inch NPT Female
- Built-in Check-valve: Yes , S.S. 304
- Housing Material: Stainless Steel 304
- Impeller Material: stainless steel 304
- Motor Enclosure: N/A
- Discharge and Suction Port Material: Stainless Steel 304
- Duty: N/A
- Control Box: n/a
- Net Weight: 23 lbs
- Shipping weight: 32 Lbs
- Packing Dimensions 33"x8"x7"
Warranty: 1 Year
