5HP / 5.5HP TH4-070-12 (Pump End Only)

SKU: TH407012e
Regular price $359.00 USD
Regular price $539.00 USD Sale price $359.00 USD
In stock
Ships out the same business day or next

Description

Pump end only. Requires appropriate horse power motor and corresponding control box( if necessary) for operation.

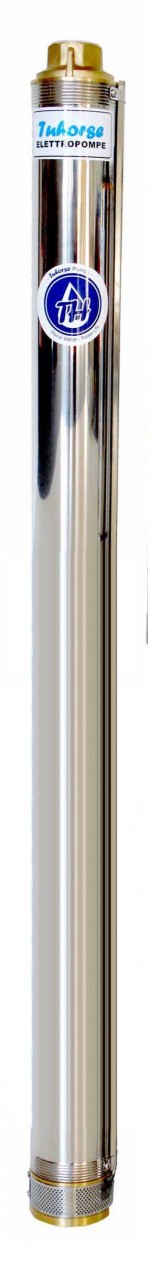

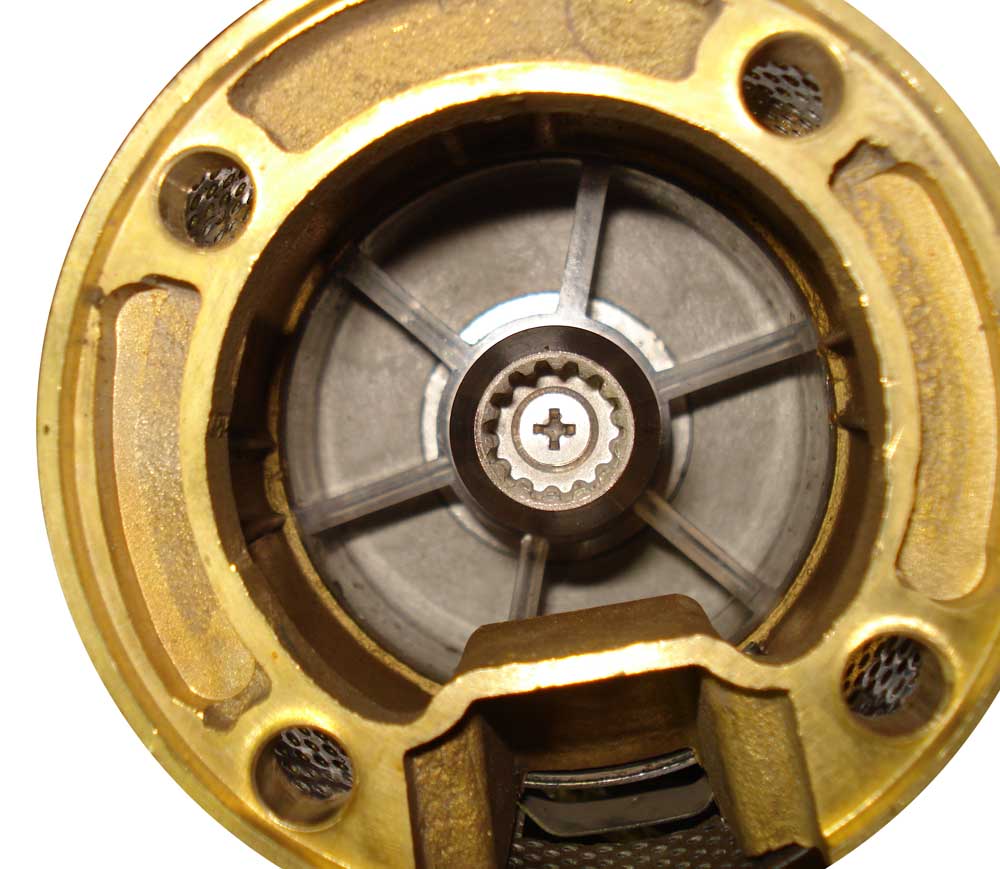

This Tuhorse Pump-End is Adaptable (compatible) to those major brand motors with 5HP rating or larger, Such as Franklin Electric 4" 5HP Submersible Motor for Deep Well Pump. NEMA standartd.



  • HP: Requires 5HP or larger
  • Voltage: N/A
  • Cycle: N/A
  • Operating Amperage: N/A
  • Motor RPM: 3450 RPM
  • Stages: 12
  • Maximum Flow: 95GPM
  • Maximum Head: 300ft

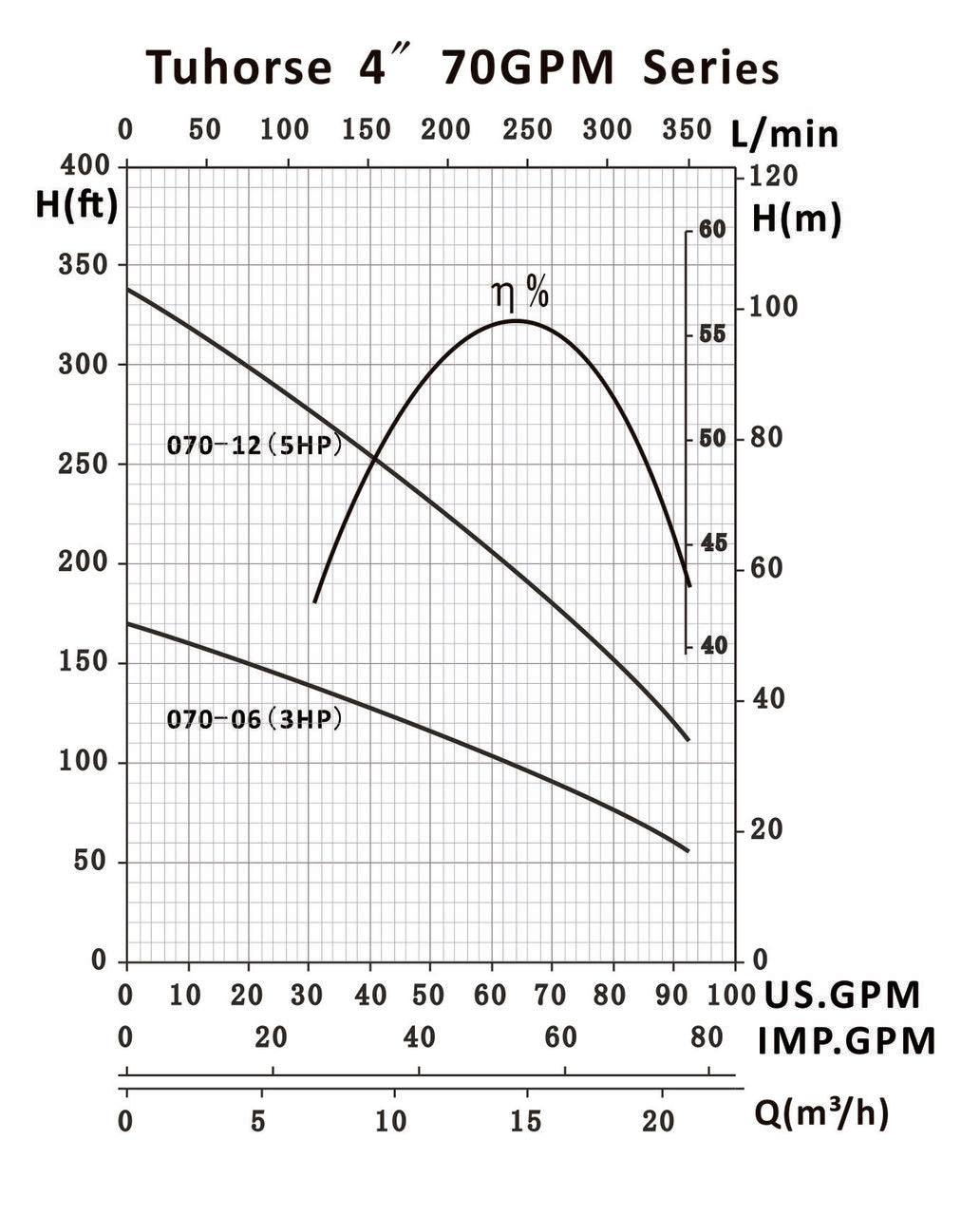

  • Typical Flow: 80GPM @ 150ft; 66GPM @ 193ft; 53 GPM @ 223ft; 40GPM @ 250ft

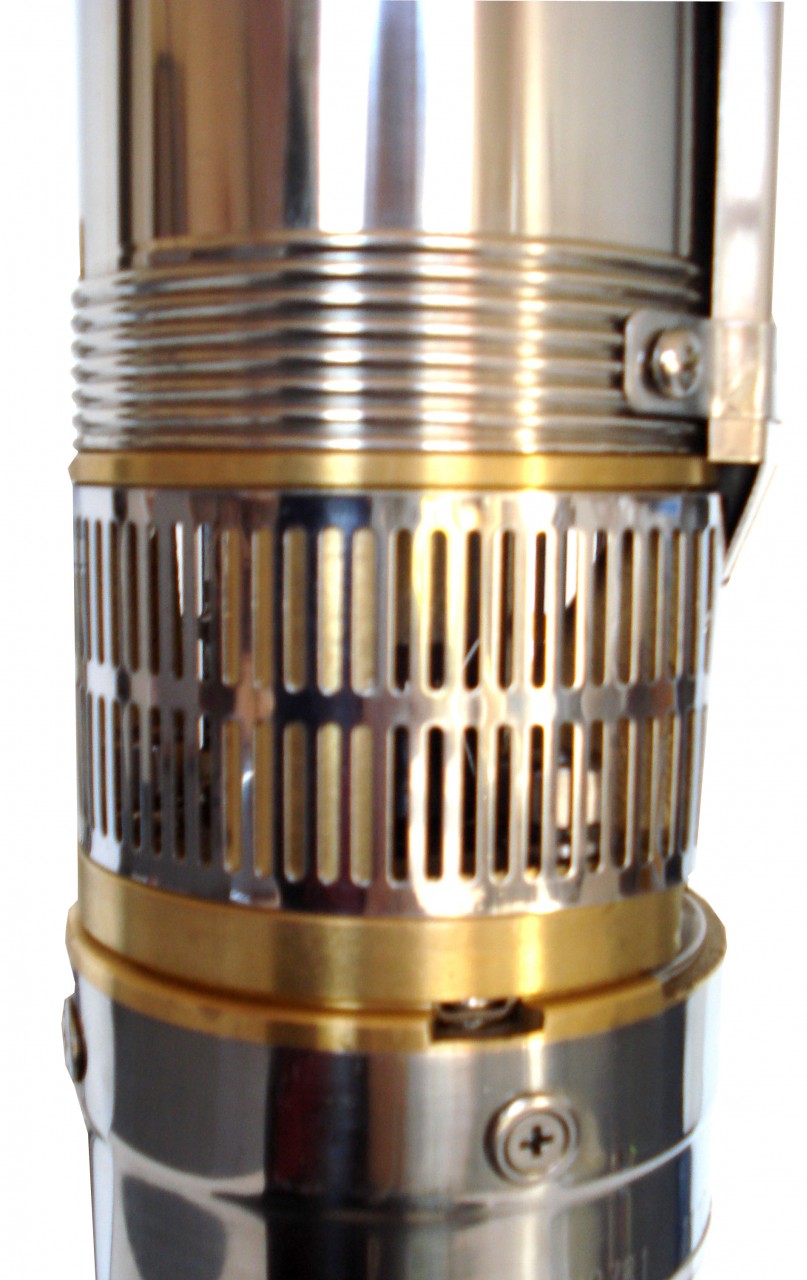

  • Suction Port: Center Suction

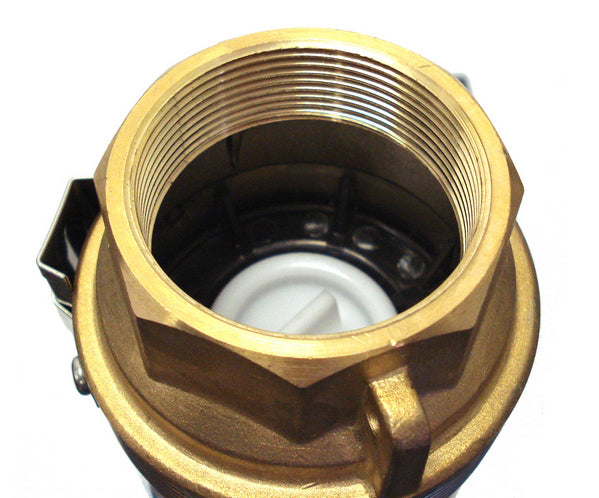

  • Discharge Port: 2 in
  • Built-in Check-valve: Yes
  • Housing Material: Stainless Steel
  • Impeller Material: Thermal Plastic
  • Motor Enclosure: n/a
  • Duty: n/a
  • Control Box: n/a
  • Weight: 20 lbs
  • Dimensions/Length: 39.5"

Warranty: 1 Year
