Description
Pump end only. Requires appropriate horse power motor and corresponding control box( if necessary) for operation.

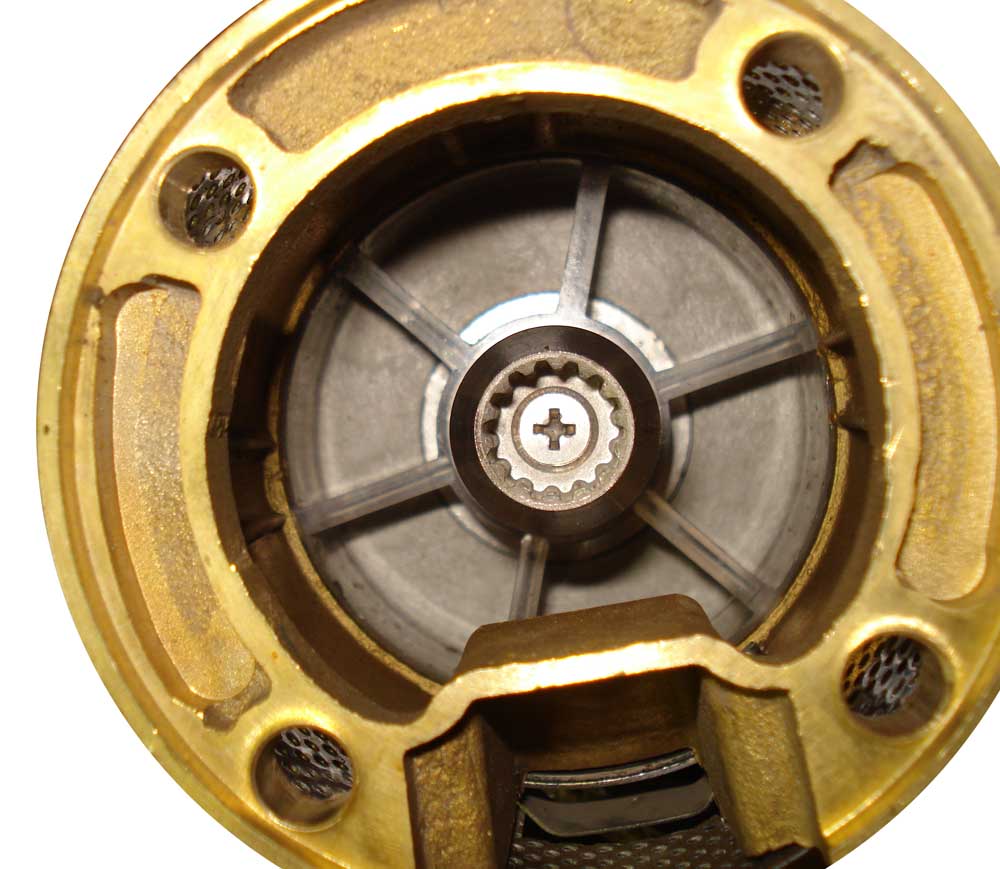

This Tuhorse Pump-End is Adaptable (compatible) to those major brand motors with same HP rating or larger, Such as Franklin Electric 4" Submersible Motor for Deep Well Pump. NEMA standartd.
- HP: Requires 5HP
- Voltage: N/A
- Cycle: N/A
- Operating Amperage: N/A
- Motor RPM: 3450 RPM
- Stages: 20
- Maximum Flow: 30 GPM
- Maximum Head: 610 ft

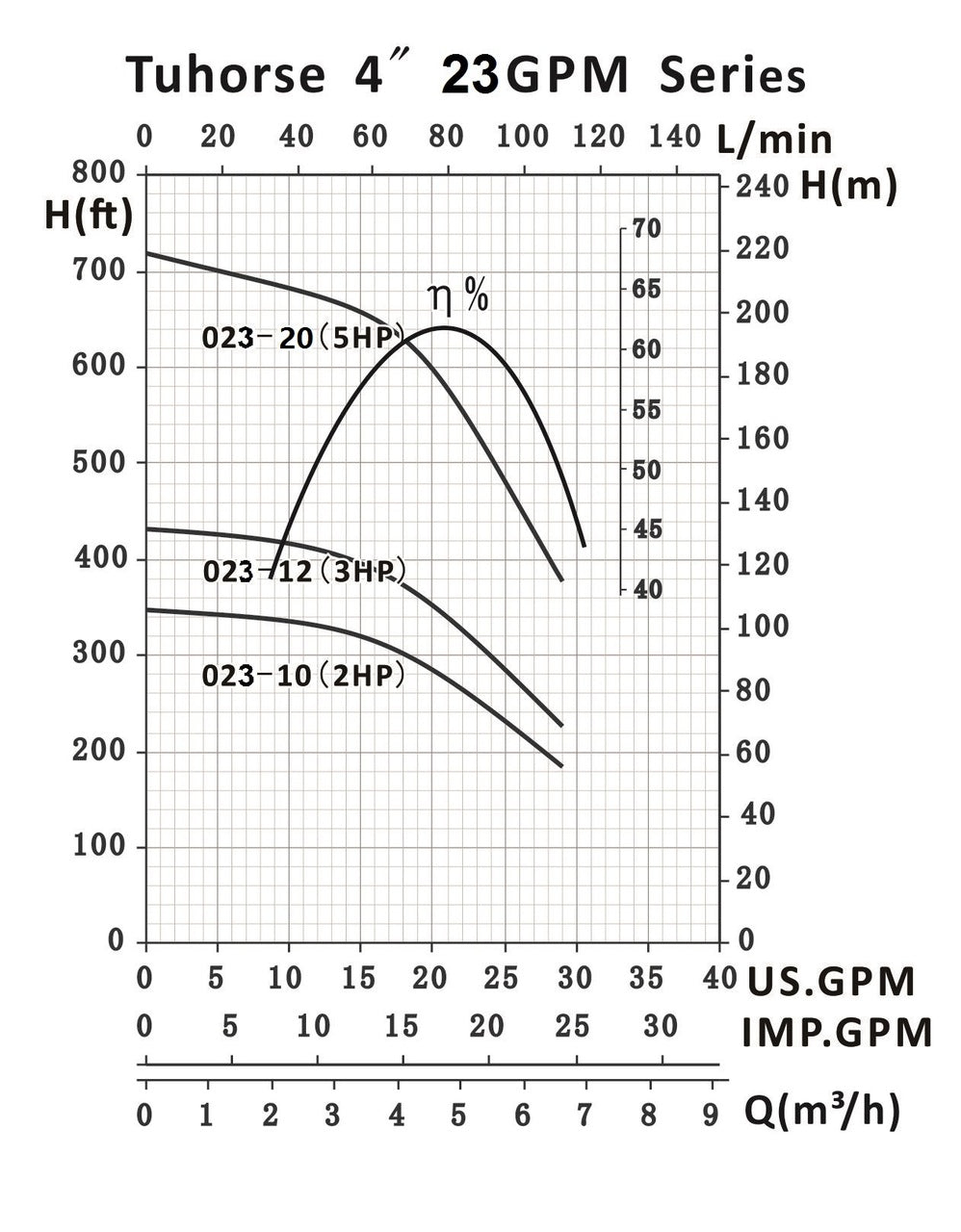

- Typical Flow: 22GPM @ 462ft; 17.6GPM @ 528ft; 13.2GPM @ 564ft

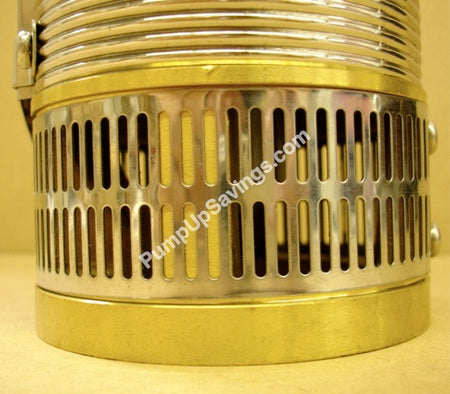

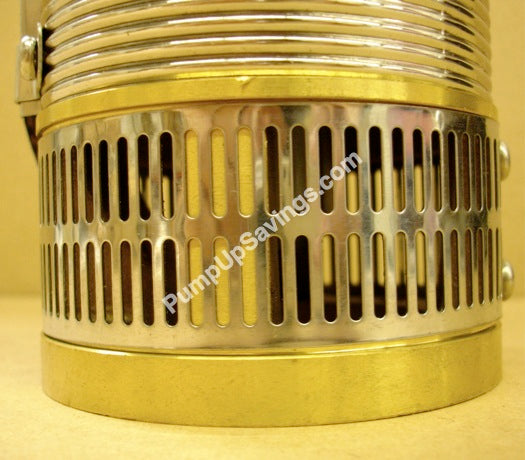

- Suction Port: Center Suction

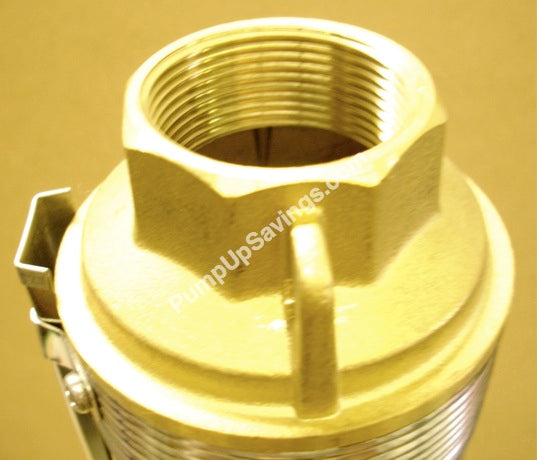

- Discharge Port: 1.5 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel
- Impeller Material: Thermal Plastic
- Motor Enclosure: n/a
- Duty: n/a
- Control Box: n/a
- Weight: 13.2 lbs
- Dimensions/Length: 33.25"
Warranty: 1 Year
