Description

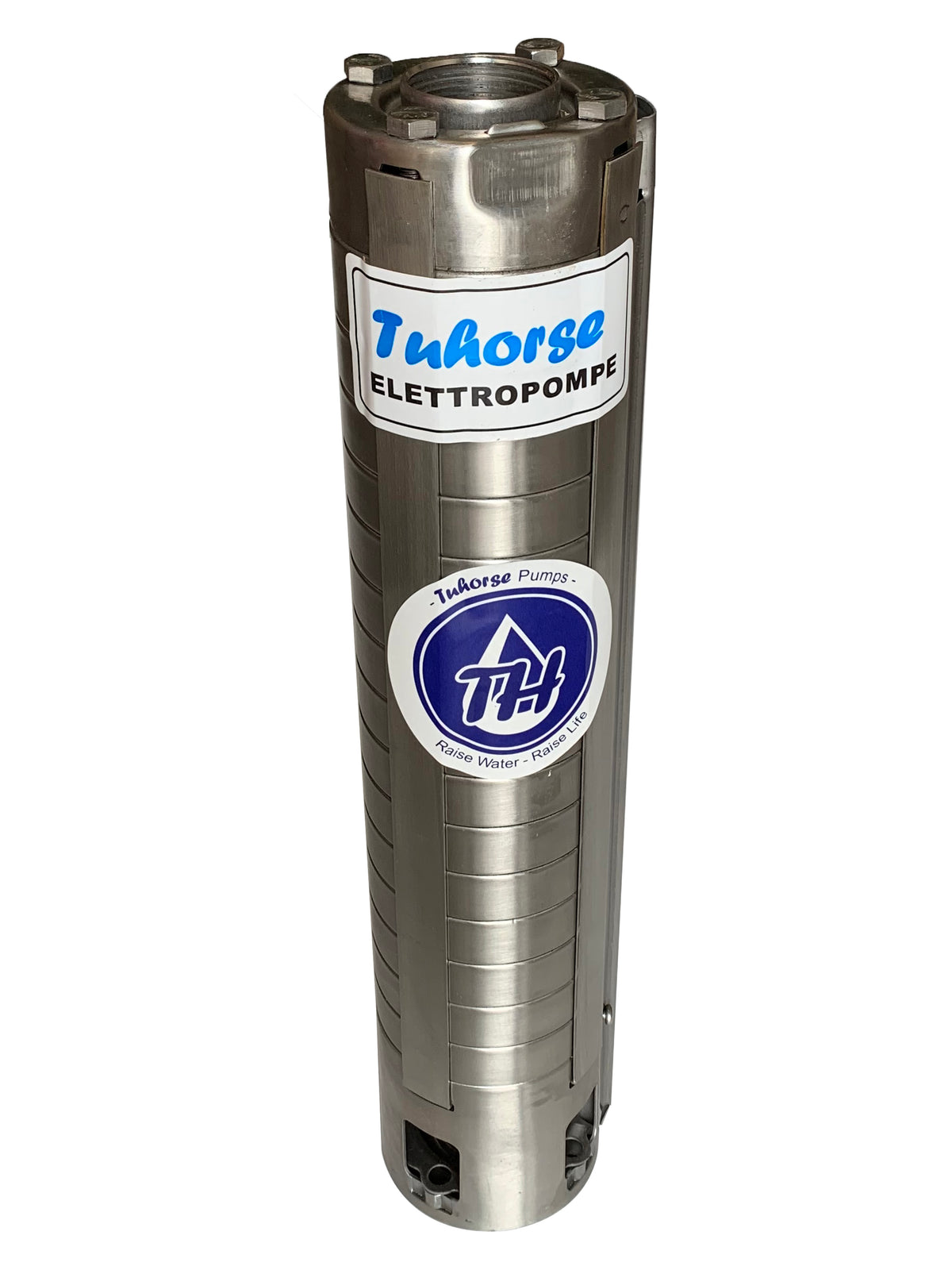

Pump end only. Full Stainless Steel. Requires appropriate horse power motor and corresponding control box (if necessary) for operation.
This Tuhorse Pump-End is Adaptable (compatible) to those major brand motors with same HP rating or larger, Such as Franklin Electric, Pentair, Goulds 4" Submersible Motor for Deep Well Pump. NEMA standard.
- HP: Requires 4" 5HP or larger motor
- Voltage: N/A
- Cycle: N/A
- Operating Amperage: N/A
- Motor RPM: 3450 RPM
- Stages: 8
- Maximum Flow (0 - 60ft): 100GPM
- Maximum Head (cut off head): 270ft

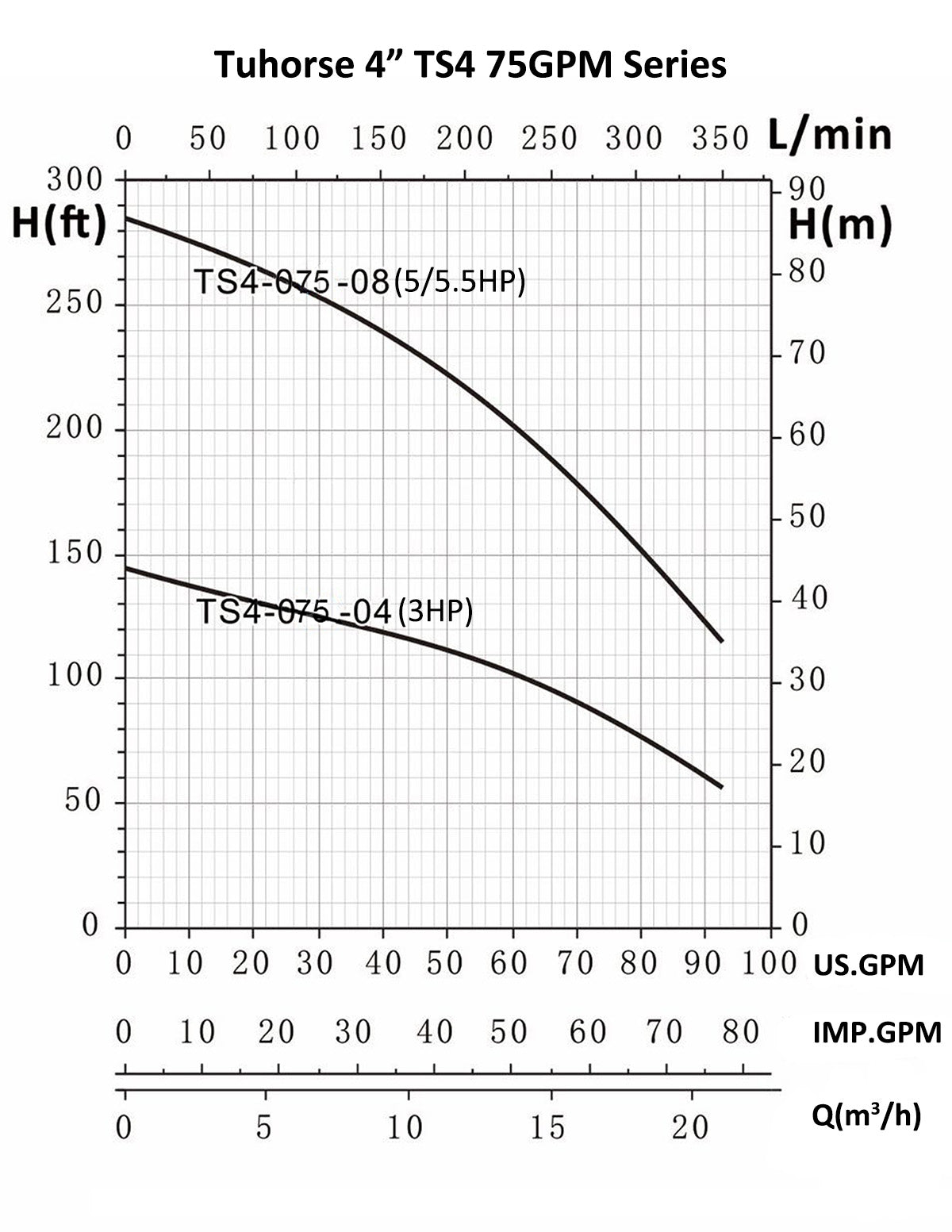

- Free Flow Rate: 90GPM @ 120ft; 80GPM @ 150ft; 60GPM @ 200ft; 50GPM @ 220ft; 40GPM @ 240ft; 32GPM @ 250ft
- Suction Port: Center Suction
- Discharge Port: 2 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel 304
- Impeller Material: Stainless Steel 304
- Motor Enclosure: n/a
- Duty: n/a
- Control Box: n/a
- Shipping Weight: 17 lbs.
Warranty: 1 Year
