Description

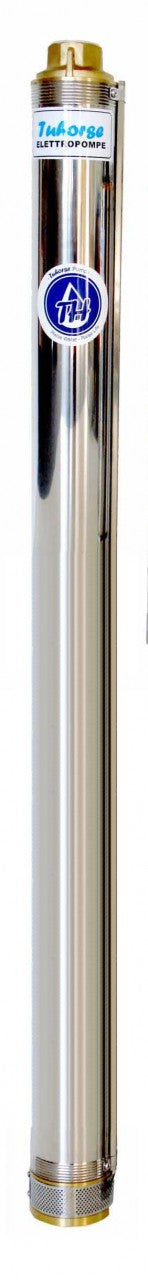

Pump end only. Requires appropriate horse power motor and corresponding control box (if necessary) for operation.

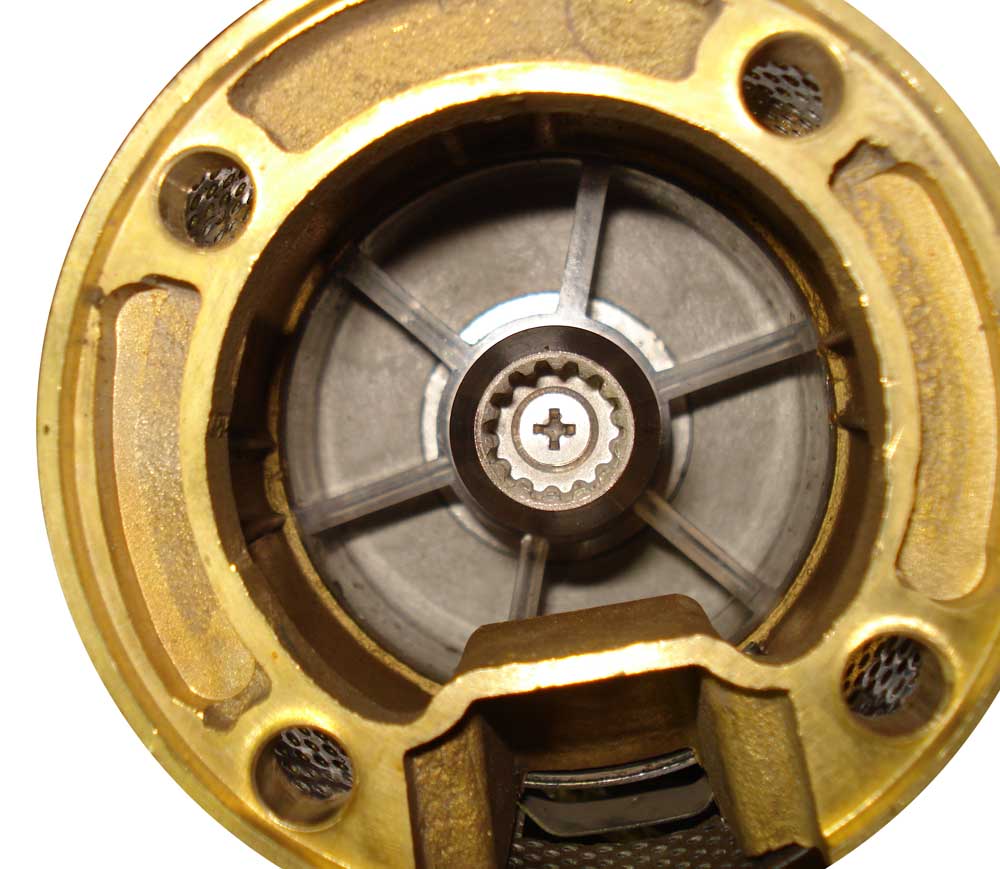

This Tuhorse Pump-End is Adaptable (compatible) to those major brand motors with 5HP rating or larger, Such as Franklin Electric 4" 5HP Submersible Motor for Deep Well Pump. NEMA standard.
- HP: Requires 5HP or larger
- Voltage: N/A
- Cycle: N/A
- Operating Amperage: N/A
- Motor RPM: 3450 RPM
- Stages: 7
- Maximum Head: 180ft
- Maximum Flow: 120 GPM @ 0-50 ft.

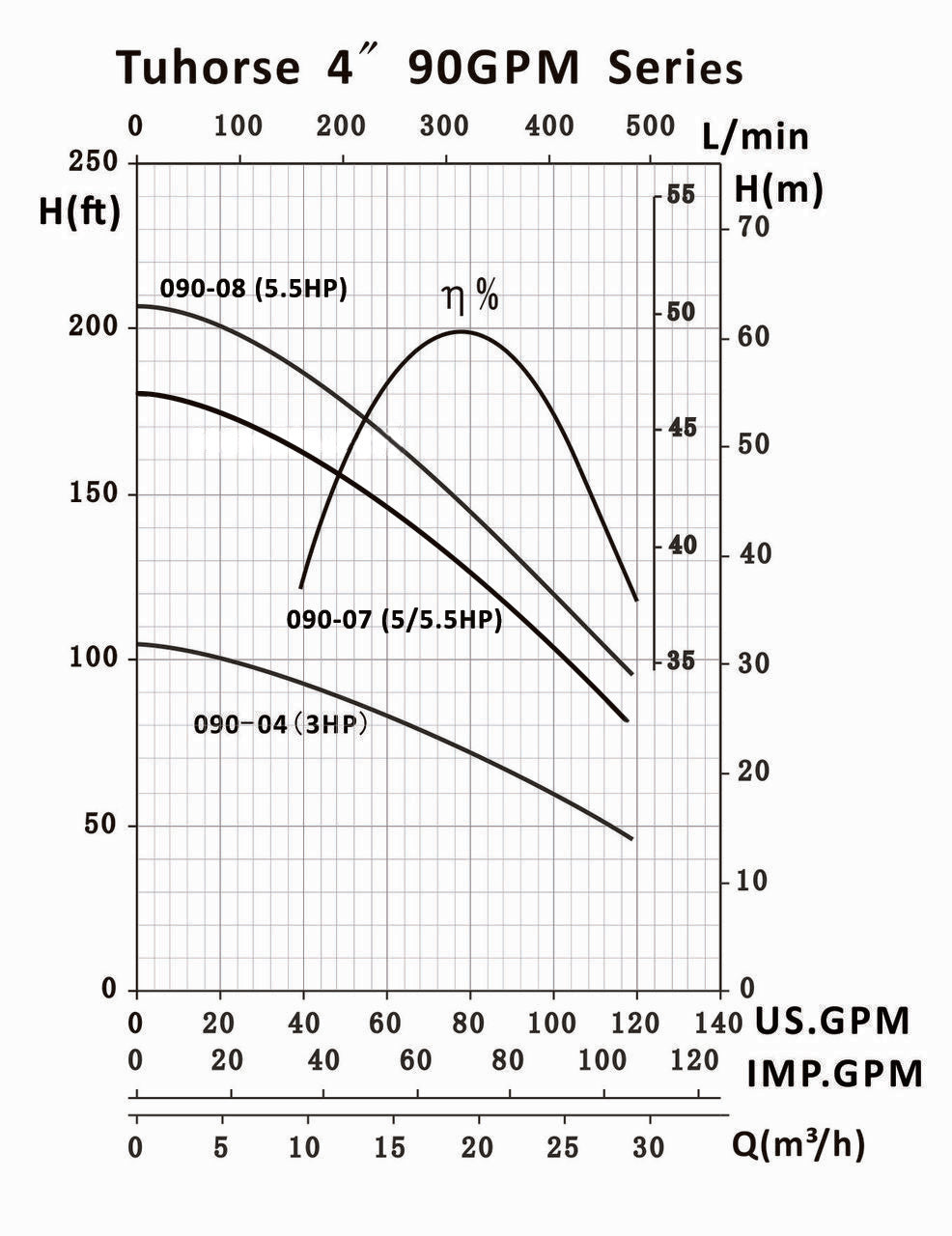

- Free Flow Rates: 110GPM @ 80ft.; 100GPM @ 100ft; 76GPM @ 130ft; 56GPM @ 150ft.; 28GPM @ 170ft.

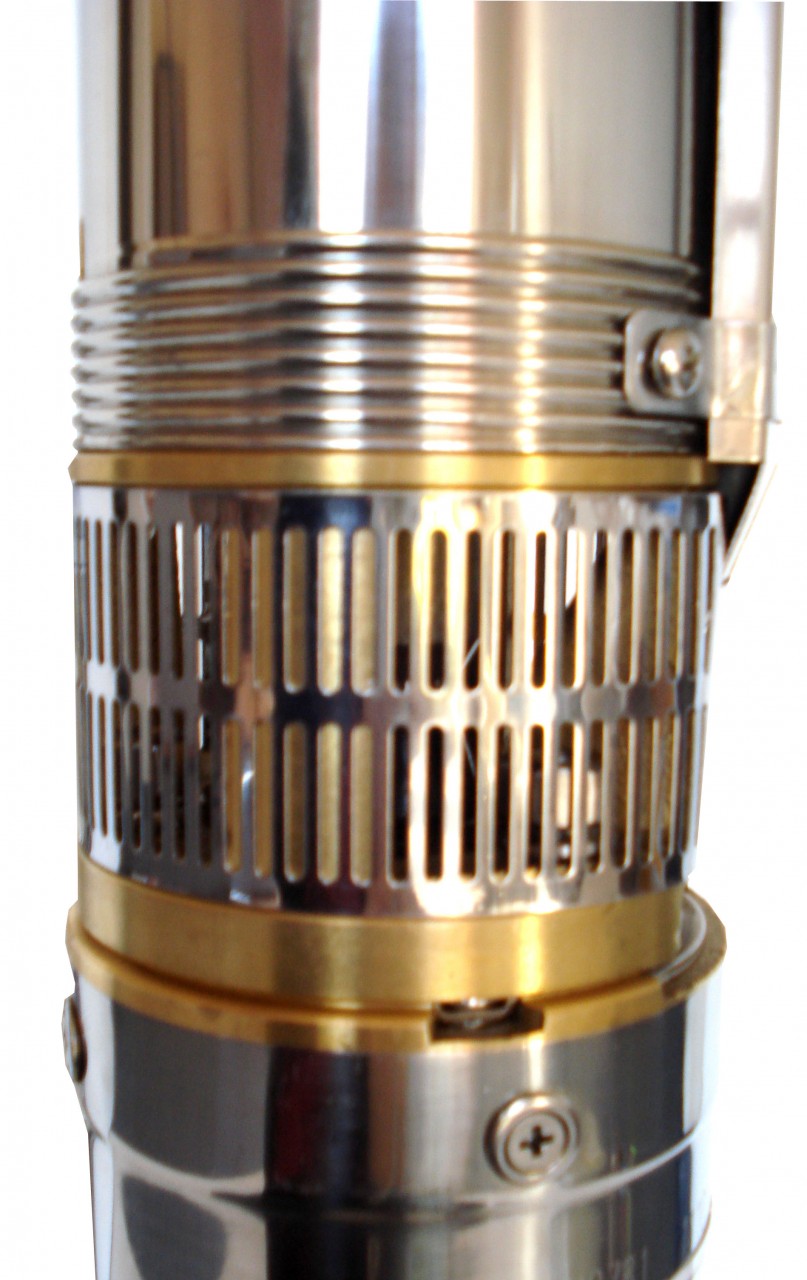

- Suction Port: Center Suction

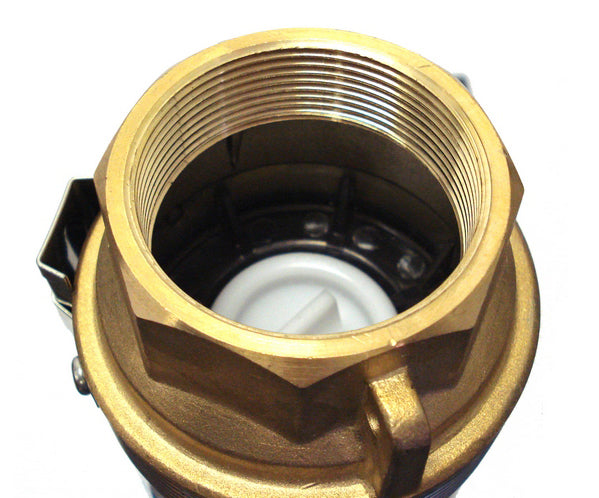

- Discharge Port: 2 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel, Grade 304
- Impeller Material: Thermal Plastic
- Motor Enclosure: n/a
- Duty: n/a
- Control Box: n/a
Warranty: 1 Year
