Description
30GPM rated, 40GPM Max.

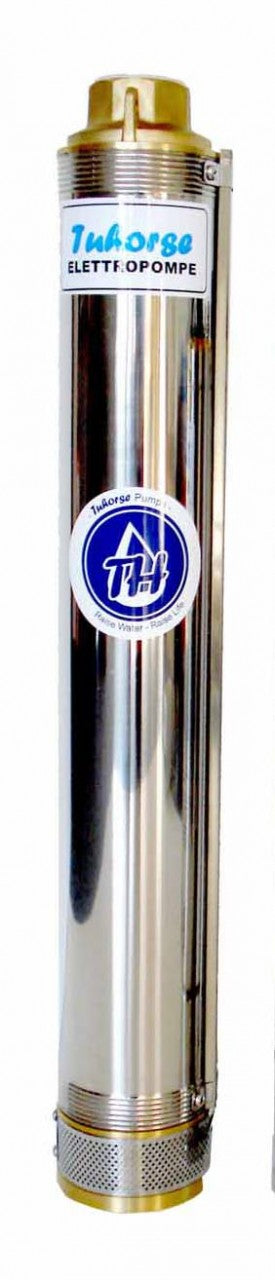

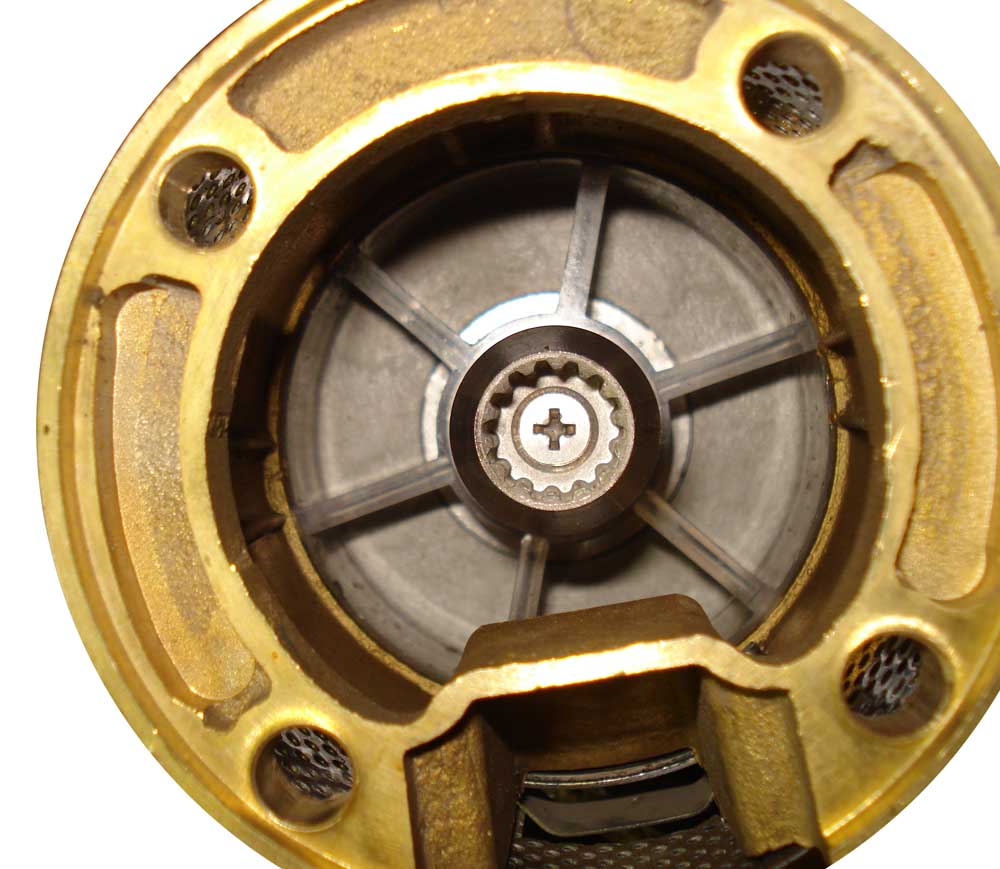

Pump end only, you will require a NEMA Standard 3HP submersible motor and corresponding control box to operate this pump end.
- Stages: 11
- Maximum Head(cut off): 360 ft
- Maximum Flow(0-100feet): 40 GPM

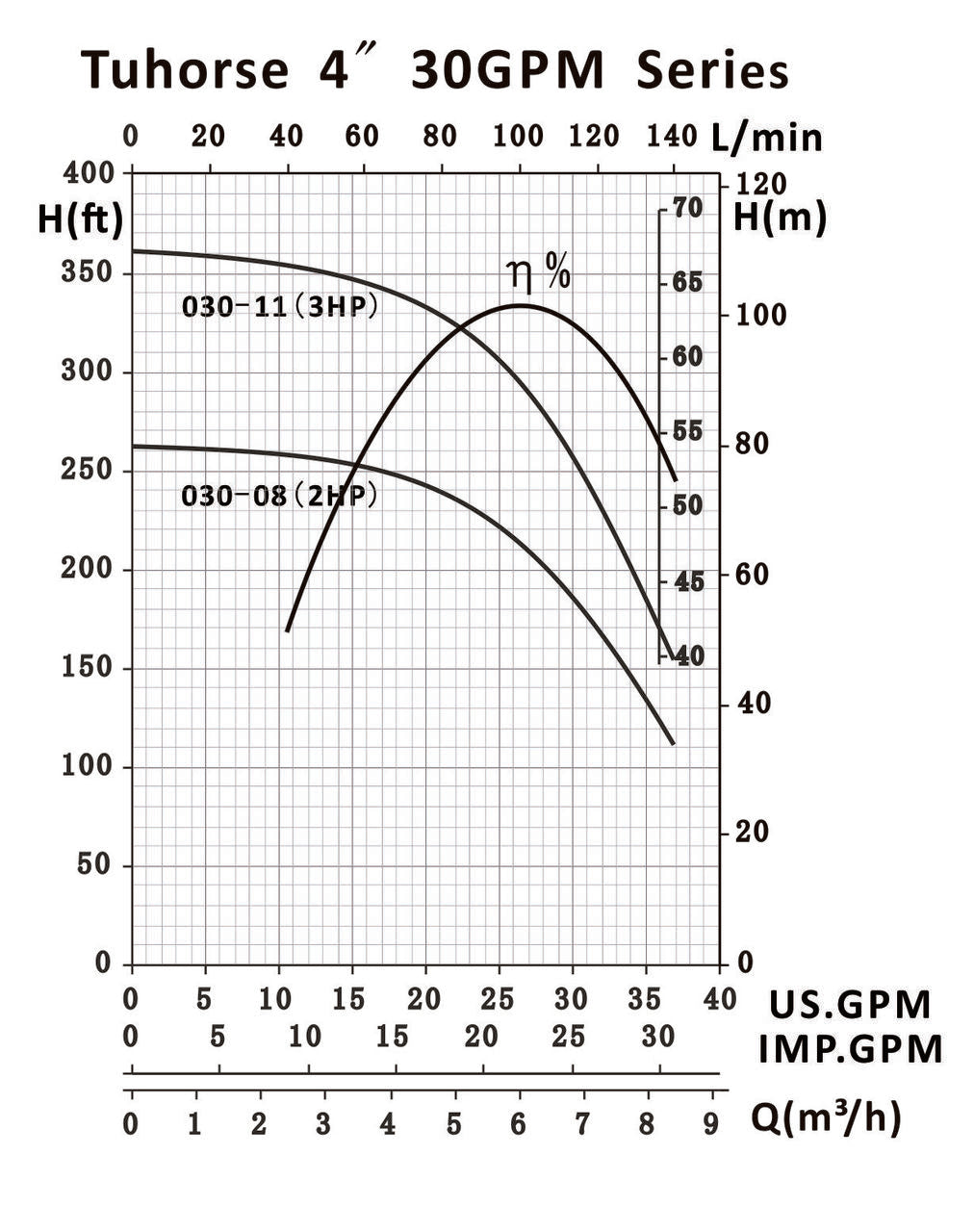

- Free Flow Rates: 35GPM @ 180ft; 30GPM @ 250ft; 25GPM @ 300ft

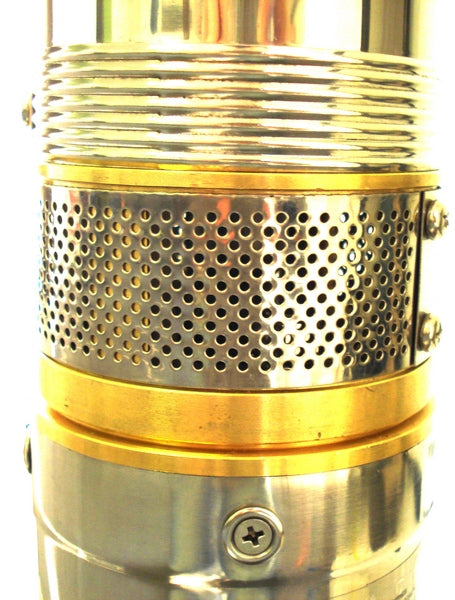

- Suction Port: Center Suction

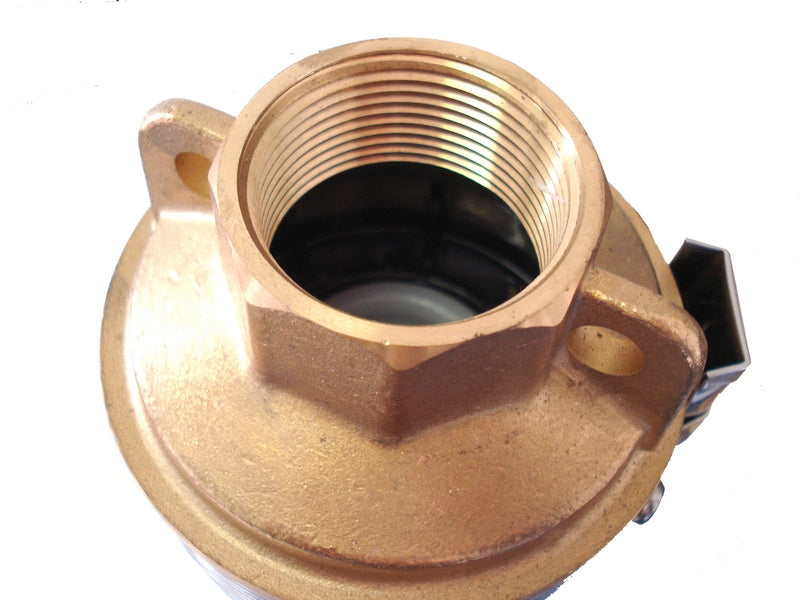

- Discharge Port: 1.5 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel, Grade 304
- Impeller Material: Thermal Plastic
- Duty: Continuous or up to 30 restarting cycles / hour
Note: We recommend you to use our TDH calculator in selecting a pump for your application
Warranty: 1 Year
