Description
27 GPM rated, 33 GPM Max.
Pump Wet End Only
- HP: Requires 3HP or larger motor
-
Voltage: N/A
- Cycle: N/A
- Operating Amperage: N/A
- Motor RPM: 3450 RPM
- Stages: 15
- Maximum Head(cut off): 480 ft
- Rated Flow: 27GPM
- Maximum Flow(0-160ft): 33 GPM

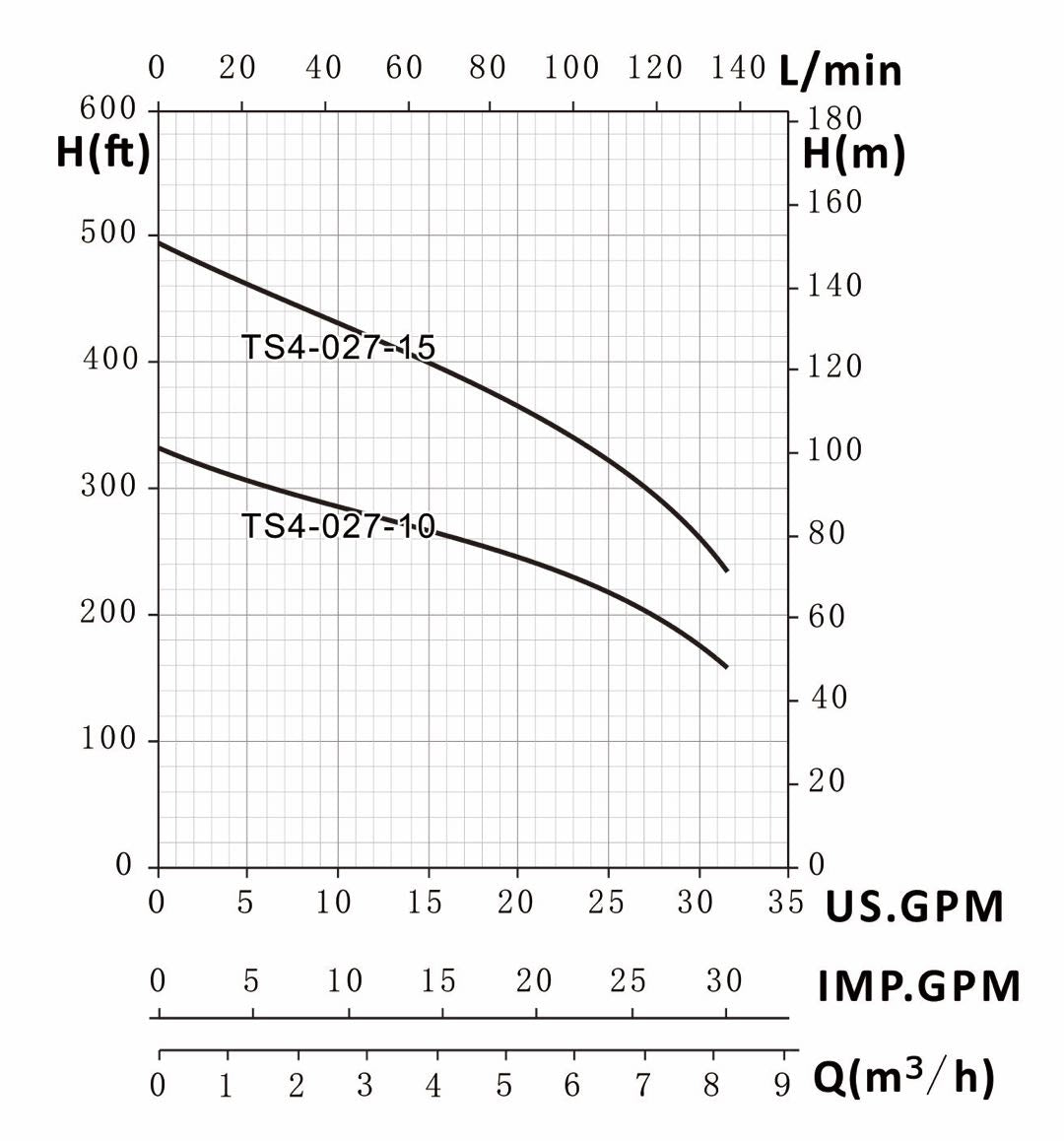

- Open Flow vs Depth: 30GPM @ 260ft; 25GPM @ 320ft; 20GPM @ 360ft; 15GPM @ 398ft;
- Suction Port: Center Suction
- Discharge Port: 1.5 in
- Built-in Check-valve: Yes, Stainless Steel 304
- Pump Housing Material: Stainless Steel 304
- Discharge and Suction Port Material: Stainless Steel 304
- Impeller Material: Stainless Steel 304
- Motor Housing: N/A
- Motor Top: N/A
- Motor Bearing / Lubrication: N/A
- Motor lead: N/A
- Duty: Continuous or up to 30 restarting cycles / hour
- Control Box: N/A
- Net Weight: 10 lbs
- Shipping Weight: 12 lbs
- Dimensions/Length: 20"(length) x 3.75"(widest diameter)
Warranty: 1 Year
