Description
30GPM rated, 40GPM Max.

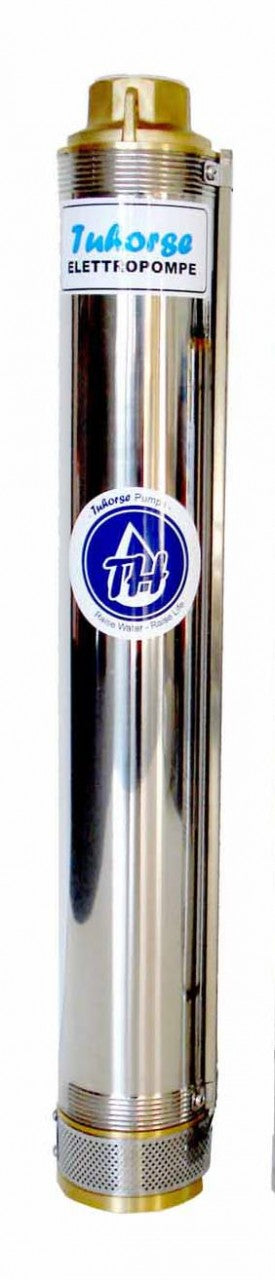

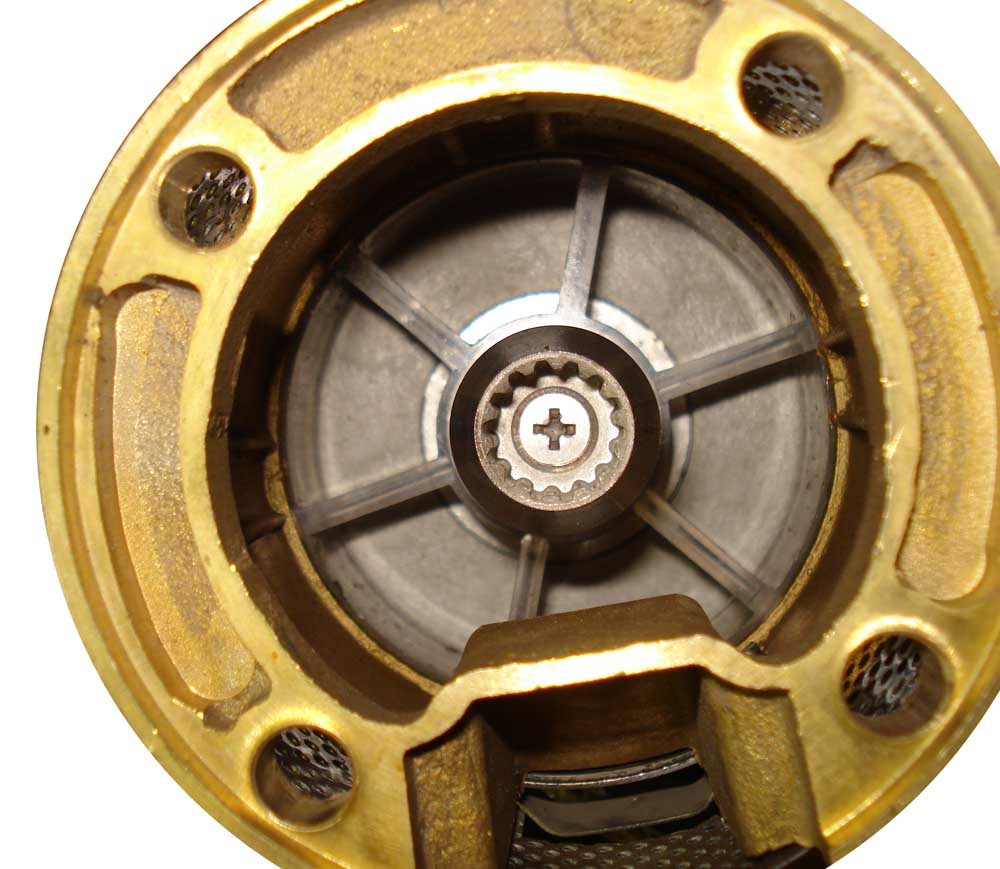

Pump end only, a 4" NEMA Standard 1.5HP submersible motor is required to operate this pump end.
- Stages: 6
- Maximum Head(cut off): 200 ft
- Maximum Flow(0-50 feet): 40 GPM

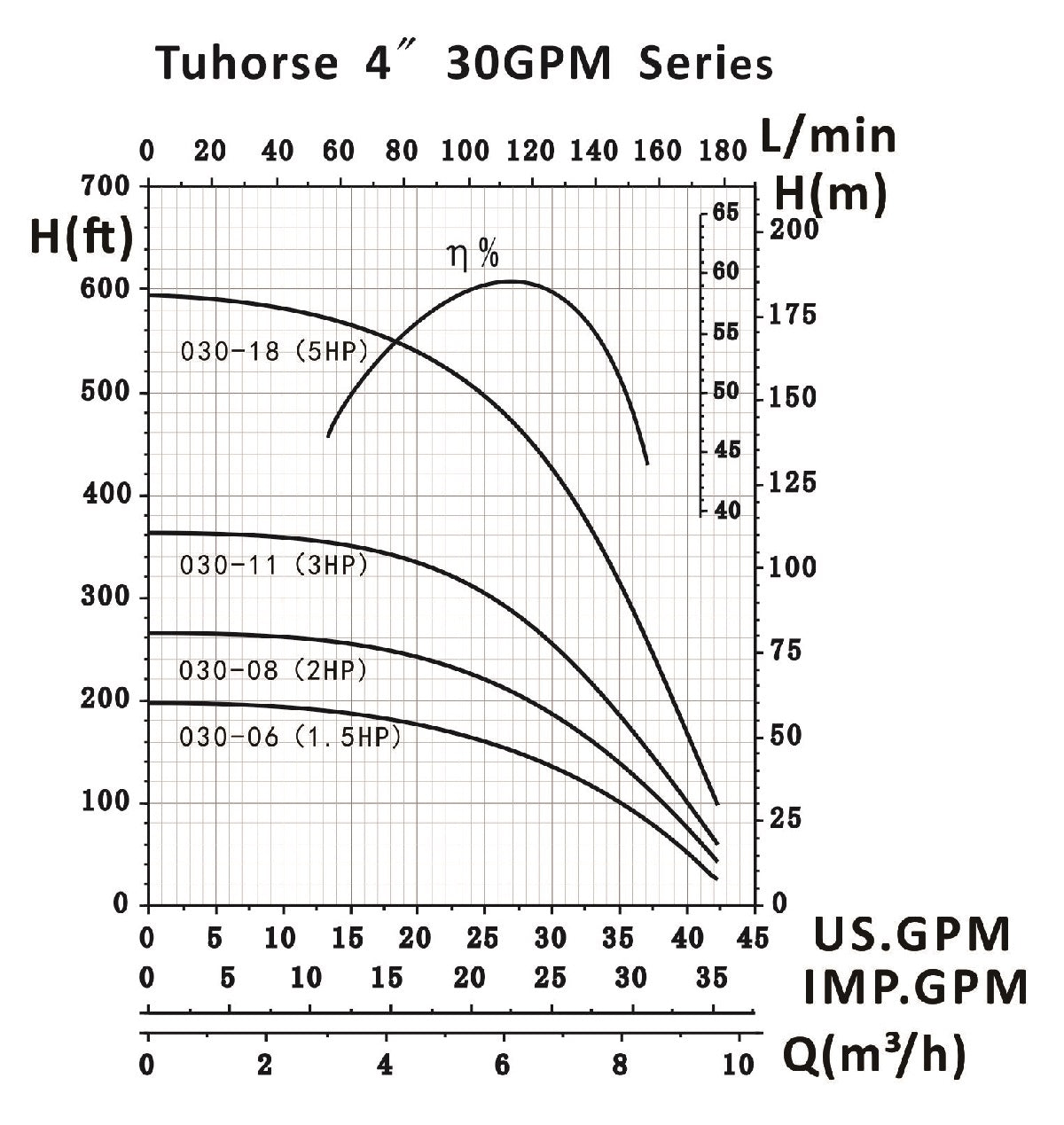

- Free Flow Rates: 35GPM @ 100ft.; 30GPM @ 130ft.; 25GPM @ 160ft.; 18GPM @ 180ft.

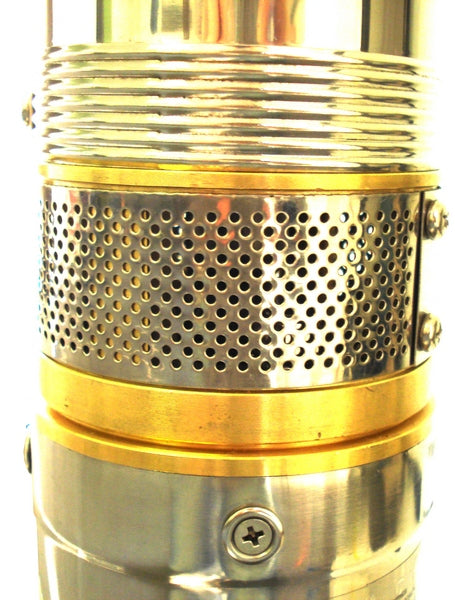

- Suction Port: Center Suction

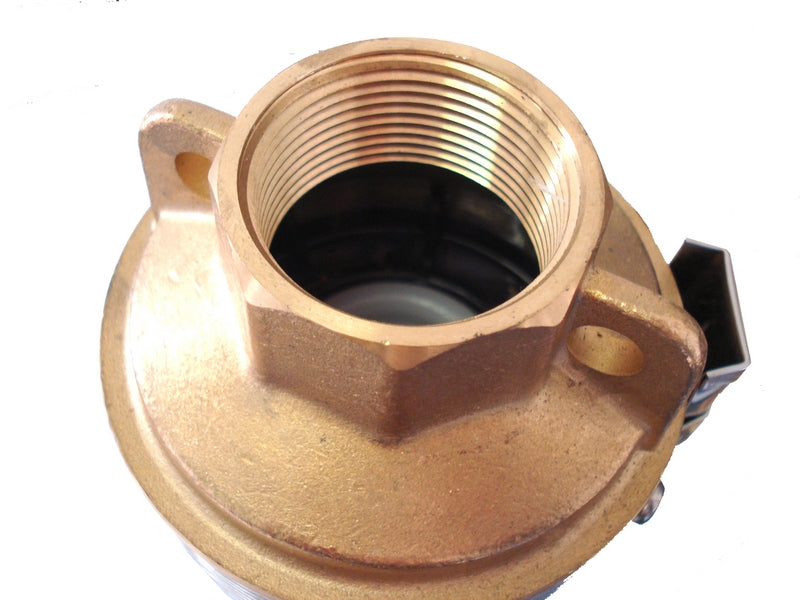

- Discharge Port: 1.5 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel, Grade 304
- Impeller Material: Thermal Plastic
- Duty: Continuous or up to 30 restarting cycles / hour
Note: We recommend you to use our TDH calculator in selecting a pump for your application
Warranty: 1 Year
