Description
Pump end only. Requires appropriate horse power 3" motor and corresponding control box to operate.
Model: TH3-006-20e
- Fit 3-1/4 inch and larger ID well
- HP: requires 3/4HP 3" motor
- Voltage: n/a
- Cycle: 60 Hz
- Operating Amperage: n/a
- Motor RPM: 3450 RPM
- Stages: 20
- Maximum Head: 400 ft
- Rated Flow: 6 GPM
- Maximum Flow (0-120 feet): 9 GPM

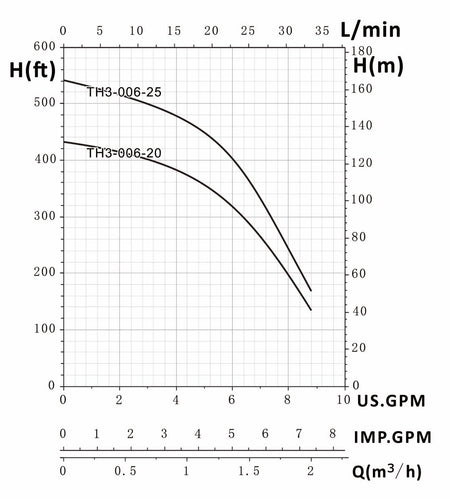

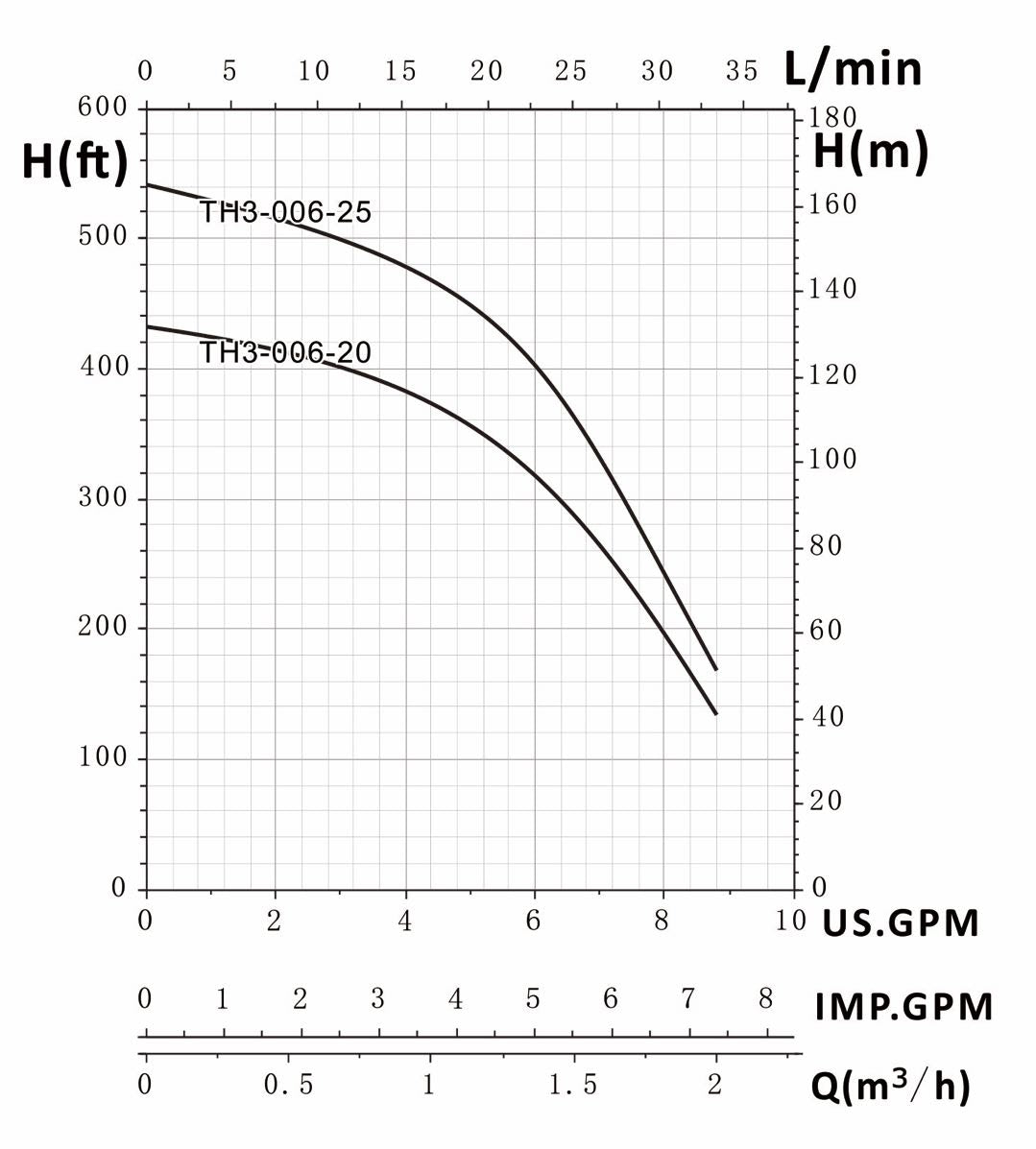

- Open Flow vs Depth: 8GPM @ 190ft; 7GPM @ 250ft; 6GPM @ 310ft; 5GPM @ 350ft
- Suction Port: Center Suction

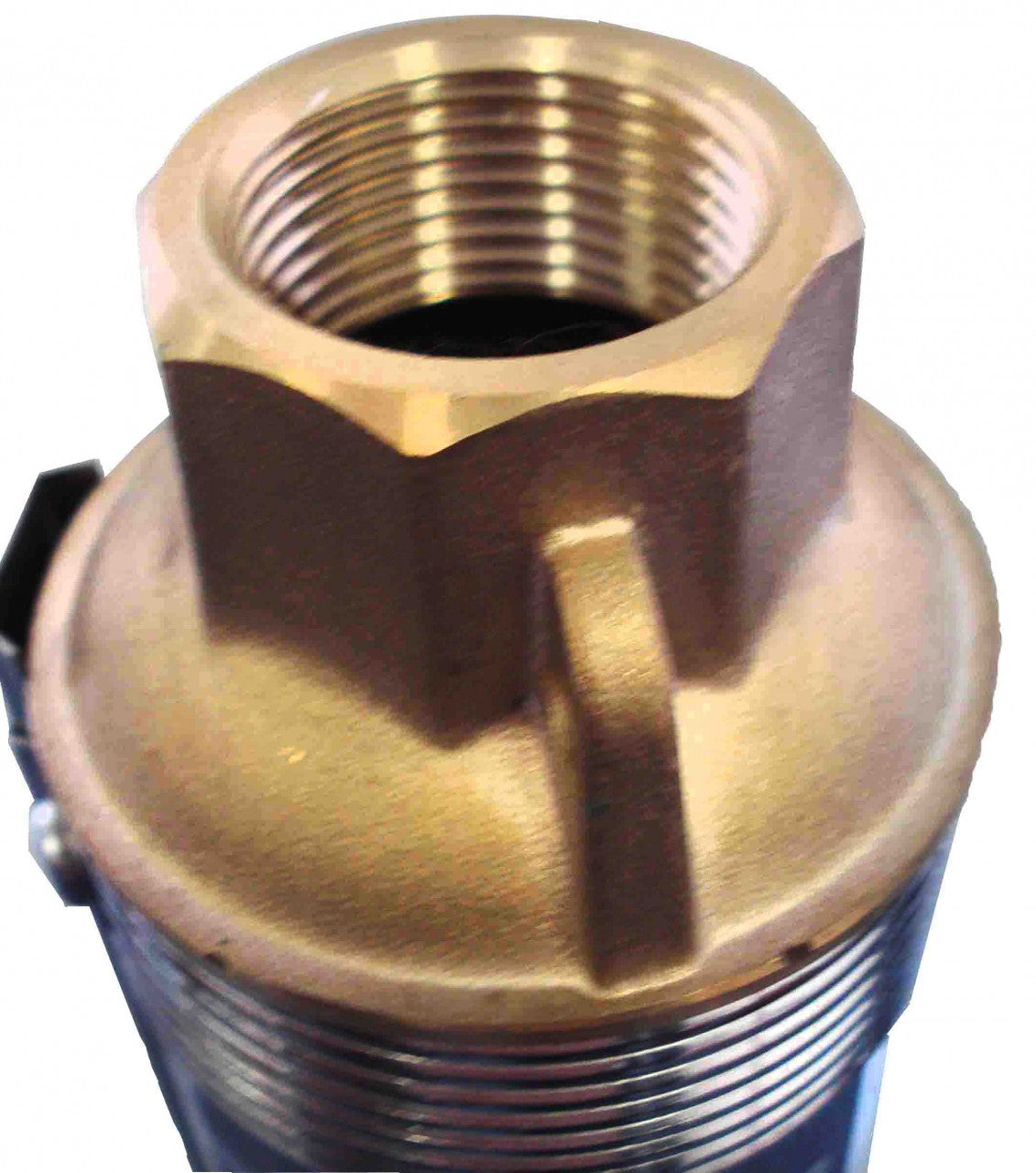

- Discharge Port: 1 inch NPT
- Built-in Check-valve: Yes, but an external check valve is required in water tight system
- Housing Material: Stainless Steel 304
- Discharge and Suction Port Material: Stainless Steel 304
- Impeller Material: Thermal Plastic
- Motor Enclosure: n/a
- Motor Bearing / Lubrication: n/a
- Motor lead: n/a
- Duty: Continuous or up to 30 restarting cycles / hour
- Control Box: n/a
- Weight: 6 lbs
- Packing weight with control box: 9lbs
- Packing Dimensions/Length: 27"x4"x4.5"
Warranty: 1 Year
