Description
Pump end only. Requires appropriate horse power 3" motor and corresponding control box to operate.
Model: TH3-010-25
- Fit 3-1/4 inch and larger ID well
- HP: Requires 1.5HP 3" motor
- Voltage: N/A
- Cycle: 60 Hz
- Operating Amperage: N/A
- Motor RPM: 3400 RPM
- Stages: 25
- Rated Flow: 10 GPM
- Maximum Flow: 14 GPM
- Maximum Head(cut off): 450 ft
- Typical Flow: 13.2GPM @ 165ft; 11GPM @ 270ft; 8GPM @ 320ft; 5GPM @ 410ft
- Suction Port: Center Suction

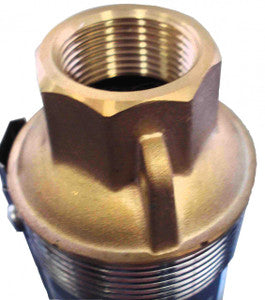

- Discharge Port: 1 inch NPT
- Built-in Check-valve: Yes, but an external check valve is required in water tight systems
- Housing Material: Stainless Steel 304
- Impeller Material: Thermal Plastic
- Motor Enclosure: Stainless steel 304
- Motor Lead: 4 wires (3 wire + 1 ground)
- Duty: Continuous or up to 30 restarting cycles / hour
- Control Box: N/A
- Shipping Weight: 15 lbs
- Packaging: 38" x 5" x 5"
- Dimensions/Length: 35"x4"x4.5"
Warranty: 1 Year
