Description

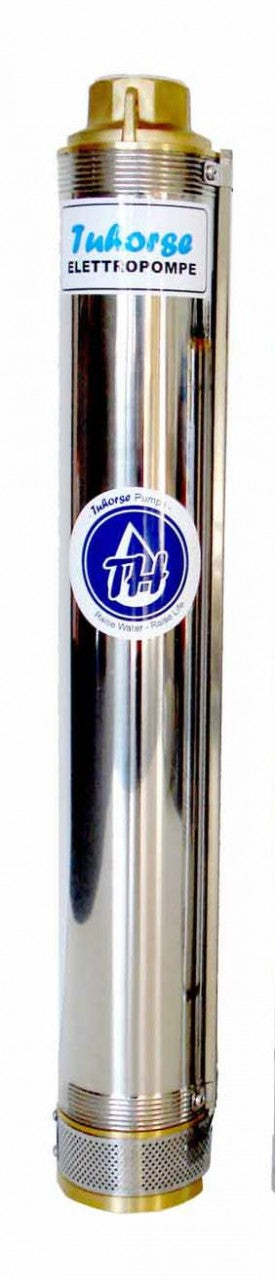

Pump end only. Requires appropriate horse power motor and corresponding control box( if necessary) for operation.

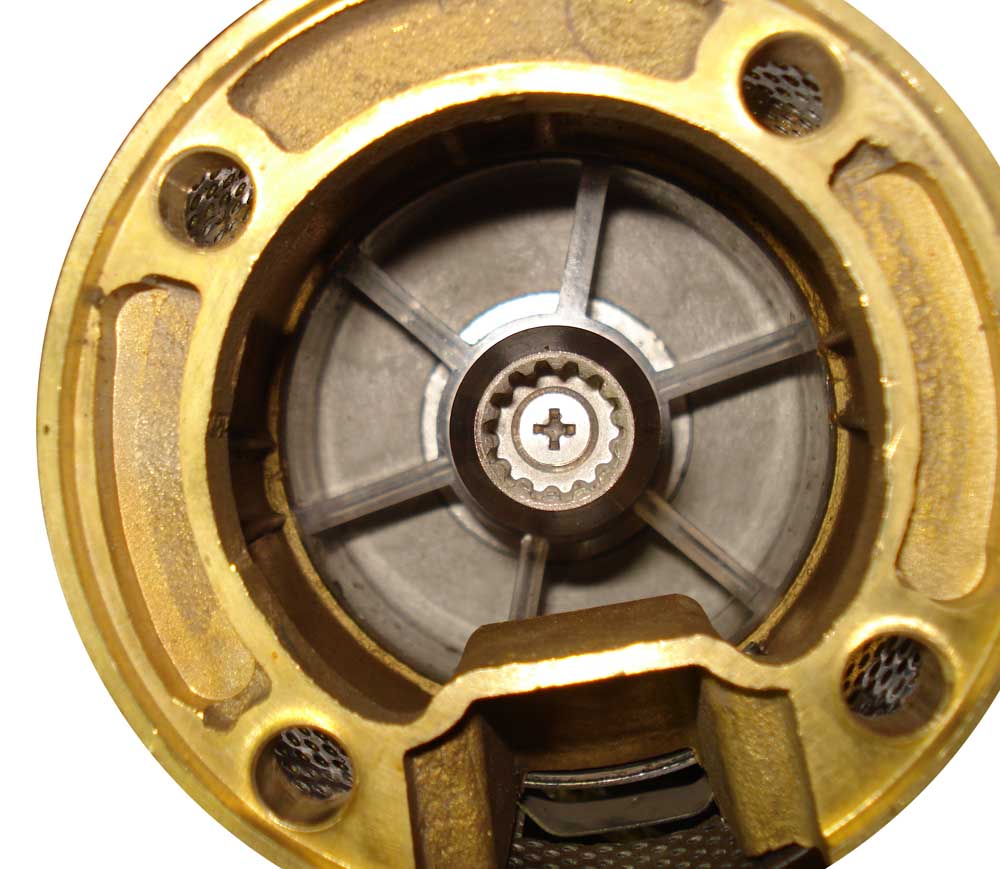

This Tuhorse Pump-End is Adaptable (compatible) to those major brand motors with same HP rating or larger, Such as Franklin Electric 4" 3HP Submersible Motor for Deep Well Pump. NEMA standard.
Note: This pump is low pressure, high flow. It is used for free flow or low TDH applications, such as low head pumping to a holding tank, a pond or a dripping irrigation system. It is not made for a domestic water system with a pressure tank.
- HP: Requires 3HP
- Voltage: N/A
- Cycle: N/A
- Operating Amperage: N/A
- Motor RPM : Required 3450 RPM
- Stages: 6
- Maximum Flow: 95 GPM
- Maximum Head: 160ft

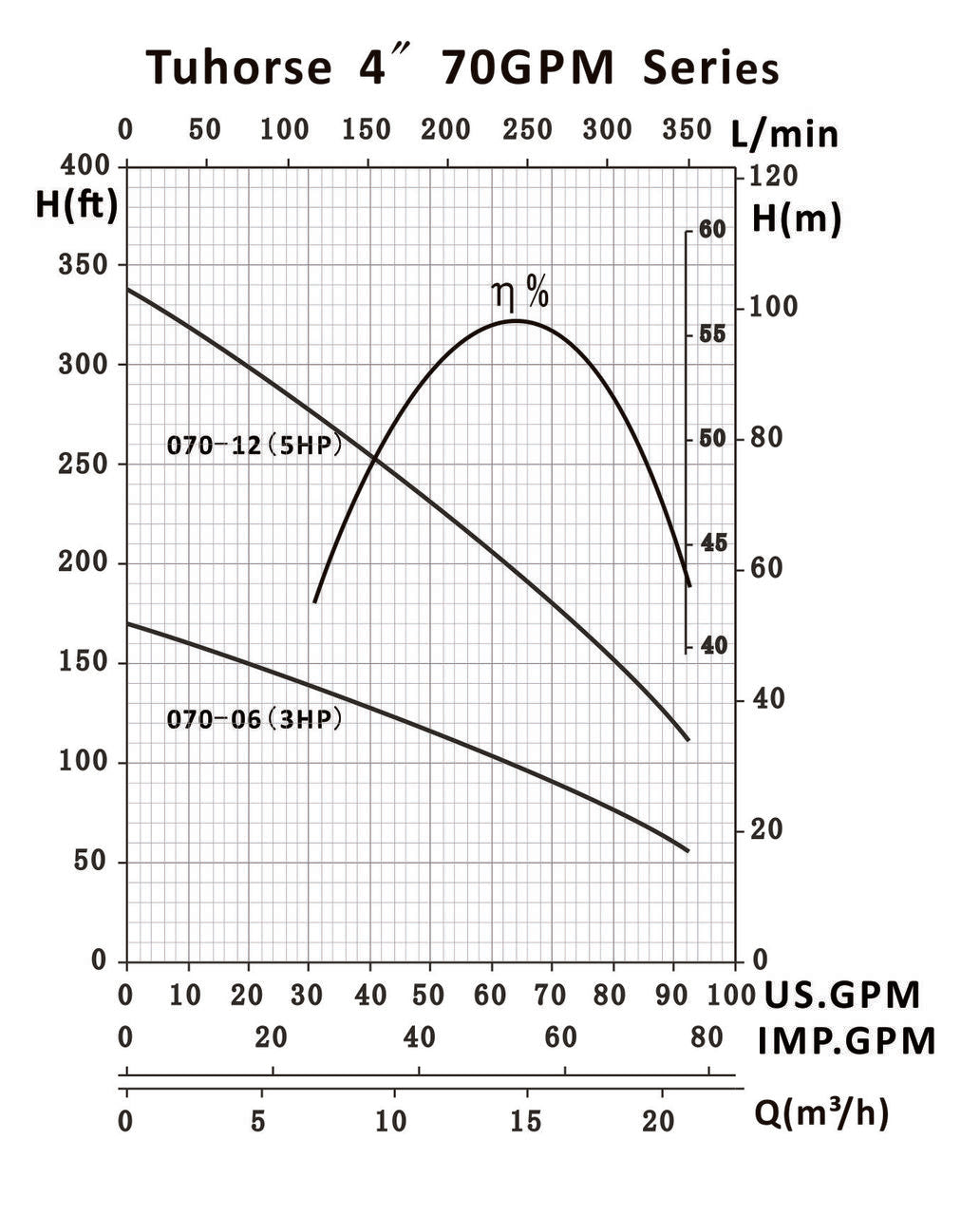

- Typical Flow: 90GPM @ 60ft; 80GPM @ 75ft; 70GPM @ 90 ft; 60GPM @ 105 ft; 40GPM @ 125ft

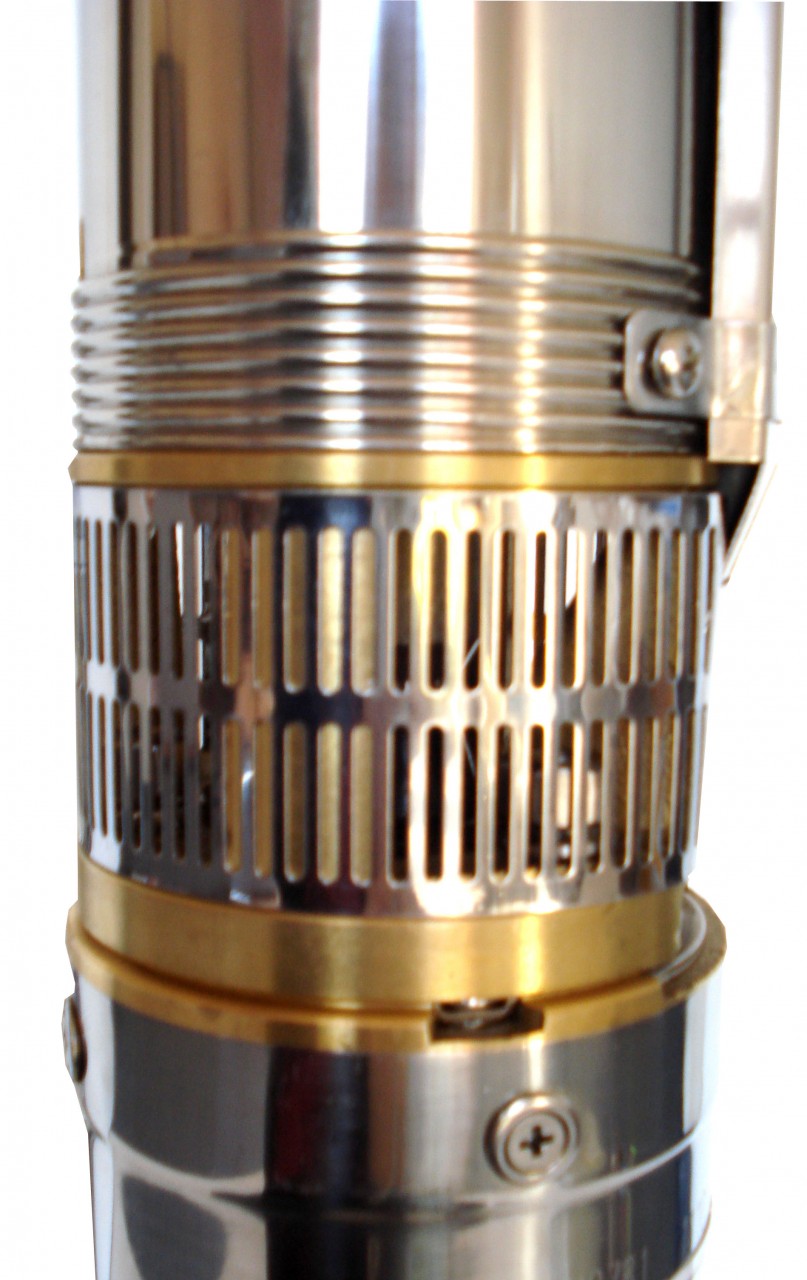

- Suction Port: Center Suction

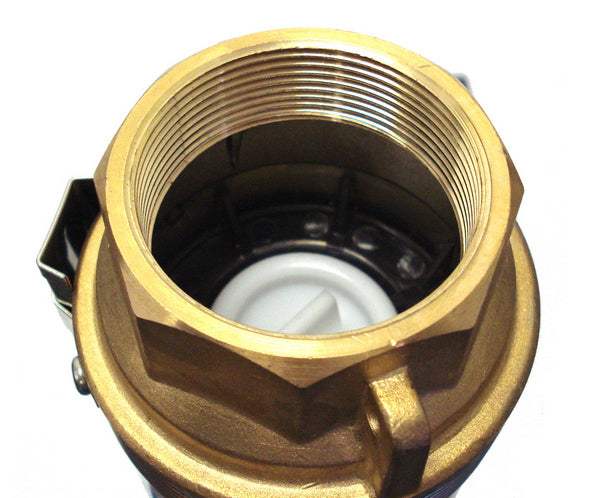

- Discharge Port: 2 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel
- Impeller Material: Thermal Plastic
- Motor Enclosure: n/a
- Duty: n/a
- Control Box: n/a
- Weight: 15 lbs
- Dimensions/Length: n/a
Warranty: 1 Year
