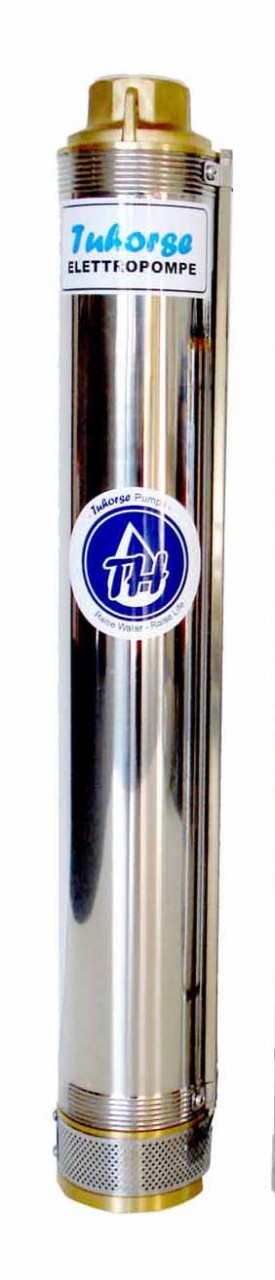

3HP TH4-023-13 (Pump End Only)

SKU: TH402313e
Regular price $249.00 USD
Regular price $399.00 USD Sale price $249.00 USD
In stock
Ships out the same business day or next

Description

Pump end only. Requires appropriate horse power motor and corresponding control box( if necessary) for operation.

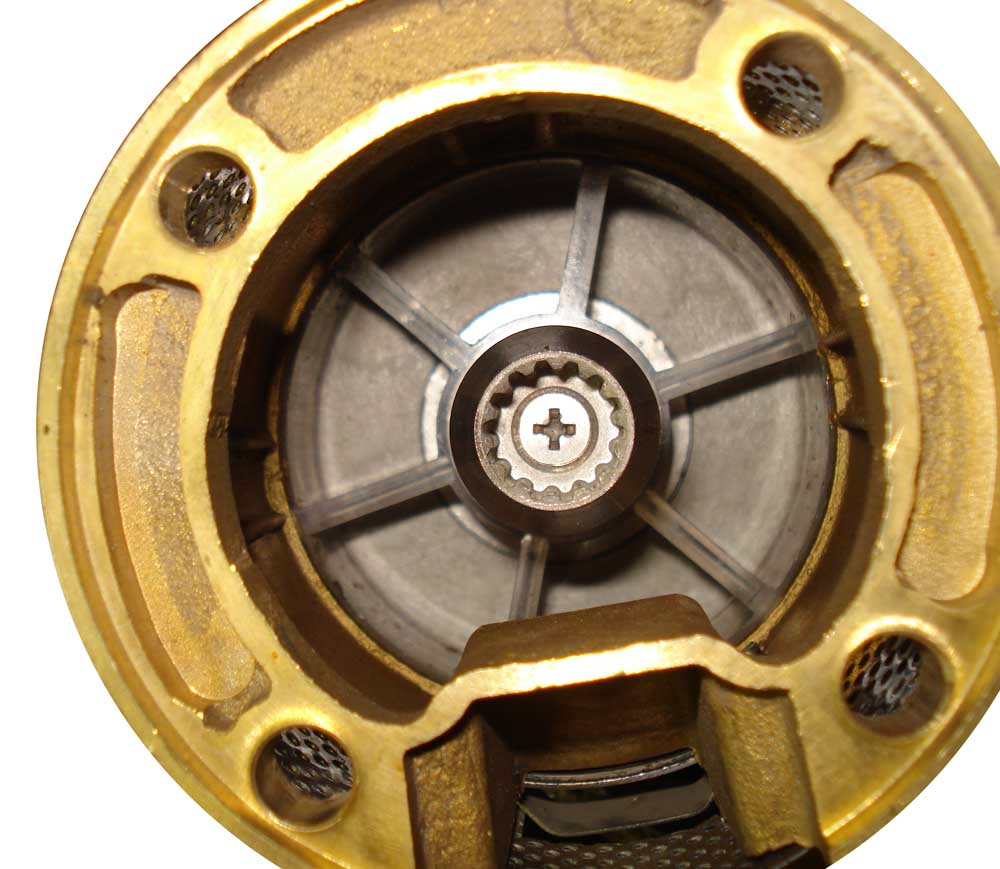

This Tuhorse Pump-End is Adaptable (compatible) to those major brand motors with same HP rating or larger, Such as Franklin Electric 4" Submersible Motor for Deep Well Pump. NEMA standartd.



  • HP: Requires 3HP
  • Voltage: N/A
  • Cycle: N/A
  • Operating Amperage: N/A
  • Motor RPM: 3450 RPM
  • Stages: 13
  • Rate Flow: 23 GMP
  • Maximum Flow: 30 GPM
  • Maximum Head: 460 ft

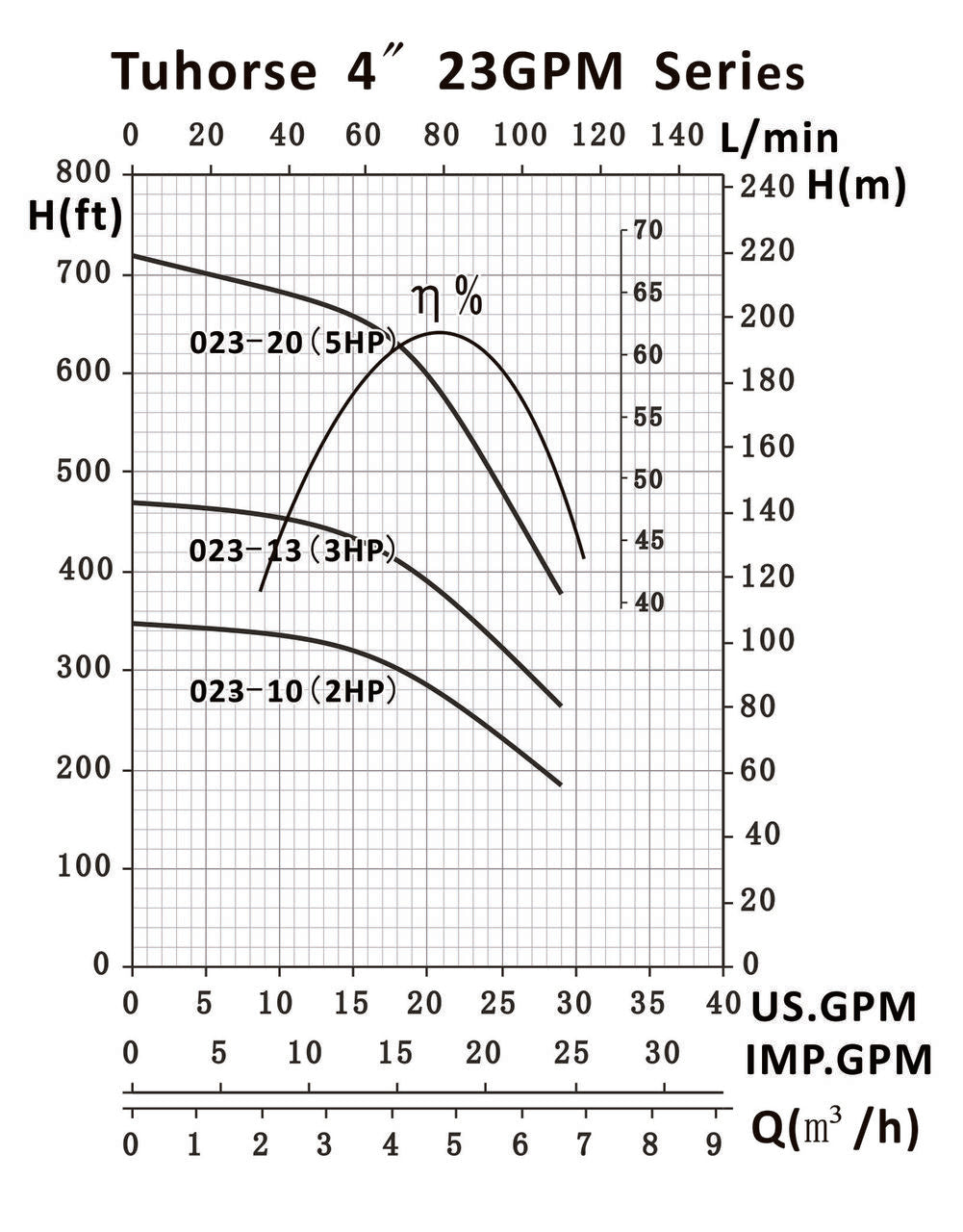

  • Typical Flow: 29GPM @ 230ft; 27GPM @ 280ft; 23GPM @ 320ft; 16GPM @ 390ft; 13GPM @ 405ft

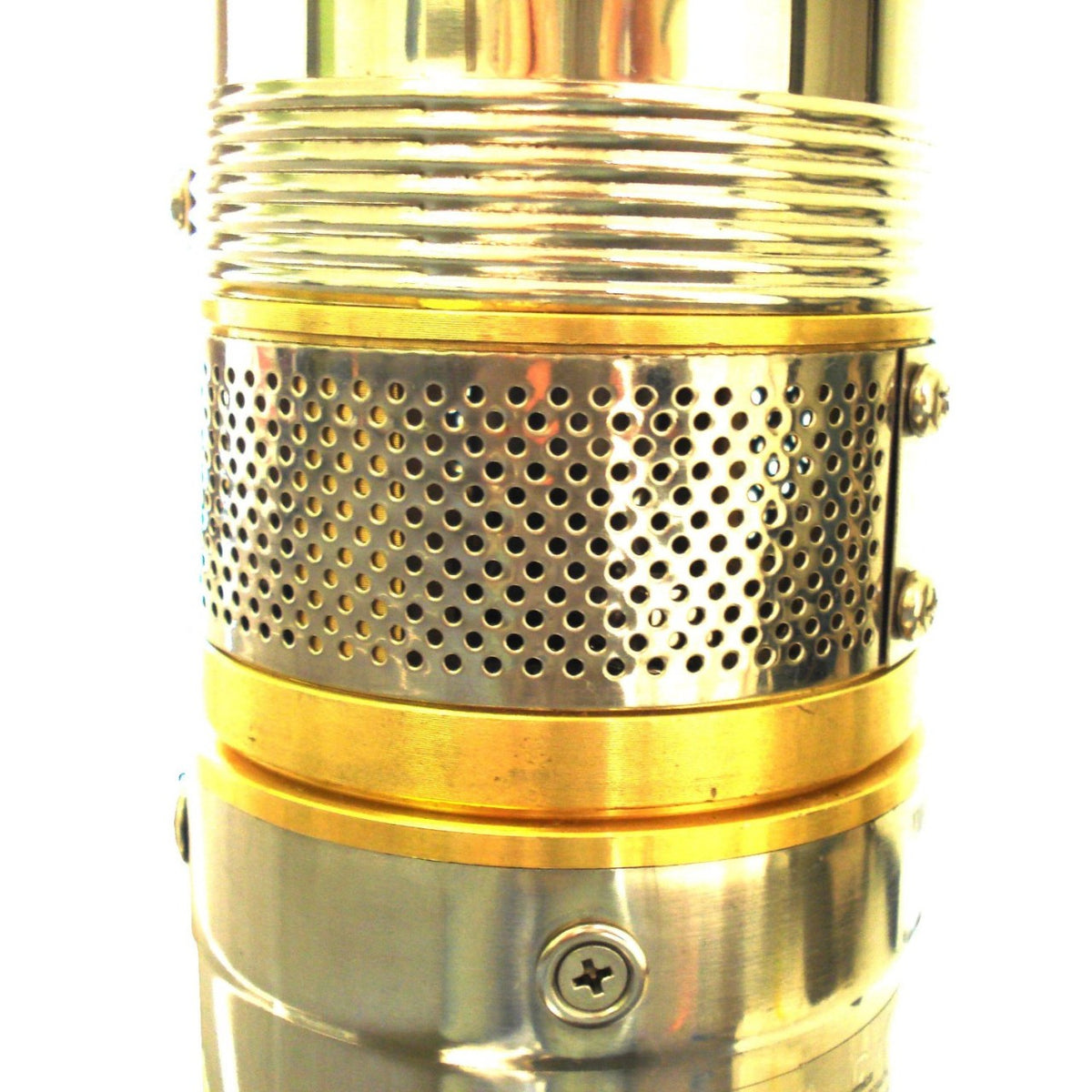

  • Suction Port: Center Suction

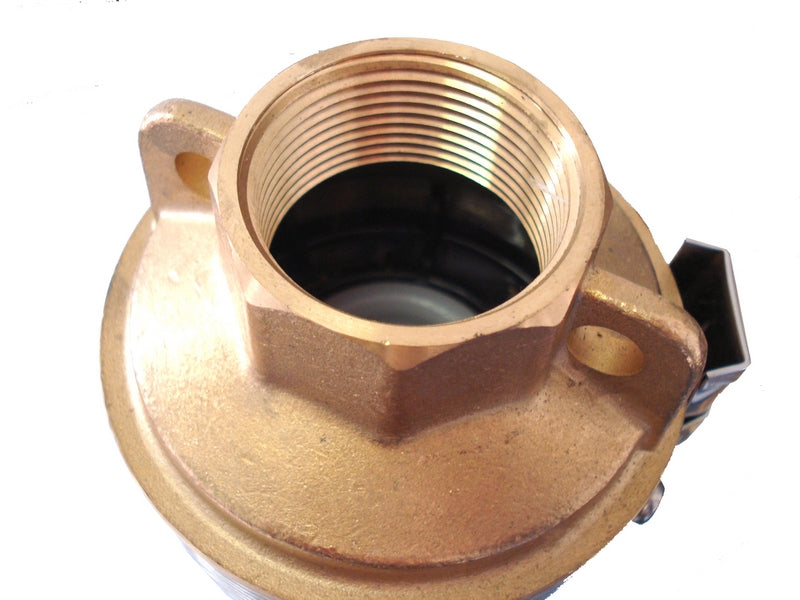

  • Discharge Port: 1.5 in
  • Built-in Check-valve: Yes
  • Housing Material: Stainless Steel
  • Impeller Material: Thermal Plastic
  • Motor Enclosure: n/a
  • Duty: n/a
  • Control Box: n/a
  • Weight: 11 lbs
  • Dimensions/Length: 23.5"

Warranty: 1 Year
