Description
Pump end only. Requires appropriate horse power motor and corresponding control box( if necessary) for operation.

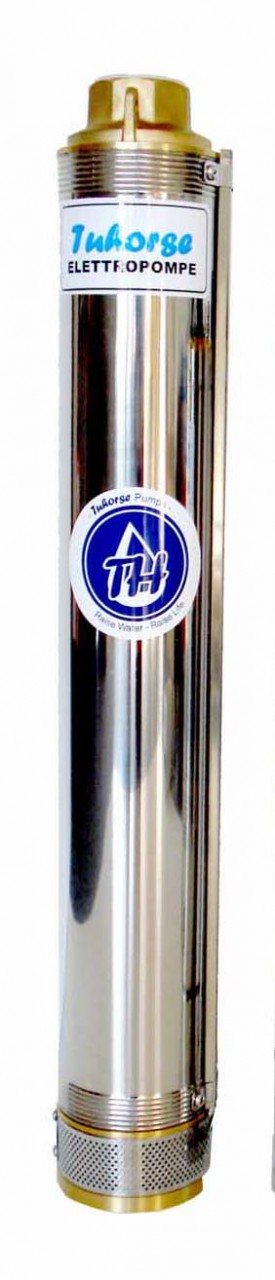

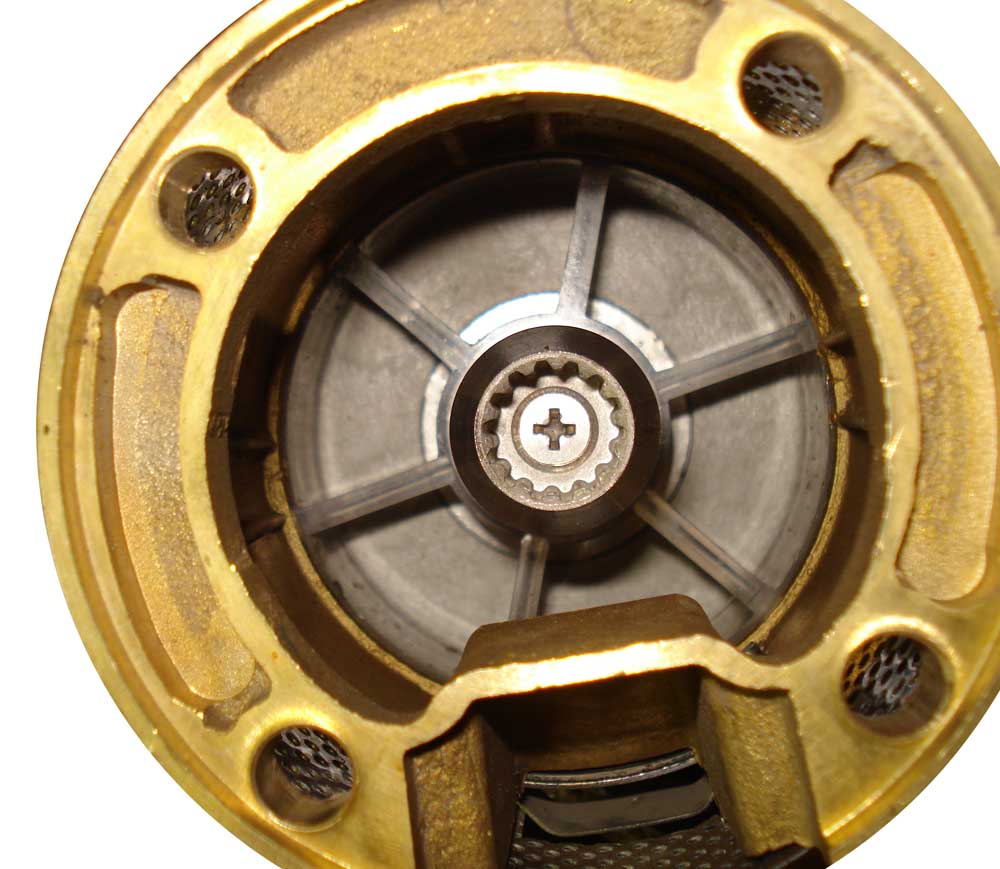

This Tuhorse Pump-End is Adaptable (compatible) to those major brand motors with same HP rating or larger, Such as Franklin Electric 4" Submersible Motor for Deep Well Pump. NEMA standartd.
- HP: Requires 3HP
- Voltage: N/A
- Cycle: N/A
- Operating Amperage: N/A
- Motor RPM: 3450 RPM
- Stages: 22
- Maximum Flow: 14.1 GPM
- Maximum Head: 880 ft
-

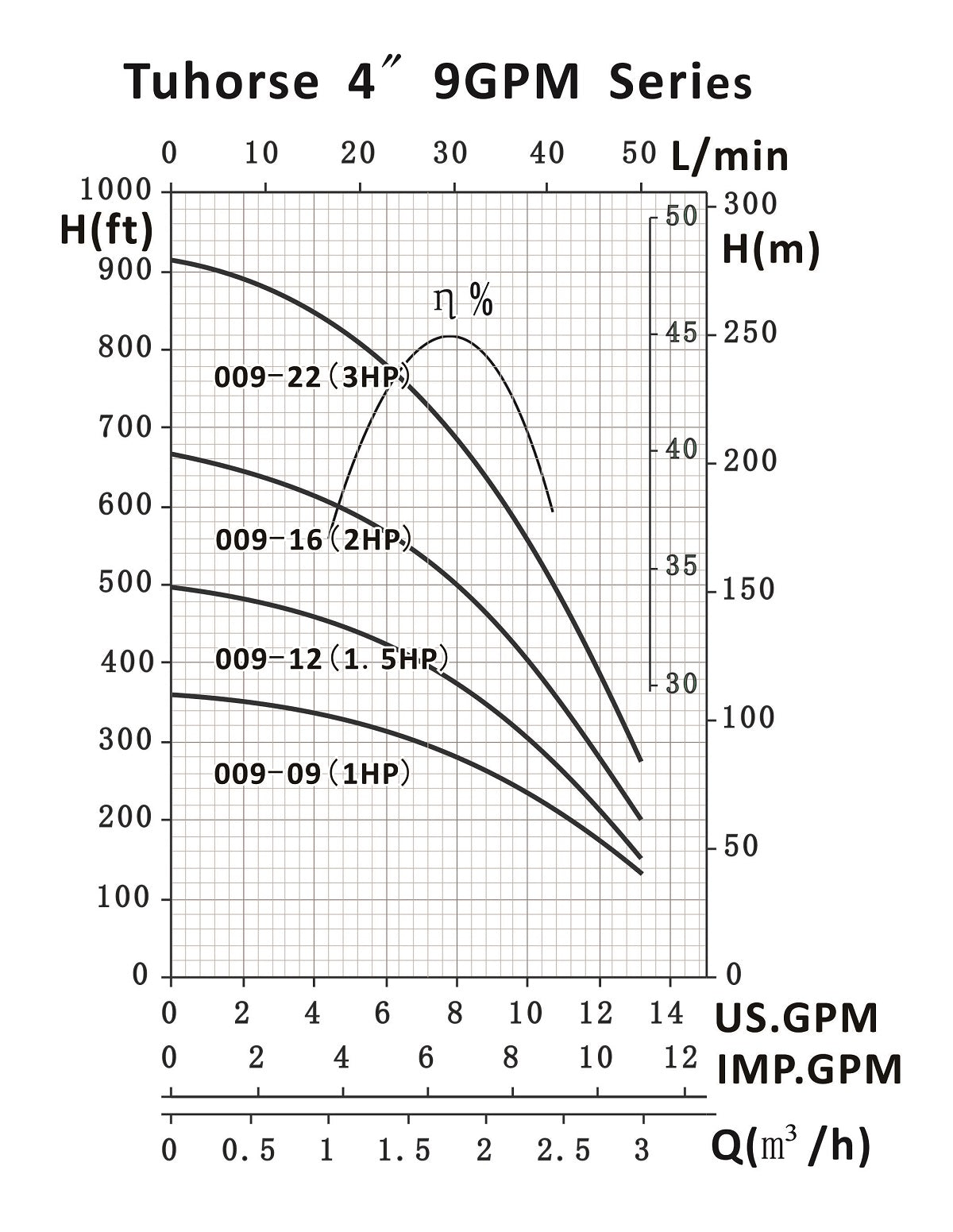

Typical Flow: 13GPM @ 290ft; 11GPM @ 470ft; 9GPM @ 620ft; 7GPM @ 735ft; 5GPM @ 815ft.

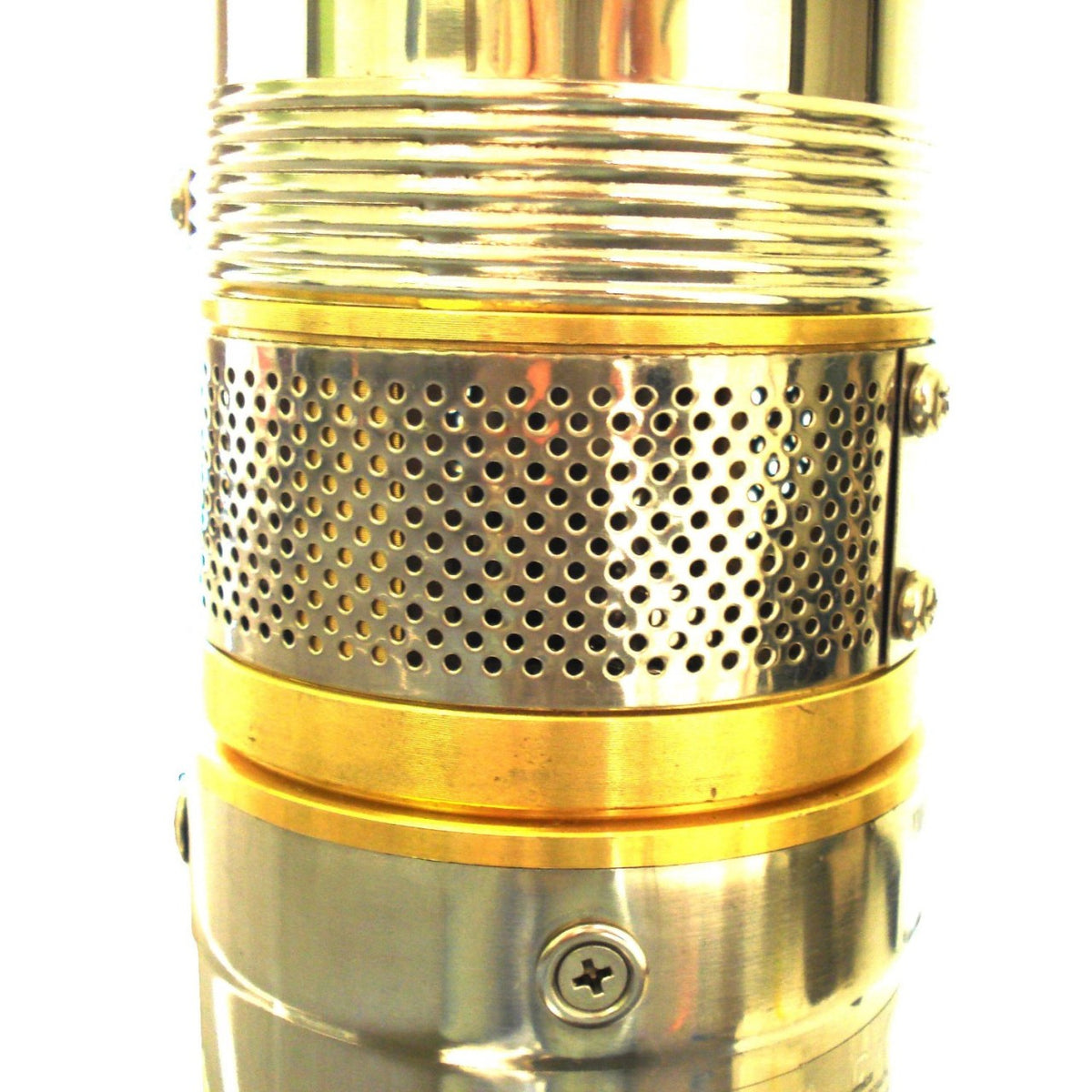

- Suction Port: Center Suction

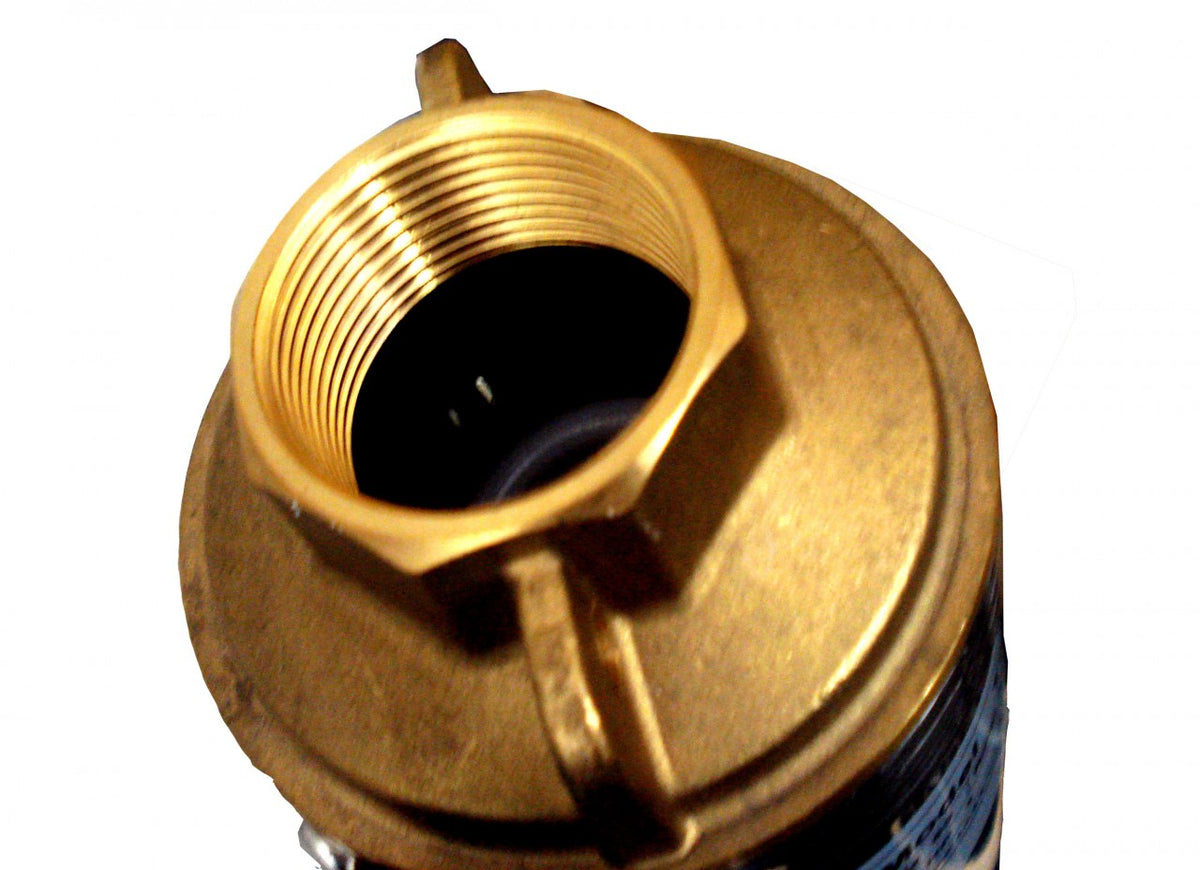

- Discharge Port: 1.25 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel
- Impeller Material: Thermal Plastic
- Motor Enclosure: n/a
- Duty: n/a
- Control Box: n/a
- Weight: 13.2 lbs
- Dimensions/Length: 28"
Warranty: 1 Year
