Description
18 GPM rated, 26 GPM Max.

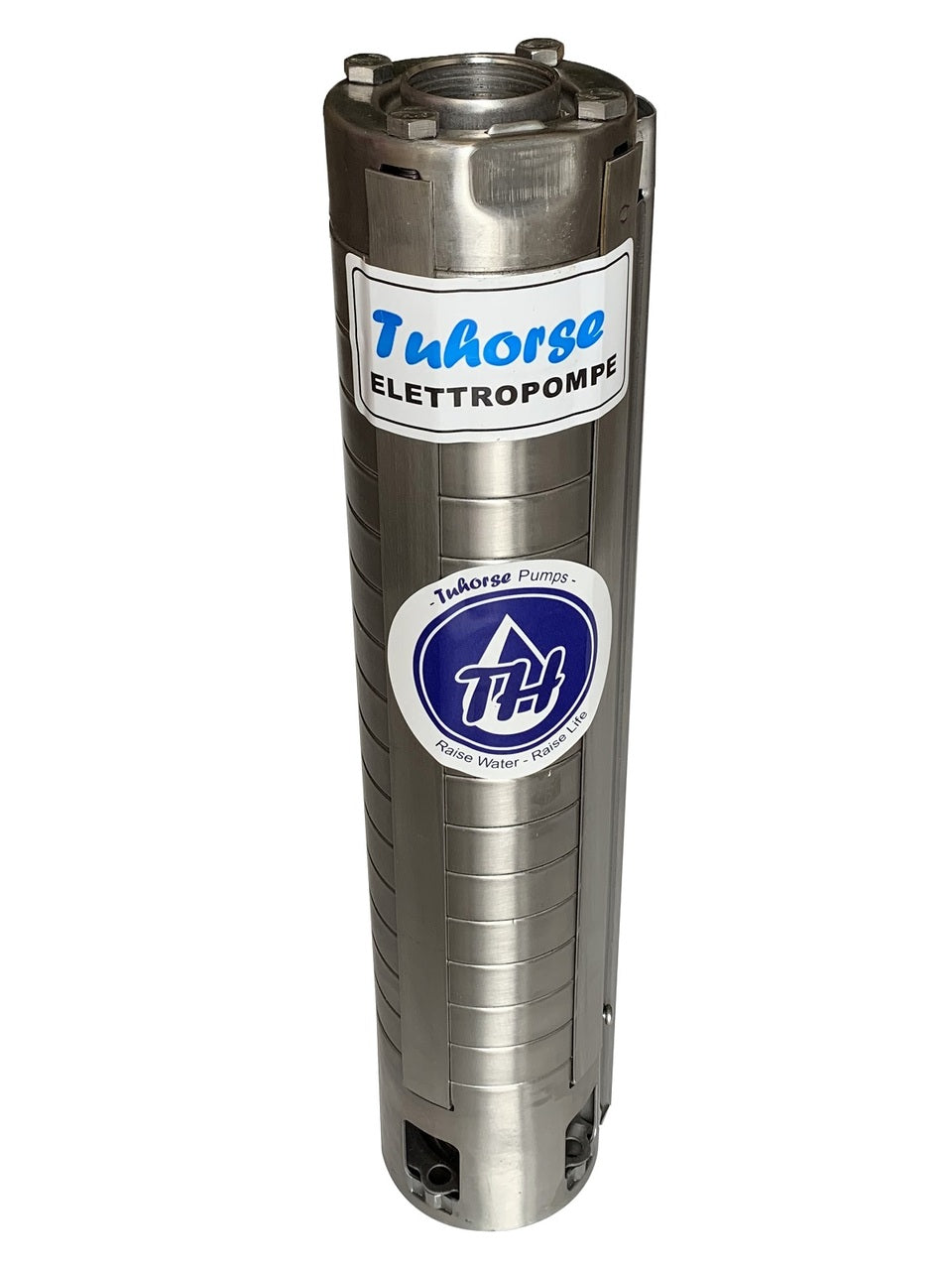

Pump Wet End Only
- HP: requires 2HP or larger motor
- Voltage: N/A
- Cycle: N/A
- Operating Amperage: N/A
- Motor RPM: 3450 RPM
- Stages: 15
- Rated Flow: 18GPM
- Maximum Head(cut off): 480ft
- Maximum Flow(0-180ft): 18 GPM

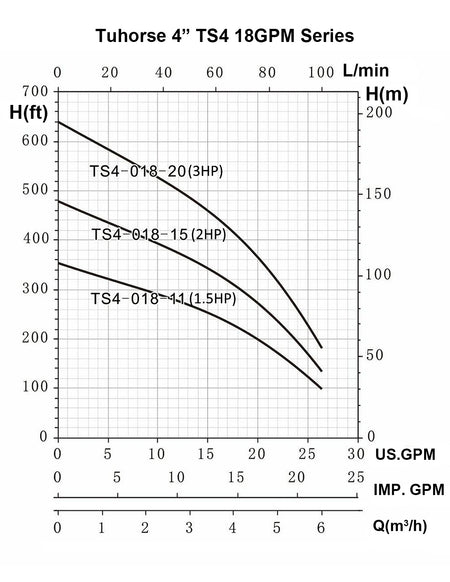

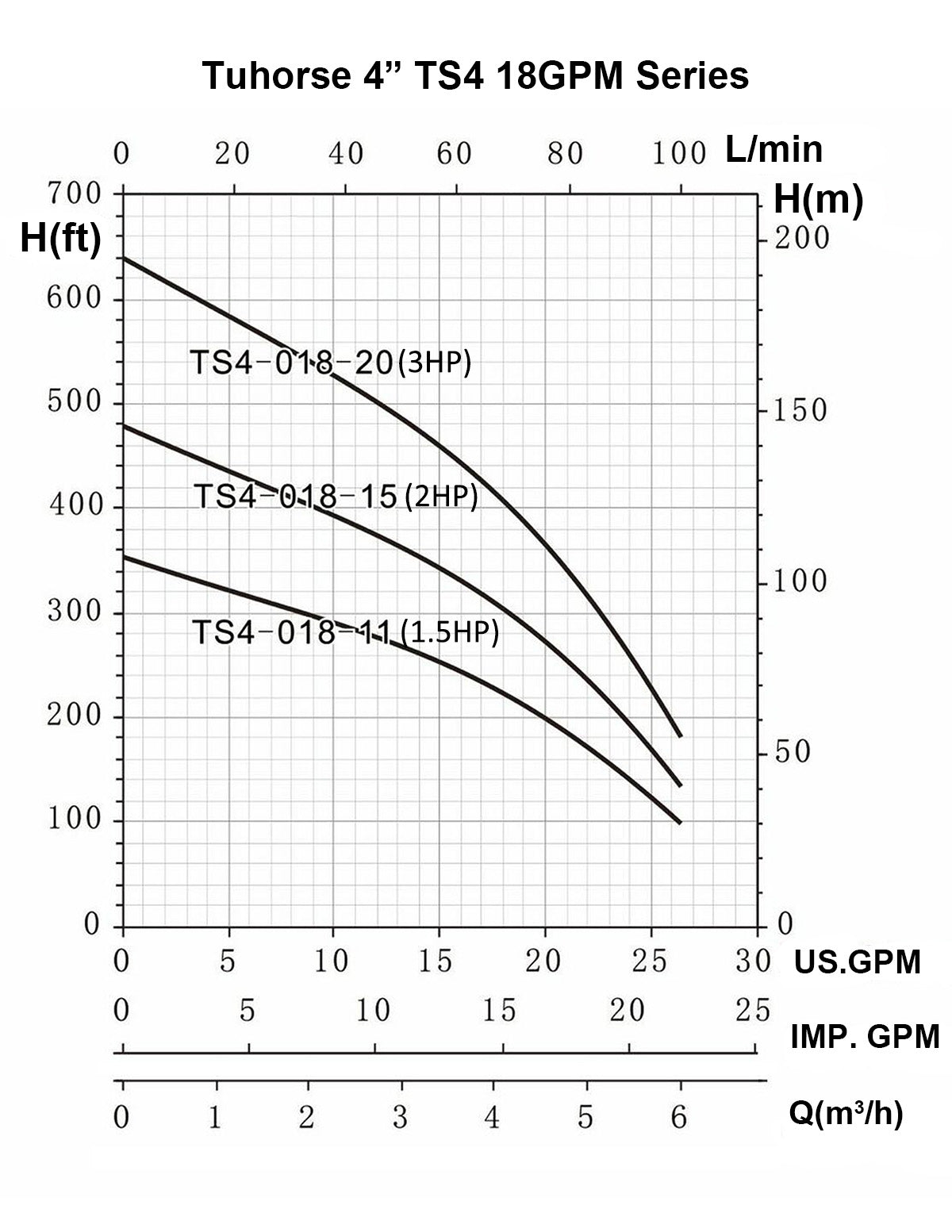

- Free Flow Rate: 25GPM @ 160ft; 20GPM @ 270ft; 15GPM @ 320ft; 10GPM @ 395ft; 5GPM @ 435ft

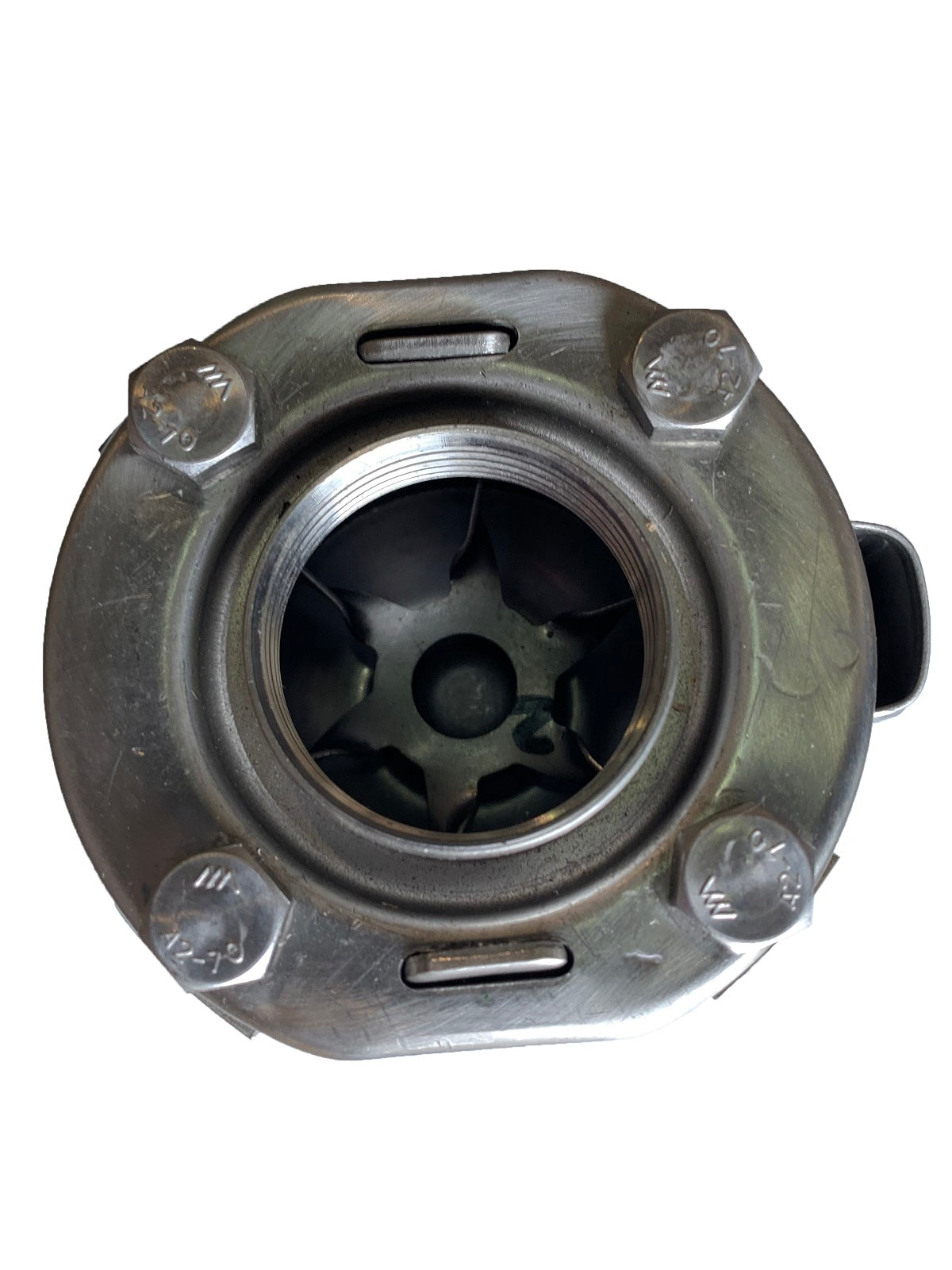

- Suction Port: Center Suction
- Discharge Port: 1.25 in
- Built-in Check-valve: Yes, Stainless Steel 304
- Housing Material: Stainless Steel 304
- Impeller Material: Stainless Steel 304
- Motor Enclosure: Stainless Steel 304
- Duty: Continuous or up to 20 restarting cycles / hour
- Control Box: N/A
- Pump End Net Weight: 12lbs
- Shipping Dimensions: 21.5" x 4.75" x 4.5"
- Shipping Weight: 14lbs
Warranty: 1 Year
