Description
13 GPM rated, 18 GPM Max.

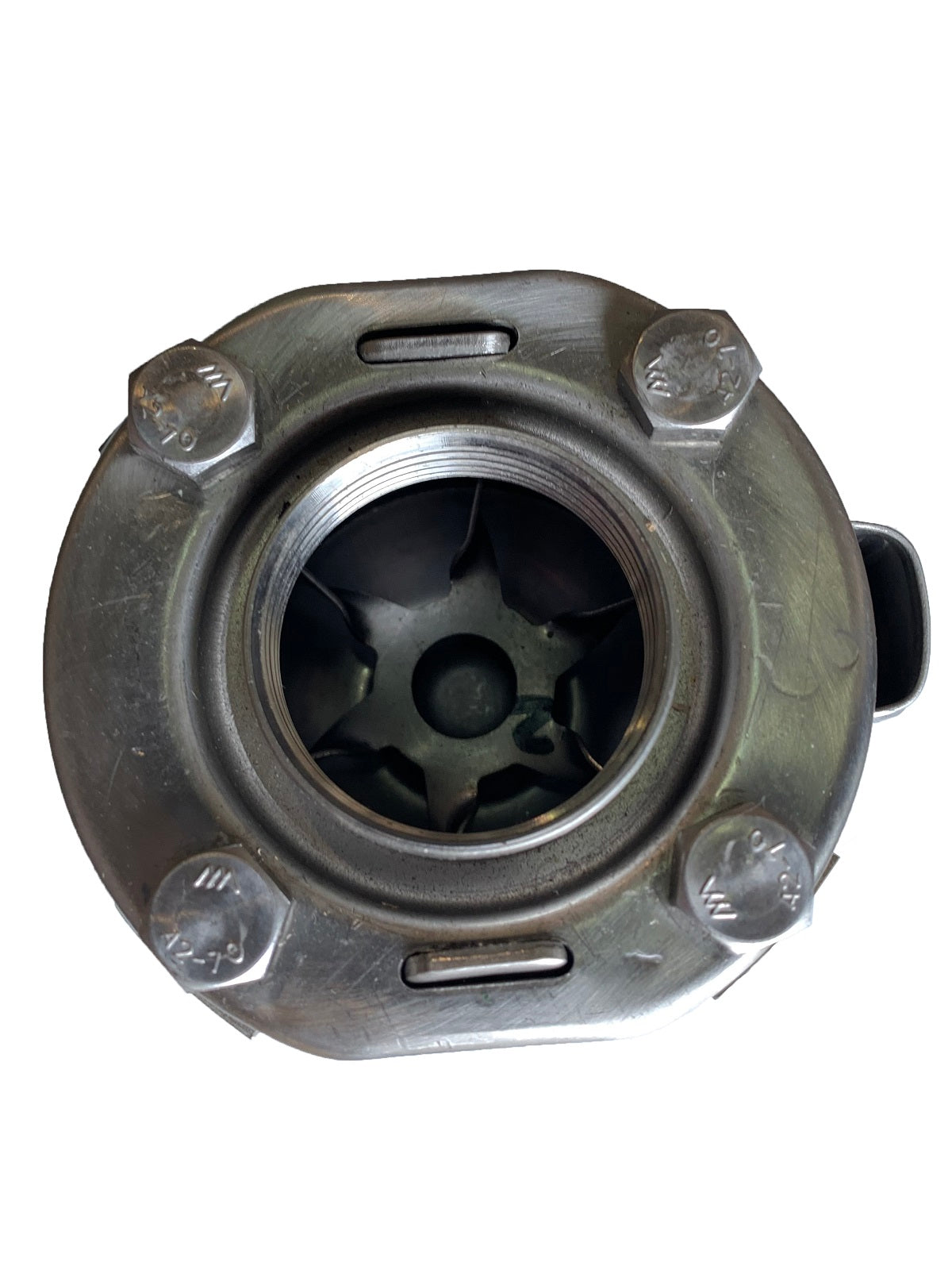

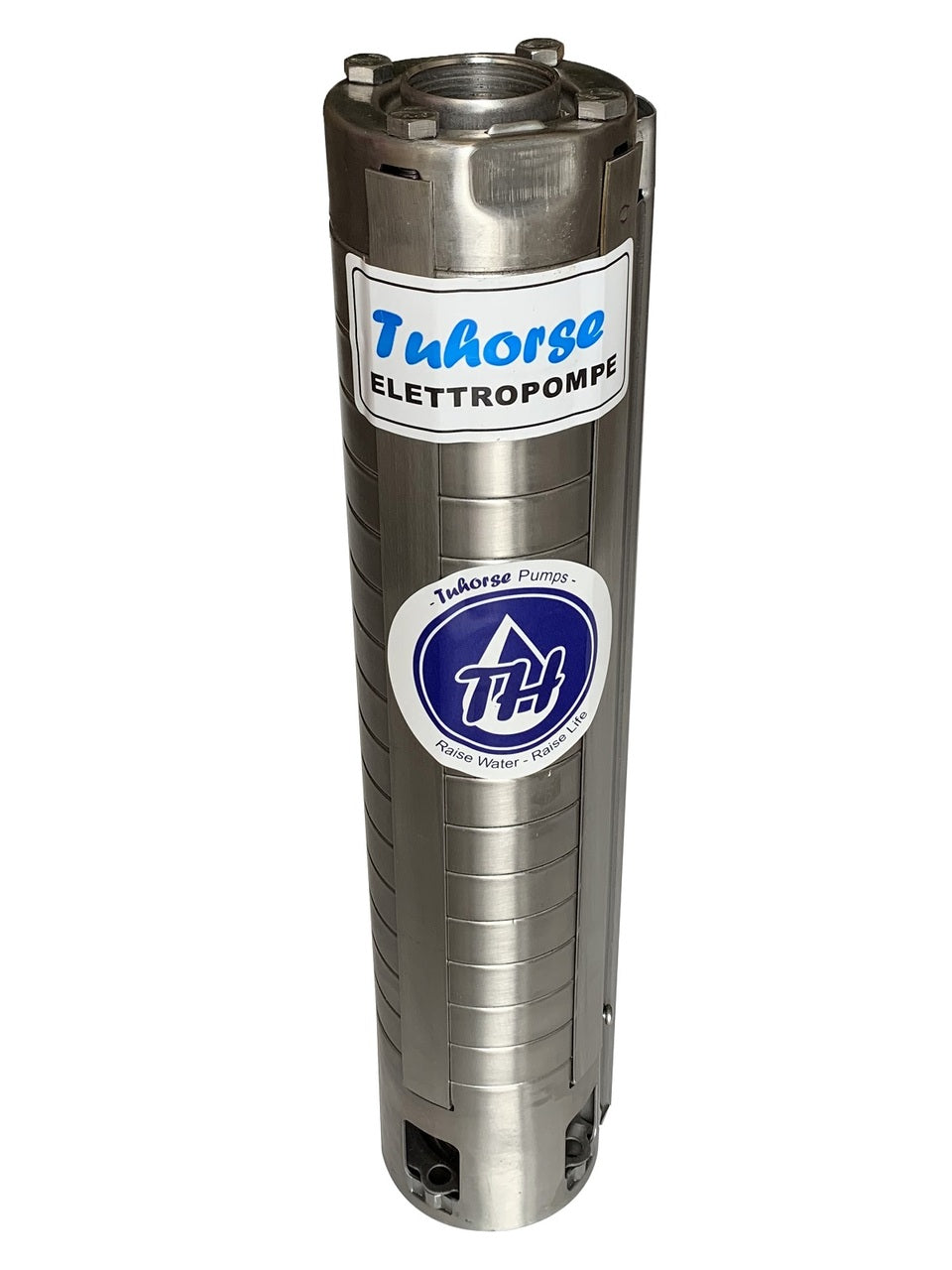

Pump Wet End Only
- HP: 2HP or larger motor required
- Voltage: N/A
- Cycle: N/A
- Operating Amperage: N/A
- Motor RPM: 3450 RPM
- Stages: 18
- Rated Flow: 13GPM
- Maximum Head(cut off): 540ft
- Maximum Flow(0-180ft): 18 GPM

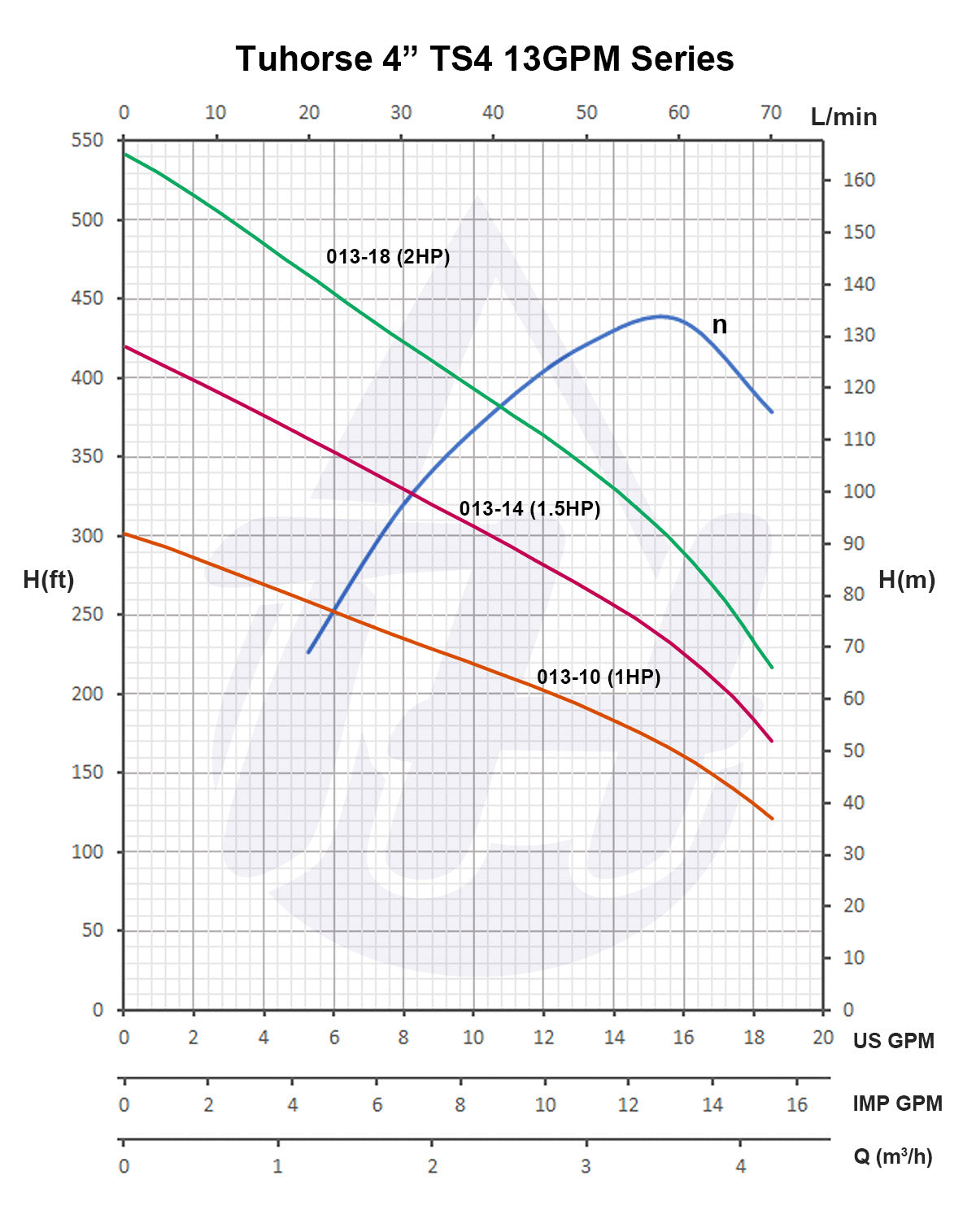

- Free Flow Rate: 16GPM @ 290ft; 13GPM @ 350ft; 11GPM @ 375ft; 9GPM @ 405ft; 6GPM @ 450ft; 4GPM @ 480ft; 2GPM @ 515ft
- Suction Port: Center Suction
- Discharge Port: 1.25 in
- Built-in Check-valve: Yes, Stainless Steel 304
- Housing Material: Stainless Steel 304
- Impeller Material: Stainless Steel 304
- Motor Enclosure: Stainless Steel 304
- Duty: Continuous or up to 20 restarting cycles / hour
- Control Box: N/A
- Pump End Net Weight: 11lbs
- Shipping weight: 13lbs
- Package Dimensions: 24" x 5" x 5.25"
Warranty: 1 Year
