Description

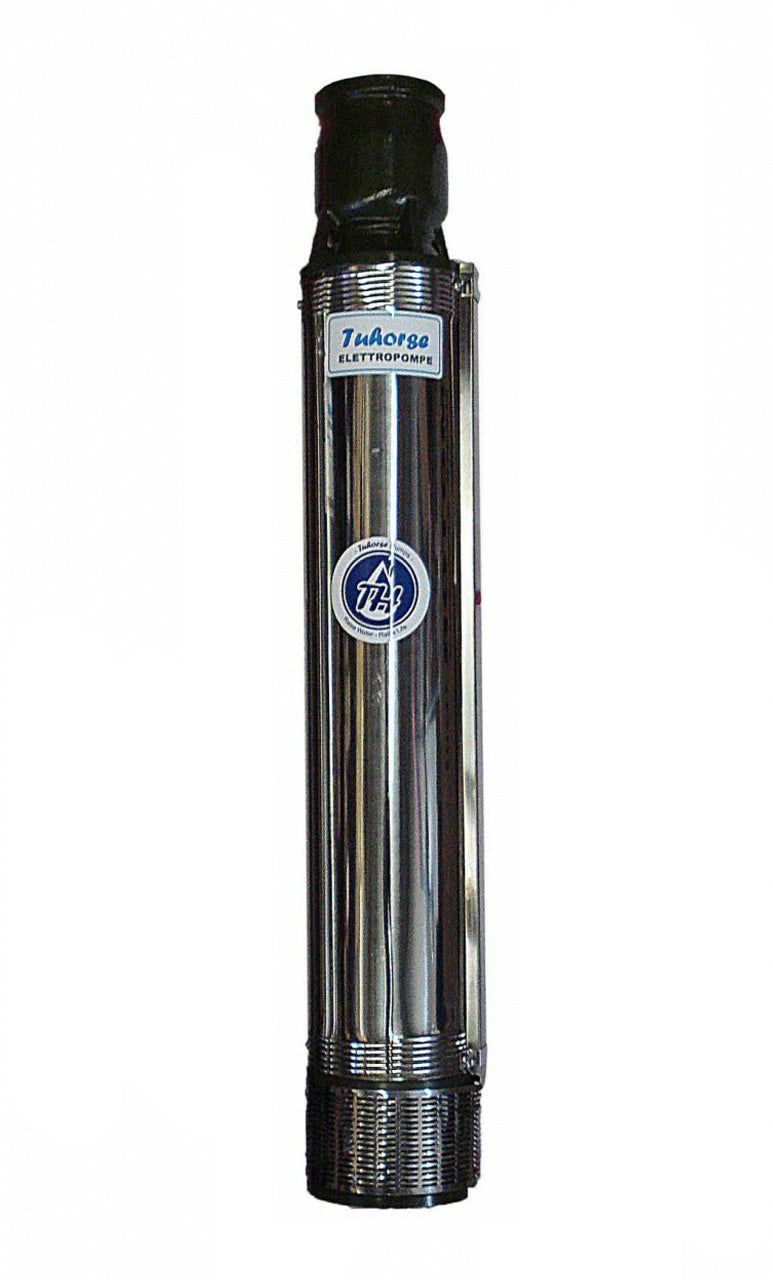

Pump End Only
- HP: 10HP or larger motor required
-
Voltage: N/A
- Cycle: N/A
- Operating Amperage: N/A
- Motor RPM: 3450 RPM
- Stages: 13

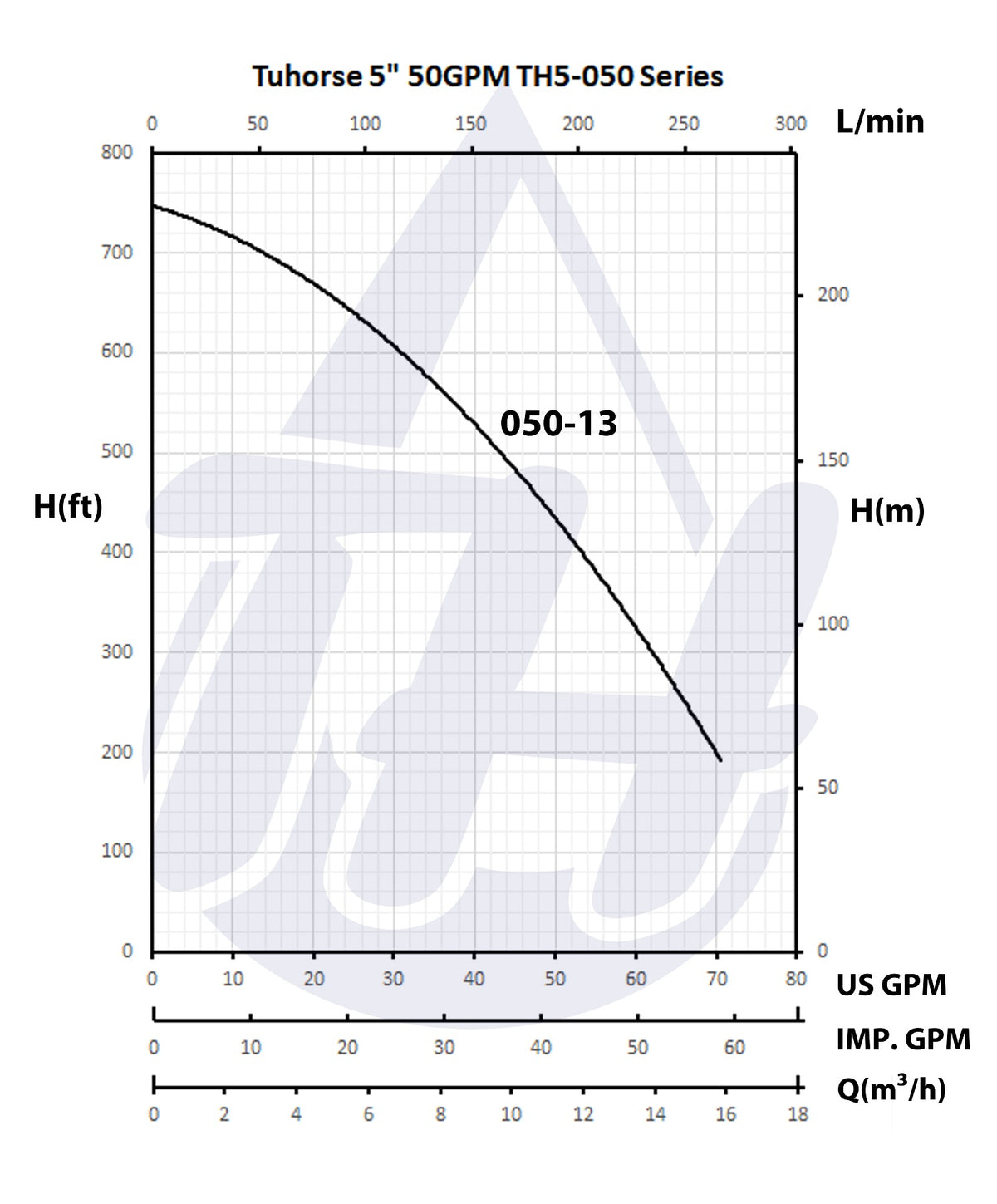

- Maximum Head(cut off): 740 ft.
- Rated Flow: 50GPM
- Maximum Flow(0-200 ft.): 70 GPM
- Open Flow vs Depth: 60GPM @ 320ft; 50GPM @ 420ft; 40GPM @ 520ft.

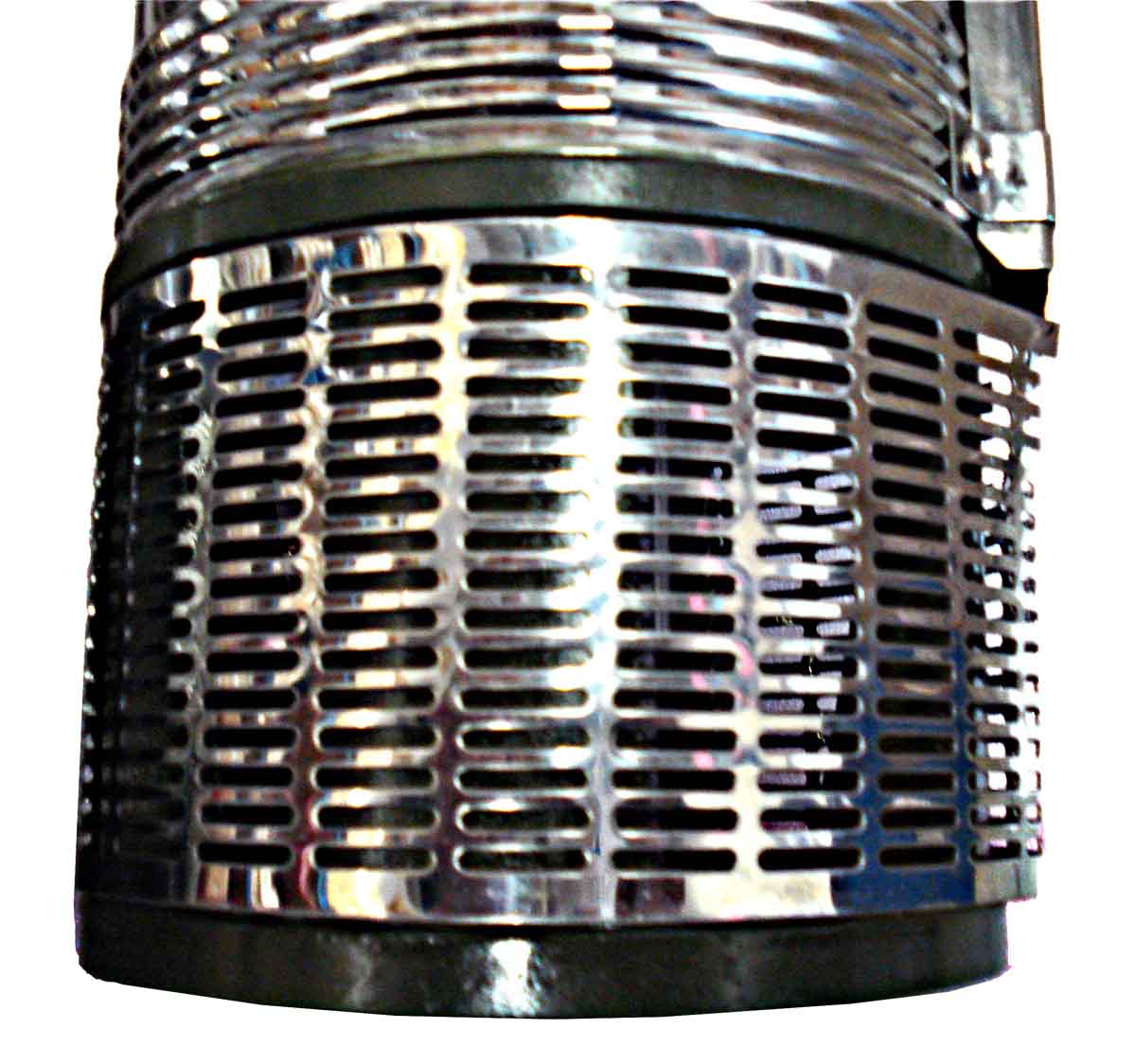

- Suction Port: Center Suction

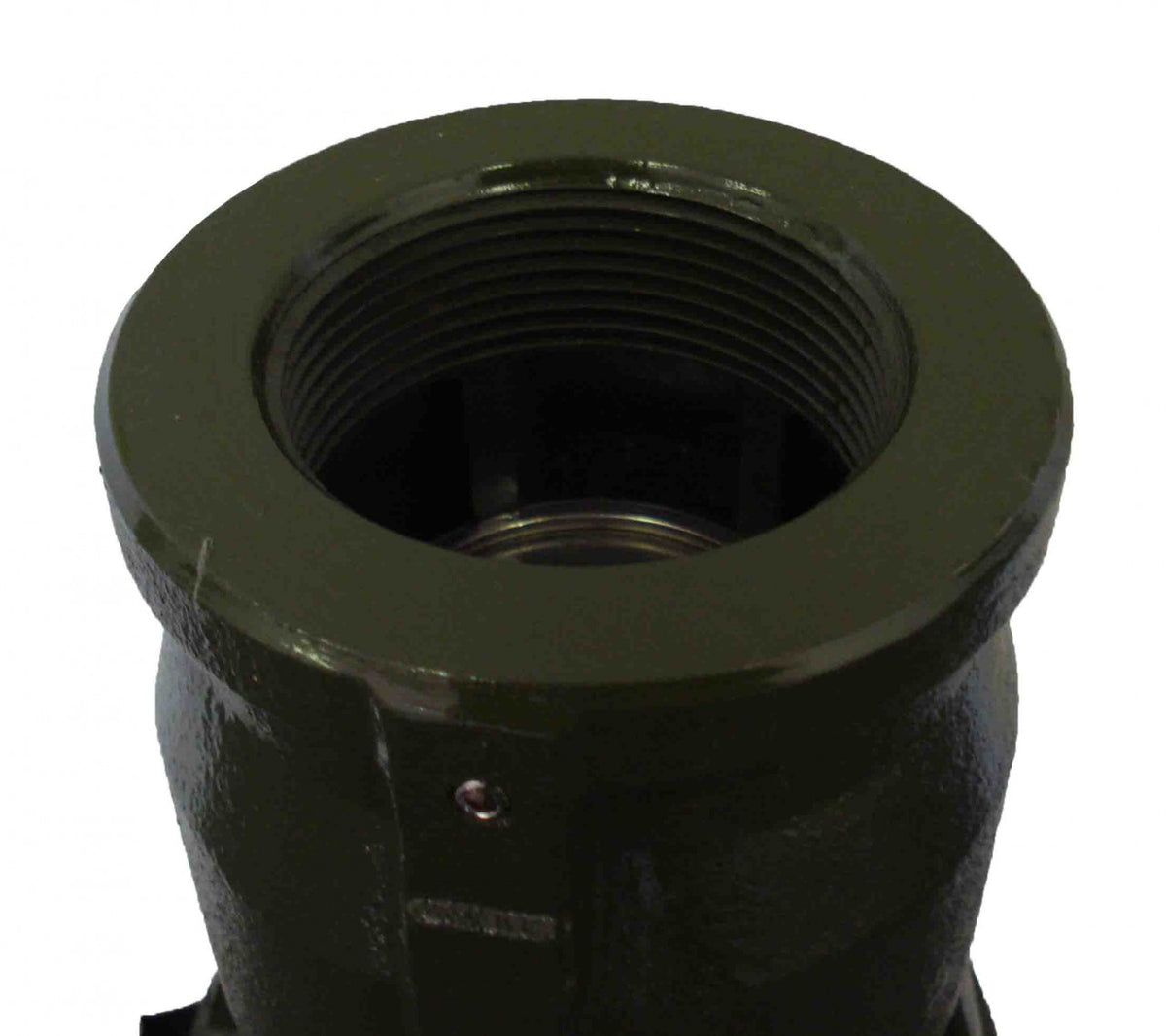

- Discharge Port: 2 inch NPTF
- Built-in Check-valve: Yes, Stainless Steel
- Housing Material: Stainless Steel
- Discharge and Suction Port Material: Cast Iron
- Impeller Material: Thermal Plastic
- Motor Enclosure: Body - Stainless steel; Top - Cast Iron
- Duty: N/A
- Control Box: N/A
- Pump End Net Weight: 23lbs
- Shipping Weight: 26lbs
Warranty: 1 Year
