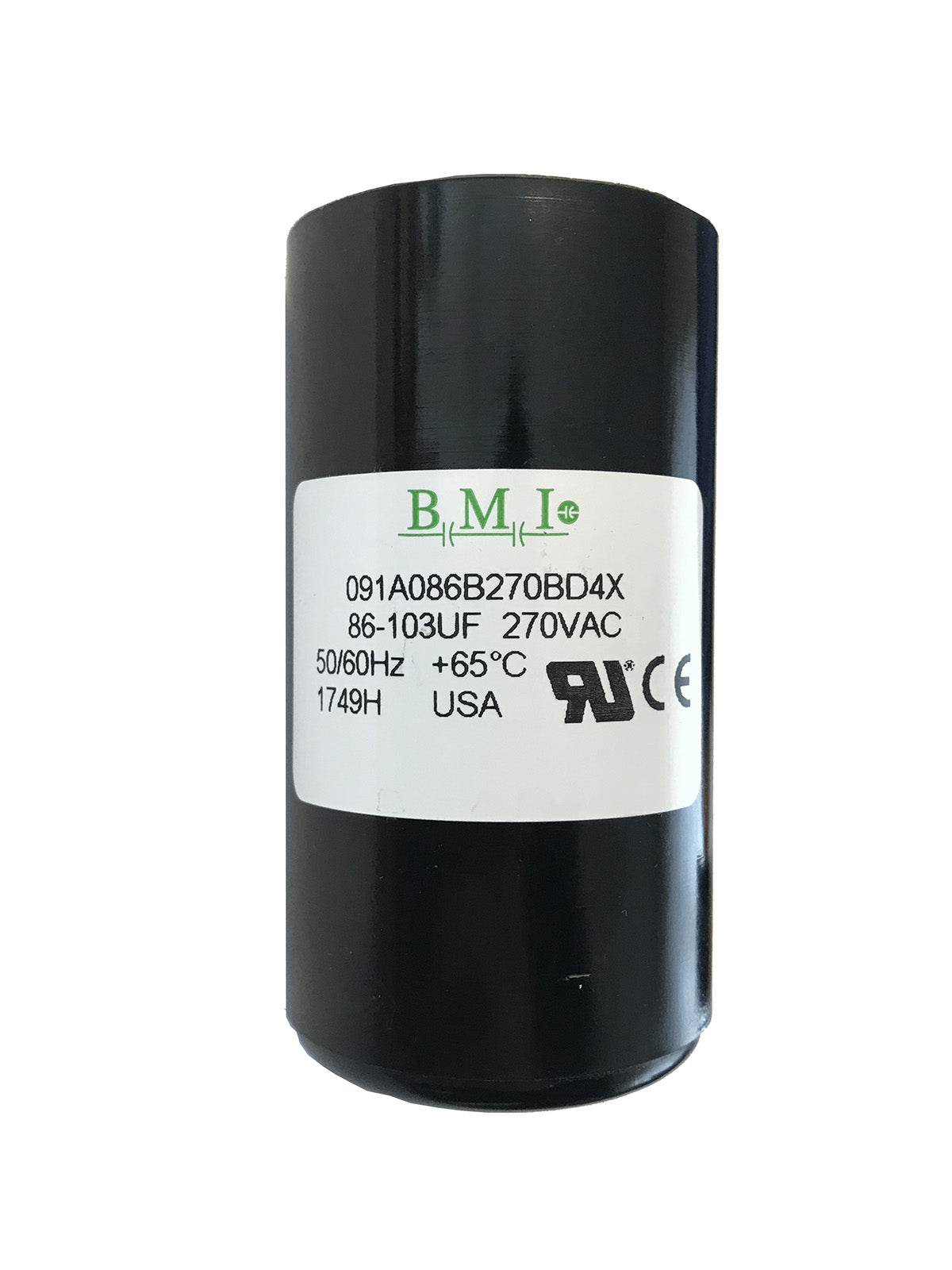

86 MFD 330VAC Motor Start Capacitor. Made in the USA by BMI

This AC motor start and run capacitor is suitable for single phase 3/4HP (horsepower) motors by Sta-Rite, Berkeley, Pentek, Pentair with capacitor start Induction run (CSIR) control boxes.

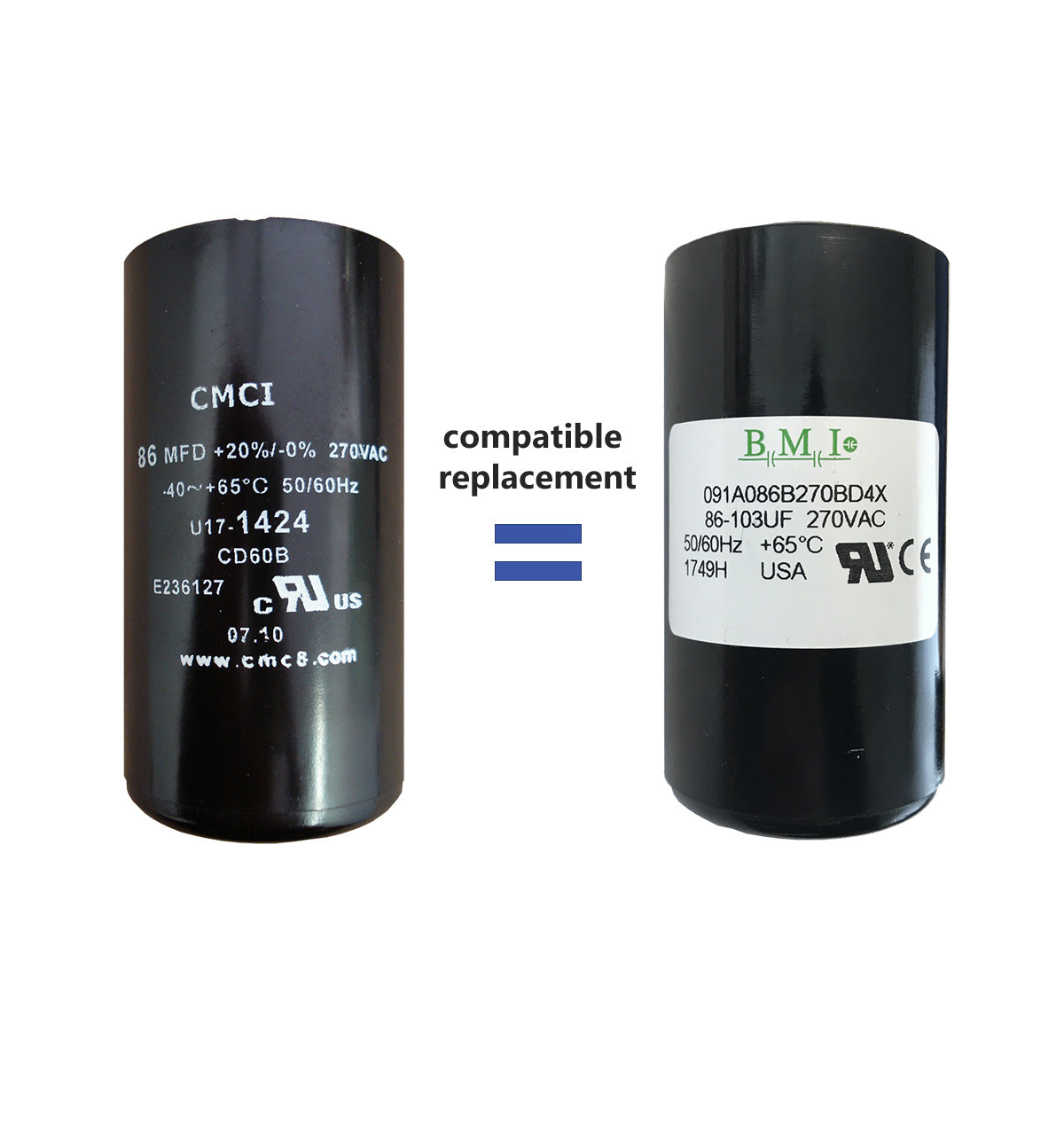

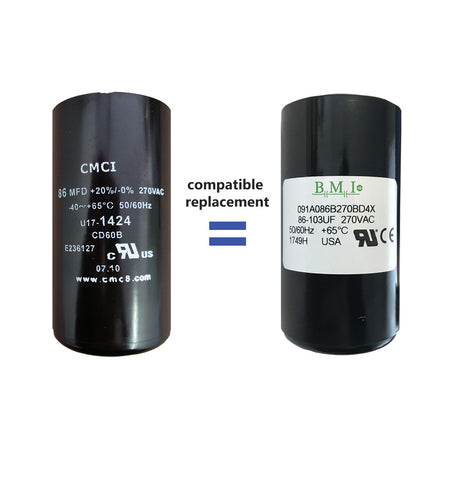

Replacement for part number: U17-1424 , U17-1424-R , U17-2074

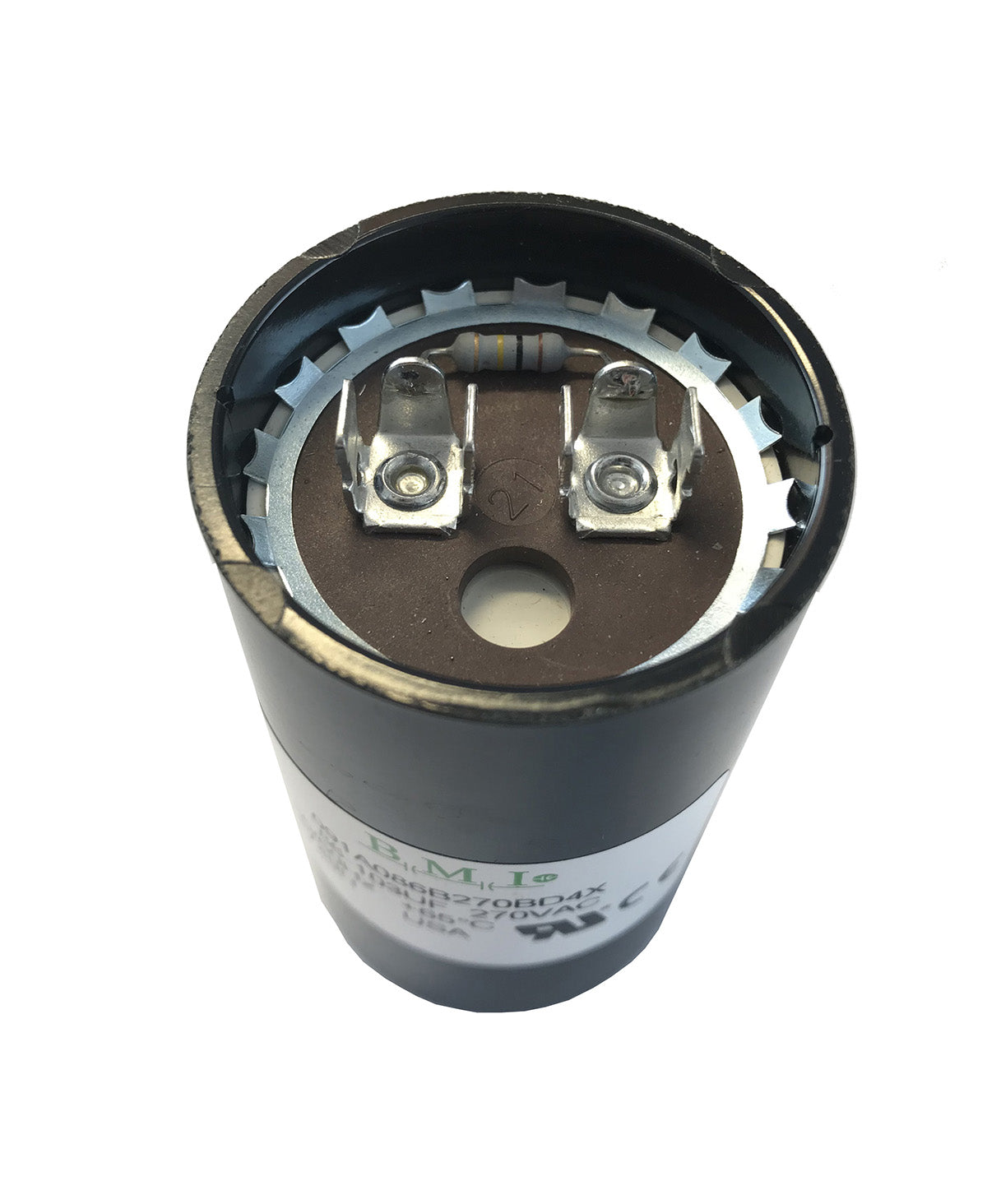

86-103UF or 86 MFD +20%/-0% (uF) 330VAC.  Some capacitors rated 270V which work the same in 230V power. discharge resistor attached 2 poles shown in photo.

Manufacturer part number:  091A086B330BD4X or 091A086B270BD4X

3.35" height x 1.85" diameter.

The start capacitor in a motor control box is considered a consumable part. Capacitors tend to lose capacitance over time and/or use, and need to be replaced when the capacitance drops 10% below the described range or electrolyte leaking is observed.

No Warranty for Electronic Components
