Description

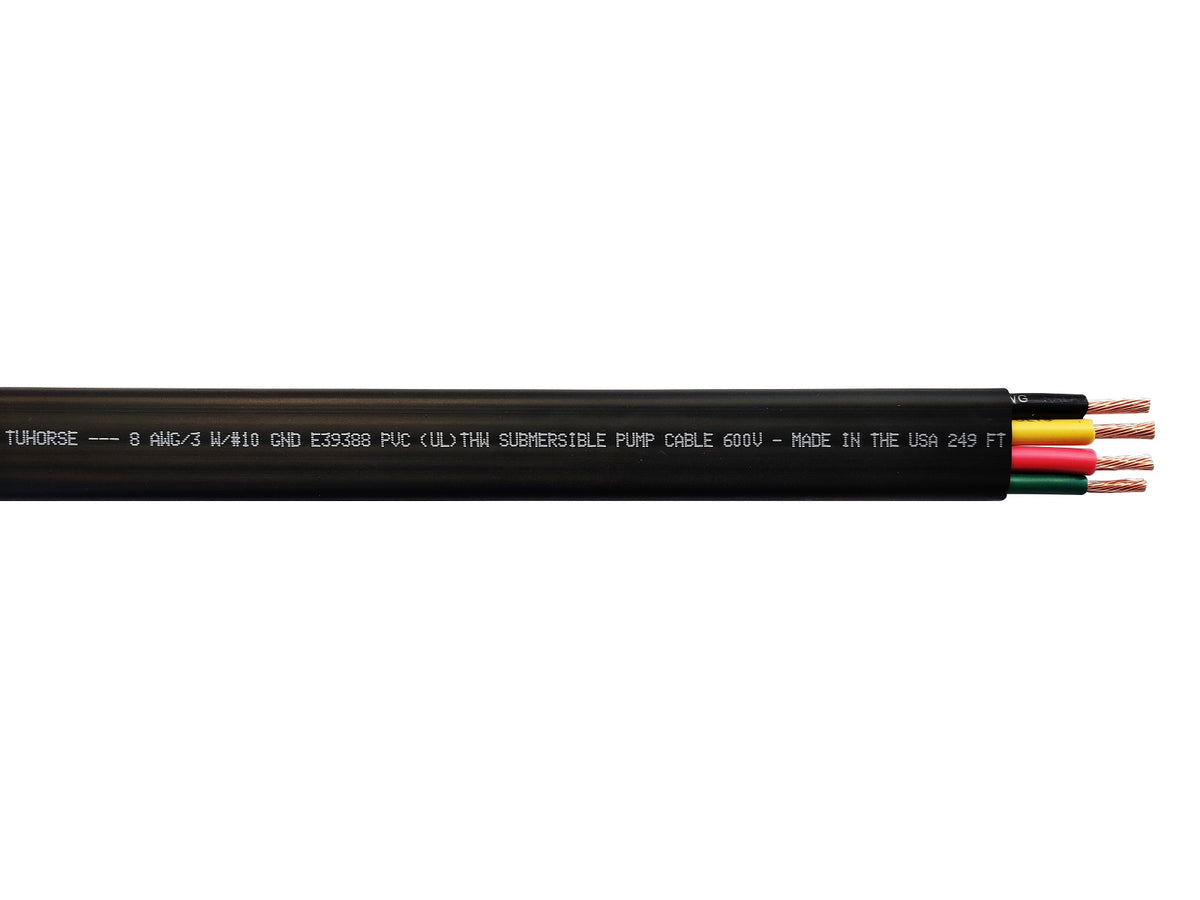

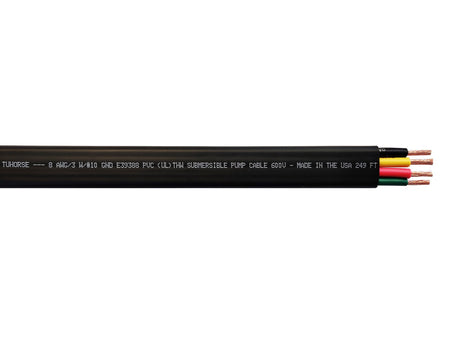

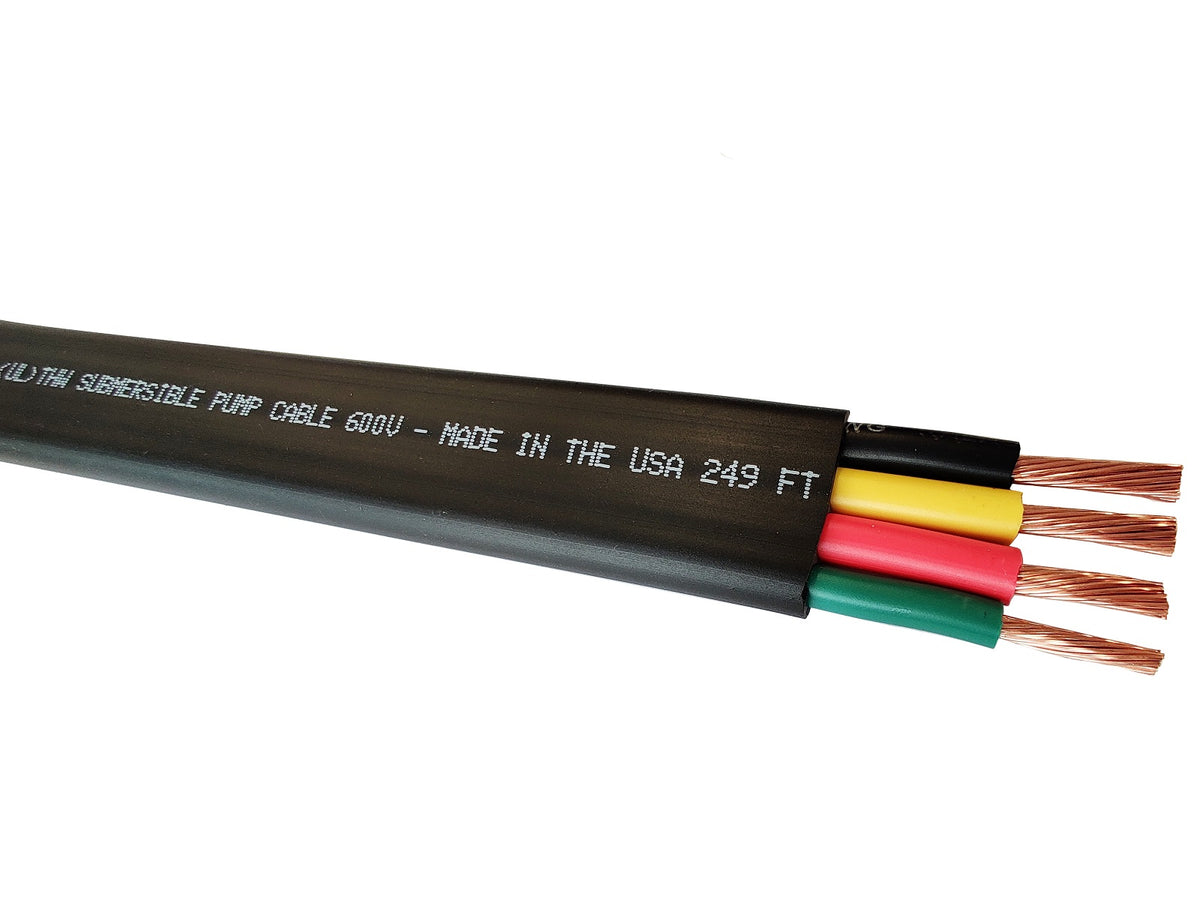

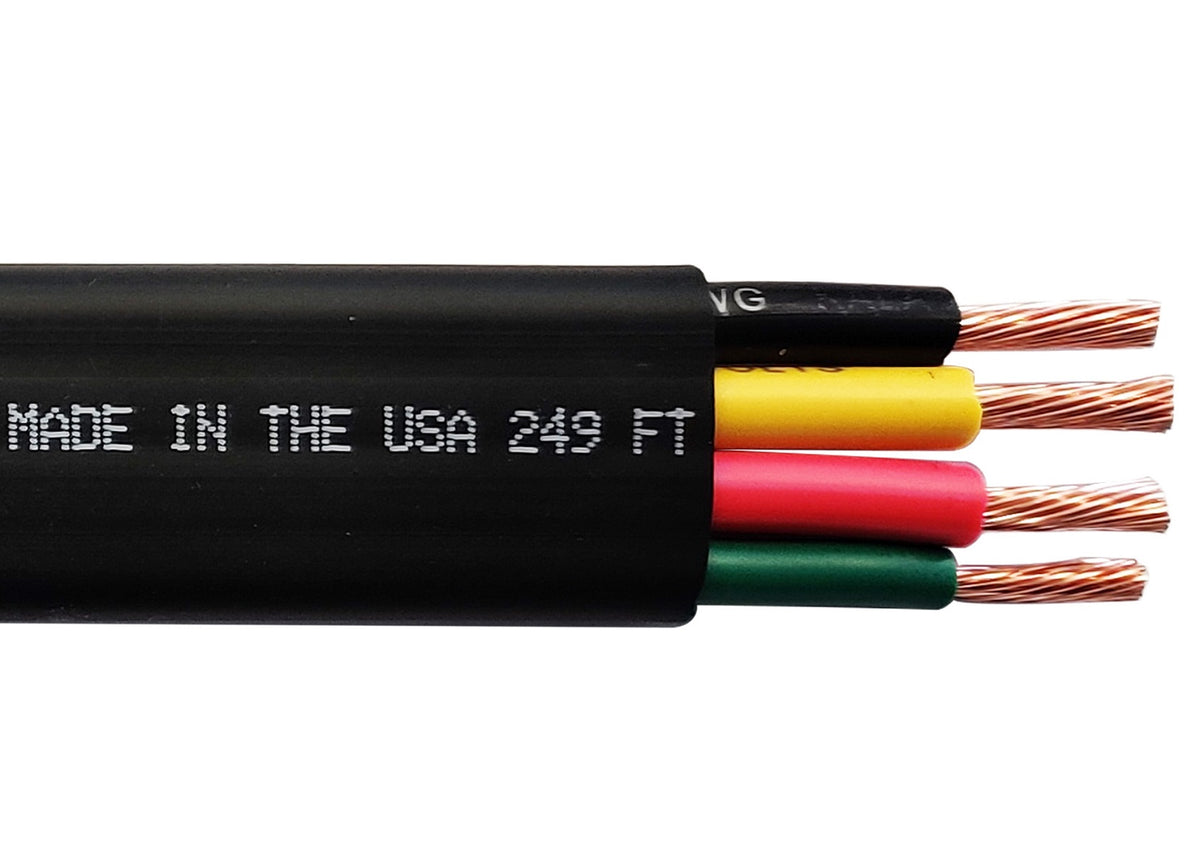

This is a AWG #8, 8/3 with #10 ground, jacketed Heavy Duty submersible pump copper wire, suitable for 3-wire submersible pumps that require 3 wires and 1 ground wire. Total 4 conductors, stranded wires.
Working temperature up to 75°C, Voltage up to 600V.
Made in the USA, UL listed, RoHS Certified.
This wire is suitable for use with Tuhorse's 4" 6" and 8"series submersible pumps and all other deep well pumps. Refer to our drop wire table to choose the proper gauge wire.
FEATURES
– Operating temperature range -40° C to 75° C
– Resistant to acid, abrasion, alkalis, flame, gas, and oil
– Water resistant
– Cable is sequentially marked
APPLICATIONS
– For wiring within the casing of deep well submersible water pumps.
CONSTRUCTION
Annealed bare stranded copper conductors PVC insulated and run parallel with a PVC black jacket to form a 75°C 600 Volt Multi-Conductor Submersible Pump Cable.
UL Listed per UL 83 Type THW as Deep Well Submersible Pump Cable.
Warranty: Manufacturer Warranty
