Description
For use with a submersible deep well water pump. Supports 5.5HP three phase water pumps running on 460V
Features a full automatic mode with water level probes and manual mode.
Model: TCP55T460
- HP: 4 - 5.5HP
- Voltage: 460V 3-Phase input and output
- Cycle: 60 Hz
- Overload Protector: included, Maximum Amps 13A, adjustable range 9A to 13A
- Phase Loss protection: included in auto mode
- Water level probes: included
- Micro Processor Control: yes
- Housing Material: Steel
- Knockout for wire: Two x 3/4"/1"/1.25" for power wires, One x 1/2" for sensor wire
- Net weight: 7.7kg (17Lb)

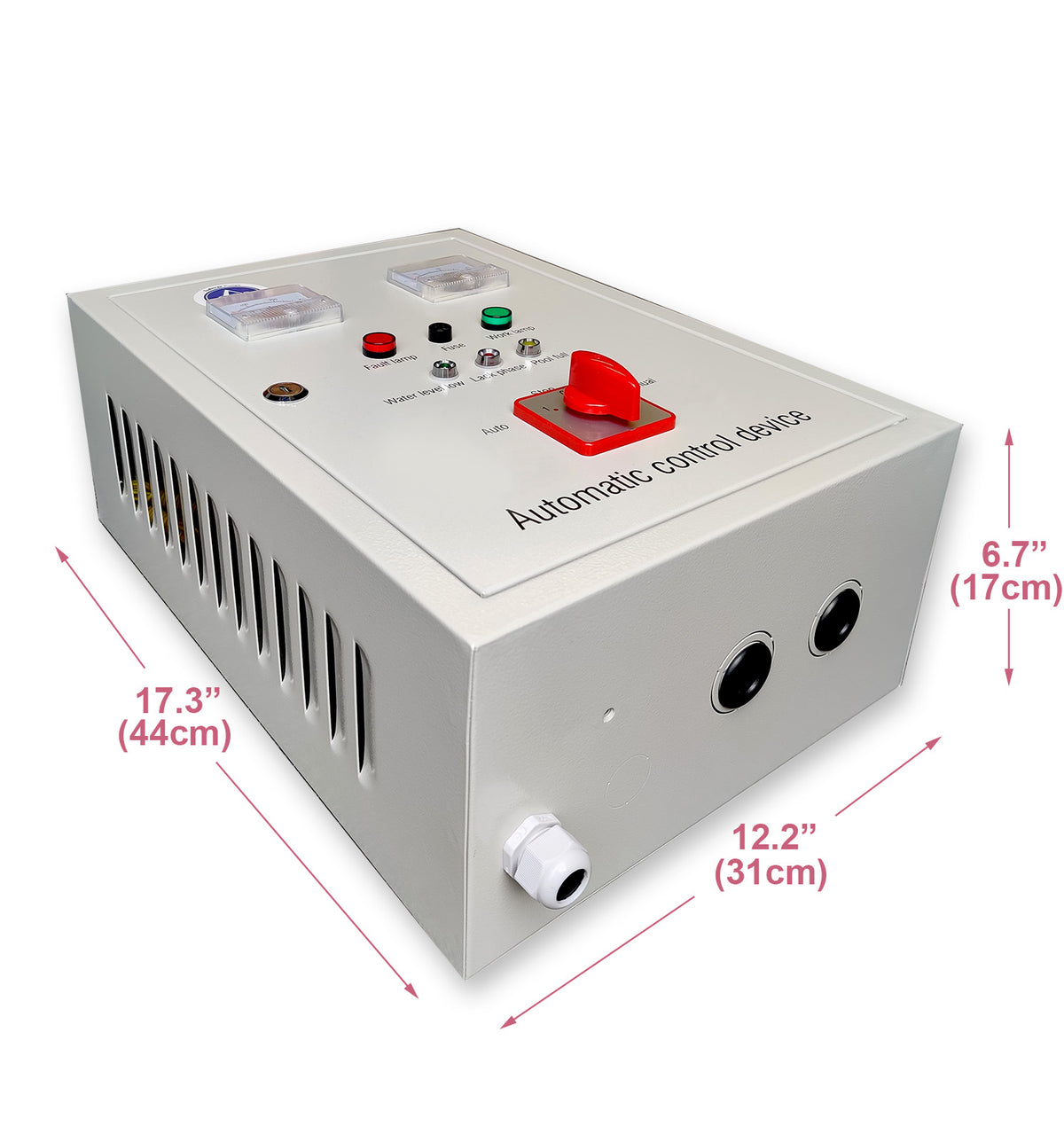

- Dimensions/Length: 44cm x 32cm x 20cm or 17-3/8" x 12-1/4" x 8"
- Shipping Weight: 21 Lbs. 20"x14"x10"
More details:
* Steel Casing w/ lock and keys
* Manual mode controlling the motor On/Off for testing/diagnostic
* Also can be used with non-water-pump motors
* Water level probes are optional for installation, default bypassed
* Automatically controlling the motor by the probes' signal according to the water level in the well or in the cistern, or by other pilot device if used.
* Connection Terminals accept up to #4 AWG wire
* 3 Phase magnet relay switch
* Built-in overload protection with fine turn
* Phase-Loss protection (auto mode only)

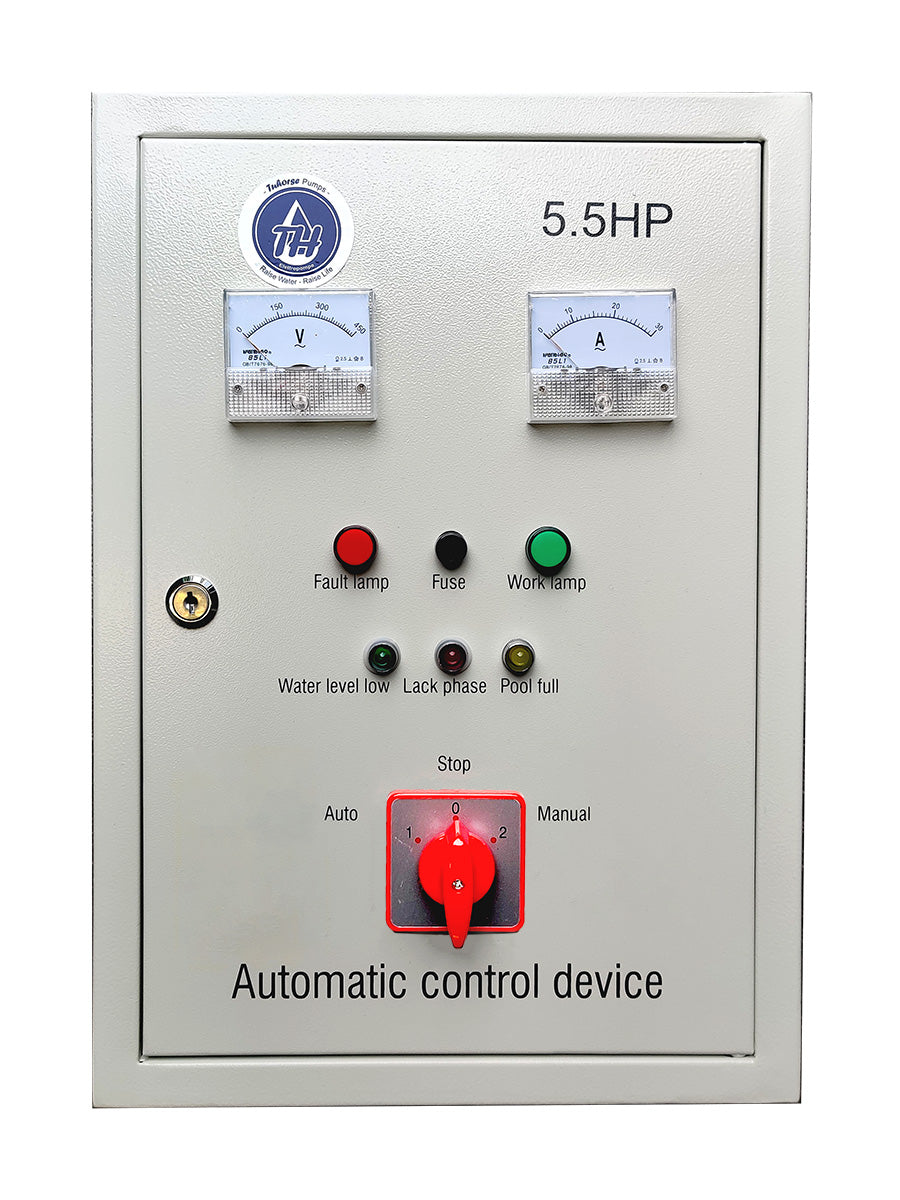

* Voltage, Amperage meters. Working status LED indicators
* For indoor and under cover mounting
Warranty: 1 Year
