Description

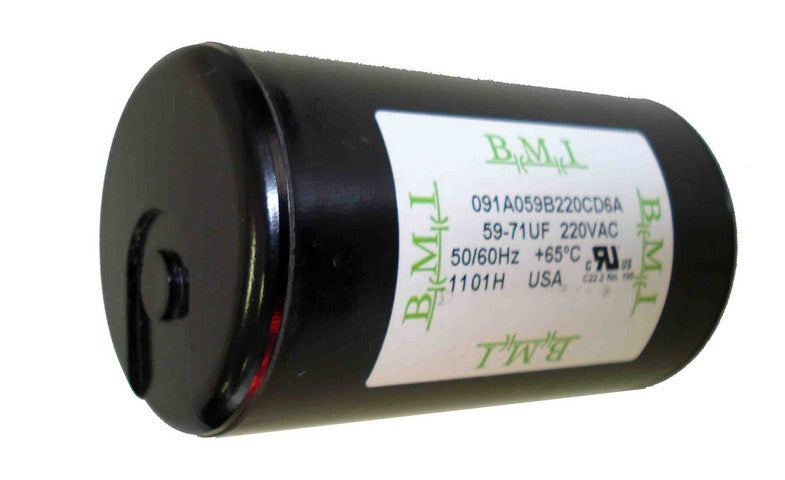

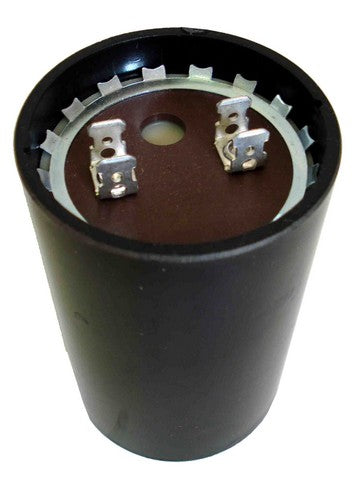

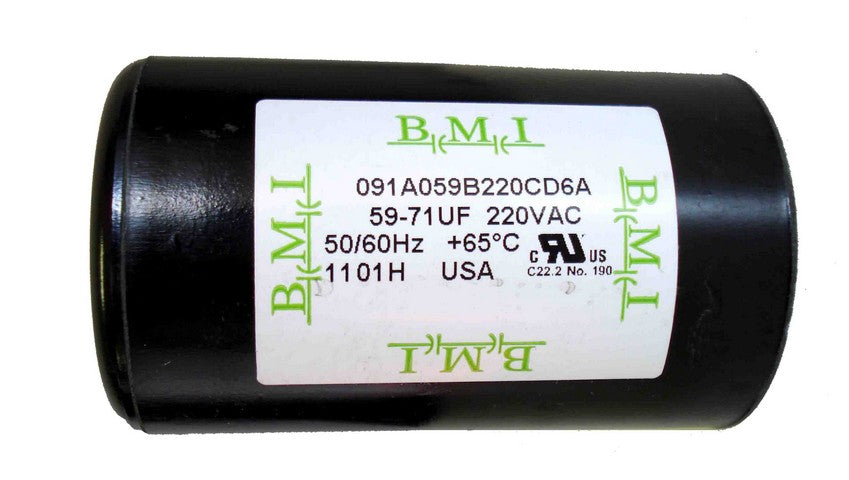

* High quality capacitor made in the USA by Barker Microfarads (BMI)
* For Franklin 1/2HP and 3/4 Control Box 2801054915, CRC 2824075015 and other similar control boxes
* 59-71 MFD (uF) 220VAC 50/60Hz
* Compatible replacement for Franklin Part# 275464105
* MFG# 091A059B220CD6A
* 3.35" height x 2.15" diameter
The start capacitor in a motor control box is considered a consumable part. Capacitors tend to lose capacitance over time and/or use, and need to be replaced when the capacitance drops 10% below the rated capacitance or electrolyte leaking is observed.
No Warranty for Electronic Components
