Description
10GPM
1000 Watts 4" Submersible Pump and 1170W Solar Panel Complete Kit (4THS10C110V1000K3P)
This solar kit is currently shipping to the USA only. Canadian customers please call for a quote with different solar panels
This solar pump kit is suitable for 80 to 260 feet head (TDH), with daily water usage of 2000 to 6000 gallon.

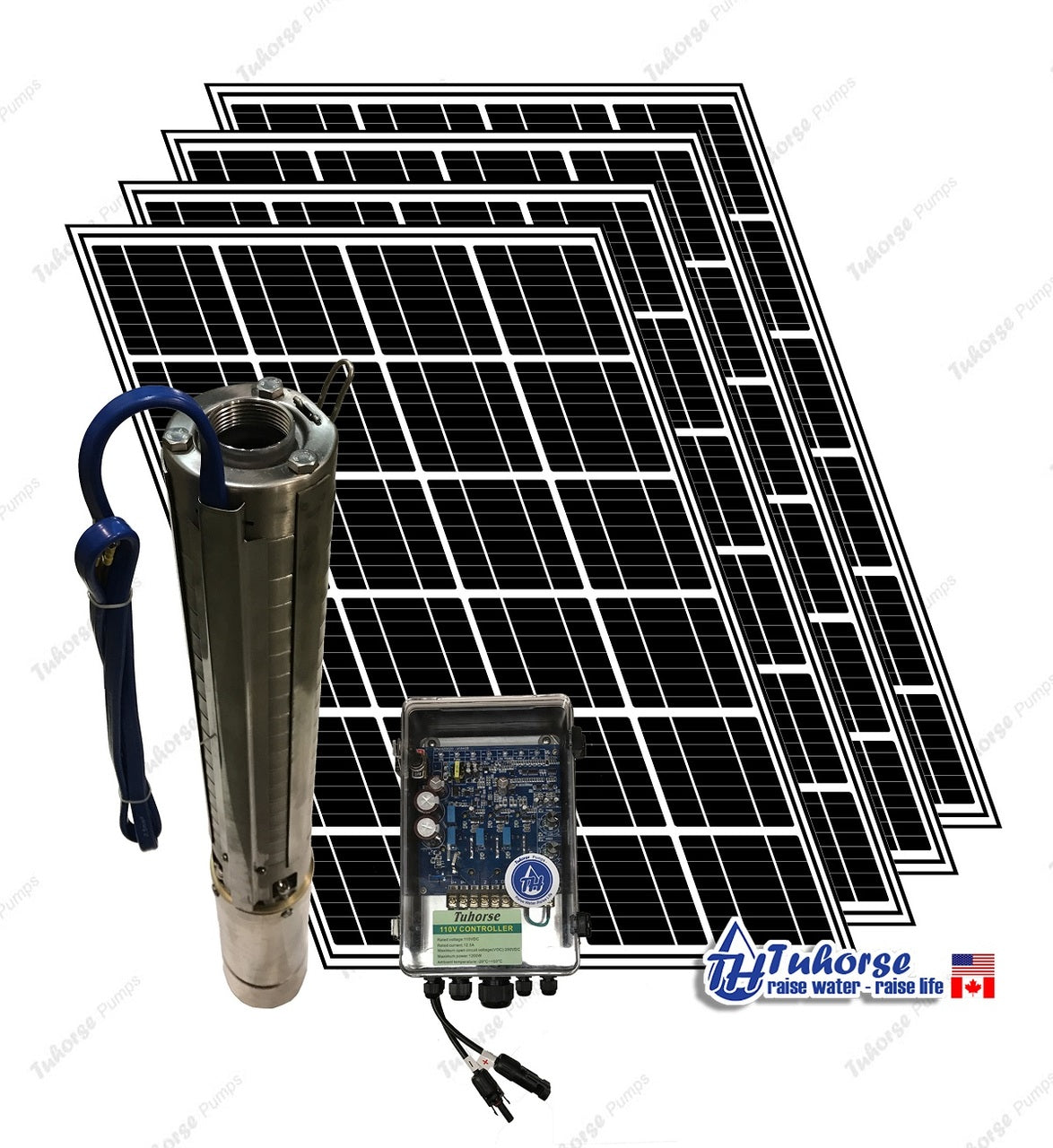

Package includes:
3 x 390+ Watts mono crystalline A-grade solar panel (1170 Watts or larger)
4" 1000 Watts 110 Volts, stainless steel impeller solar pump and motor
250 feet 12/3 submersible pump cable
Automatic control box

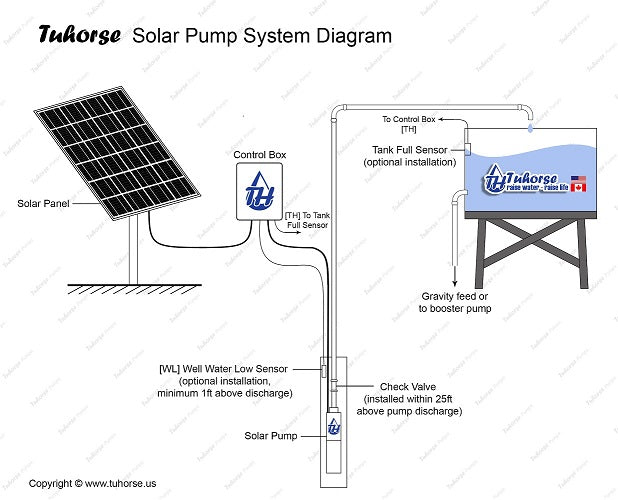

2 x water level sensor for setting up automatic pumping
2 x 10 ft. MC4 cable w/ M-F connectors, for connecting solar panel to control box
Heat shrink kit for watertight connection
Installation guide
2 year warranty (return to BC Canada*)
If you need longer than 250 ft wire, you can order the extra wire. We will cut one continuous wire for you. For example, if you need 300 ft of wire, order 50 ft. additional wire, and we will provide one continuous strip of 300 ft wire.
| Production based on 6 hours peak sun daily | ||
| Head (ft.) | Gallon / min | Gallon / day |
| 260 ft | 5.5 Gal. | 1980 Gal |
| 220 ft. | 8.8 Gal | 3168 Gal |
| 160 ft. | 14 Gal | 5040 Gal |
| 80 ft. | 17 Gal | 6120 Gal |

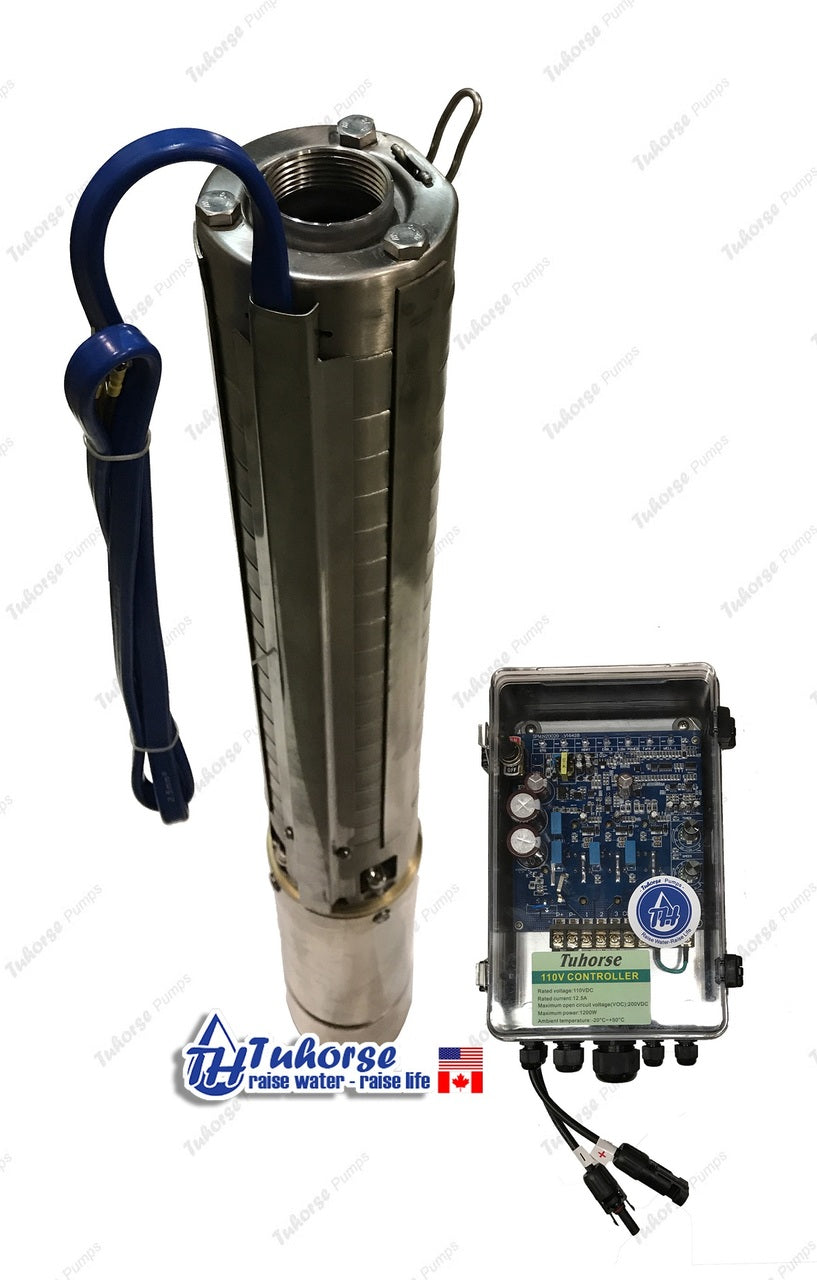

4THS10C110V1000 Solar Water Pump Specifications:
Fit 4.5" inside diameter and larger well
1000W, 110V-DC nominal operating power
1-1/4" NPTF discharge (outlet)
10GPM rated, 17GPM Max.
Centrifugal stainless steel impellers design
Pump Diameter, length: 4" x 33"
Pump Net weight: 20Lb (9kg), excluding control box
Package Weight: 35Lb / 16kg, including control box
Soft start, DC solar power is converted to 3-phase to power the pump motor
Auto control box specifications:
Optimize pumping efficiency with MPPT according to sunlight condition and solar panel used
Fully automatic pumping mode using water level sensor(s)
Bypass sensors for application that does not require water level monitoring
Adjustable motor speed to accommodate low-yield-well and to protect motor from over powered
Adjustable timer adding delay time for low-yield-well to recover in automatic mode
Low power protection
Dry run protection in automatic mode
Maximum input withstand Voc = 200V (solar panel open circuit voltage)
Maximum input current 12.5 amps
Important shipping note for solar panels:
Due to the large size of the solar panel, any orders that includes solar panel will only be shipped with Ground Service. Please do not choose 2 day or 1 day services even the options are displayed during check out. There is no air service available for the size of the panel. We ship to Canada and 48 US States. Hawaii, Puerto Rico and Alaska customers please buy solar pump packages without Solar Panel.
Warranty: 2 Years
