Description

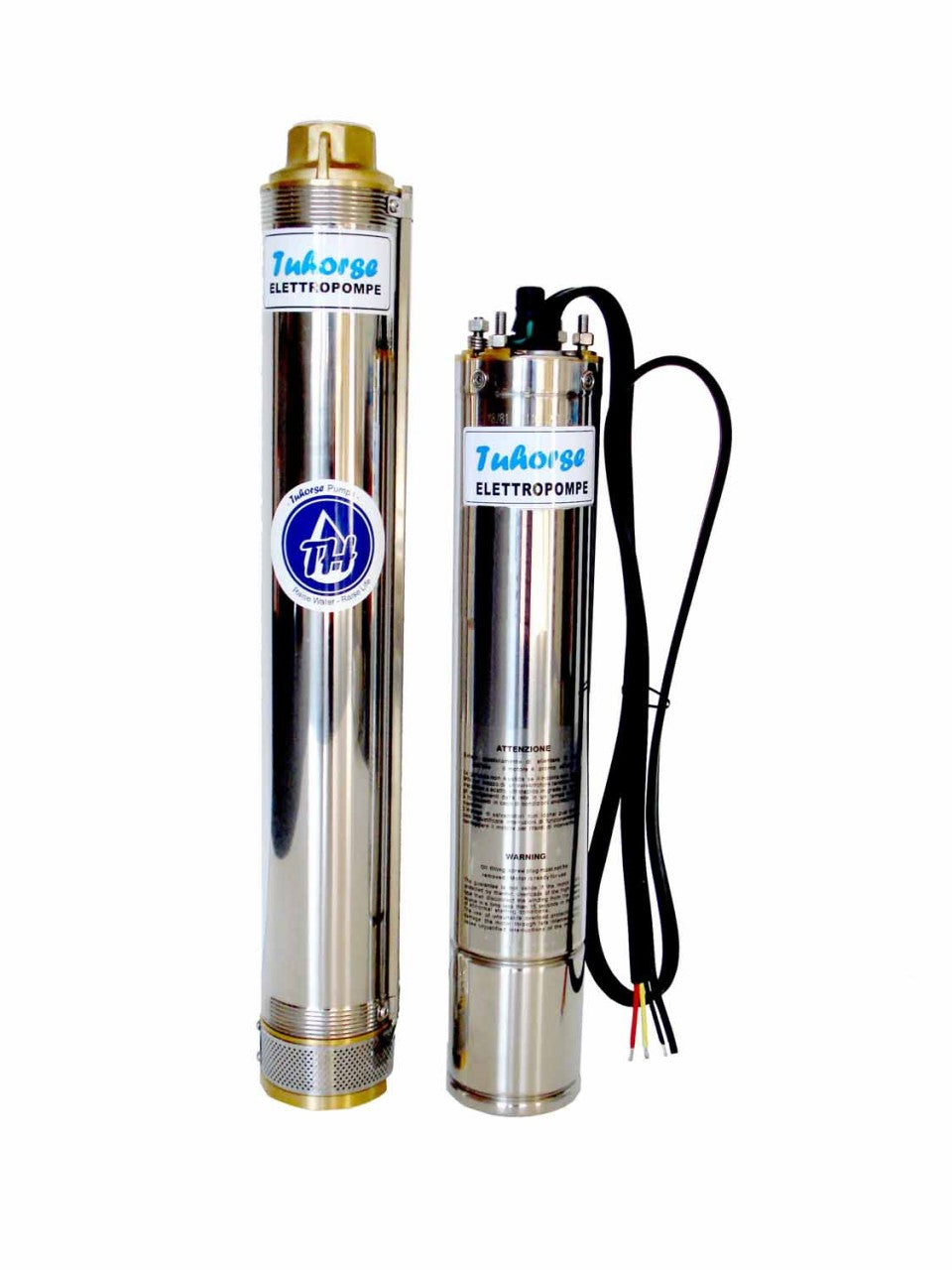

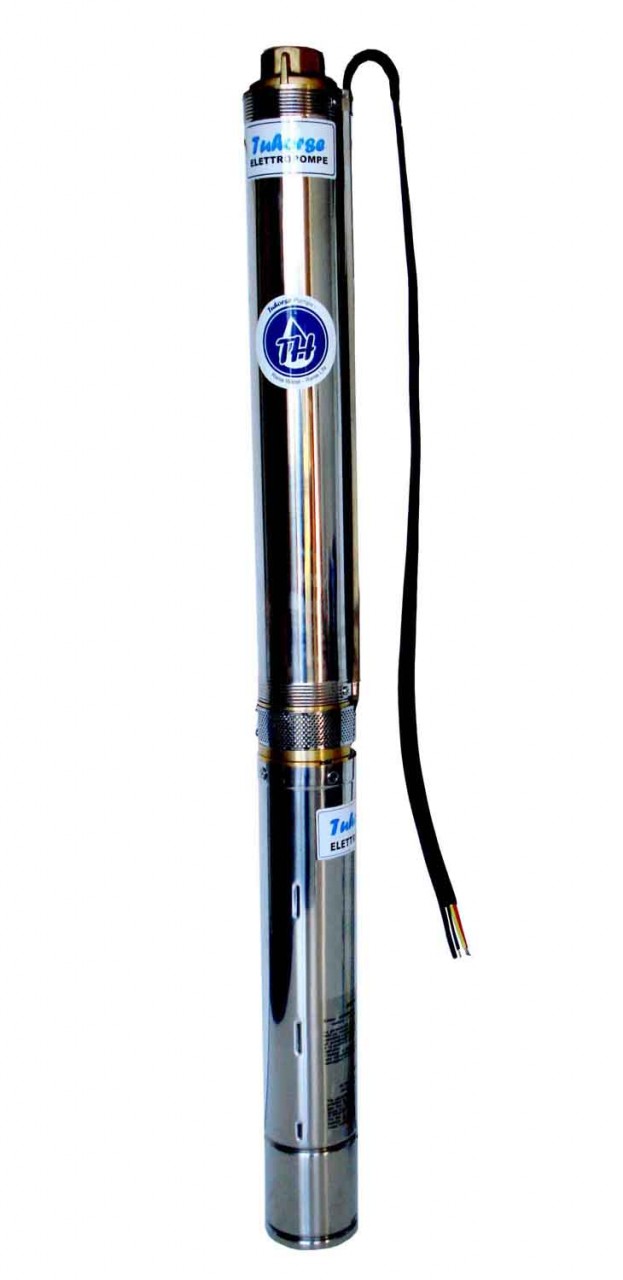

Complete pump end and motor set. (control box sold separately).
- Model: TH4-009-30 M230V
- HP: 5HP
- Voltage: 230V Single Phase
- Cycle: 60 Hz
- Operating Amperage: 24.5 A
- Motor RPM: 3450 RPM
- Stages: 30
- Maximum Flow: 14.1 GPM
- Maximum Head: 1130 ft
- Typical Flow: 13GPM @ 320ft; 11GPM @ 580ft; 9GPM @ 780ft; 7GPM @ 960ft; 5GPM @ 1060ft.
- Suction Port: Center Suction
- Discharge Port: 1.25 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel
- Impeller Material: Thermal Plastic
- Motor Enclosure: Stainless steel
- Duty: Continuous or up to 20 restarting cycles / hour
- Control Box: Required, Sold separately
- Shipping Weight: 59 lbs
- Packing Dimensions/Length: 42" x 11" x 7"
Warranty: 1 Year
