5.5HP TS4-075-08 230V 3-Phase. S.S. Pump-end and motor

SKU: TS407508T230
Regular price $867.00 USD
Regular price $1,590.00 USD Sale price $867.00 USD
In stock
Ships out the same business day or next

Description

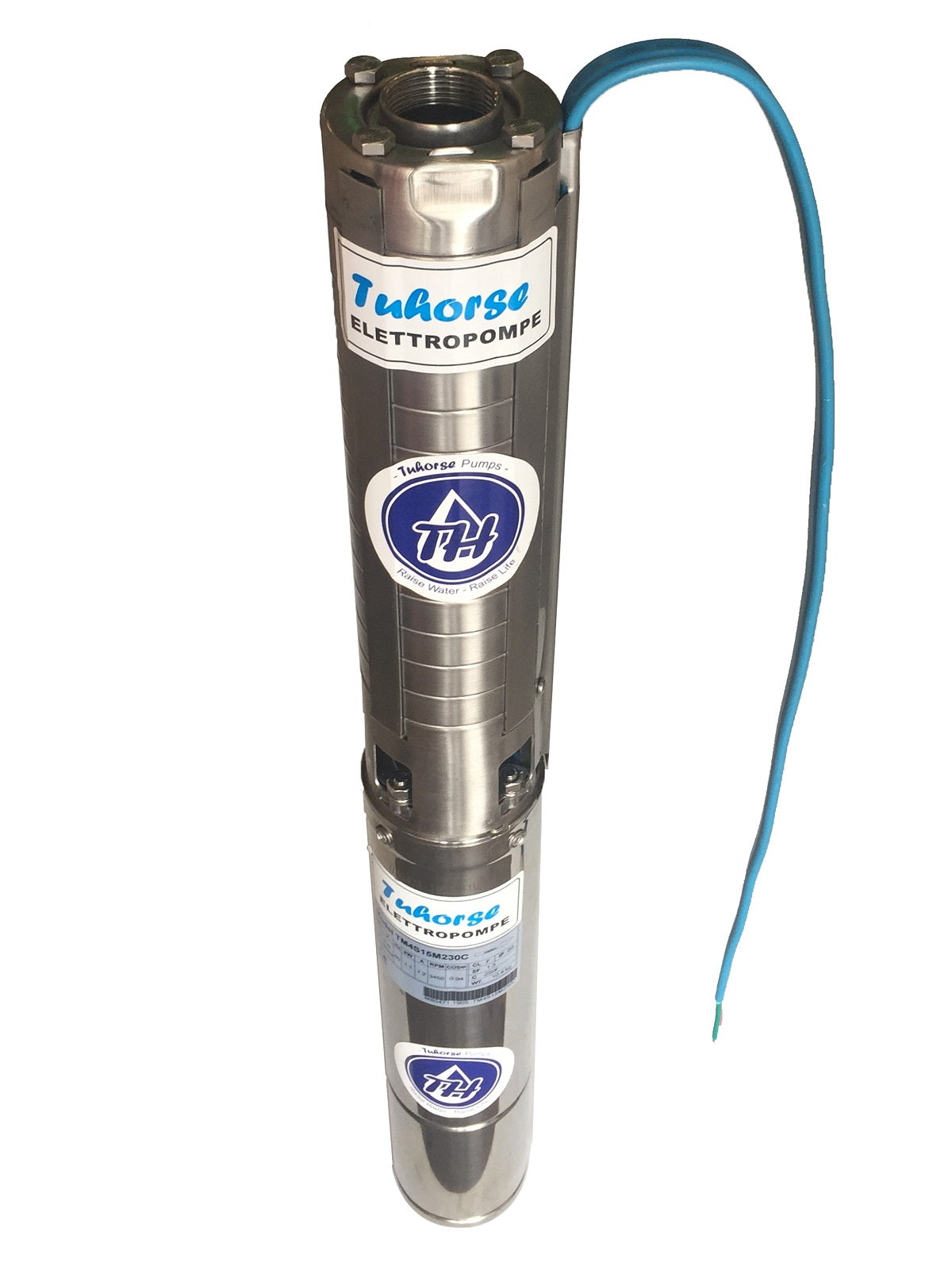

Stainless steel pump and motor with S.S. impellers

75GPM rated, 100GPM Max.

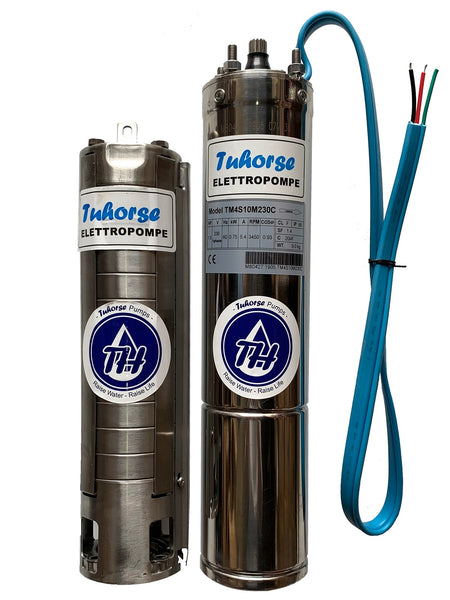

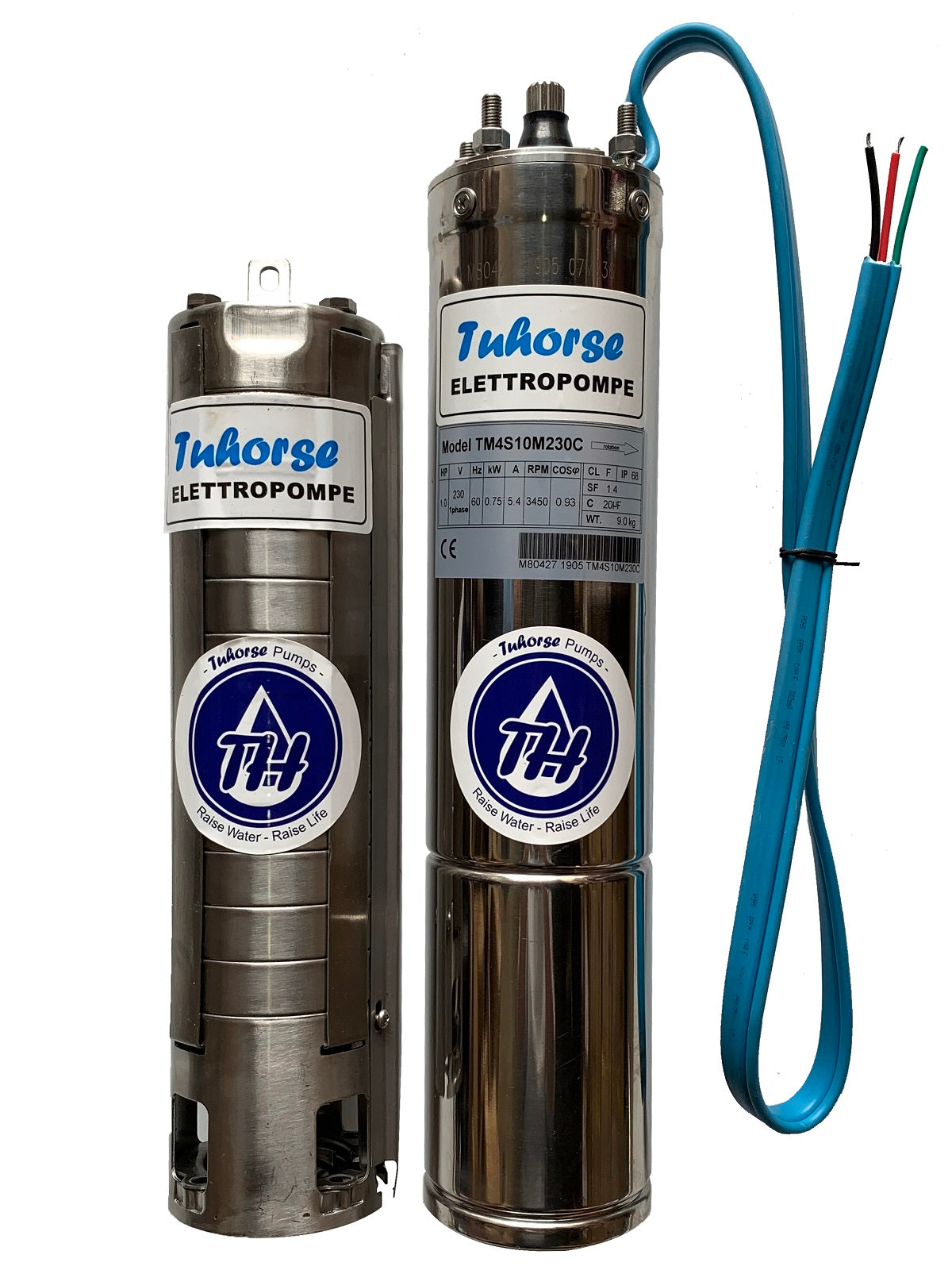

Complete pump end, and motor. Complete Instructions.

  • HP: 5.5HP
  • Voltage: 230V Three Phase
  • Cycle: 60 Hz
  • Operating Amperage: 14.8 A
  • Motor RPM: 3450 RPM
  • Stages: 8
  • Maximum Head(cut off): 270 ft.
  • Maximum Flow (0 - 60ft.): 100 GPM

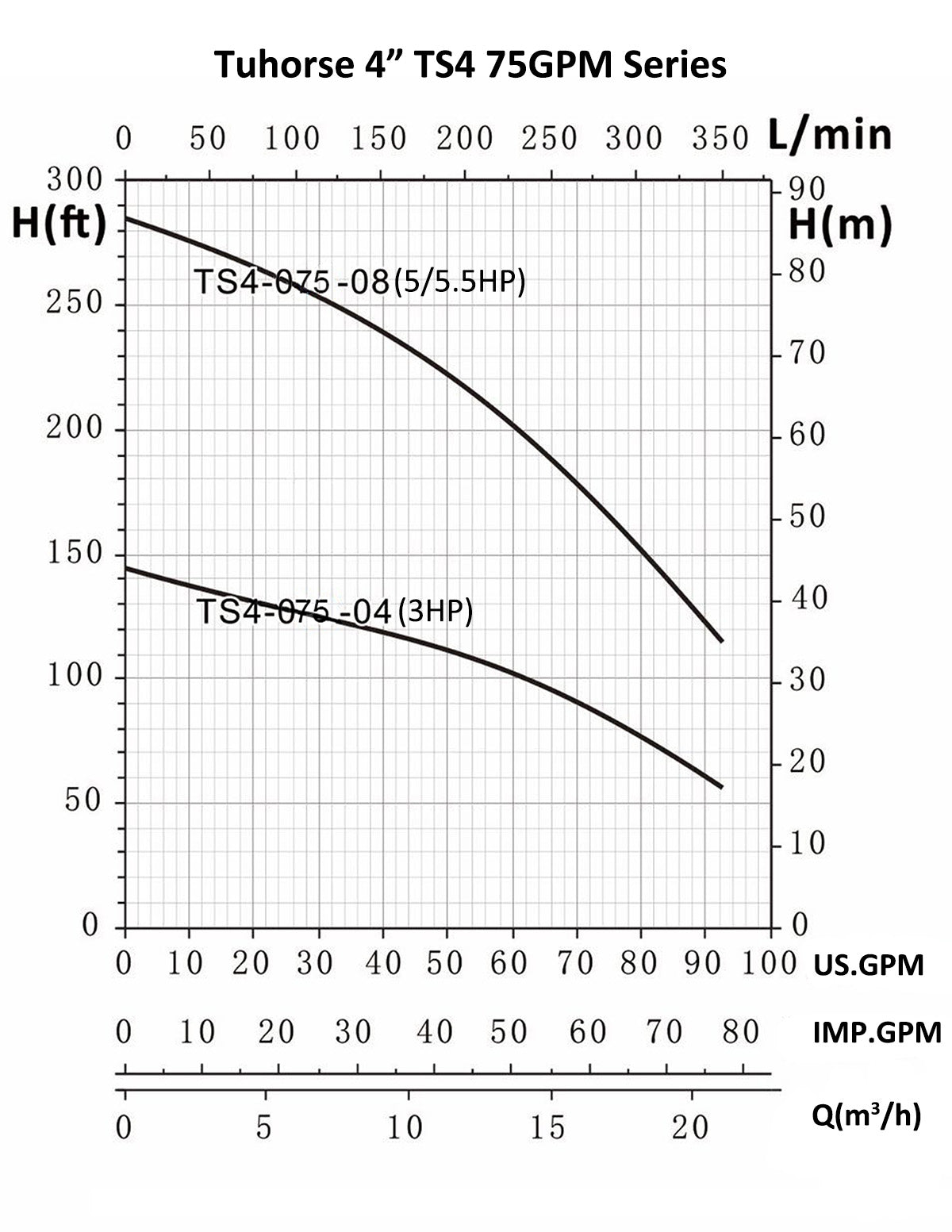

  • Free Flow Rates: 90GPM @ 120ft; 80GPM @ 150ft; 60GPM @ 200ft; 50GPM @ 220ft.
  • Suction Port: Center Suction
  • Discharge Port: 2 in
  • Built-in Check-valve: Yes
  • Housing Material: Stainless Steel, Grade 304
  • Impeller Material: Stainless Steel, Grade 304
  • Motor Enclosure: Stainless steel, Grade 304
  • Duty: Continuous or up to 20 restarting cycles / hour
  • Control Box: optional
  • Weight: 60 lbs.
  • Dimensions/Length: 43"



*Control panel sold separately

Note: We recommend you to use our TDH calculator in selecting a pump for your application

Warranty: 1 Year
