5.5HP TS4-045-15 460V 3-Phase S.S. Pump-End and Motor Set

SKU: TS404515T460
Regular price $878.00 USD
Regular price $1,595.00 USD Sale price $878.00 USD
In stock
Ships out the same business day or next

Description

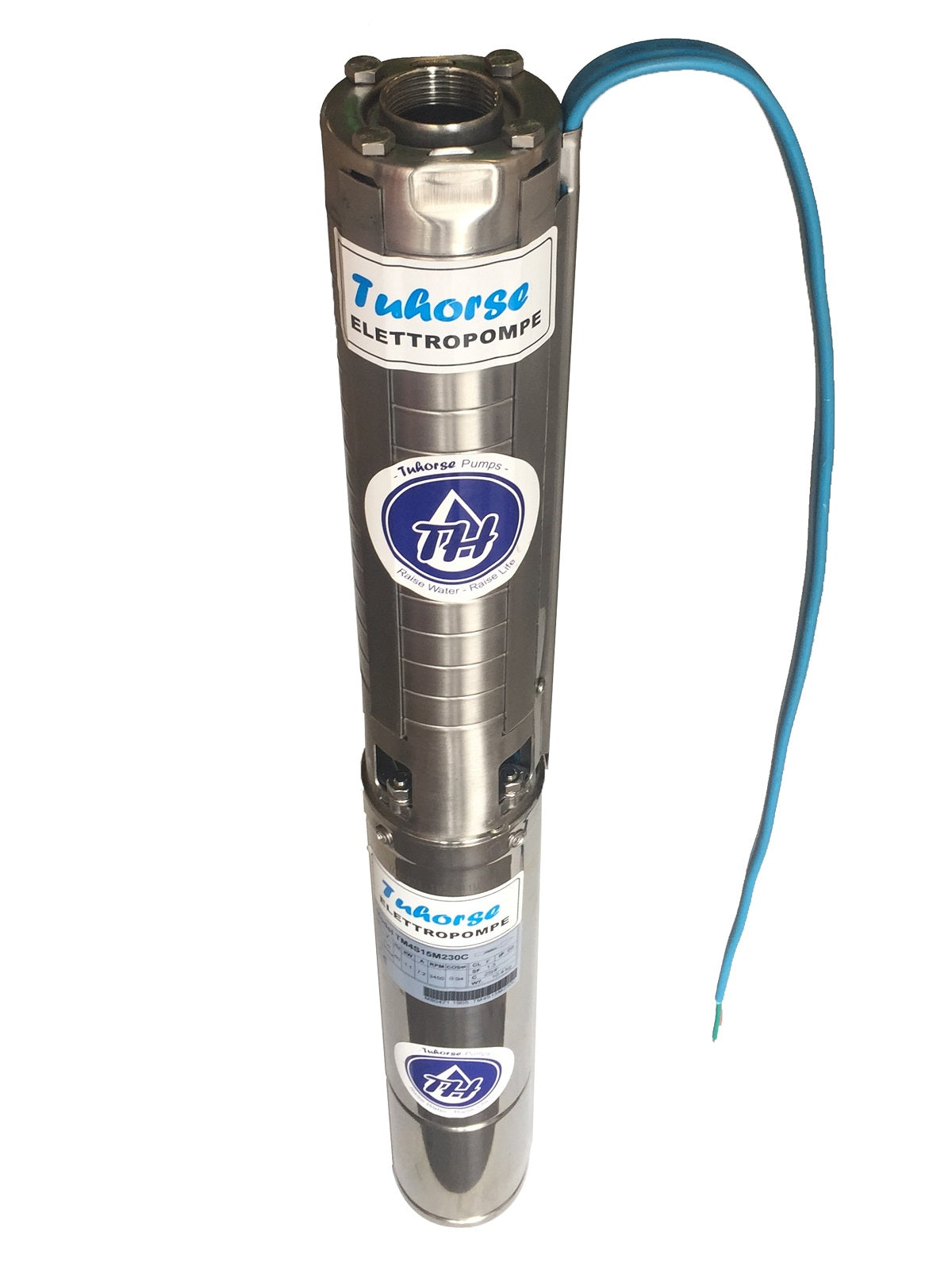

Stainless steel pump and motor with S.S. impellers

45GPM rated, 60GPM Max.

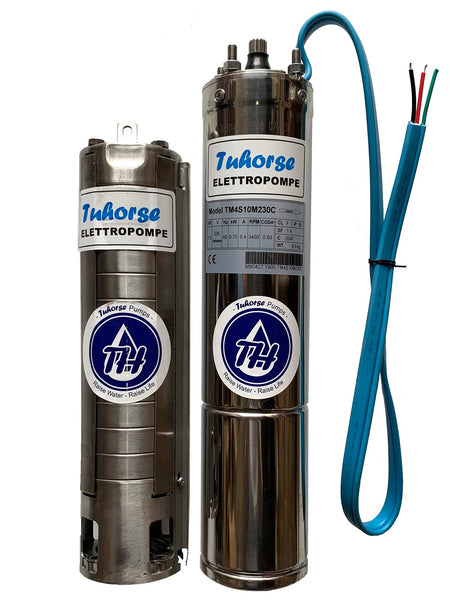

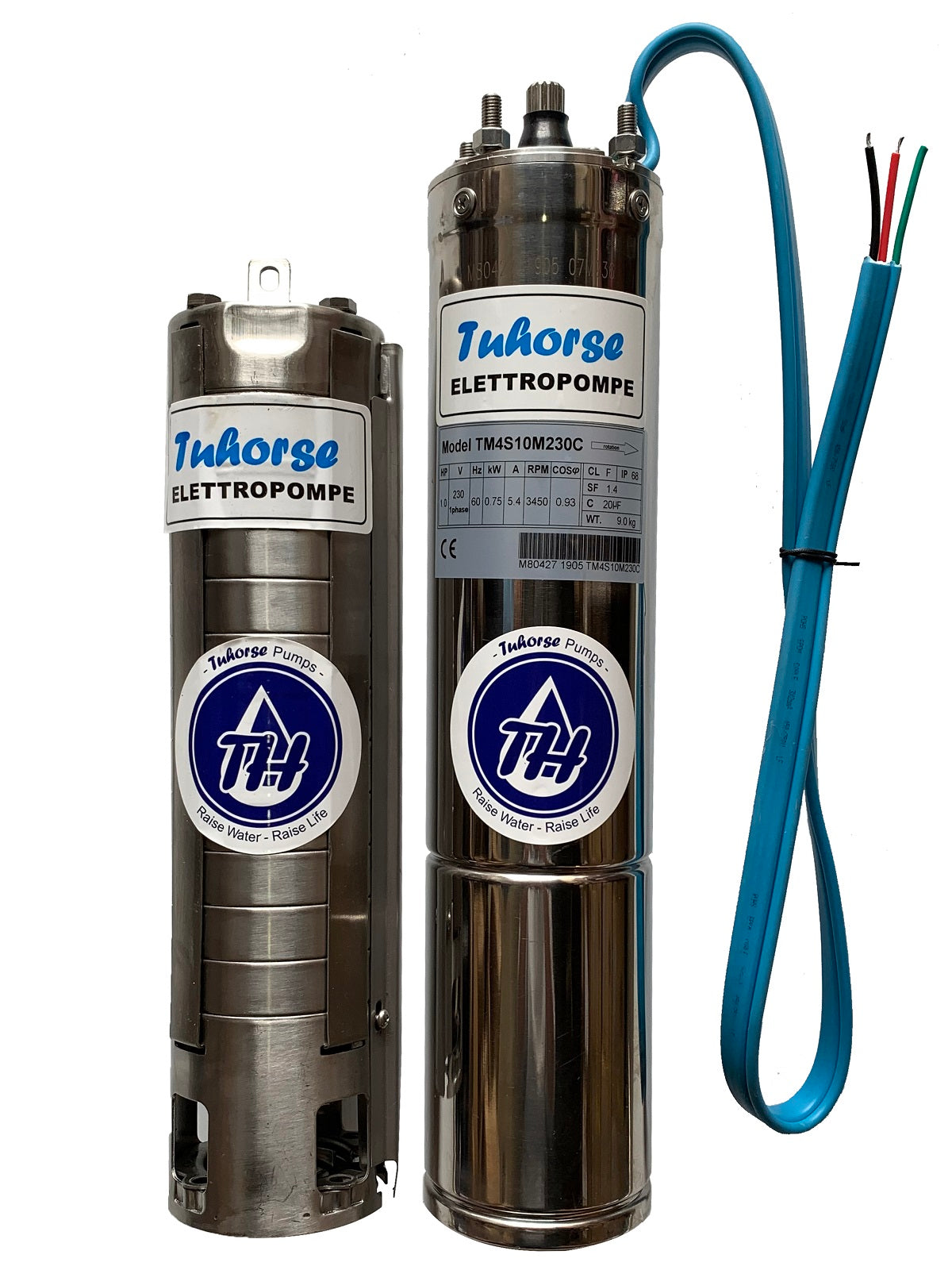

Complete pump end and motor. Complete Instructions.

  • HP: 5.5HP
  • Voltage: 460V Three Phase
  • Cycle: 60 Hz
  • Operating Amperage: 8.6A
  • Motor RPM: 3450 RPM
  • Stages: 15
  • Maximum Head(cut off): 490 ft.
  • Maximum Flow (0 - 60ft.): 60 GPM

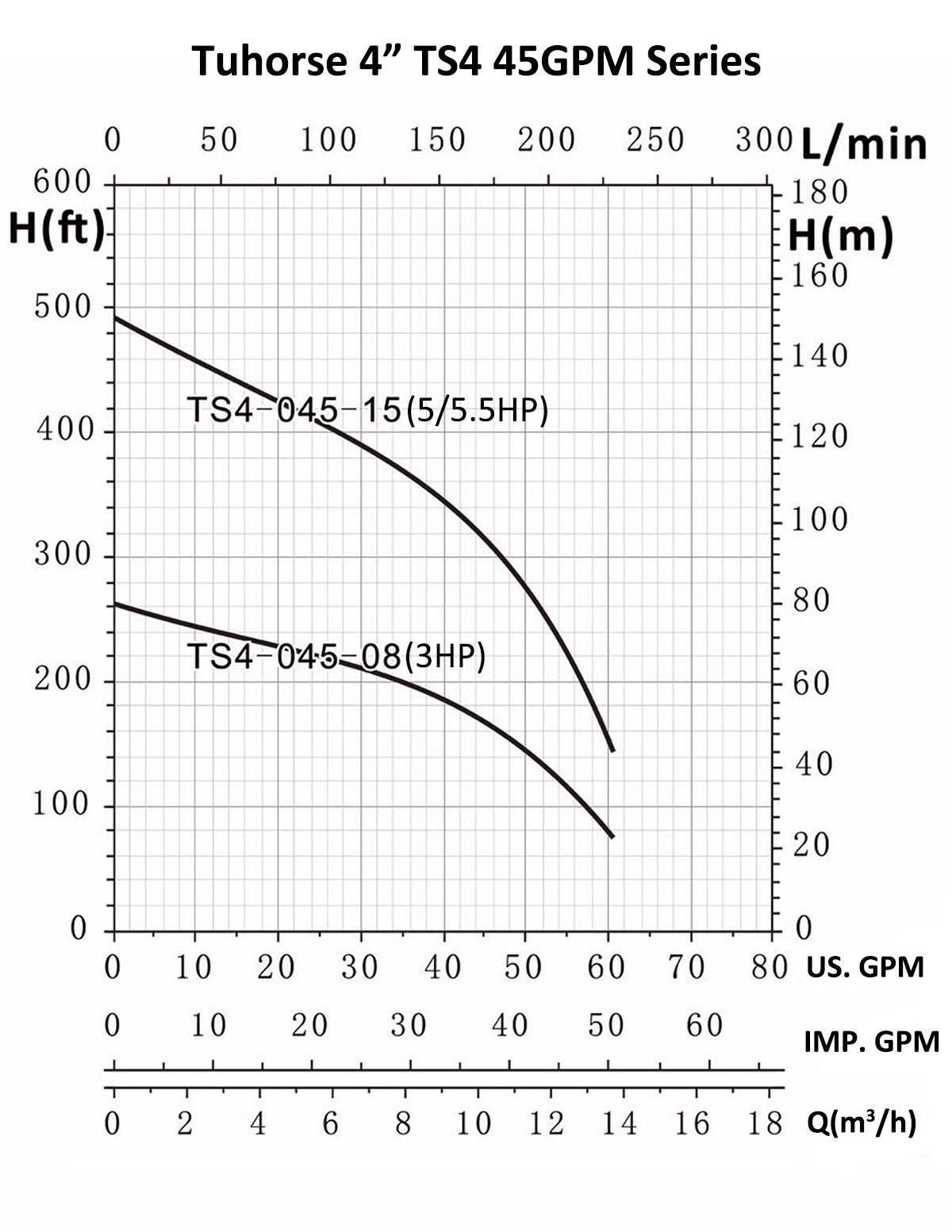

  • Free Flow Rates: 60GPM @ 140ft; 55GPM @ 220ft; 50GPM @ 280ft; 45GPM @ 320ft; 40GPM @ 340ft; 35GPM @ 370ft; 30GPM @ 390ft; 25GPM @ 410ft; 20GPM @ 420ft; 15GPM @ 440ft; 10GPM @ 460ft; 5GPM @ 475ft
  • Suction Port: Center Suction
  • Discharge Port: 2 in

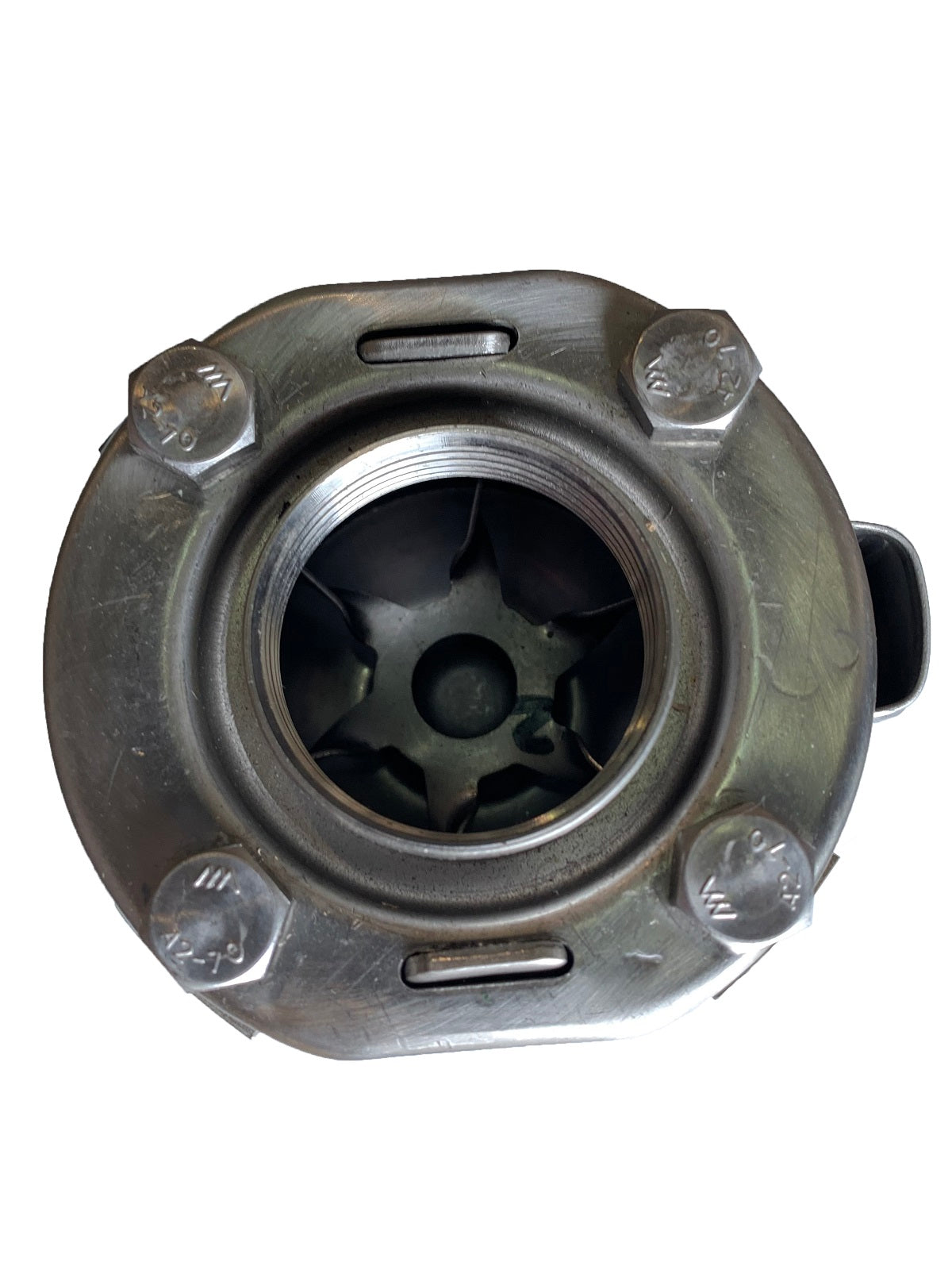

  • Built-in Check-valve: Yes
  • Housing Material: Stainless Steel, Grade 304
  • Impeller Material: Stainless Steel, Grade 304
  • Motor Enclosure: Stainless steel, Grade 304
  • Duty: Continuous or up to 20 restarting cycles / hour
  • Control Box: optional



*Control box sold separately

Note: We recommend you to use our TDH calculator in selecting a pump for your application

Warranty: 1 Year
