Description

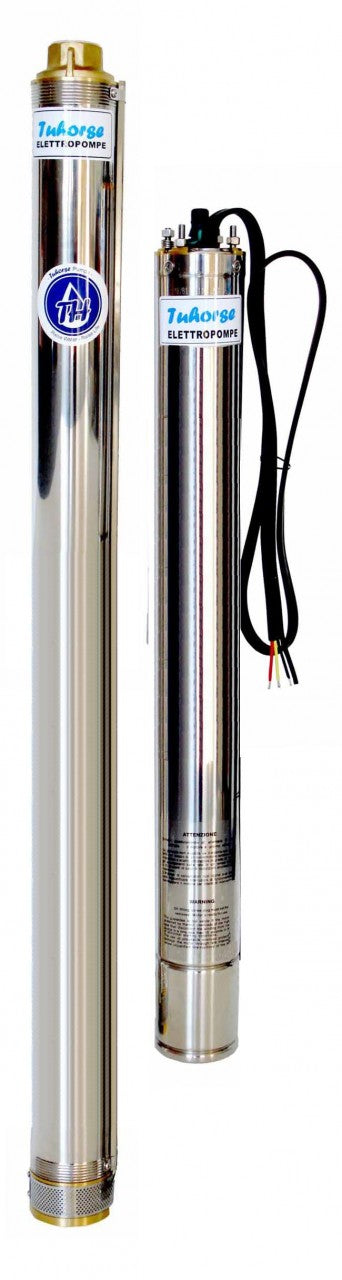

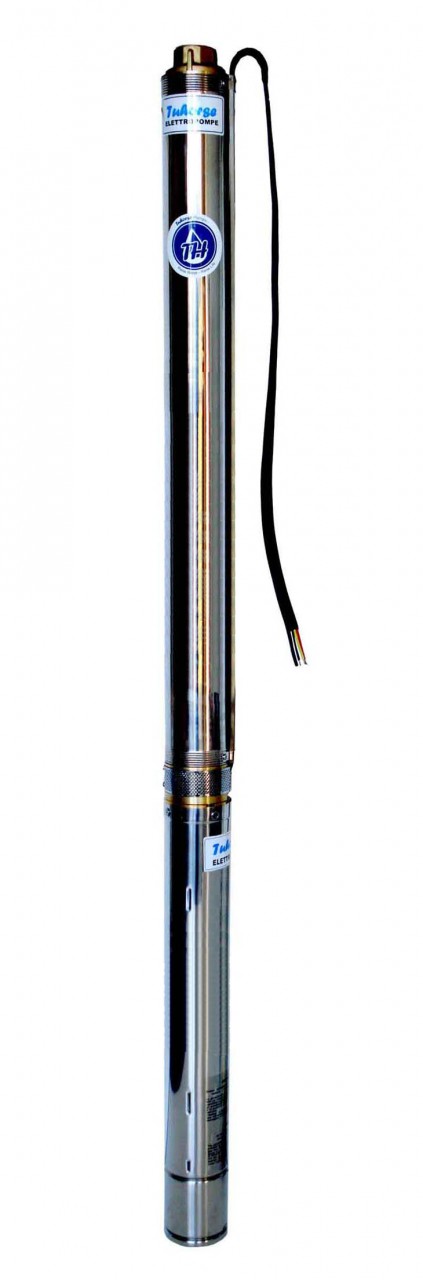

Complete pump end and motor set. Control box (control panel) is not mandatory, but a three phase power switch with overload protection is required. Complete Instructions.
- HP: 5.5HP
- Voltage: 460V Three Phase
- Cycle: 60 Hz
- Operating Amperage: 8.6 A
- Motor RPM: 3450 RPM
- Stages: 18

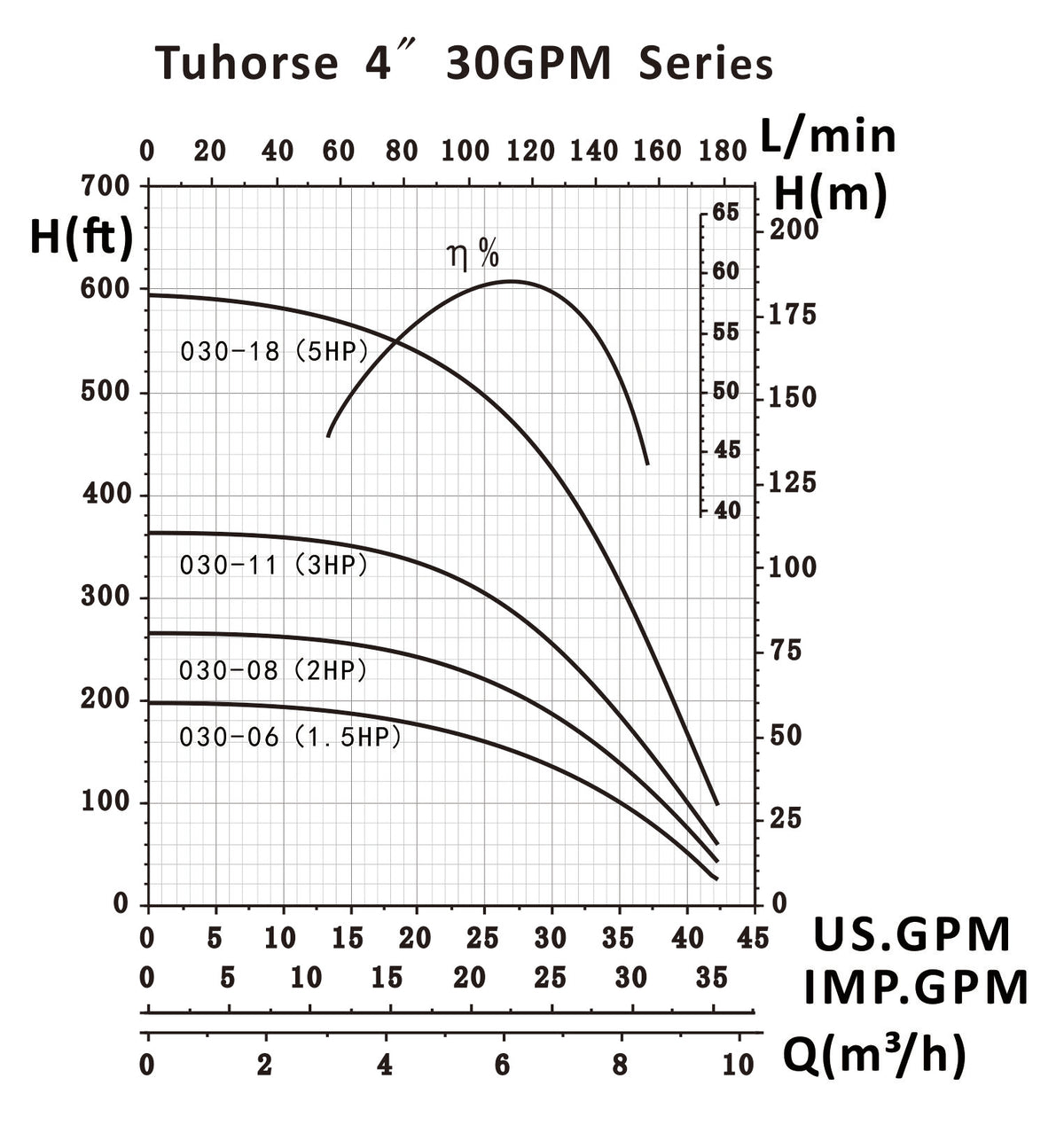

- Maximum Head(cut off): 590 ft.
- Maximum Flow(0-160 feet): 40 GPM
- Free Flow Rate: 35GPM @ 310ft; 30GPM @ 420ft; 25GPM @ 490ft; 20GPM @ 540ft.
- Suction Port: Center Suction
- Discharge Port: 1.5 in
- Built-in Check-valve: Yes (external check valve is required)
- Housing Material: Stainless Steel, Grade 304
- Impeller Material: Thermal Plastic
- Motor Enclosure: Stainless steel, Grade 304
- Duty: Continuous or up to 20 restarting cycles / hour
- Control Box: (not included) Three phase power switch with overload protection is required.
- Weight: 63 lbs
- Dimensions/Length: 58"
Minimum requirement for operating the motor is a non-fused 3-phase power switch and a 3-phase overload protector / Circuit breaker. The protector / breaker must be the type of those that shut off all 3-phase when one or more phase is overloaded. Do NOT use a fused switch that could burn out one of the phase. Do NOT use three individual 1-Phase breakers. You must use a real 3-phase protector / breaker or a protection device that does not cause missing phase problem.
Warranty: 1 Year
