Description
Complete pump end and motor set. Control panel (control box) sold separately.

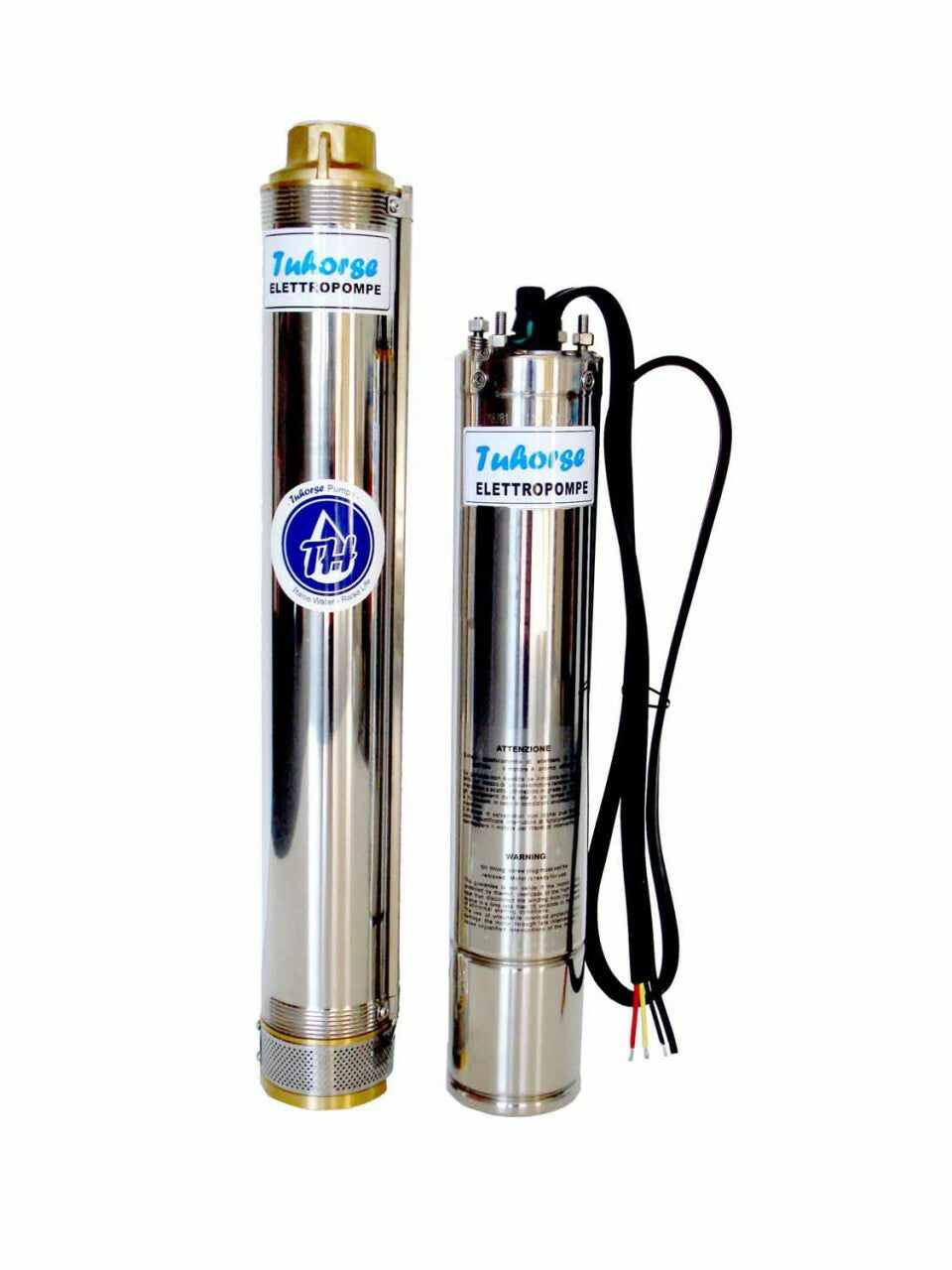

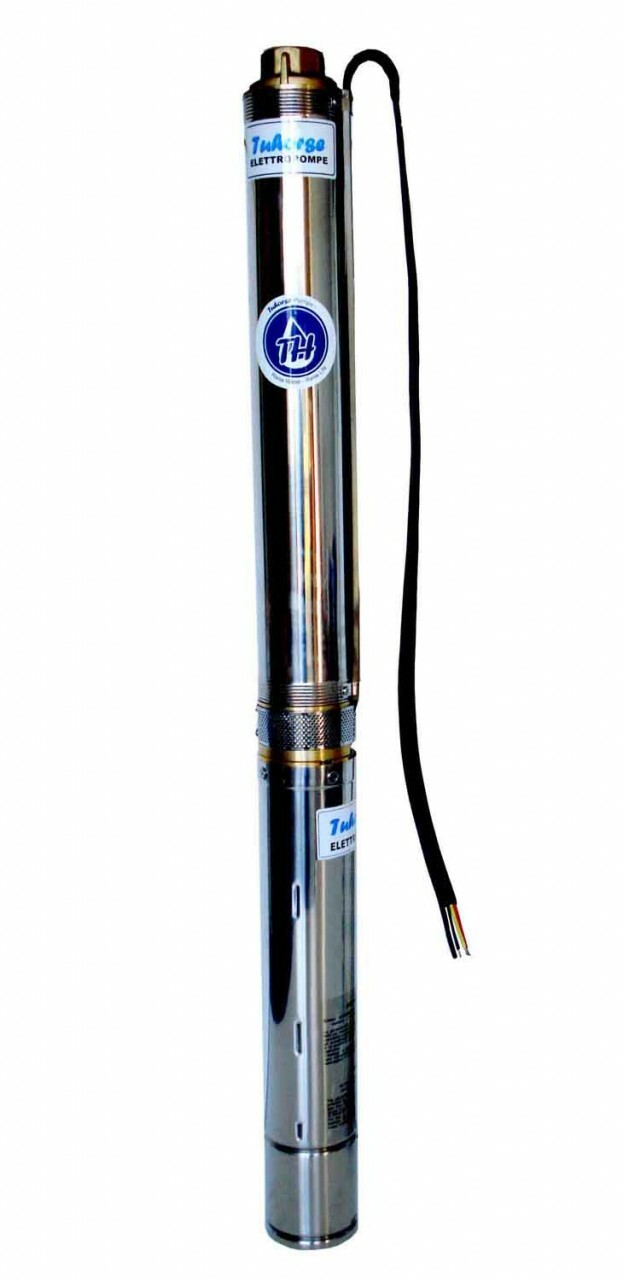

Complete pump end and motor set.
A 230V 3-phase control panel can be purchased for our website, sold separately.
- HP: 5.5HP
- Voltage: 230V Three Phase
- Cycle: 60 Hz
- Operating Amperage: 14.8 A
- Motor RPM: 3450 RPM
- Stages: 20
- Maximum Flow: 30 GPM
- Maximum Head: 610 ft

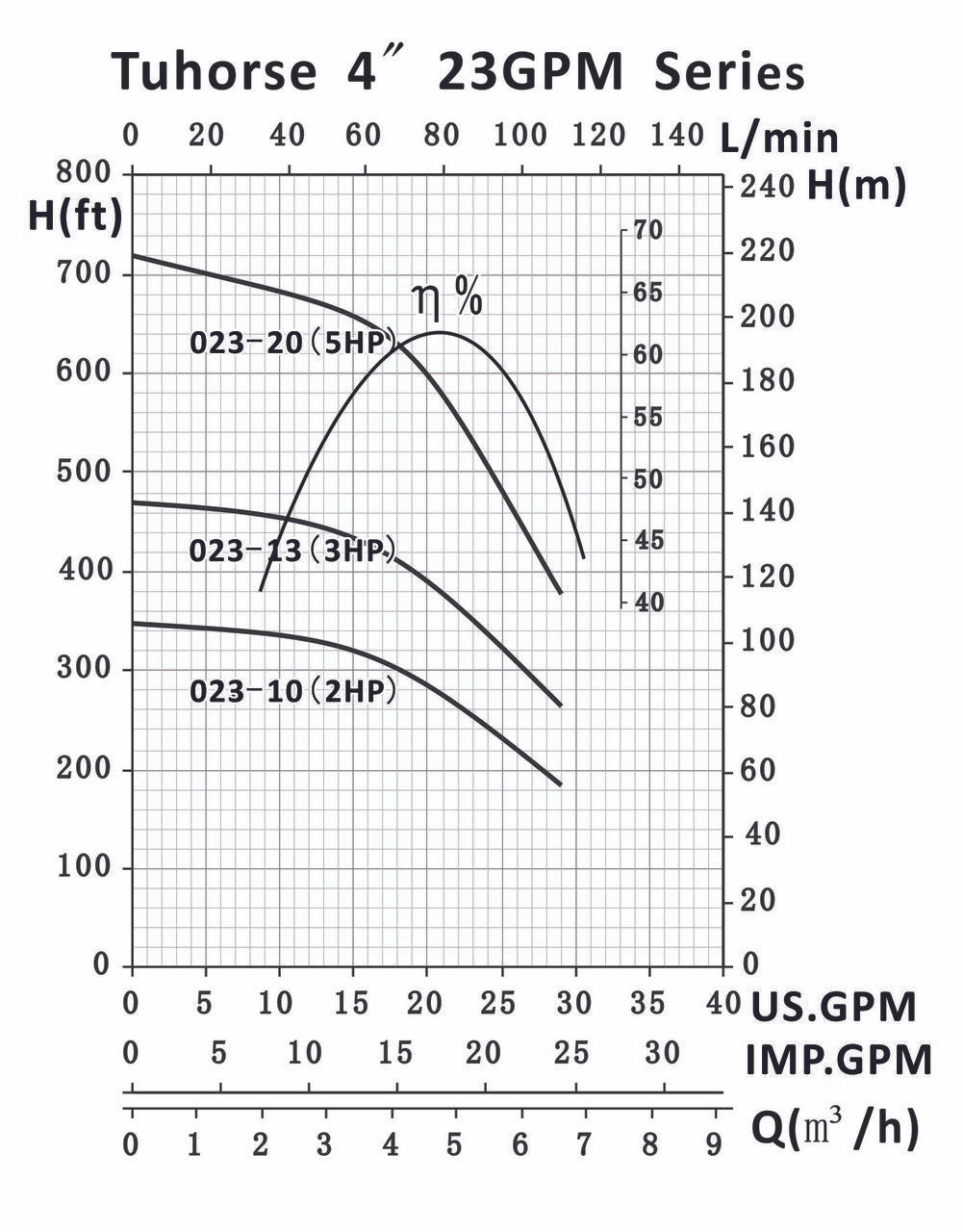

- Typical Flow: 27GPM @ 420ft; 23GPM @ 500ft; 20GPM @ 580ft; 15GPM @ 650ft
- Suction Port: Center Suction
- Discharge Port: 1.5 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel
- Impeller Material: Thermal Plastic
- Motor Enclosure: Stainless steel
- Duty: Continuous or up to 30 restarting cycles / hour
- Control Box: Control Box (Control Panel) Optional
- Weight: 61.6 lbs
- Dimensions/Length: 57"
Warranty: 1 Year
