Description

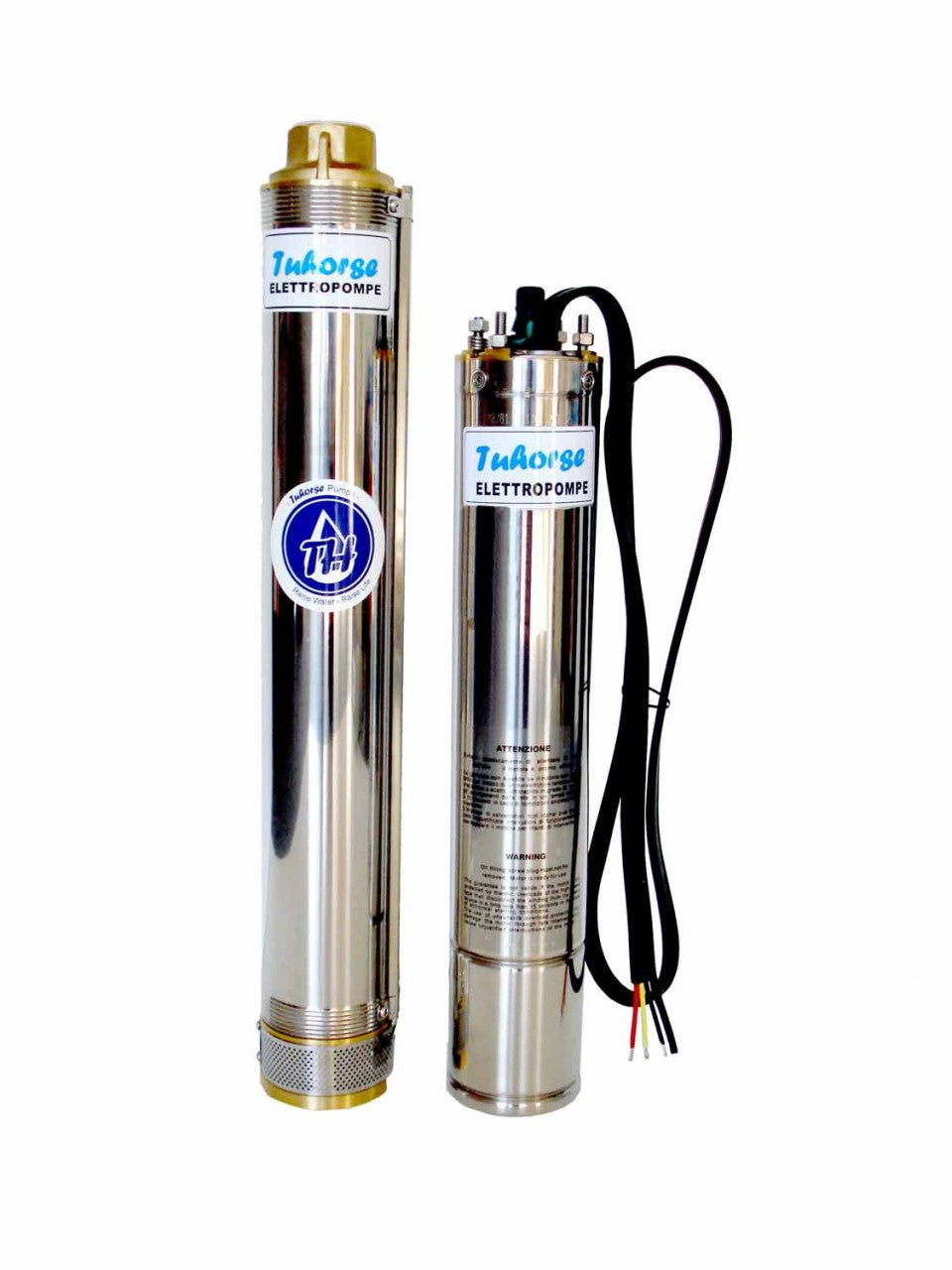

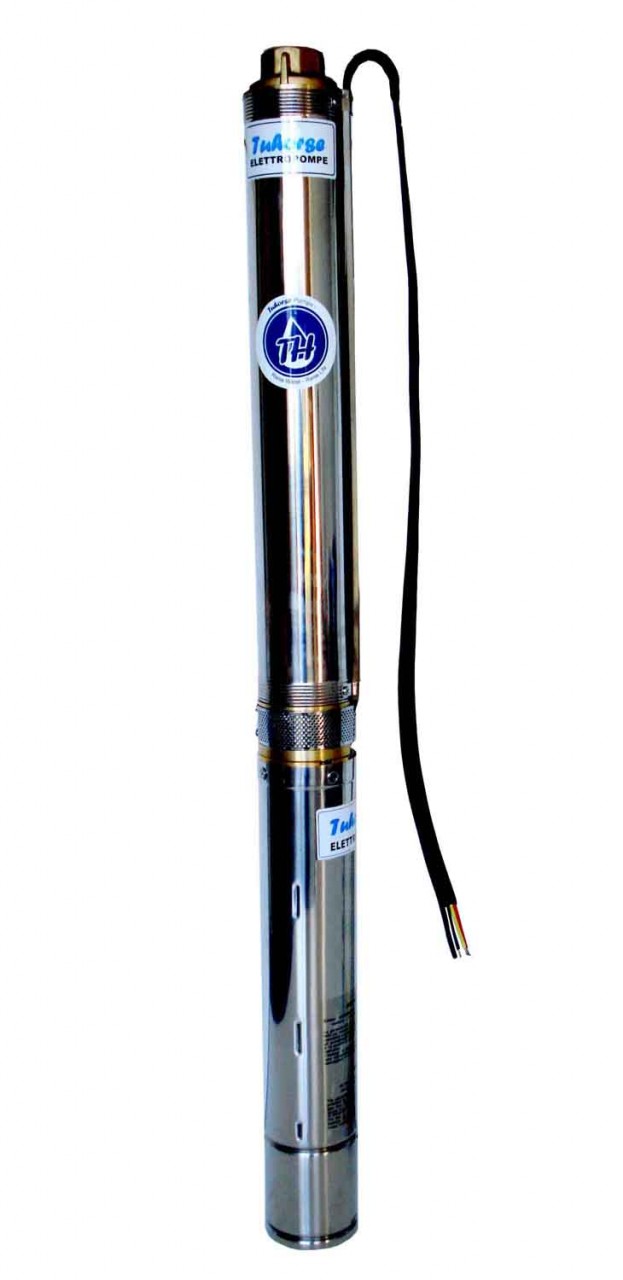

Complete pump end and motor set. Control box (control panel) is not mandatory, but a three phase power switch with overload protection is required. Complete Instructions.
- Model: TH4-009-30 T460V
- HP: 5.5HP
- Voltage: 460V Three Phase
- Cycle: 60 Hz
- Operating Amperage: 8.6 A
- Motor RPM: 3450 RPM
- Stages: 30
- Maximum Flow: 14.3 GPM
- Maximum Head: 1150 ft
- Typical Flow: 13GPM @ 320ft; 11GPM @ 580ft; 9GPM @ 780ft; 7GPM @ 960ft; 5GPM @ 1060ft.
- Suction Port: Center Suction
- Discharge Port: 1.25 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel
- Impeller Material: Thermal Plastic
- Motor Enclosure: Stainless steel
- Duty: Continuous or up to 20 restarting cycles / hour
- Control Box: Three phase power switch with overload protection is required.
- Shipping Weight: 66 lbs
- Packing Dimensions/Length: 42" x 11" x 7"
Minimum requirement for operating the motor is a non-fused 3-phase power switch and a 3-phase overload protector / Circuit breaker. The protector / breaker must be the type of those that shut off all 3-phase when one or more phase is overloaded. Do NOT use a fused switch that could burn out one of the phase. Do NOT use three individual 1-Phase breakers. You must use a real 3-phase protector / breaker or a protection device that does not cause phase loss problem.
Warranty: 1 Year
