Description
Stainless steel pump.
45GPM rated, 60GPM Max.

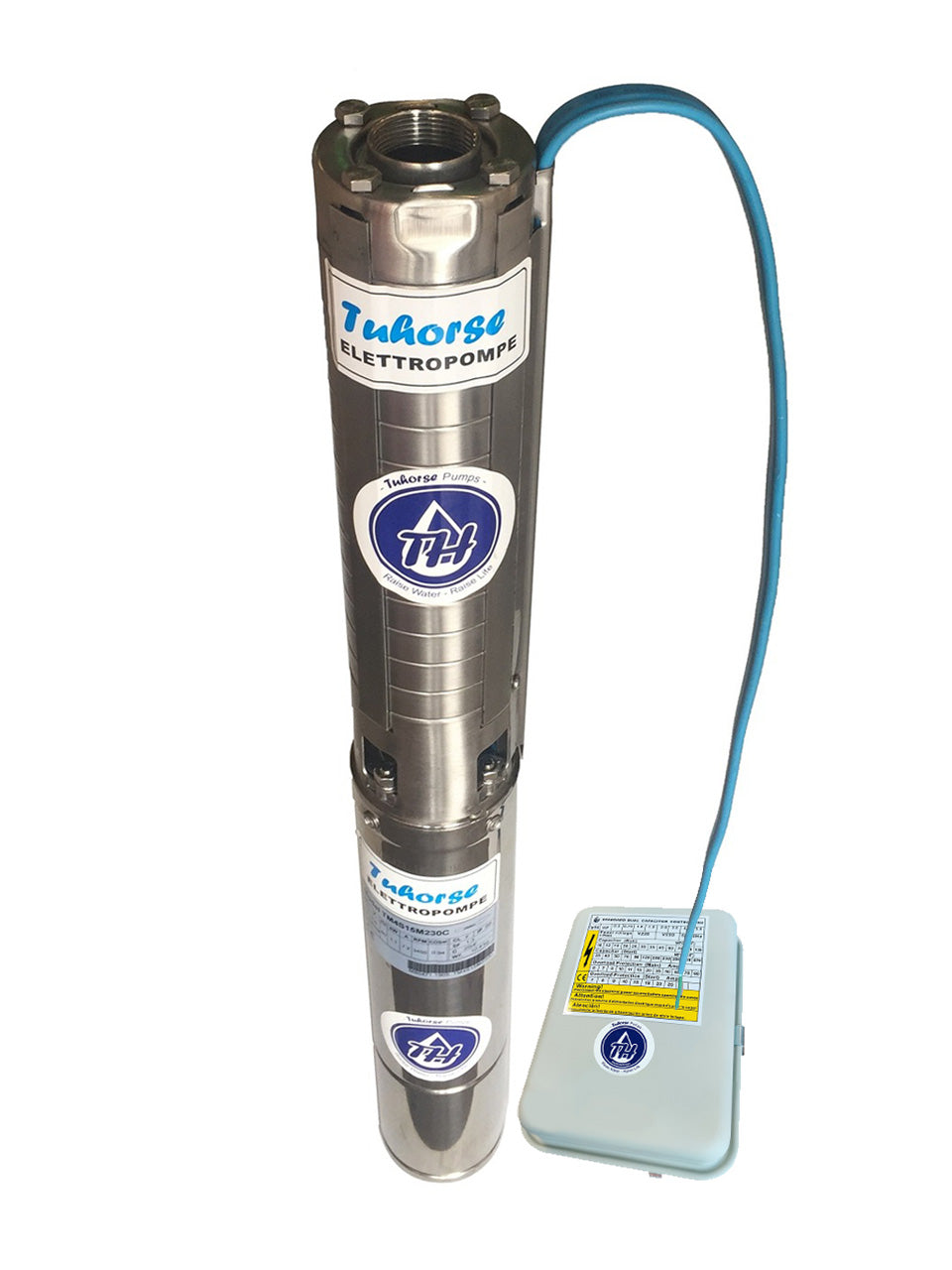

Complete pump end, motor and control box. Complete Instructions.
- HP: 3HP
-
Voltage: 230V Single Phase
- Cycle: 60 Hz
- Operating Amperage: 14.3 A
- Motor RPM: 3450 RPM
- Stages: 8
- Maximum Head(cut off): 245 ft
- Maximum Flow (0 - 50ft.): 62 GPM

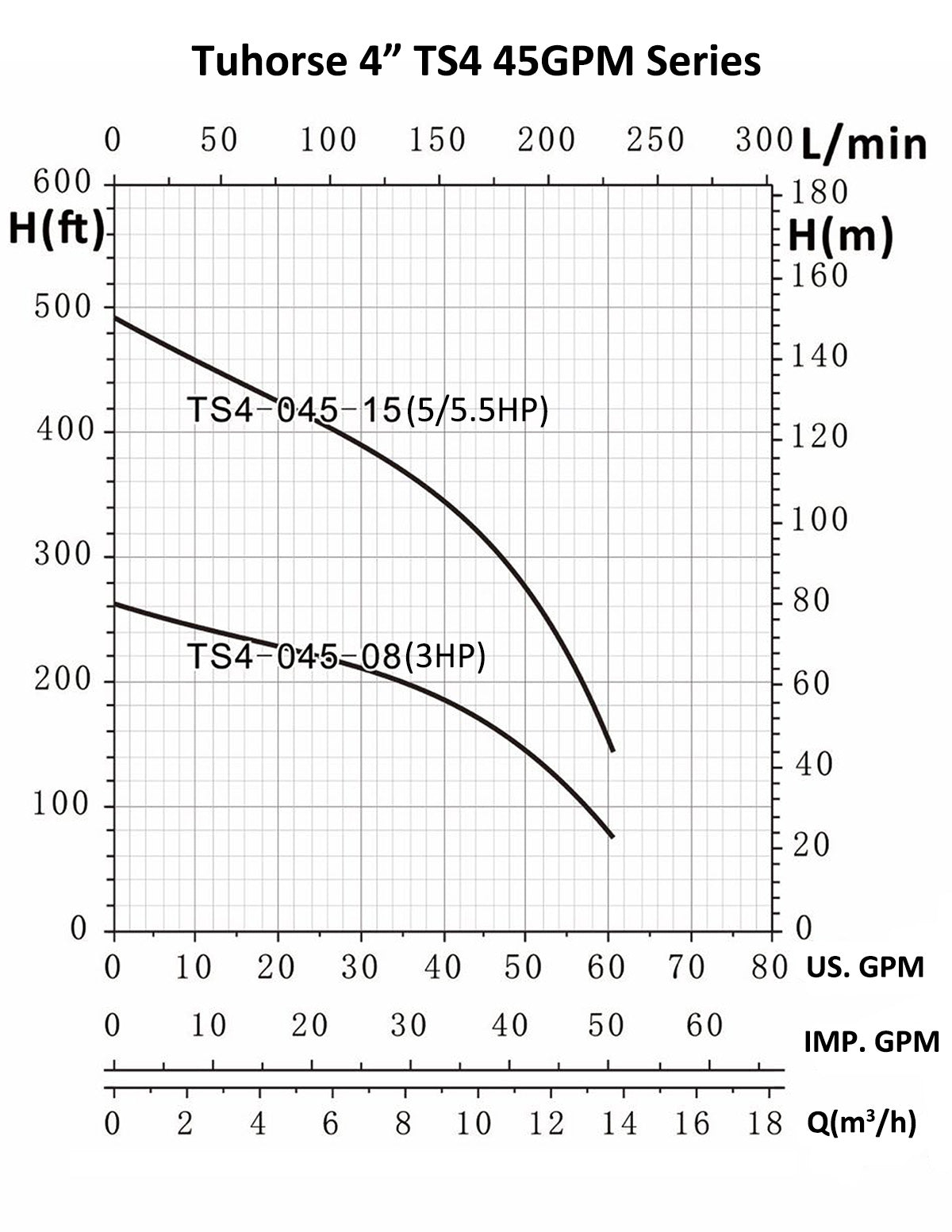

- Free Flow Rates: 55GPM @ 75 ft; 50GPM @ 130 ft; 45GPM @ 155ft; 40GPM @ 170ft; 26GPM @ 200 ft.; 16GPM @ 220 ft.
- Suction Port: Center Suction
- Discharge Port: 2 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel, Grade 304
- Impeller Material: Stainless Steel, Grade 304
- Motor Enclosure: Stainless steel, Grade 304
- Duty: Continuous or up to 20 restarting cycles / hour

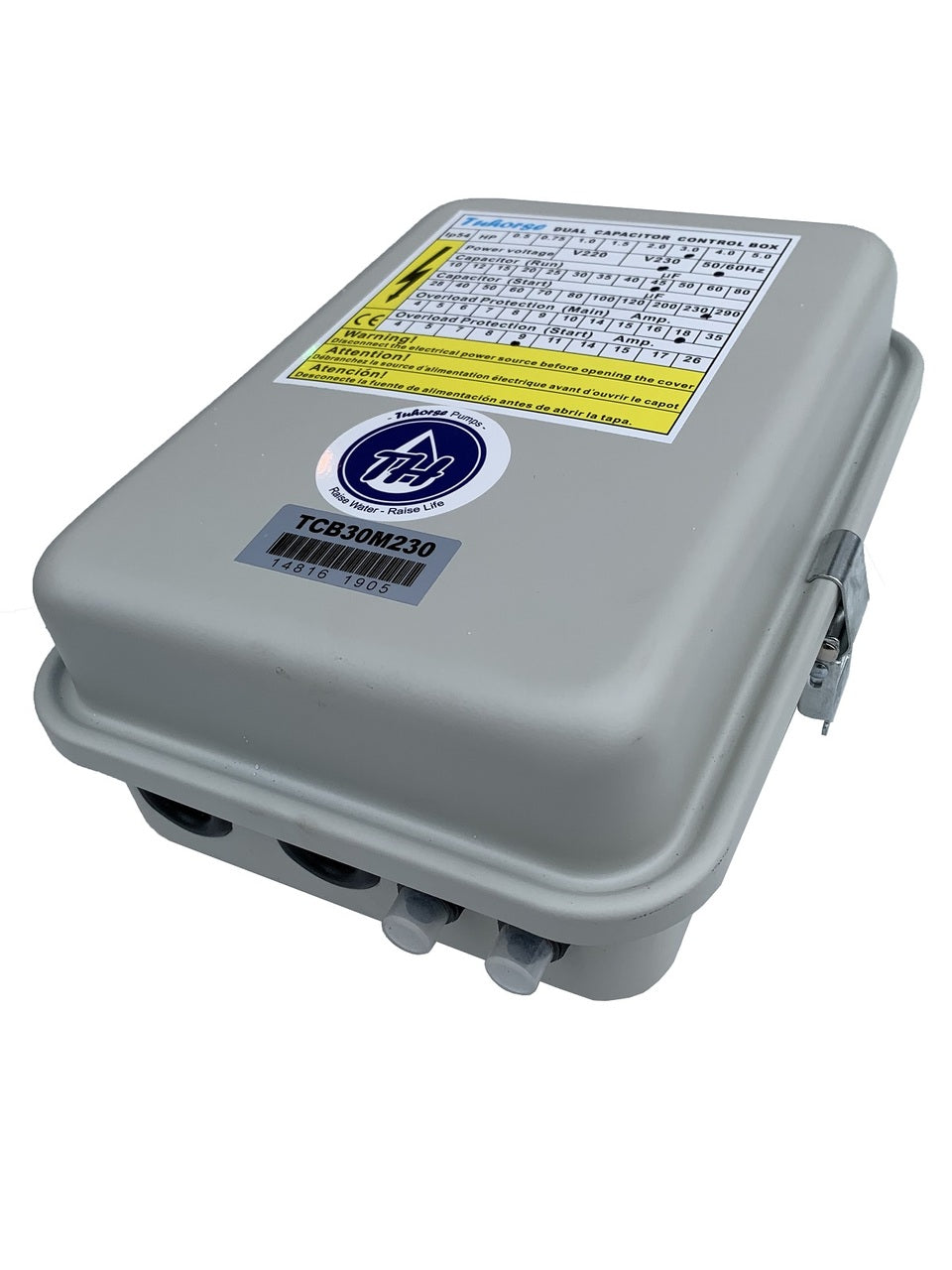

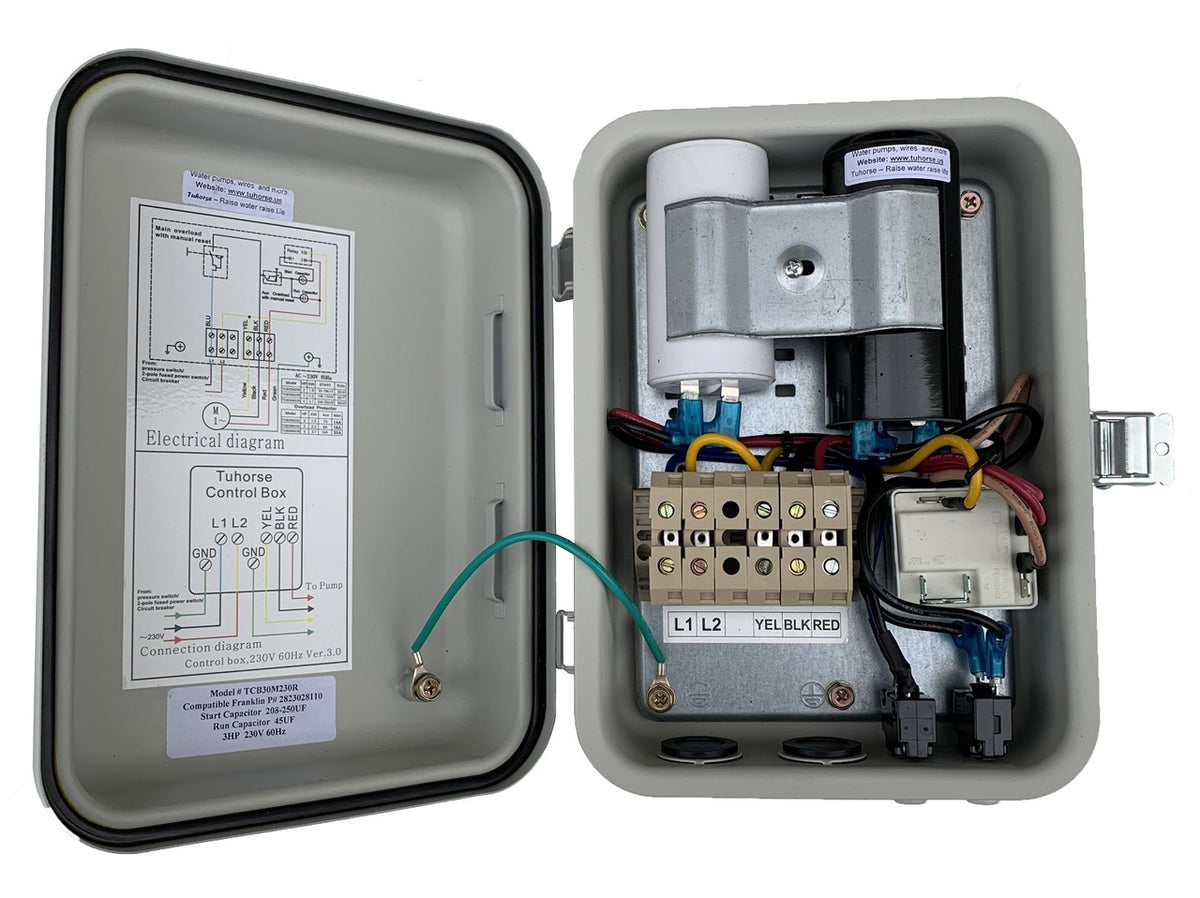

- Control Box: Dual Capacitor control box included
Note: We recommend you to use our TDH calculator in selecting a pump for your application
Warranty: 1 Year
