Description
18 GPM rated, 26 GPM Max.

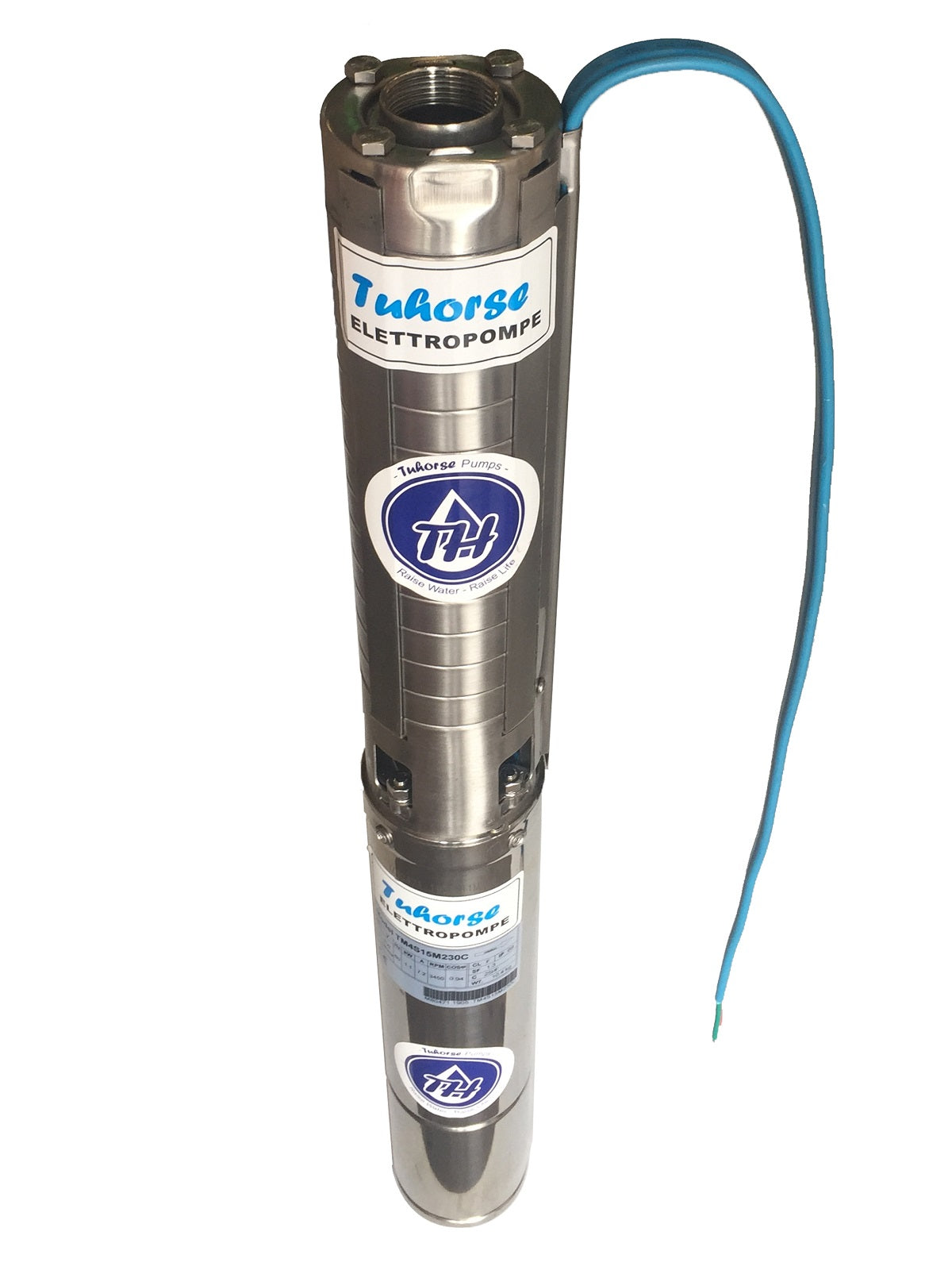

Complete pump end and motor. Complete Instructions.
- HP: 3HP
- Voltage: 460V Three Phase
- Cycle: 60 Hz
- Operating Amperage: 4.6 A
- Motor RPM: 3450 RPM
- Stages: 20
- Maximum Head(cut off): 620 ft
- Maximum Flow(0-100ft): 26 GPM

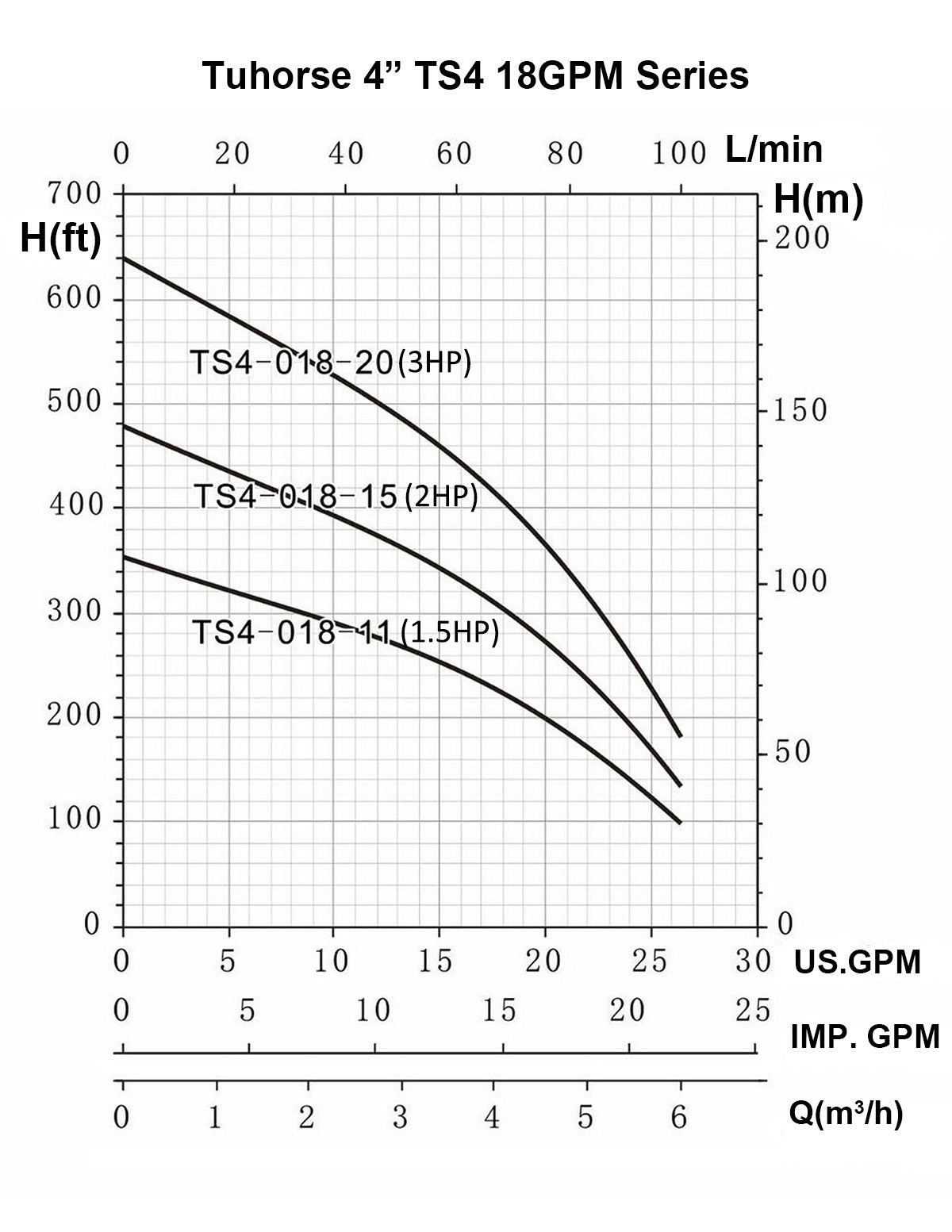

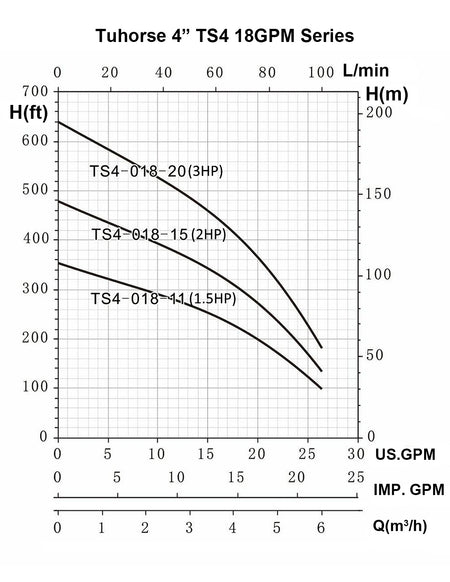

- Free Flow Rate: 25GPM @ 200ft; 22GPM @ 300ft; 18GPM @ 400ft; 15GPM @ 460ft; 12GPM @ 500ft.
- Suction Port: Center Suction

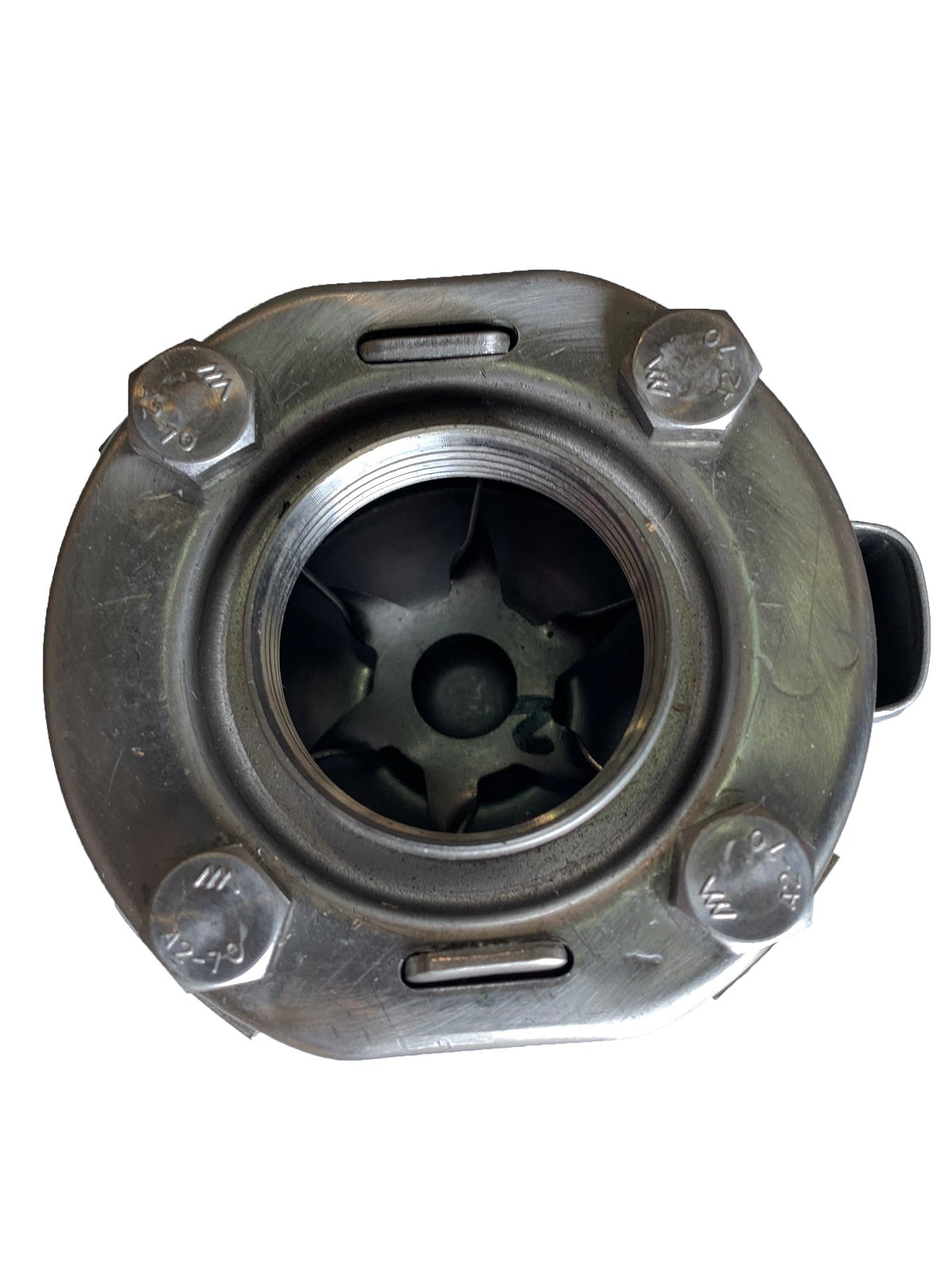

- Discharge Port: 1.25 in
- Built-in Check-valve: Yes, Stainless Steel 304
- Housing Material: Stainless Steel 304
- Impeller Material: Stainless Steel 304

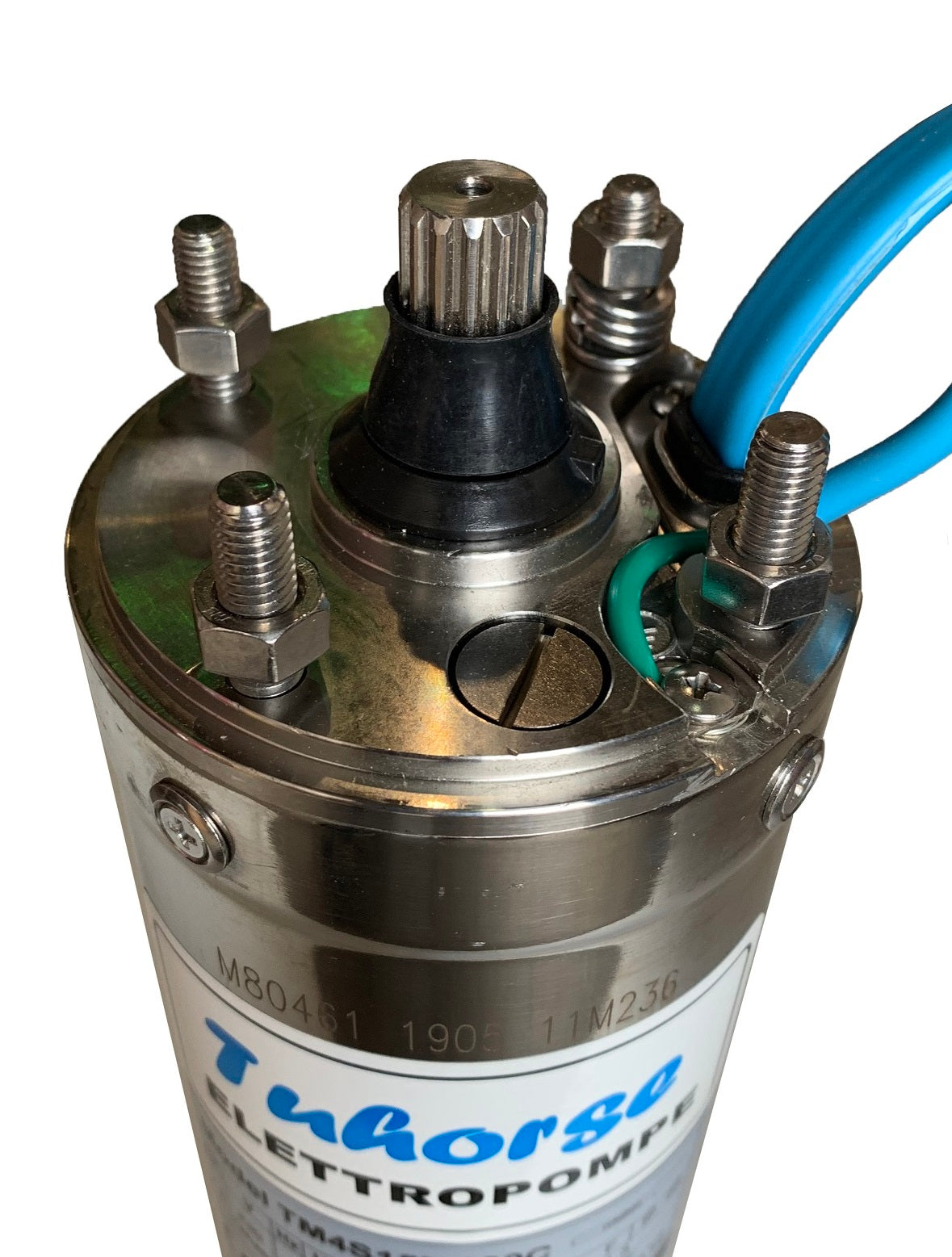

- Motor Enclosure: Stainless Steel 304
- Duty: Continuous or up to 20 restarting cycles / hour
- Control Box: Optional - purchase separately
- Weight: 49 lbs
- Dimensions/Length: 40"
Warranty: 1 Year
