Description
18 GPM rated, 26 GPM Max.

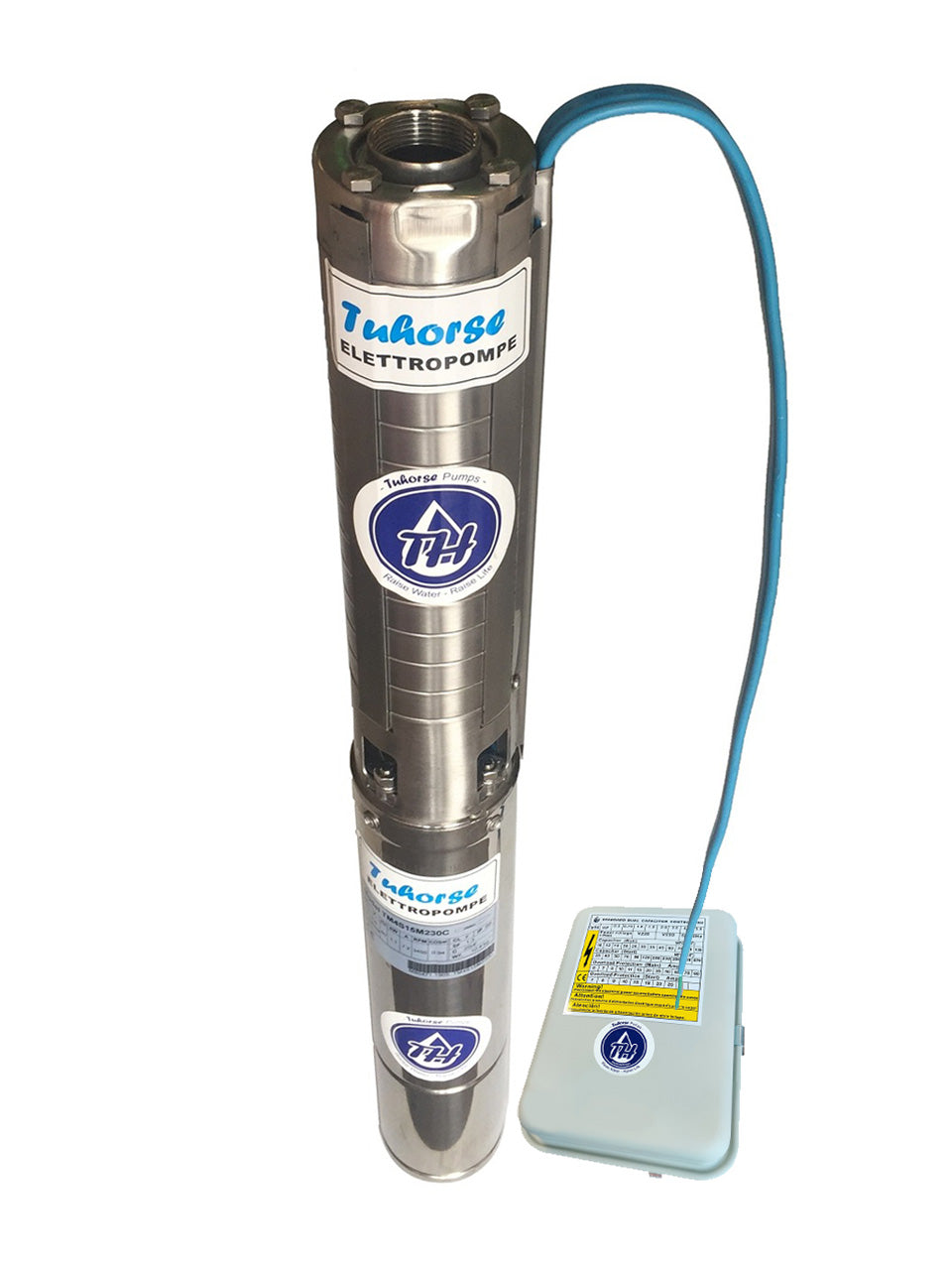

Complete pump end, motor, and dual capacitor control box set. Complete Instructions.
- HP: 3HP
- Voltage: 230V Single Phase
- Cycle: 60 Hz
- Operating Amperage: 14.3 A
- Motor RPM: 3450 RPM
- Stages: 20
- Maximum Head(cut off): 620 ft.
- Maximum Flow(0-100ft): 26 GPM

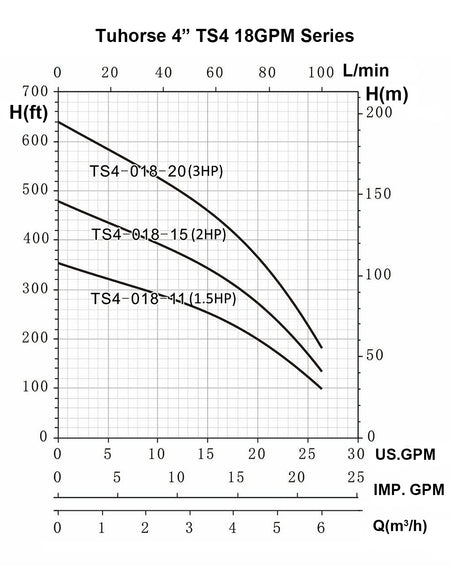

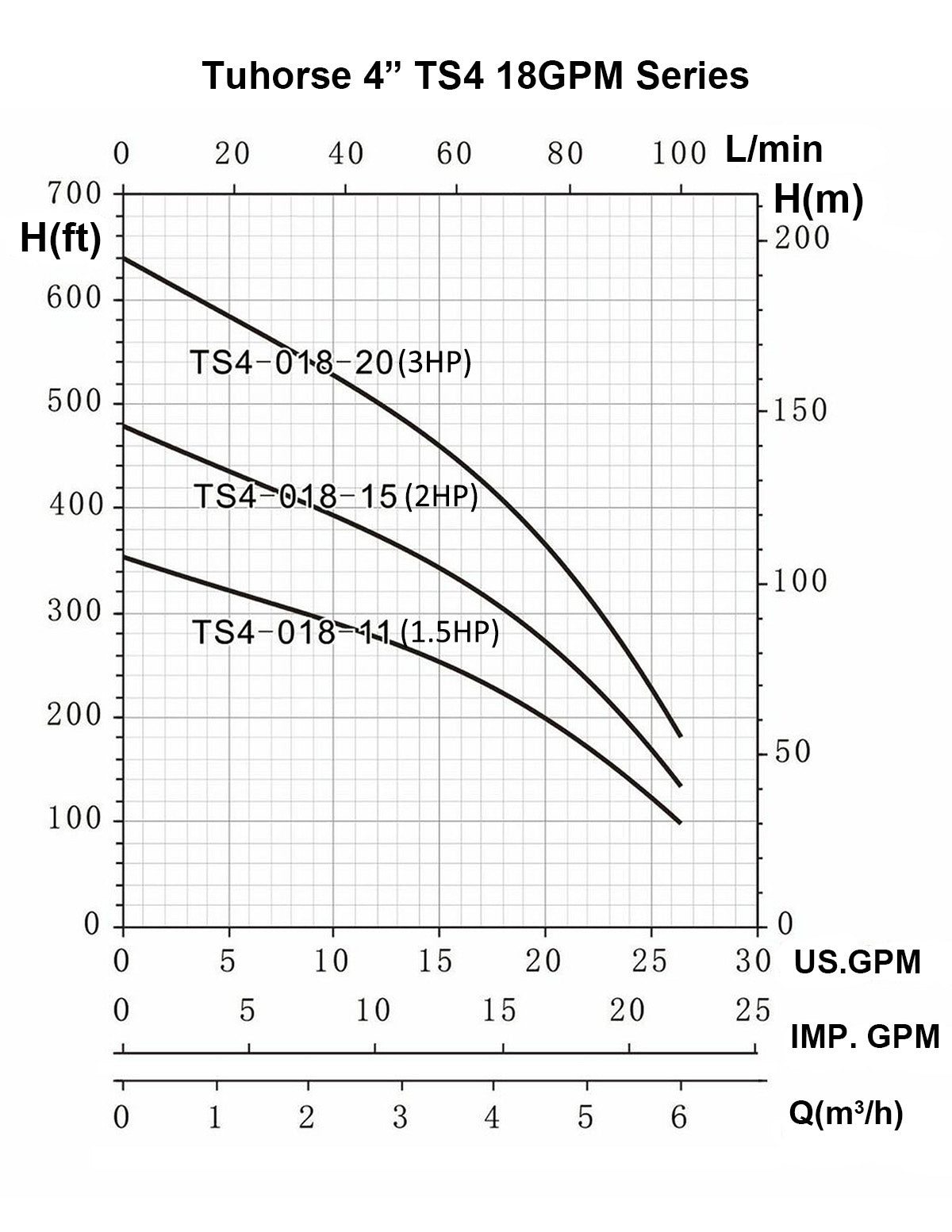

- Free Flow Rate: 25GPM @ 200ft; 22GPM @ 300ft; 18GPM @ 400ft; 15GPM @ 460ft; 12GPM @ 500ft.
- Suction Port: Center Suction
- Discharge Port: 1.25 in
- Built-in Check-valve: Yes, Stainless Steel 304
- Housing Material: Stainless Steel 304
- Impeller Material: Stainless Steel 304
- Motor Enclosure: Stainless Steel 304
- Duty: Continuous or up to 20 restarting cycles / hour

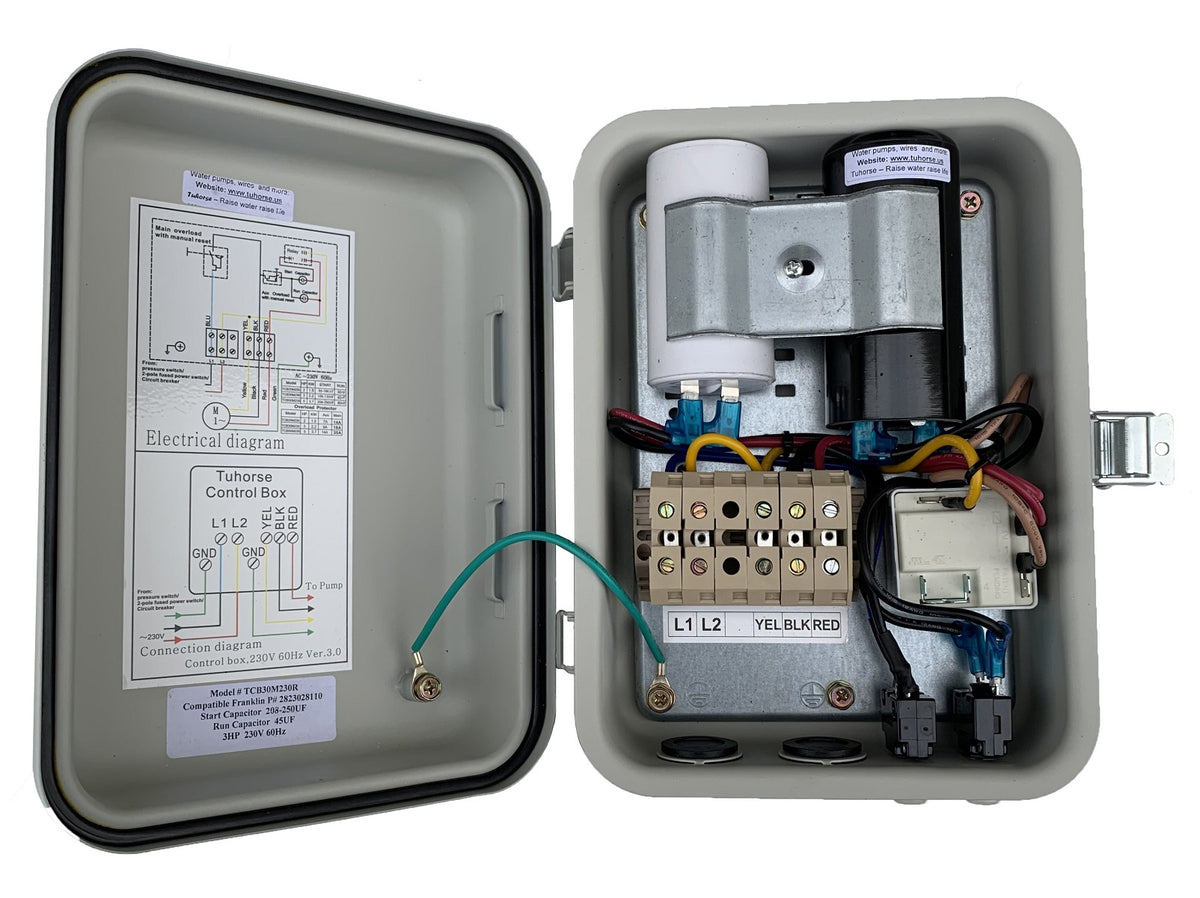

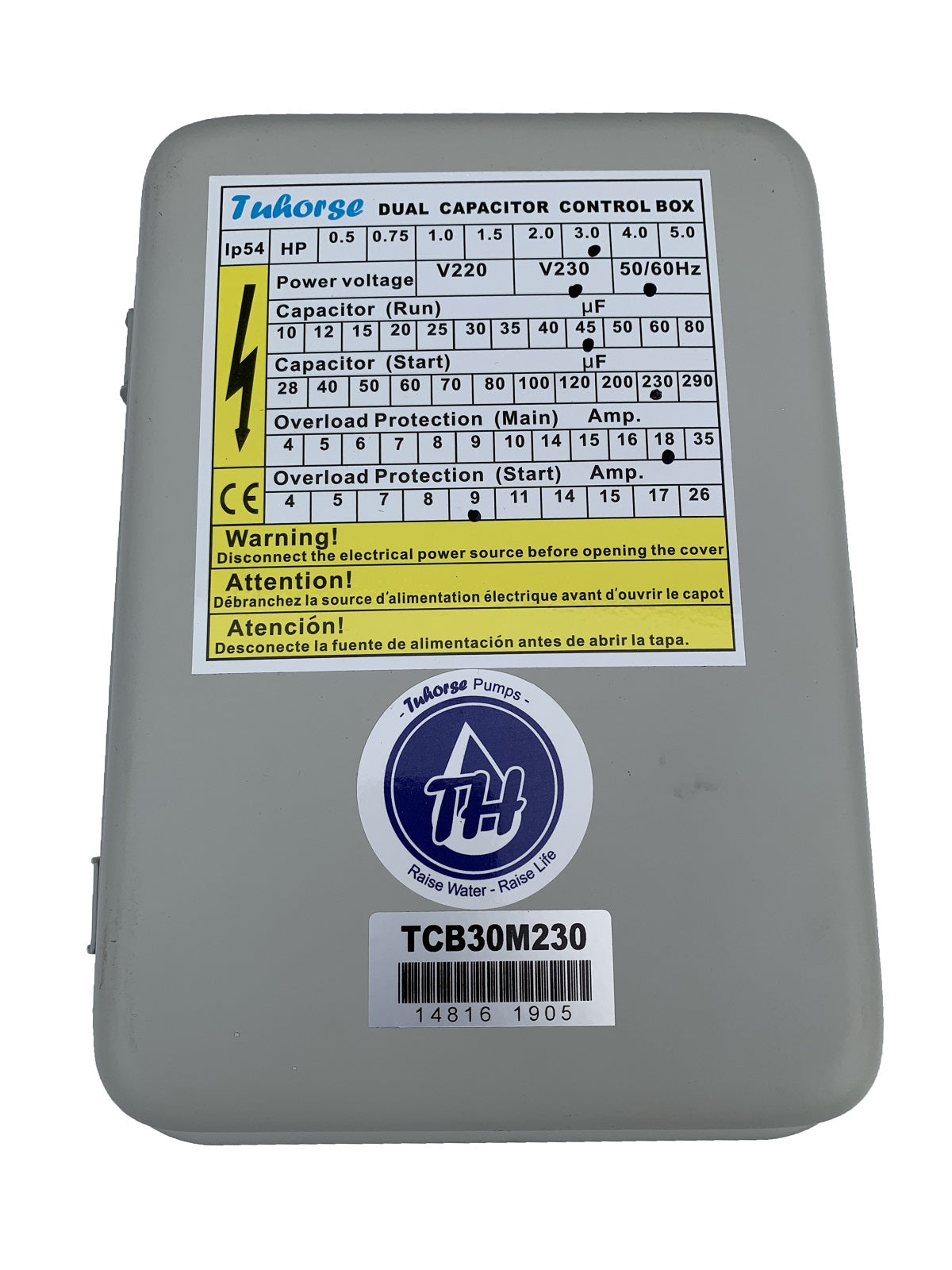

- Control Box: Dual capacitor control box pro included
- Weight: 53 lbs.
- Dimensions/Length: 45"
Warranty: 1 Year
