Description
13 GPM rated, 18 GPM Max.

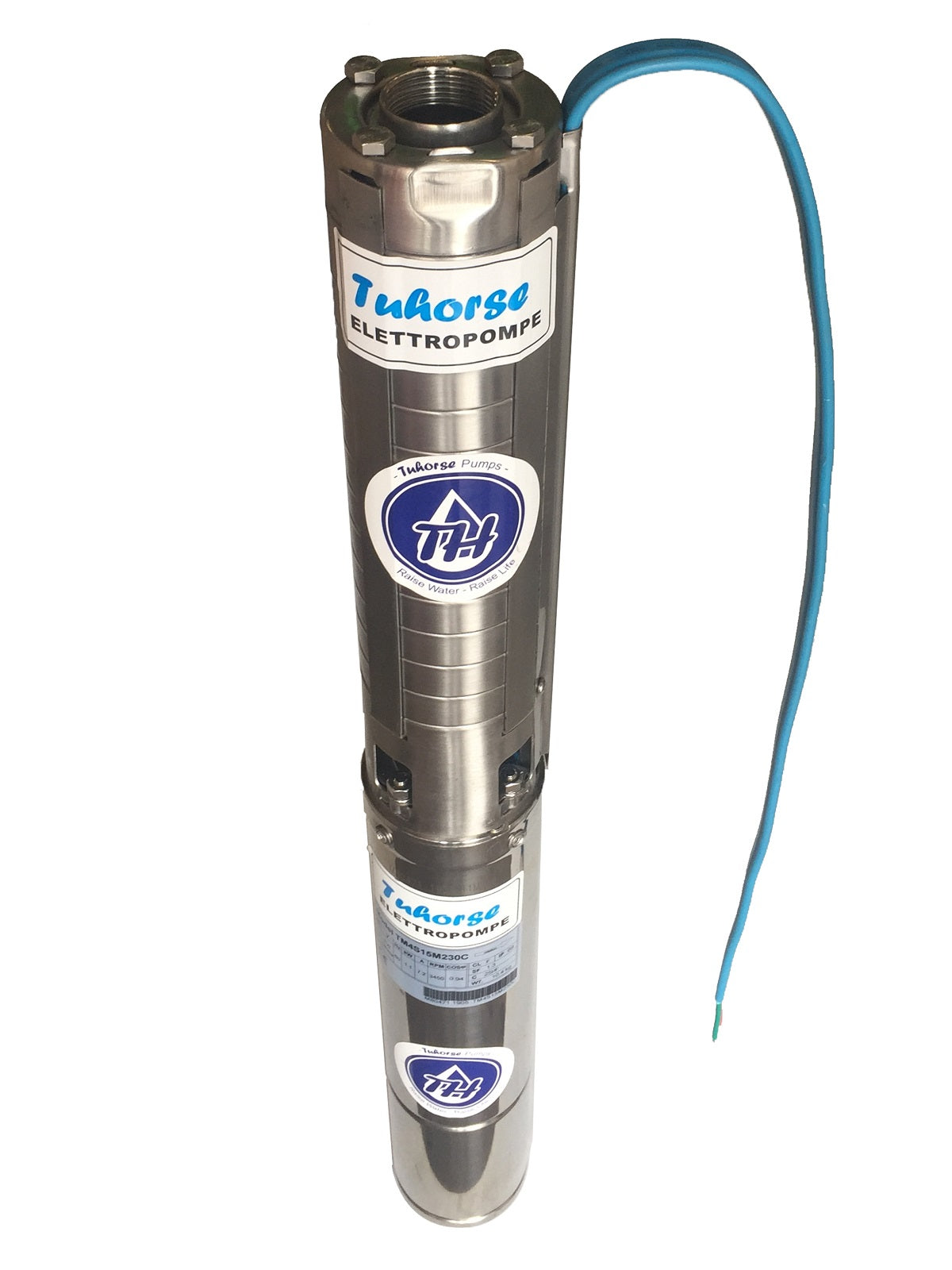

Complete pump end, motor, and dual capacitor control box set. Complete Instructions.
- HP: 3HP
- Voltage: 460V 3-Phase
- Cycle: 60 Hz
- Operating Amperage: 4.6 A
- Motor RPM: 3450 RPM
- Stages: 25
- Rated Flow: 13 GPM
- Maximum Head(cut off): 650 ft.
- Maximum Flow(0-280ft): 18 GPM
- Free Flow Rate: 16GPM @ 350ft; 13GPM @ 440ft; 11GPM @ 500ft; 9GPM @ 545ft; 6GPM @ 600ft; 4GPM @ 630ft
- Suction Port: Center Suction
- Discharge Port: 1.25 in
- Built-in Check-valve: Yes, Stainless Steel 304
- Housing Material: Stainless Steel 304
- Impeller Material: Stainless Steel 304
- Motor Enclosure: Stainless Steel 304
- Duty: Continuous or up to 20 restarting cycles / hour
- Control Box: Control panel sold separately
- Shipping Weight: 54 lbs.
- Shipping Dimensions/Length: 37"x11"x7"
Warranty: 1 Year
