Description
45GPM Rated.

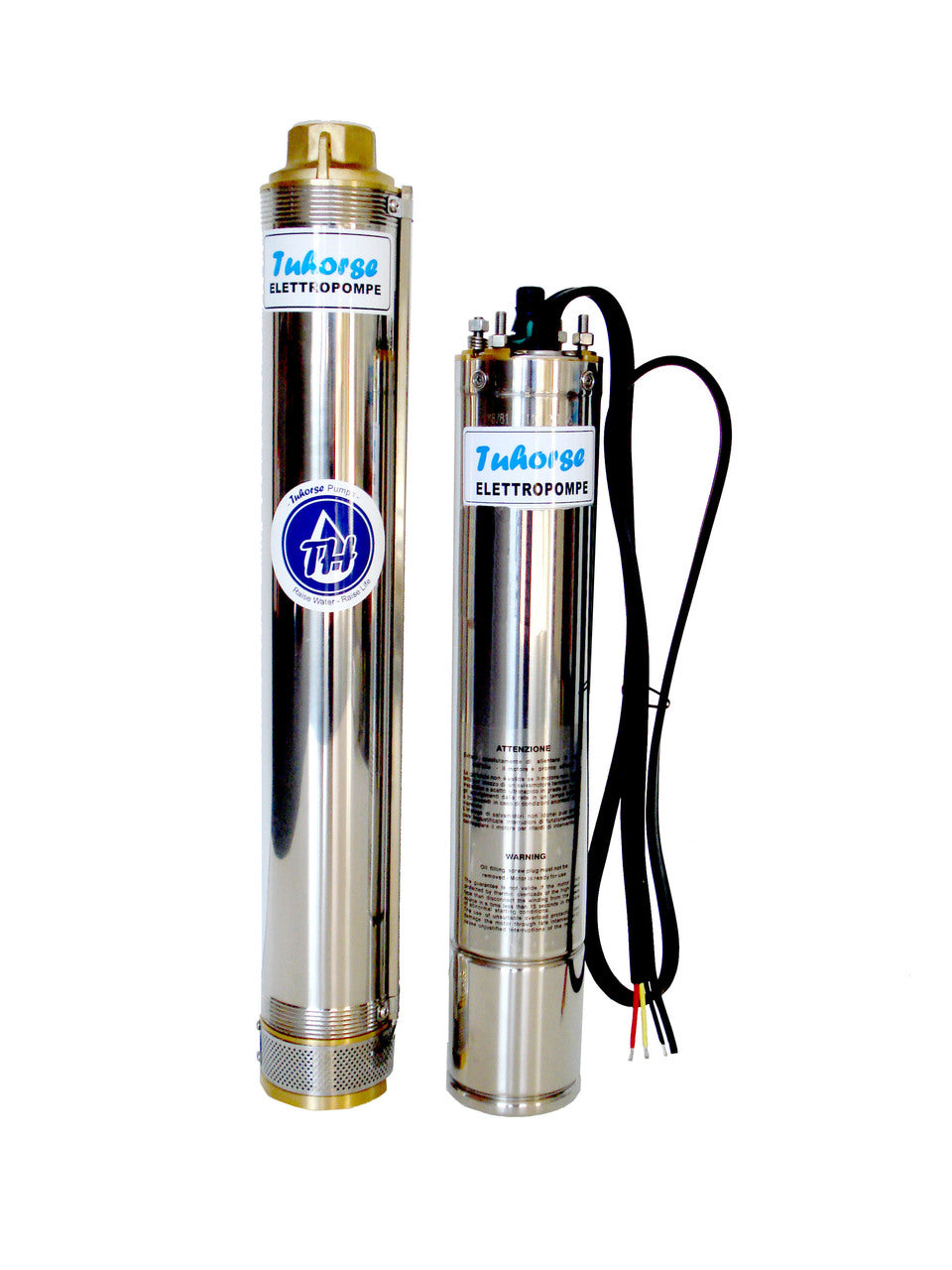

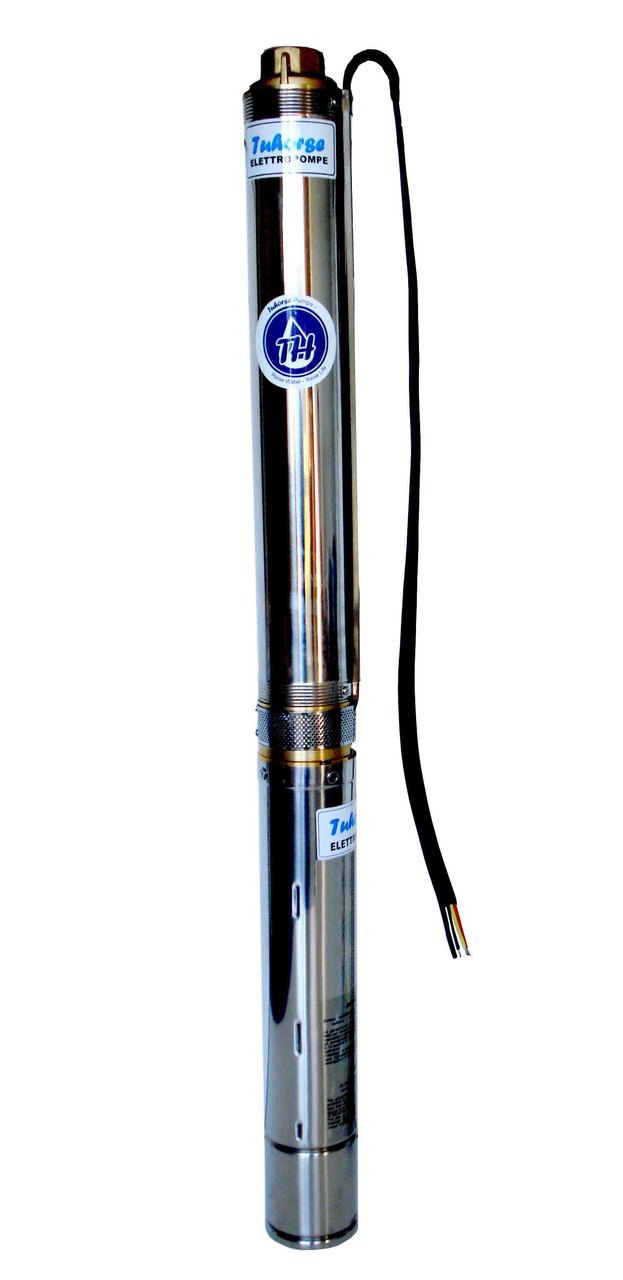

Complete pump end and motor set. Control box (control panel) is not mandatory, but a three phase power switch with overload protection is required(not included)
- HP: 3HP
- Voltage: 460V Three Phase
- Cycle: 60 Hz
- Operating Amperage: 5.4 A
- Motor RPM: 3450 RPM
- Stages: 7
- Maximum Head(cut off): 235 ft
- Rated Flow: 45GPM
- Maximum free Flow(0-100 feet): 55GPM

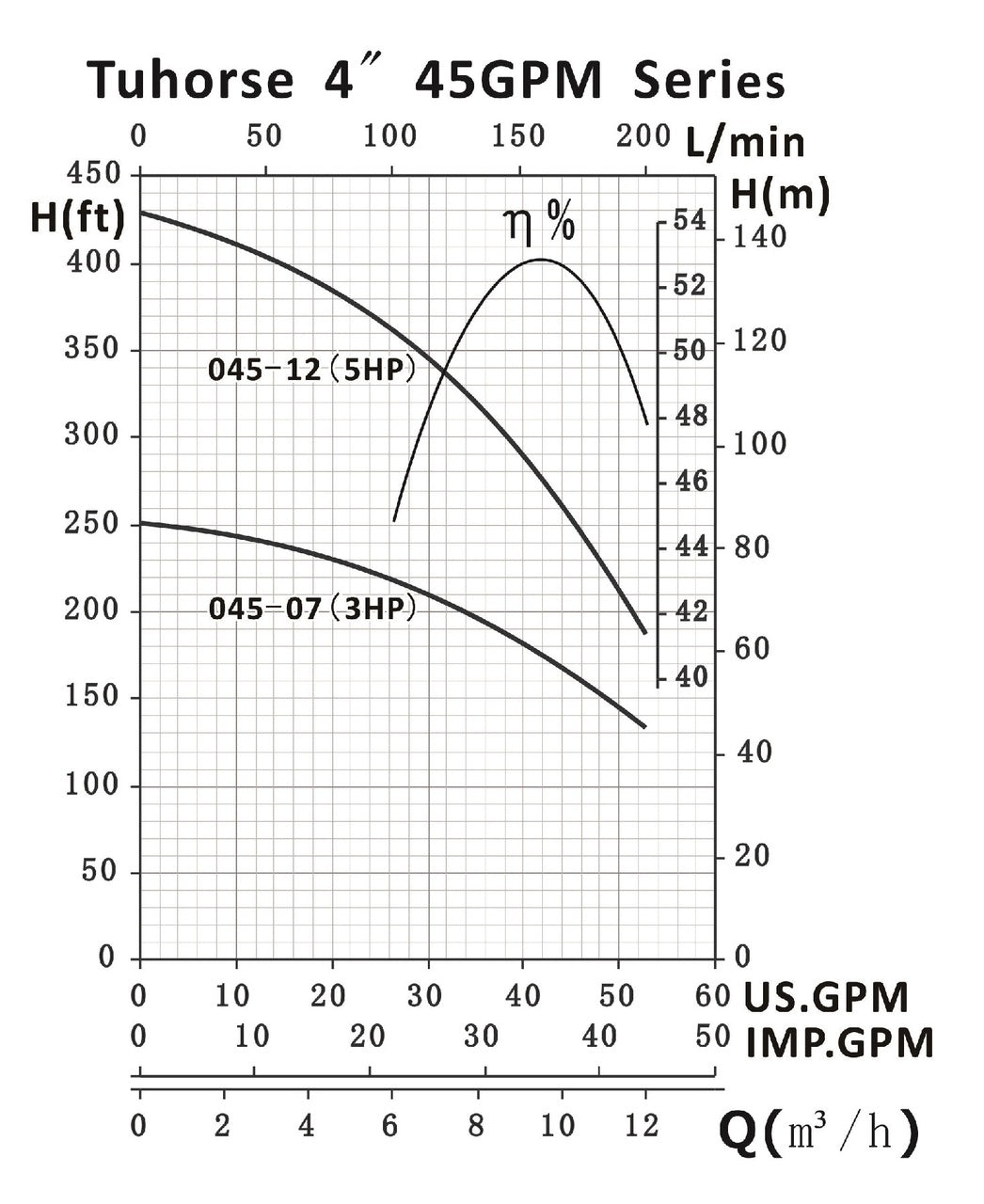

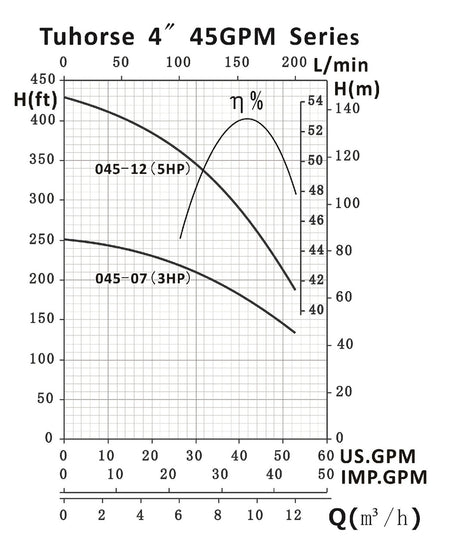

- Free Flow Rate: 33GPM @ 200ft; 40GPM @ 180ft; 45GPM @ 162ft; 48GPM @ 150ft; 54GPM @ 120ft;
- Suction Port: Center Suction
- Discharge Port: 2 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel 304
- Impeller Material: Thermal Plastic
- Motor Enclosure: Stainless steel 304
- Duty: Continuous or up to 30 restarting cycles / hour
- Control Panel: Optional
- Weight: 50.60 lbs
- Dimensions/Length: 41.5"
Warranty: 1 Year
